This part is NOT RECOMMENDED for new designs, as it's controller is going end-of-life. We've lowered the price to liquidate remaining inventory.

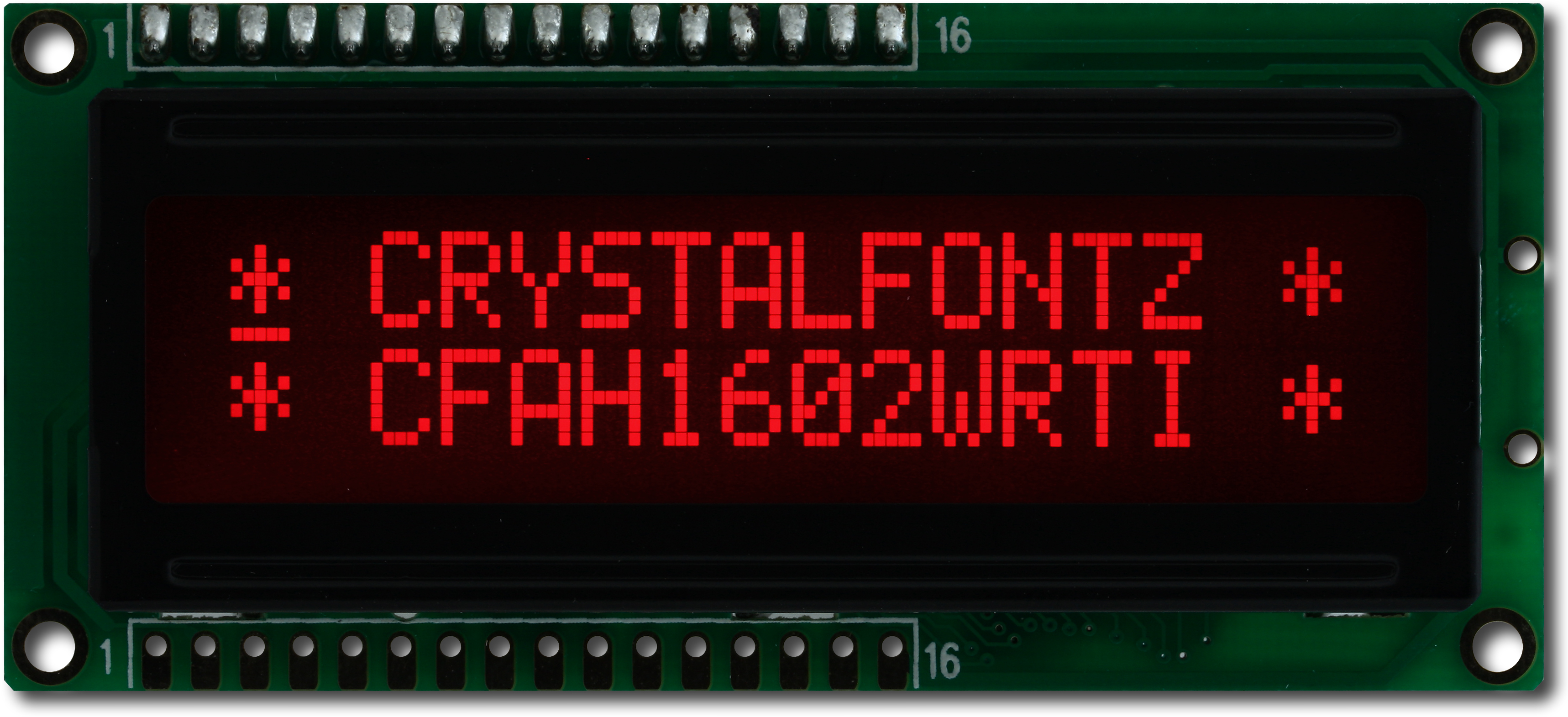

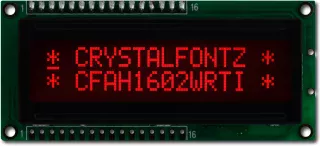

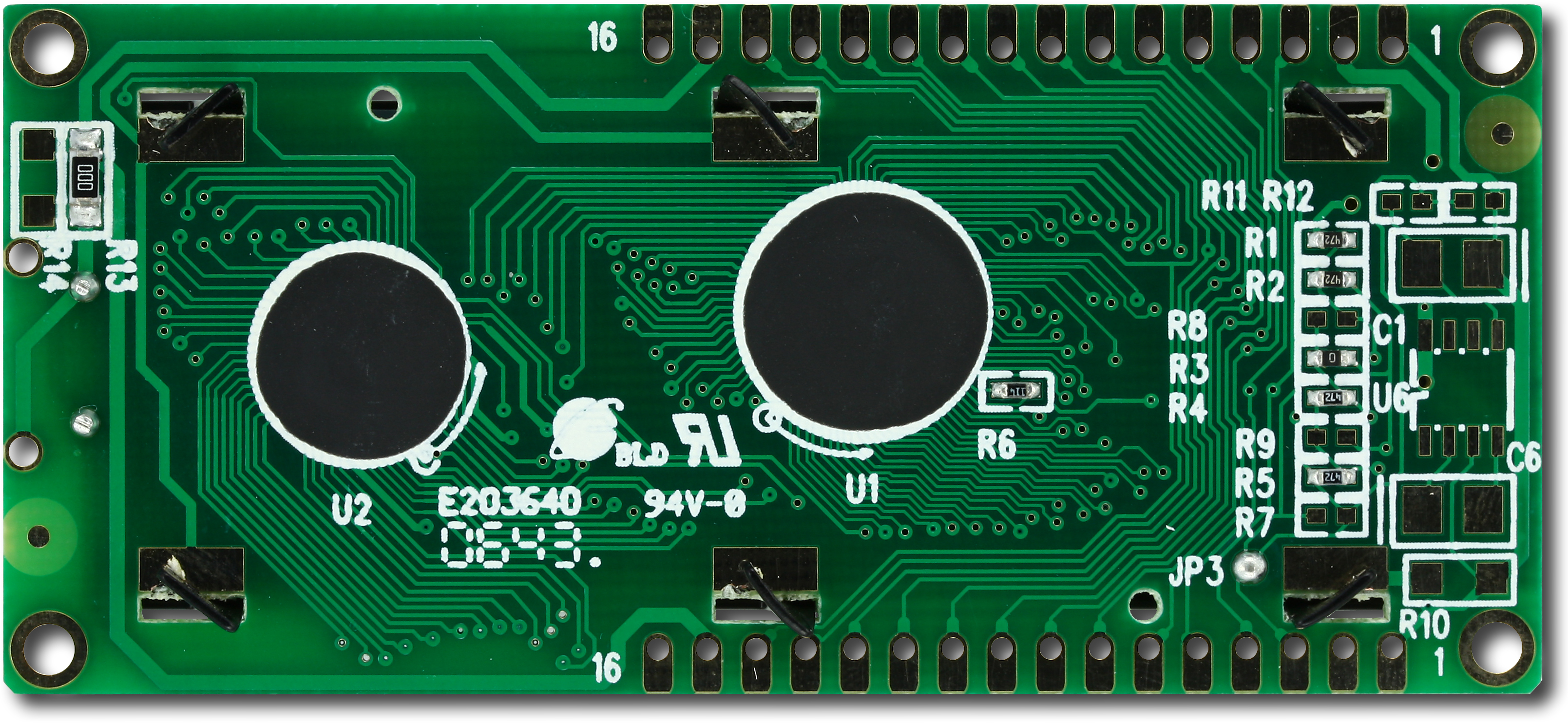

16x2 Parallel Character LCD

Part Number: CFAH1602W-RTI-JP

Pricing

Quantity Price
1 $4.35
Qty:


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet



Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAH1602W-RTI-JP or RSS RSS feed for changes to CFAH1602W-RTI-JP for CFAH1602W-RTI-JP


Description

Parallel Character LCD 16x2, RoHS Compliant, Red LED Backlight, FSTN Negative, Transmissive -20°C to +70°C 6:00

  • Fit and possibly form compatible with the CFAG14432B Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602W character display by switching to the graphic CFAG14432B
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller


Order soon! We've only got 8 left!

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

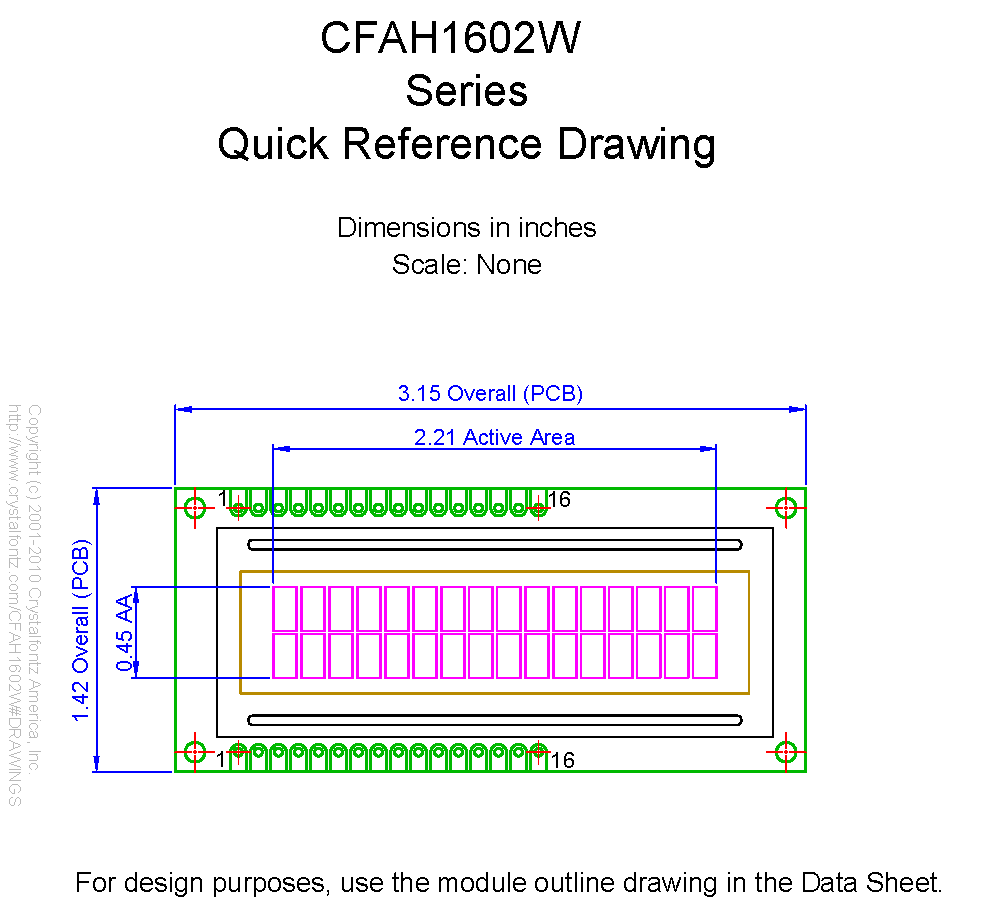

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height depth
millimeters 80 36 14
inches 3.150 1.417 0.551
PCB Outline width height depth
millimeters 80 36 14
inches 3.150 1.417 0.551
Viewing Area width height
millimeters 64.5 15.5
inches 2.539 0.610
Active Area width height
millimeters 56.2 11.5
inches 2.213 0.453
Character Size width height
millimeters 2.95 5.55
inches 0.116 0.219
Character Pitch width height
millimeters 3.55 5.95
inches 0.140 0.234
Dot Size width height
millimeters 0.55 0.65
inches 0.022 0.026
Dot Pitch width height
millimeters 0.6 0.7
inches 0.024 0.028
Weight 35g

Optical Characteristics

Glass Type/Glass Color FSTN/Black
Polarizer Transmissive
View Direction 6 o'clock
Backlight Color Red
Backlight Type LED
Mode Negative
Foreground Color Red
Background Color Dark

Electrical Specifications

Module Connector Pitch 0.1mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Sunplus SPLC780D
Interface 4-bit Parallel, 8-bit Parallel

*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAH1602W-RTI-JP or RSS RSS feed for changes to CFAH1602W-RTI-JP

Product Update #10875: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Products Affected: CFAH2002Z-YYH-JP, CFAH1602W-RTI-JP, CFAH1602W-YTI-JP, CFAH1602Z-NYG-ET, CFAH1602Z-TMI-ET
Date Issued: September 13, 2017
Summary: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.
Description:
Reason: The Sunplus display controller is being discontinued by the manufacturer.
Impact: No replacements will be offered for these parts.
Recommendation: Contact support@crystalfontz.com to explore other modules that may work for you.
Availability: Once current stocks are depleted these products will no longer be available.
