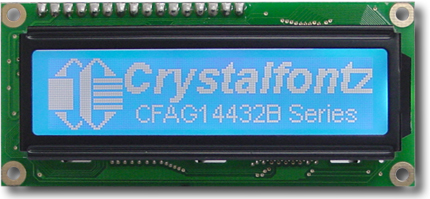

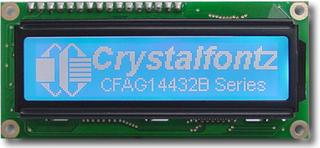

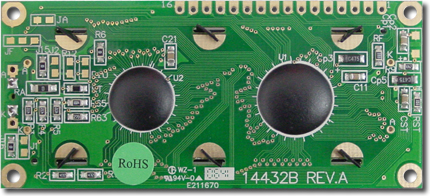

144x32 Parallel Graphic LCD

Part Number: CFAG14432B-TMI-TT

Product Variants


4-bit Parallel / 8-bit Parallel

Graphic LCD, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator, Temperature Compensation

  • Fit, form and function compatible with the CFAH1601A Series of Character LCD modules. Upgrade your product that uses a CFAH1601A character display by switching to this graphic CFAG14432B, or, lower your costs by replacing this graphic with that character module
  • Fit (except for JTV/JPV) and form compatible with the CFAH1602B Series of Character LCD modules. Upgrade your product that uses a CFAH1602B character display by switching to this graphic CFAG14432B, or, lower your costs by replacing this graphic with that character module
  • Fit, function and possibly form compatible with the CFAH1602W Series of Character LCD modules. Upgrade your product that uses the CFAH1602W character display by switching to this graphic CFAG14432B
  • 144x32 graphic LCD module
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • Built-in Sitronix ST7920 or compatible controller
  • 8-bit or 4-bit parallel interface

Need this module with 3.3v operation and / or a SPI interface? Contact us about availability.

Quantity 1 10 20 50 * 100 * 200 * 500 * 1000 *
Price $20.48 $19.88 $17.12 $15.26 $13.56 $12.32 $10.86 $9.88
Quantity Price
1 $20.48
10 $19.88
20 $17.12
50 * $15.26
100 * $13.56
200 * $12.32
500 * $10.86
1000 * $9.88
* Contact us about lead times on larger orders.
Quantity:


TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Column Dots x Row Dots 144 x 32
Module Overall width height depth
millimeters 80 36 13.2
inches 3.150 1.417 0.520
PCB Outline width height depth
millimeters 80 36 13.2
inches 3.150 1.417 0.520
Viewing Area width height
millimeters 66 16
inches 2.598 0.630
Active Area width height
millimeters 60.44 13.4
inches 2.380 0.528
Dot Size width height
millimeters 0.38 0.38
inches 0.015 0.015
Dot Pitch width height
millimeters 0.42 0.42
inches 0.017 0.017
Weight 33g

Optical Characteristics

Glass Type/Glass Color STN/Blue
Polarizer Transmissive
View Direction 6 o'clock
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color White
Background Color Blue

Electrical Specifications

Module Connector Pitch 0.1mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Sitronix ST7920
Interface 4-bit Parallel, 8-bit Parallel


*Suggest a Correction

Datasheets


Files


For reference only. For design purposes, please use the specifications in the datasheet.
