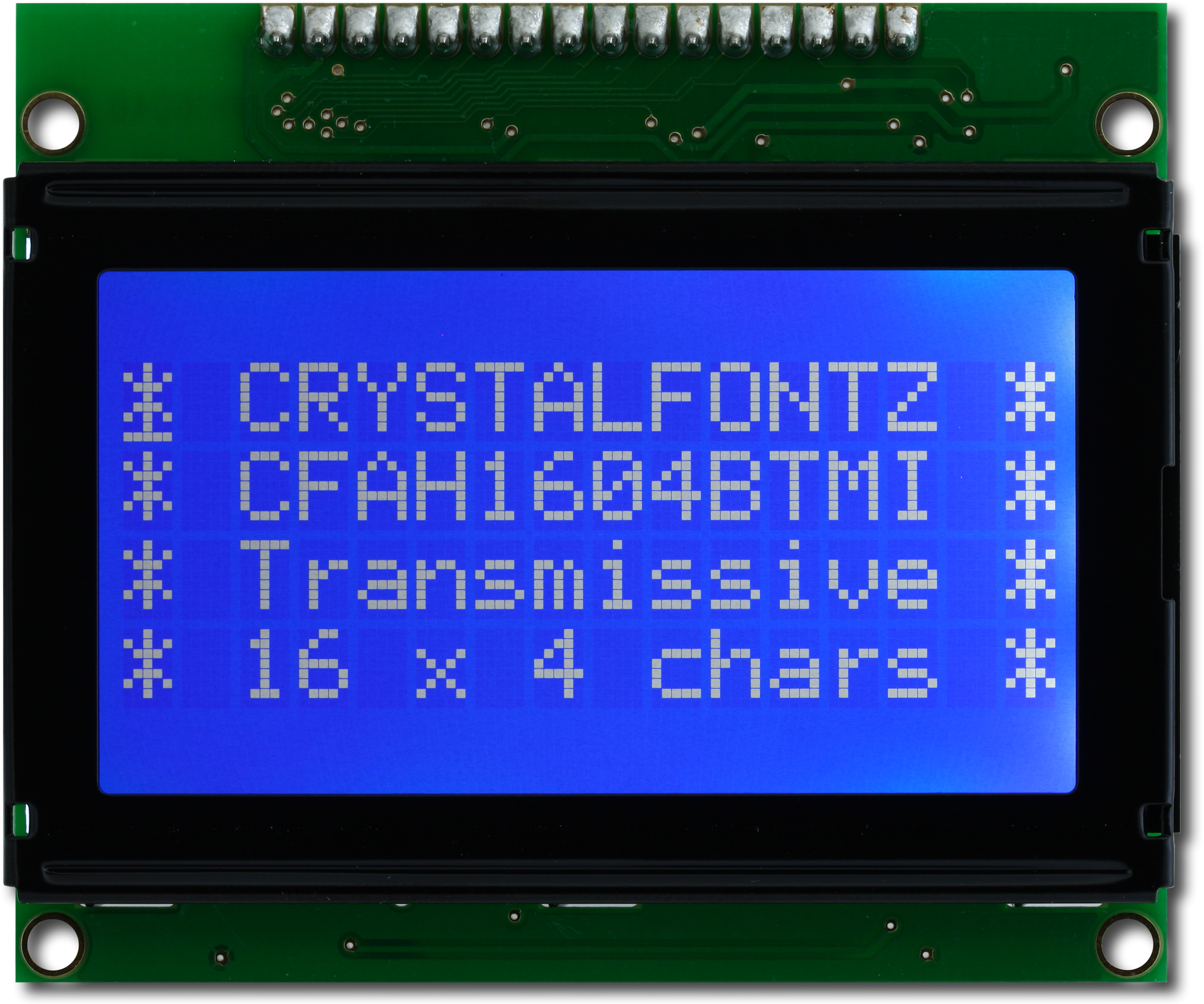

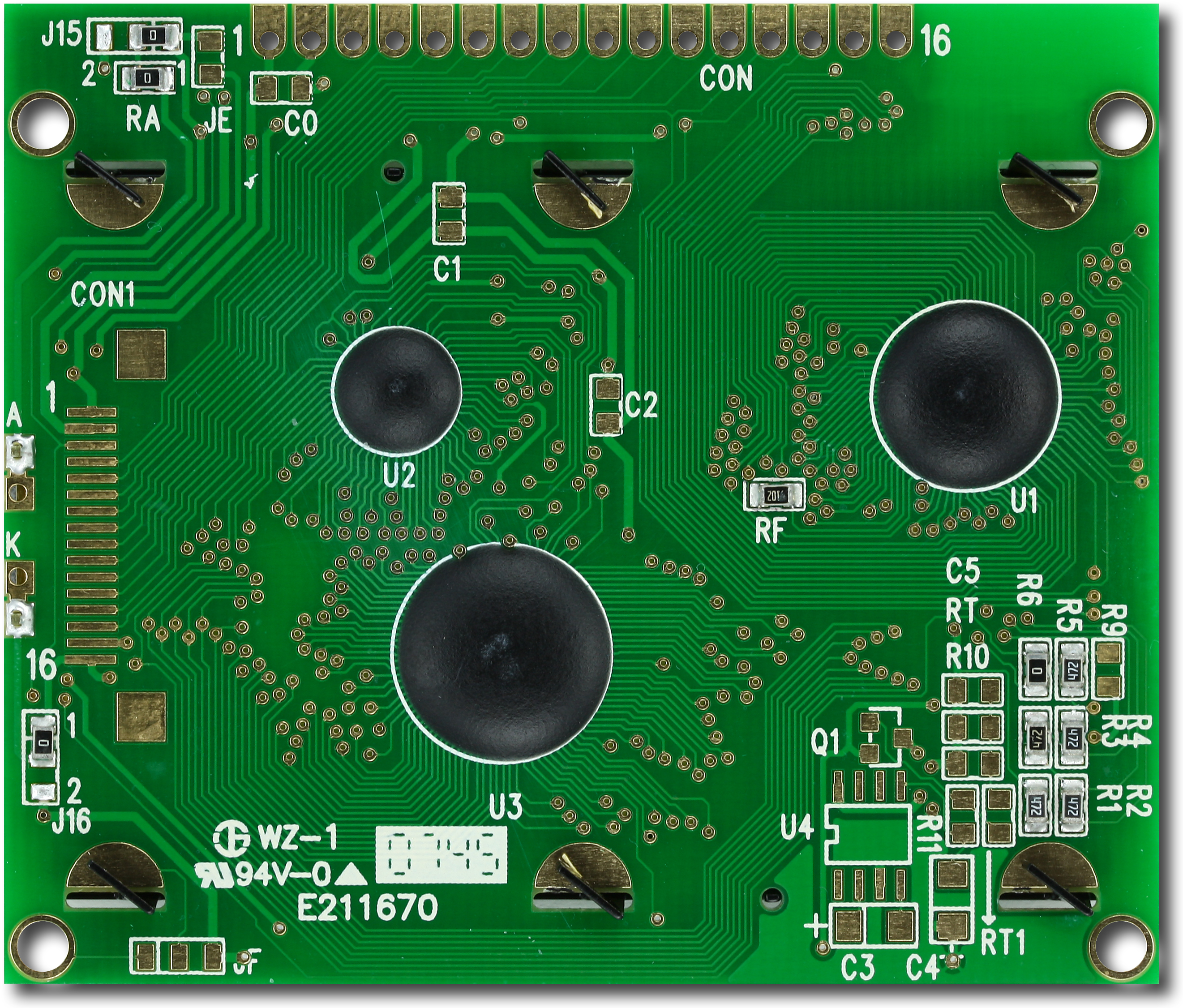

Transmissive 16x4 Character LCDPart Number: CFAH1604B-TMI-ETA parallel 16x4 character LCD module. Featuring a white edge LED backlight. This LCD has a super-twisted nematic (STN) negative display mode with blue glass and a transmissive polarizer. It operates within a temperature range of -20°C to +70°C and offers optimal viewing at a 6 o'clock viewing direction.
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED BacklightDark on Green
No Backlight

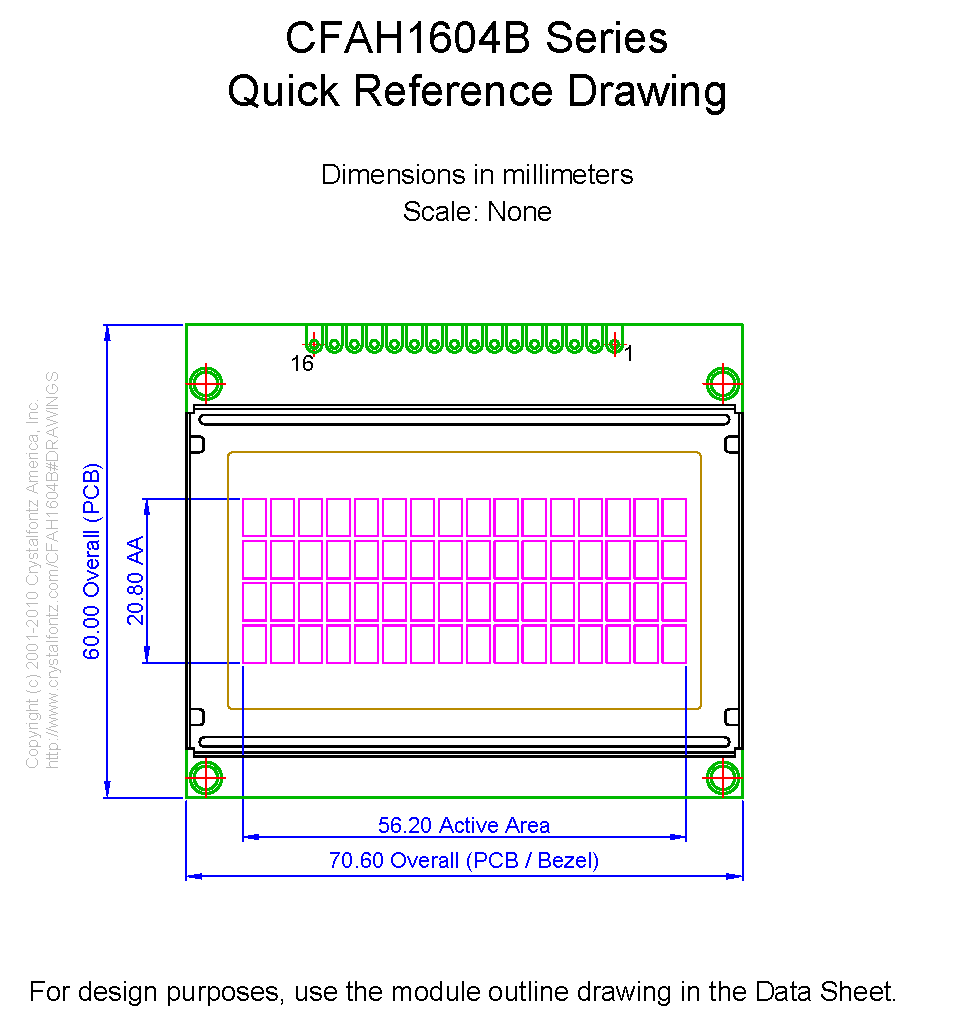

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 4

    Module Overall        width
        height
        depth

        millimeters
        70.6
        60
        8.9

        inches
        2.78
        2.36
        0.35

    PCB Outline        width
        height
        depth

        millimeters
        70.6
        60
        8.9

        inches
        2.78
        2.36
        0.35

        Diagonal Dimension
            2.36"

    Viewing Area        Width
        Height

        millimeters
        58.8
        31.4

        inches
        2.32
        1.24

    Active Area        Width
        Height

        millimeters
        56.2
        20.8

        inches
        2.21
        0.82

    Character Size        Width
        Height

        millimeters
        2.95
        4.75

        inches
        0.116
        0.187

    Character Pitch        Width
        Height

        millimeters
        3.55
        5.35

        inches
        0.140
        0.211

    Dot Size        Width
        Height

        millimeters
        0.55
        0.55

        inches
        0.022
        0.022

    Dot Pitch        Width
        Height

        millimeters
        0.6
        0.6

        inches
        0.024
        0.024

        Weight
            34g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1604BTMIET Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAH1604BTMIET.pdf

 download Files and Downloads
folder_zip CAD Export - CFAH1604B 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1604B 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $15.16

            10
            $13.37

            20
            $12.93

            50 *
            $12.48

            100 *
            $12.29

            200 *
            $12.20

            300 *
            $11.58

            500 *
            $11.49

            1000 *
            $10.61

24 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.

Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight Dark on Green No Backlight

Module Overall	width	height	depth
millimeters	70.6	60	8.9
inches	2.78	2.36	0.35

PCB Outline	width	height	depth
millimeters	70.6	60	8.9
inches	2.78	2.36	0.35

Viewing Area	Width	Height
millimeters	58.8	31.4
inches	2.32	1.24

Active Area	Width	Height
millimeters	56.2	20.8
inches	2.21	0.82

Character Size	Width	Height
millimeters	2.95	4.75
inches	0.116	0.187

Character Pitch	Width	Height
millimeters	3.55	5.35
inches	0.140	0.211

Dot Size	Width	Height
millimeters	0.55	0.55
inches	0.022	0.022

Dot Pitch	Width	Height
millimeters	0.6	0.6
inches	0.024	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$15.16
10	$13.37
20	$12.93
50 *	$12.48
100 *	$12.29
200 *	$12.20
300 *	$11.58
500 *	$11.49
1000 *	$10.61
