This product is discontinued please contact support to see if there is a replacement part available.

Home » Products » Character LCD Displays » Character X Lines » 20x2 Character

20x2 Parallel Character LCD

Part Number: CFAH2002A-NYG-JPV

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAH2002A-NYG-JPV or RSS RSS feed for changes to CFAH2002A-NYG-JPV for CFAH2002A-NYG-JPV

Compliance Documents

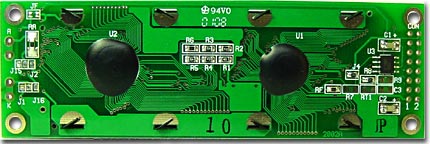

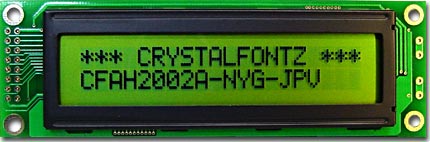

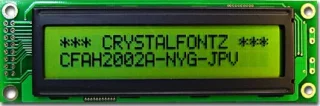

20x2 Parallel Character LCD (CFAH2002A-NYG-JPV)
20x2 Parallel Character LCD
Close

Description

Parallel Character LCD 20x2, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator

  • Form compatible with the CFAG19232C Series of Graphic LCD modules. Upgrade your product that uses this CFAH2002A character display by switching to the graphic CFAG19232C, or, lower your costs by replacing that graphic with this character module
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller

TECHNICAL SPECS

Physical Characteristics

Characters x Lines 20 x 2
Module Overall width height depth
millimeters 116 37 9.5
inches 4.567 1.457 0.374
PCB Outline width height depth
millimeters 116 37 9.5
inches 4.567 1.457 0.374
Viewing Area width height
millimeters 85 18.6
inches 3.346 0.732
Active Area width height
millimeters 73.5 11.5
inches 2.894 0.453
Character Size width height
millimeters 3.2 5.55
inches 0.126 0.219
Character Pitch width height
millimeters 3.7 5.95
inches 0.146 0.234
Dot Size width height
millimeters 0.6 0.65
inches 0.024 0.026
Dot Pitch width height
millimeters 0.65 0.7
inches 0.026 0.028
Weight 52g

Optical Characteristics

Glass Type/Glass Color STN/Yellow-Green
Polarizer Reflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Type None
Mode Positive
Foreground Color Dark
Background Color Yellow-Green

Electrical Specifications

Module Connector Pitch 0.1mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Sitronix ST7066U
ST7066U
Dot Matrix LCD Controller/Driver
Sitronix ST7066U

Interface 4-bit Parallel, 8-bit Parallel
