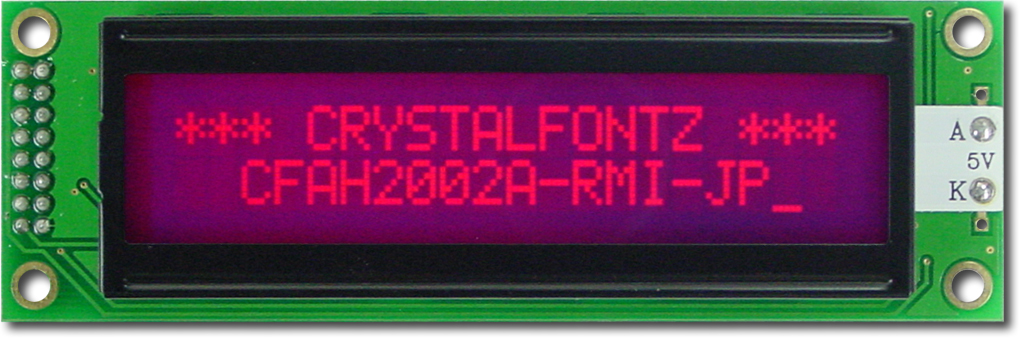

Red 20x2 Character LCD (EOL)

Part Number: CFAH2002A-RMI-JP

Parallel Character LCD 20x2, RoHS Compliant, Red LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00

Please look at the CFAG19232C, which is a 192x32 graphic LCD module that is mechanically compatible with the standard CFAH2002A 20x2 character modules.

  • Form compatible with the CFAG19232C Series of Graphic LCD modules. Upgrade your product that uses this CFAH2002A character display by switching to the graphic CFAG19232C, or, lower your costs by replacing that graphic with this character module
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • square_foot Physical Characteristics

    Physical Characteristics

    Characters x Lines 20 x 2
    Module Overall width height depth
    millimeters 116 37 13.9
    inches 4.57 1.46 0.55
    PCB Outline width height depth
    millimeters 116 37 13.9
    inches 4.57 1.46 0.55
    Viewing Area Width Height
    millimeters 85 18.6
    inches 3.35 0.73
    Active Area Width Height
    millimeters 73.5 11.5
    inches 2.89 0.45
    Character Size Width Height
    millimeters 3.2 5.55
    inches 0.126 0.219
    Character Pitch Width Height
    millimeters 3.7 5.95
    inches 0.146 0.234
    Dot Size Width Height
    millimeters 0.6 0.65
    inches 0.024 0.026
    Dot Pitch Width Height
    millimeters 0.65 0.7
    inches 0.026 0.028
    Weight 52g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color STN/Blue
    Polarizer Transmissive
    View Direction 6 o'clock
    Backlight Color Red
    Backlight Type LED
    Mode Negative
    Foreground Color Red
    Background Color Dark
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Controller Documents Hitachi HD44780
    1985: HD44780 Historical Data Sheet
    Interface 4-bit Parallel, 8-bit Parallel
  • picture_as_pdf Datasheets
  • download Files and Downloads
