                        To keep this part in production we have revised it to the CFAH2002A1-YMI-JT. Please contact support with any questions.

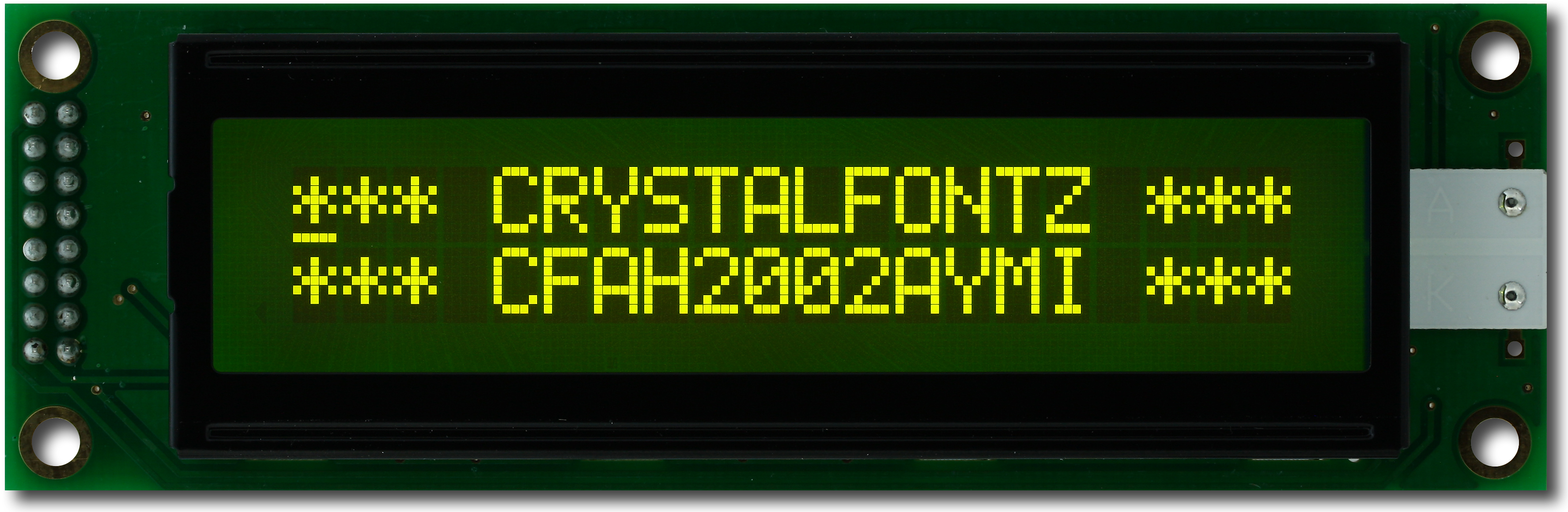

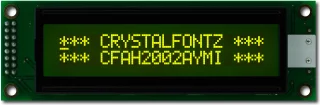

Yellow-Green 20x2 Character LCDPart Number: CFAH2002A-YMI-JT2x20 Character display, STN Negative Blue, Transmissive.
Yellow/Green LED Backlight.
6:00 o'clock view direction.
8-bit or 4-bit parallel interface.
Industry-standard Hitachi  HD44780 compatible controller: (Sitronix ST7066U)
Operating temperature range is from -20°C to +70°C.
If you use this character module and want to upgrade to a graphic module we recommend the CFAG19232C Series of graphic LCD displays.
 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            20 x 2

    Module Overall        width
        height
        depth

        millimeters
        116
        37
        13.9

        inches
        4.57
        1.46
        0.55

    PCB Outline        width
        height
        depth

        millimeters
        116
        37
        13.9

        inches
        4.57
        1.46
        0.55

        Diagonal Dimension
            2.93"

    Viewing Area        Width
        Height

        millimeters
        85
        18.6

        inches
        3.35
        0.73

    Active Area        Width
        Height

        millimeters
        73.5
        11.5

        inches
        2.89
        0.45

    Character Size        Width
        Height

        millimeters
        3.2
        5.55

        inches
        0.126
        0.219

    Character Pitch        Width
        Height

        millimeters
        3.7
        5.95

        inches
        0.146
        0.234

    Dot Size        Width
        Height

        millimeters
        0.6
        0.65

        inches
        0.024
        0.026

    Dot Pitch        Width
        Height

        millimeters
        0.65
        0.7

        inches
        0.026
        0.028

        Weight
            52g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Negative
Foreground Color
            Yellow-Green
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAH2002AYMIJT Datasheet

download Files and Downloads
folder_zip CAD Export - CFAH2002A 2D CAD
picture_as_pdf 1 to 1 Template - CFAH2002A 1 TO 1.PDF
link Demo Code Repository on Github

Compatible Software
CFAHWINTEST

Module Overall	width	height	depth
millimeters	116	37	13.9
inches	4.57	1.46	0.55

PCB Outline	width	height	depth
millimeters	116	37	13.9
inches	4.57	1.46	0.55

Viewing Area	Width	Height
millimeters	85	18.6
inches	3.35	0.73

Active Area	Width	Height
millimeters	73.5	11.5
inches	2.89	0.45

Character Size	Width	Height
millimeters	3.2	5.55
inches	0.126	0.219

Character Pitch	Width	Height
millimeters	3.7	5.95
inches	0.146	0.234

Dot Size	Width	Height
millimeters	0.6	0.65
inches	0.024	0.026

Dot Pitch	Width	Height
millimeters	0.65	0.7
inches	0.026	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11297: Yellow-Green 20x2 Character LCD is now available.

Product Affected:	CFAH2002A-YMI-JT
Date Issued:	October 1, 2024
Summary:	Yellow-Green 20x2 Character LCD is now available.
Description:	The change sent in PCN#11269 has been completed and the replacement part, CFAH2002A1-YMI-JT, has been released for sale on our website. Orders for CFAH2002A1-YMI-JT can be placed directly on our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions. The new product can be found here: https://www.crystalfontz.com/product/cfah2002a1ymijt-character-module-lcd-20x2

End-Of-Life #11269: Backlight Modification Requiring New Part Numbers

Products Affected:	CFAG19232C-YYH-TT, CFAH1604A-TMI-JT, CFAH2002A-TFH-JT, CFAH2002A-TMI-JT, CFAH2002A-YMI-JT, CFAH2002A-YMI-JTV, CFAH2002A-YYH-JT, CFAH2002A-YYH-JTV
Date Issued:	May 7, 2024
Summary:	Backlight Modification Requiring New Part Numbers
Description:	The backlight is being modified to improve manufacturability. The part numbers are being updated to reflect this change. Contact support@crystalfontz.com for comprehensive details on the change.
Reason:	To improve the manufacturability of these displays.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Product Update #10941: The parts listed are being updated.

Products Affected:	CFAH2002A-NGG-JT, CFAH2002A-NYG-JT, CFAH2002A-NYG-JTV, CFAH2002A-TFH-JT, CFAH2002A-TMI-JT, CFAH2002A-YMI-JT, CFAH2002A-YYH-JT, CFAH2002A-YYH-JTV
Date Issued:	March 23, 2018
Summary:	The parts listed are being updated.

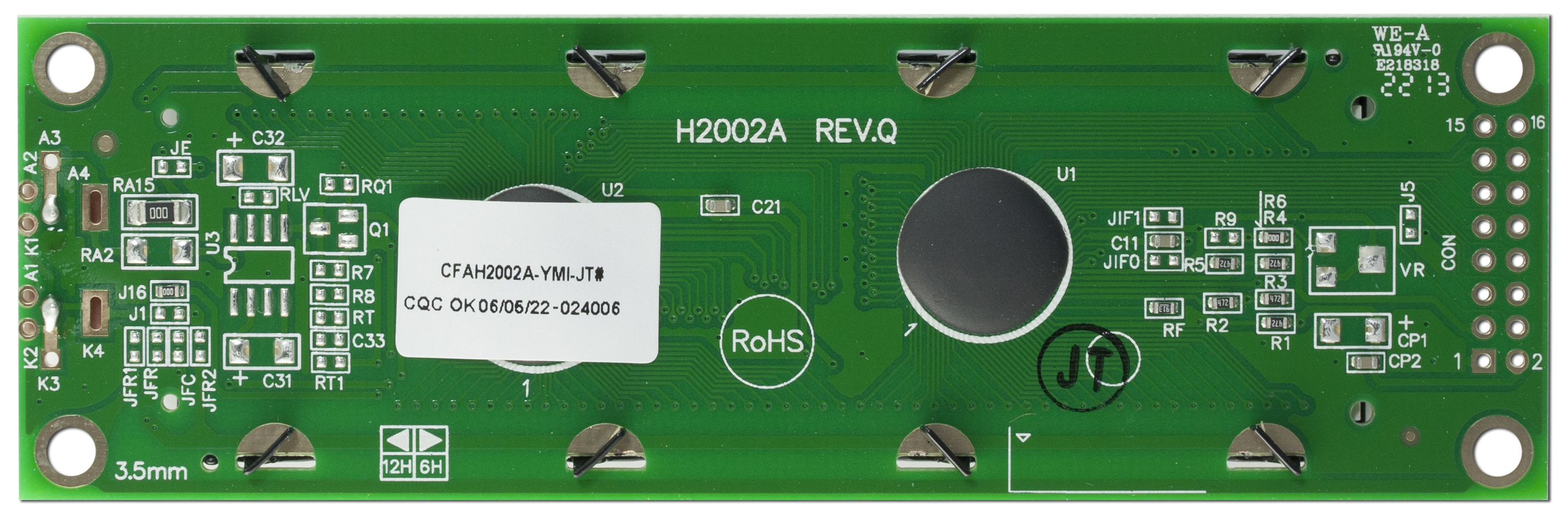

Description:	The PCB will be revised to improve manufacturability and performance. The PCB will be marked as REV Q.
Reason:	Continuous product improvement
Impact:	There is no impact. The functionality of the module will not change.
Recommendation:	None
Availability:	Modules with the revised PCBs will be available when current stocks are depleted.
Price Change:	TBD
Response:	None Required
