[EOL] Transflective 20x2 Character LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Character

                        This product has reached end of life.

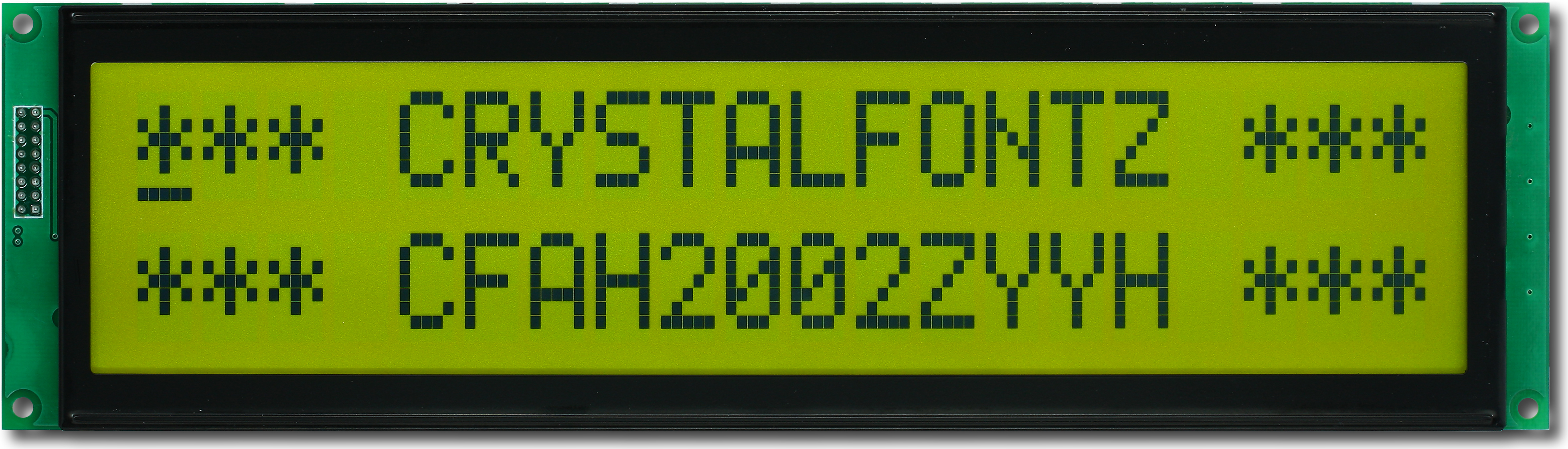

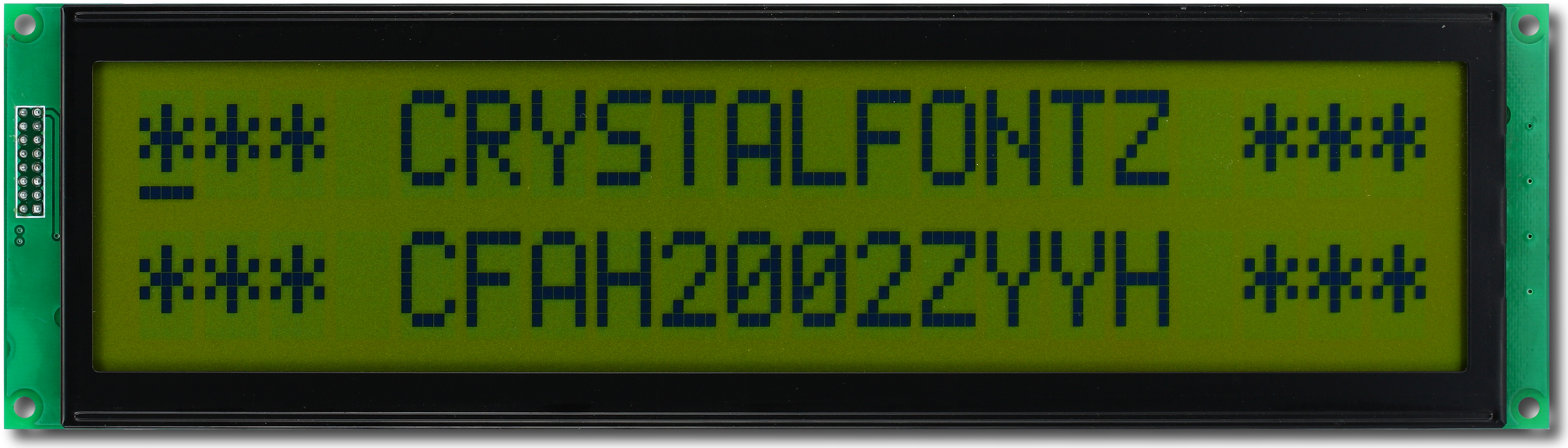

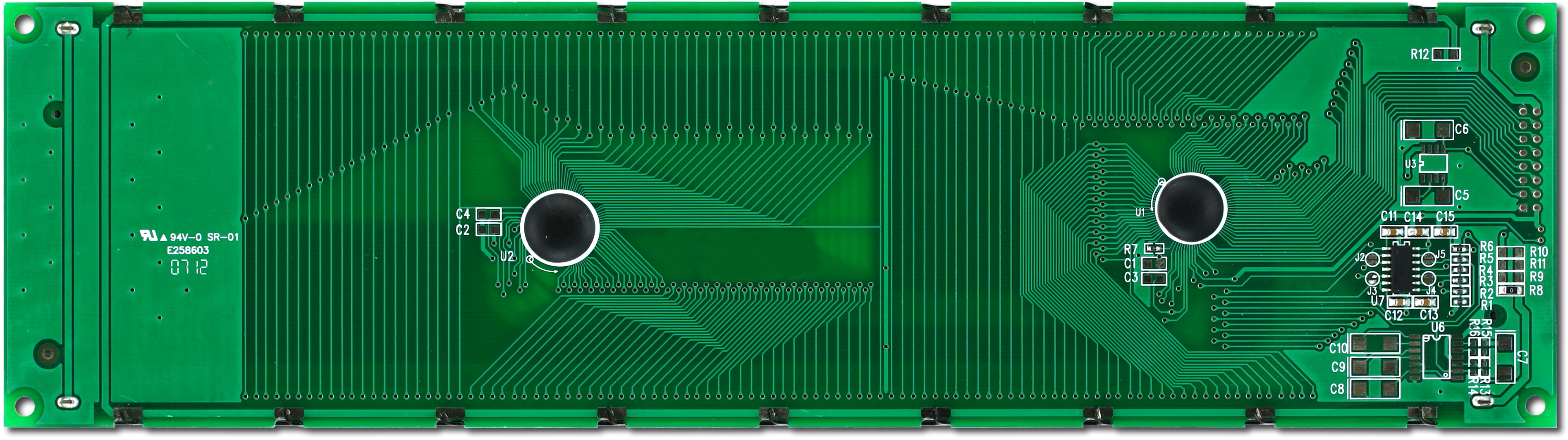

[EOL] Transflective 20x2 Character LCDPart Number: CFAH2002Z-YYH-JPParallel Character LCD 20x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00
Very large characters
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            20 x 2

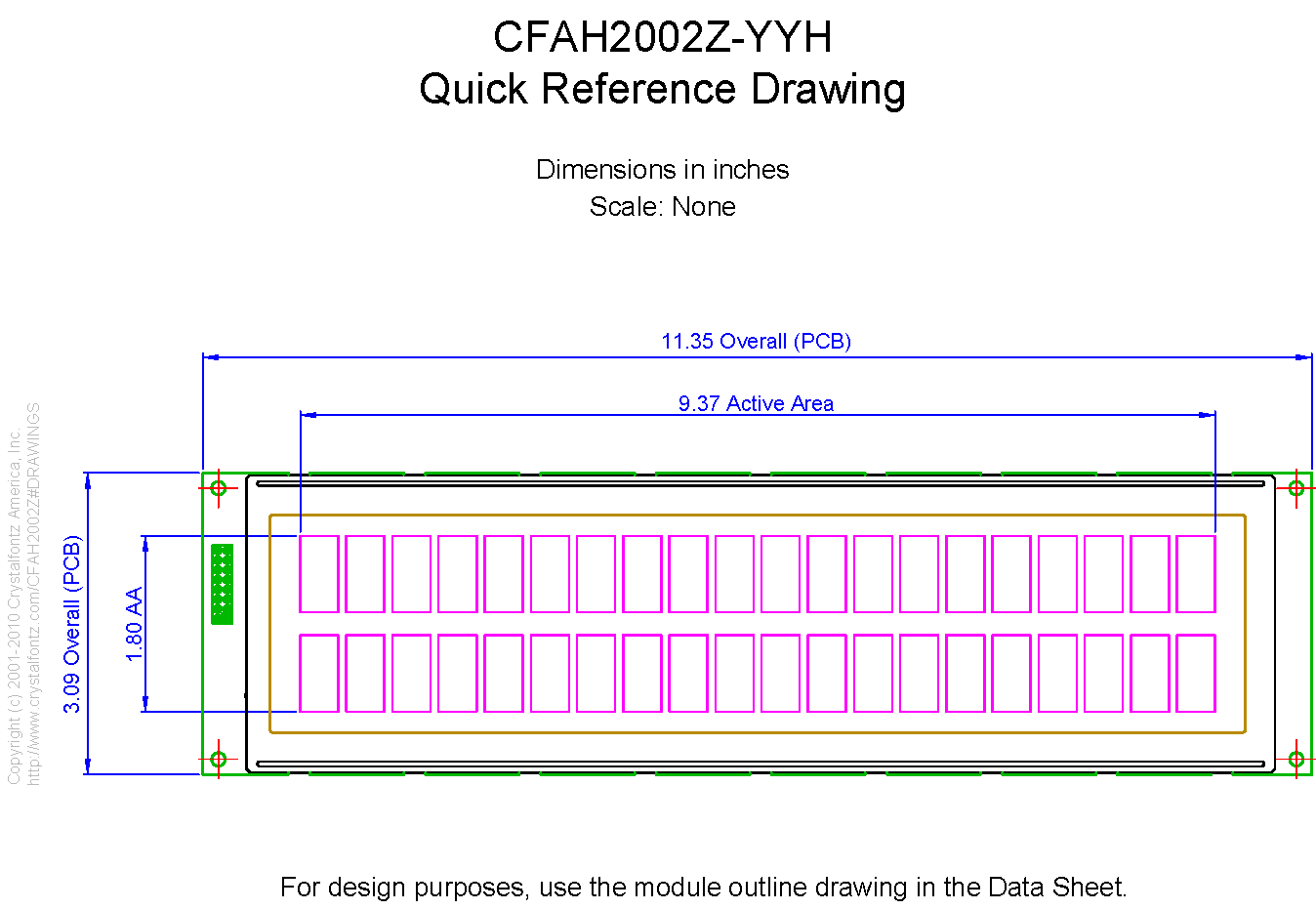

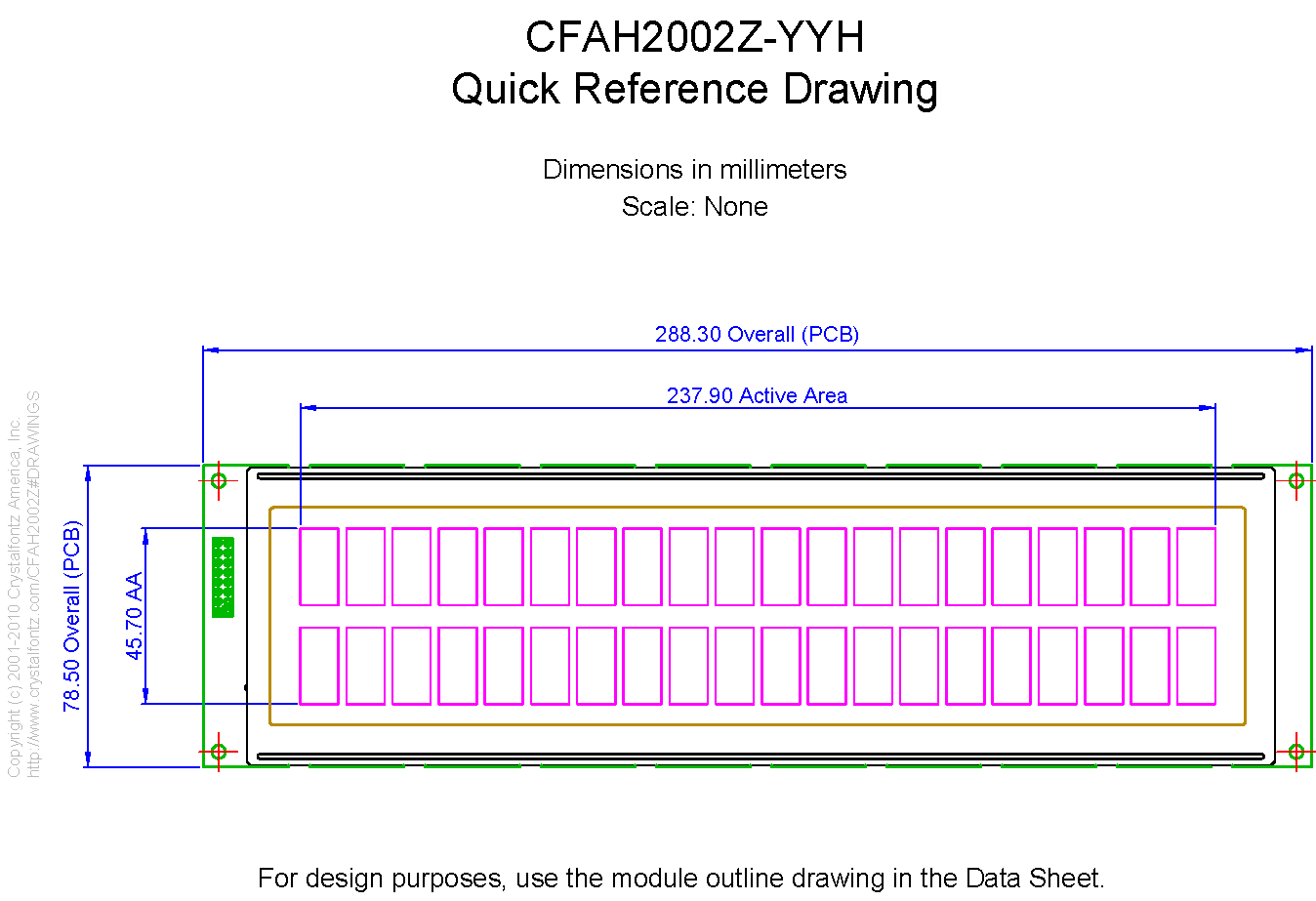

    Module Overall        width
        height
        depth

        millimeters
        288.3
        78.5
        14

        inches
        11.35
        3.09
        0.55

    PCB Outline        width
        height
        depth

        millimeters
        288.3
        78.5
        14

        inches
        11.35
        3.09
        0.55

        Diagonal Dimension
            9.54"

    Viewing Area        Width
        Height

        millimeters
        253.8
        56.6

        inches
        9.99
        2.23

    Active Area        Width
        Height

        millimeters
        237.9
        45.7

        inches
        9.37
        1.80

    Character Size        Width
        Height

        millimeters
        9.9
        19.9

        inches
        0.390
        0.783

    Character Pitch        Width
        Height

        millimeters
        12:00
        25.8

        inches
        0.472
        1.016

    Dot Size        Width
        Height

        millimeters
        1.9
        2.4

        inches
        0.075
        0.094

    Dot Pitch        Width
        Height

        millimeters
        2
        2.5

        inches
        0.079
        0.098

        Weight
            320g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAH2002Z-YYH-JP Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAH2002ZYYHJP.pdf

download Files and Downloads
folder_zip CAD Export - CFAH2002Z 2D CAD
picture_as_pdf 1 to 1 Template - Left Side
picture_as_pdf 1 to 1 Template - Right Side

Compatible Software
CFAHWINTEST

Module Overall	width	height	depth
millimeters	288.3	78.5	14
inches	11.35	3.09	0.55

PCB Outline	width	height	depth
millimeters	288.3	78.5	14
inches	11.35	3.09	0.55

Viewing Area	Width	Height
millimeters	253.8	56.6
inches	9.99	2.23

Active Area	Width	Height
millimeters	237.9	45.7
inches	9.37	1.80

Character Size	Width	Height
millimeters	9.9	19.9
inches	0.390	0.783

Character Pitch	Width	Height
millimeters	12:00	25.8
inches	0.472	1.016

Dot Size	Width	Height
millimeters	1.9	2.4
inches	0.075	0.094

Dot Pitch	Width	Height
millimeters	2	2.5
inches	0.079	0.098

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10875: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Products Affected:	CFAH2002Z-YYH-JP, CFAH1602W-RTI-JP, CFAH1602W-YTI-JP, CFAH1602Z-NYG-ET, CFAH1602Z-TMI-ET
Date Issued:	September 13, 2017
Summary:	This part will soon be End of Life and no longer available. There is no cross reference or substitute part.
Description:
Reason:	The Sunplus display controller is being discontinued by the manufacturer.
Impact:	No replacements will be offered for these parts.
Recommendation:	Contact support@crystalfontz.com to explore other modules that may work for you.
Availability:	Once current stocks are depleted these products will no longer be available.
