This product is discontinued and has been replaced by CFAH2004A-NYG-JT

20x4 Parallel Character LCD

Part Number: CFAH2004A-NYG-JP

Datasheet

CFAH2004ANYGJT Datasheet
(Datasheet V A0)

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAH2004A-NYG-JP or RSS RSS feed for changes to CFAH2004A-NYG-JP for CFAH2004A-NYG-JP

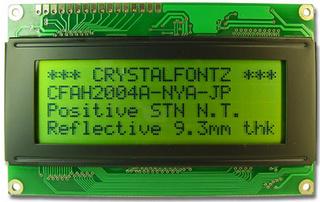

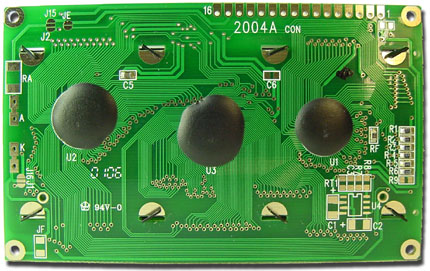

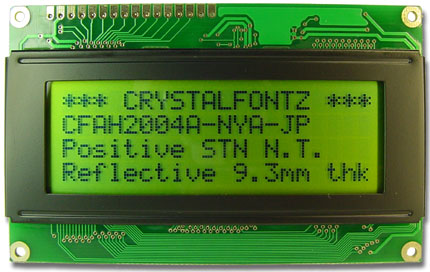

20x4  Parallel Character LCD (CFAH2004A-NYG-JP)
20x4 Parallel Character LCD
Close

Description

Parallel Character LCD 20x4, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C to +70°C 6:00

  • Available in several variations of backlight and polarizer (minimum order may be required)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller

TECHNICAL SPECS

Physical Characteristics

Characters x Lines 20 x 4
Module Overall width height depth
millimeters 98 60 13.9
inches 3.858 2.362 0.547
PCB Outline width height depth
millimeters 98 60 13.9
inches 3.858 2.362 0.547
Viewing Area width height
millimeters 77 25.2
inches 3.031 0.992
Active Area width height
millimeters 70.4 20.8
inches 2.772 0.819
Character Size width height
millimeters 3.2 5.55
inches 0.126 0.219
Character Pitch width height
millimeters 3.7 5.95
inches 0.146 0.234
Dot Size width height
millimeters 0.6 0.65
inches 0.024 0.026
Dot Pitch width height
millimeters 0.65 0.7
inches 0.026 0.028
Weight 52g

Optical Characteristics

Glass Type/Glass Color STN/Yellow-Green
Polarizer Reflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Type None
Mode Positive
Foreground Color Dark
Background Color Yellow-Green

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents Sunplus SPLC780D
16COM/40SEG Controller/Driver
Interface 4-bit Parallel, 8-bit Parallel
For reference only. For design purposes, please use the specifications in the datasheet.
