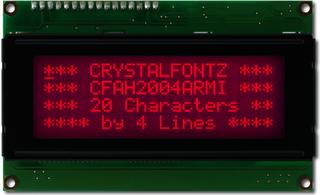

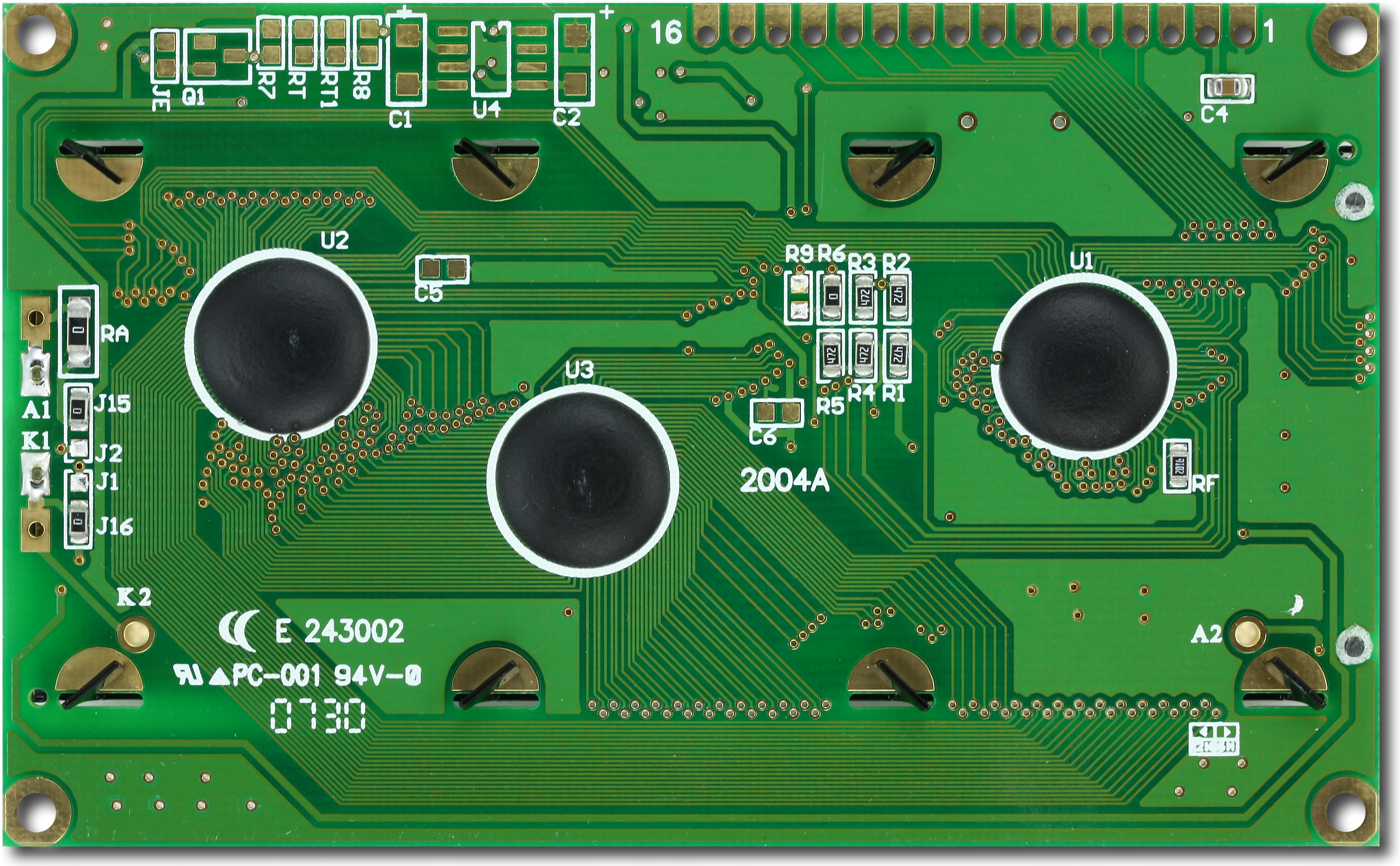

[EOL] Red 20x4 Parallel Character LCD

Part Number: CFAH2004A-RMI-JT

Parallel Character LCD 20x4, RoHS Compliant, Red LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C, 6:00

  • Available in several variations of backlight and polarizer (minimum order may be required)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • square_foot Physical Characteristics

    Physical Characteristics

    Characters x Lines 20 x 4
    Module Overall width height depth
    millimeters 98 60 13.6
    inches 3.858 2.362 0.535
    PCB Outline width height depth
    millimeters 98 60 13.6
    inches 3.858 2.362 0.535
    Viewing Area Width Height
    millimeters 77 25.2
    inches 3.031 0.992
    Active Area Width Height
    millimeters 70.4 20.8
    inches 2.772 0.819
    Character Size Width Height
    millimeters 2.95 4.75
    inches 0.116 0.187
    Character Pitch Width Height
    millimeters 3.55 5.35
    inches 0.140 0.211
    Dot Size Width Height
    millimeters 0.55 0.55
    inches 0.022 0.022
    Dot Pitch Width Height
    millimeters 0.6 0.6
    inches 0.024 0.024
    Weight 52g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color STN/Blue
    Polarizer Transmissive
    View Direction 6 o'clock
    Backlight Color Red
    Backlight Type LED
    Mode Negative
    Foreground Color Red
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Module Connector Pitch 0.10mm
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics

    Electronics

    Controller Documents Sitronix ST7066U
    ST7066U
    Dot Matrix LCD Controller/Driver
    Sitronix ST7066U

    Sitronix ST7066U
    Dot Matrix LCD Controller/Driver
    Interface 4-bit Parallel, 8-bit Parallel
  • picture_as_pdf Datasheets
  • download Files and Downloads
While we do not offer any direct replacements for this product, perhaps one of our many other CFAH displays will fit your needs. Feel free to contact our tech support team to get assistance in finding the right display.
