This product is discontinued and has been replaced by CFAH2004A-YYH-JTE

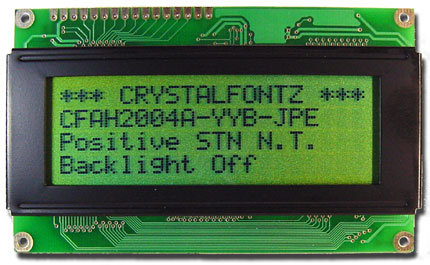

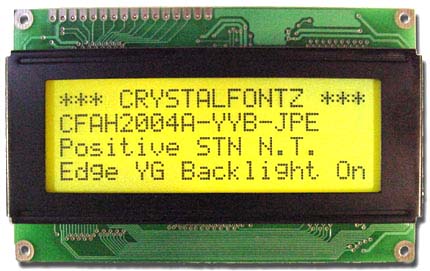

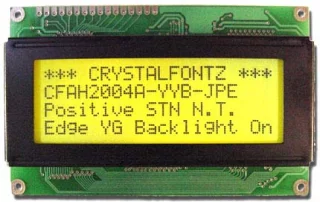

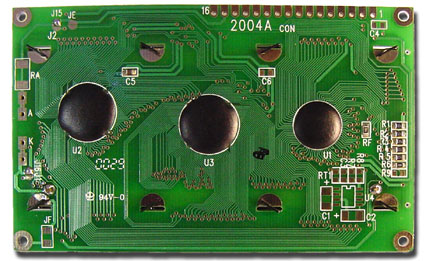

20x4 Parallel Character LCD
Part Number: CFAH2004A-YYH-JPE
Datasheet
Description
Parallel Character LCD 20x4, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00, Edge Style Backlight
- Available in several variations of backlight and polarizer (minimum order may be required)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
TECHNICAL SPECS
For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics
| Characters x Lines | 20 x 4 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 98 | 60 | 13.6 |
| inches | 3.858 | 2.362 | 0.535 |
| PCB Outline | width | height | depth |
|---|---|---|---|
| millimeters | 98 | 60 | 13.6 |
| inches | 3.858 | 2.362 | 0.535 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 77 | 25.2 |
| inches | 3.031 | 0.992 |
| Active Area | width | height |
|---|---|---|
| millimeters | 70.4 | 20.8 |
| inches | 2.772 | 0.819 |
| Character Size | width | height |
|---|---|---|
| millimeters | 2.95 | 4.75 |
| inches | 0.116 | 0.187 |
| Character Pitch | width | height |
|---|---|---|
| millimeters | 3.55 | 5.35 |
| inches | 0.140 | 0.211 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.55 | 0.55 |
| inches | 0.022 | 0.022 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.6 | 0.6 |
| inches | 0.024 | 0.024 |
| Weight | 52g |
Optical Characteristics
| Glass Type/Glass Color | STN/Yellow-Green |
| Polarizer | Transflective |
| View Direction | 6 o'clock |
| Sunlight Readable | Yes |
| Backlight Color | Yellow-Green |
| Backlight Type | LED |
| Mode | Positive |
| Foreground Color | Dark |
| Background Color | Yellow-Green |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller Documents | Sunplus SPLC780D 16COM/40SEG Controller/Driver |
| Interface | 4-bit Parallel, 8-bit Parallel |
