This product is discontinued and has been replaced by CFAH2402A-TMI-JT

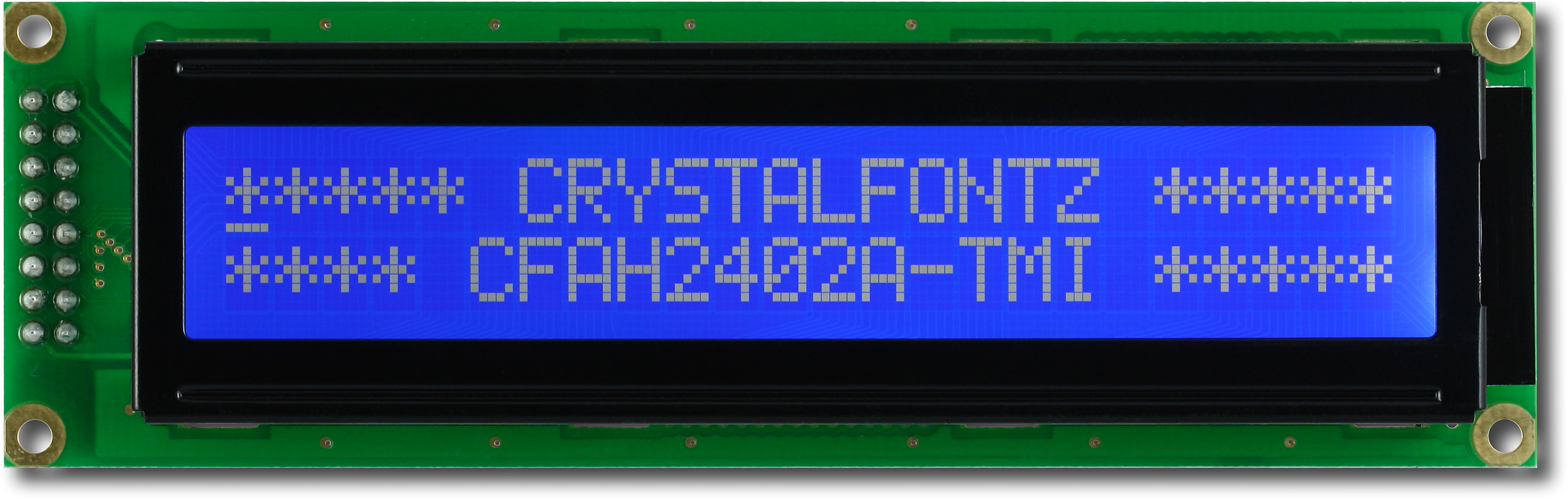

[EOL] 24x2 Character Standard Blue LCD
Part Number: CFAH2402A-TMI-JP
![[EOL] 24x2 Character Standard Blue LCD (CFAH2402A-TMI-JP)](/images/products/CFAH2402ATMIJP/CFAH2402ATMI_large.jpg)

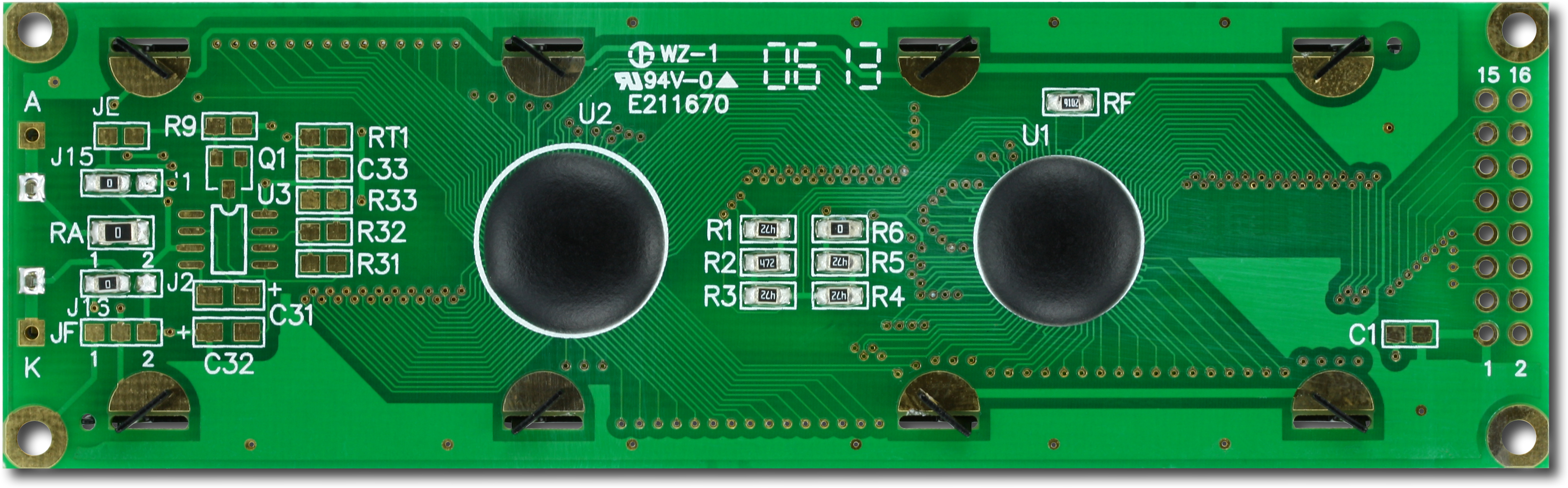

Datasheet
TECHNICAL SPECS
Physical Characteristics
| Characters x Lines | 24 x 2 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 118 | 36 | 13.6 |
| inches | 4.646 | 1.417 | 0.535 |
| PCB Outline | width | height | depth |
|---|---|---|---|
| millimeters | 118 | 36 | 13.6 |
| inches | 4.646 | 1.417 | 0.535 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 94.5 | 16 |
| inches | 3.720 | 0.630 |
| Active Area | width | height |
|---|---|---|
| millimeters | 88.3 | 11.5 |
| inches | 3.476 | 0.453 |
| Character Size | width | height |
|---|---|---|
| millimeters | 3.2 | 5.55 |
| inches | 0.126 | 0.219 |
| Character Pitch | width | height |
|---|---|---|
| millimeters | 3.7 | 5.95 |
| inches | 0.146 | 0.234 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.6 | 0.65 |
| inches | 0.024 | 0.026 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.65 | 0.7 |
| inches | 0.026 | 0.028 |
| Weight | 58g |
Optical Characteristics
| Glass Type/Glass Color | STN/Blue |
| Polarizer | Transmissive |
| View Direction | 6 o'clock |
| Backlight Color | White |
| Backlight Type | LED |
| Mode | Negative |
| Foreground Color | White |
| Background Color | Blue |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller Documents | Sunplus SPLC780D 16COM/40SEG Controller/Driver |
| Interface | 4-bit Parallel, 8-bit Parallel |
Compatible Software:
For reference only. For design purposes, please use the specifications in the datasheet.
