128x32 I2C Graphic OLED Module with ZIF Connector from Crystalfontz

Product

Home » Products » OLED Displays » Graphic

                        This display is no longer available and has been replaced with this small white monochrome OLED display.

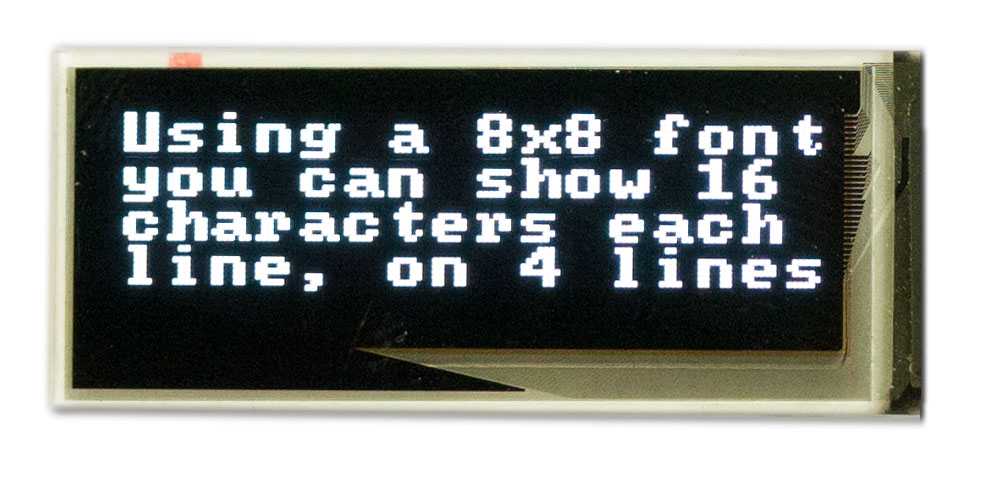

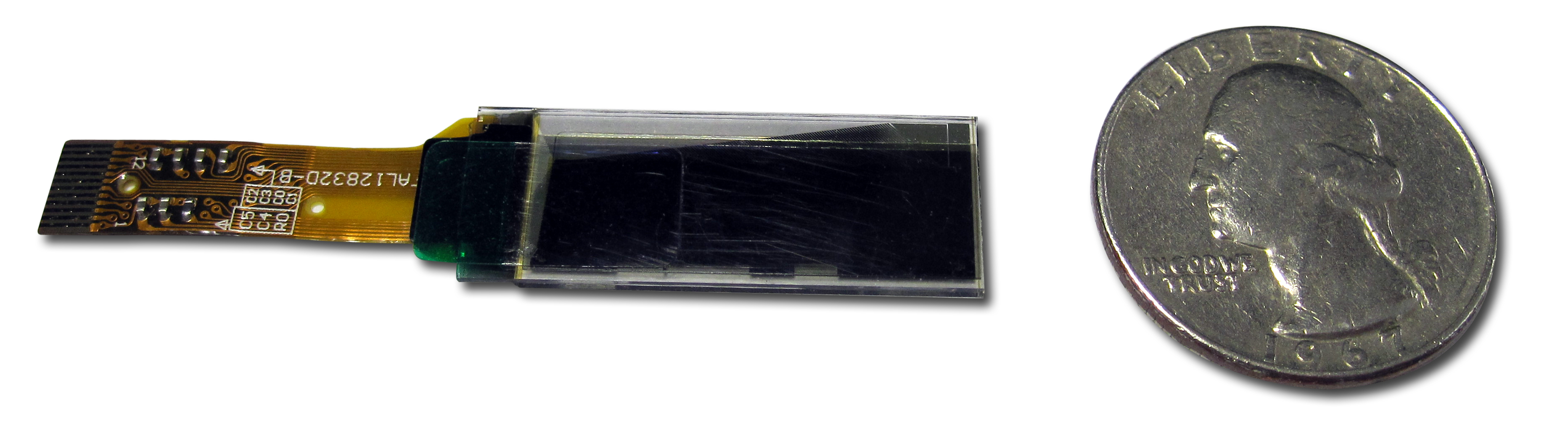

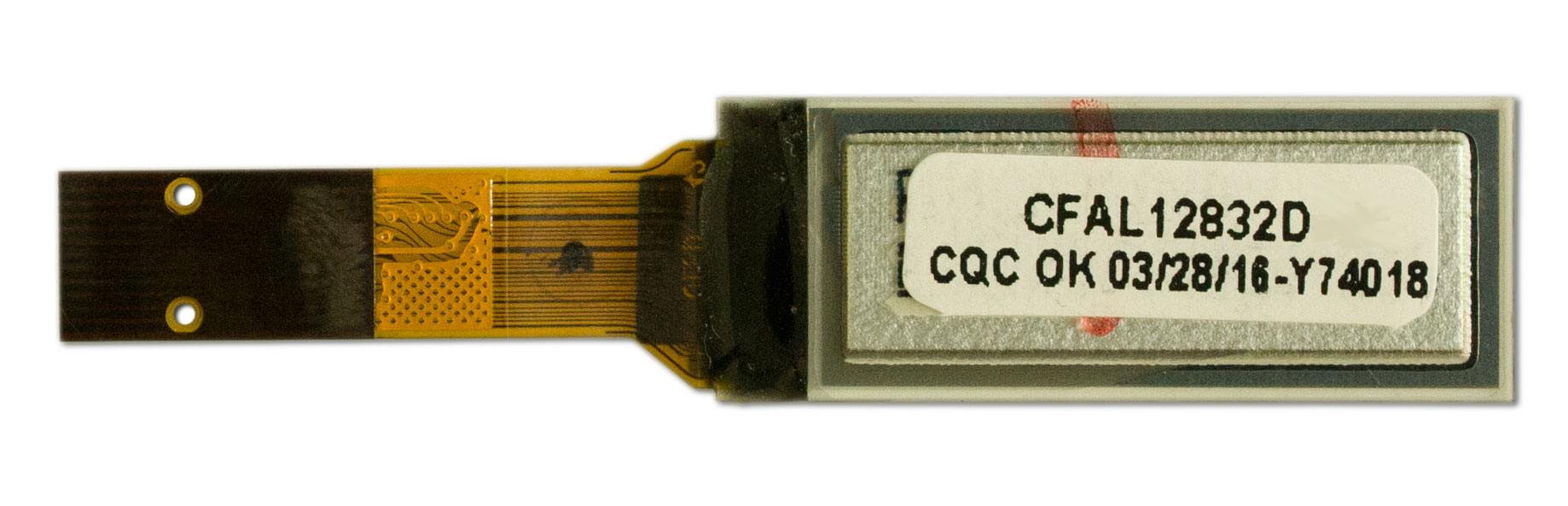

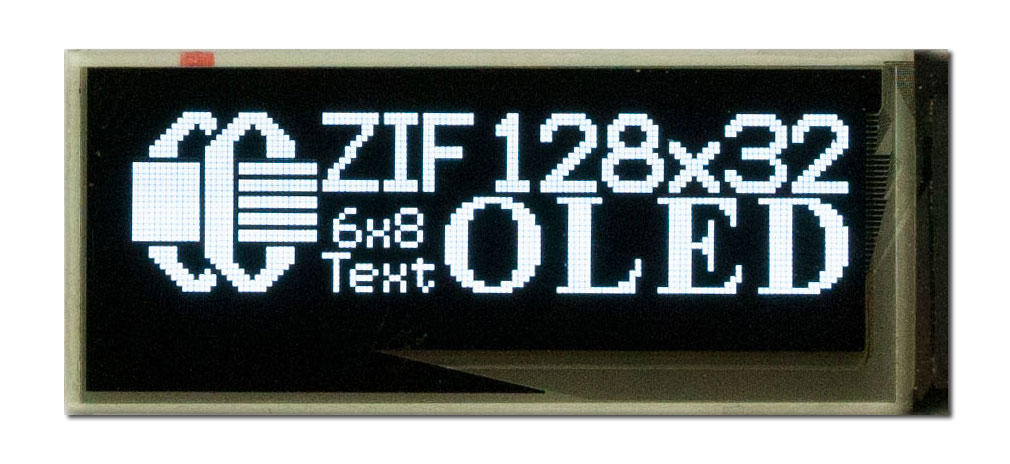

128x32 I2C Graphic OLED Module with ZIF ConnectorPart Number: CFAL12832D-BSuper popular small oled! This white-on-black OLED is perfect for display panels that have little space and need a high resolution 128x32 graphic display. With a 24.38mm x 7.58mm viewing area, this is one of the smallest OLEDs available.
Thin form factor! 1.45mm
Solomon Systech SSD1306 or compatible controller communicates with I2C, 3-wire SPI, or 4-wire SPI
Only 3.3v

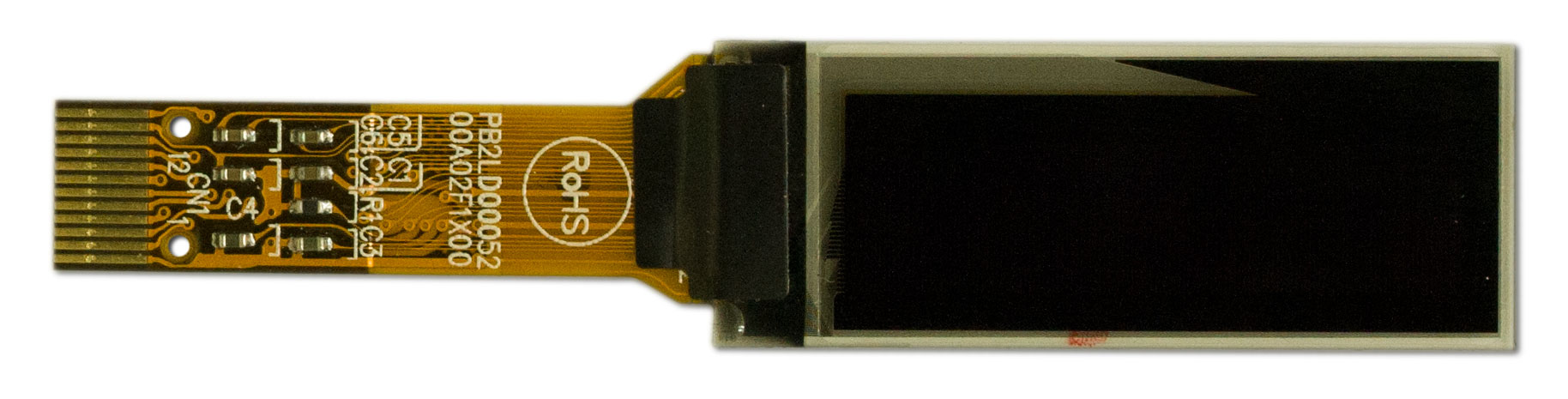

Easy ZIF connection. The FPC mates with a 12-pin ZIF connector, which can be processed through your normal SMT reflow.
Typical mating ZIF connectors can be found here: Bottom Contact and Top Contact.
The Solomon Systech SSD1306 controller needs only a single 3.3v supply for power and logic levels for communication, making it a top choice in low power or battery powered applications. The 3 wire / 4 wire SPI or I2C serial interfaces require only 12 lines. Coupled with a ZIF connection (0.50mm pitch), connecting this module to your host device is a simple task.
Do you need a carrier board to speed up your development? We have the CFA10054 OLED carrier board for this display.
This OLED display  has the same connector as these other displays: 64x48 Small Graphic OLED and Small 48x64 .71inch OLED Display.
Product Variations

 square_foot Physical Characteristics

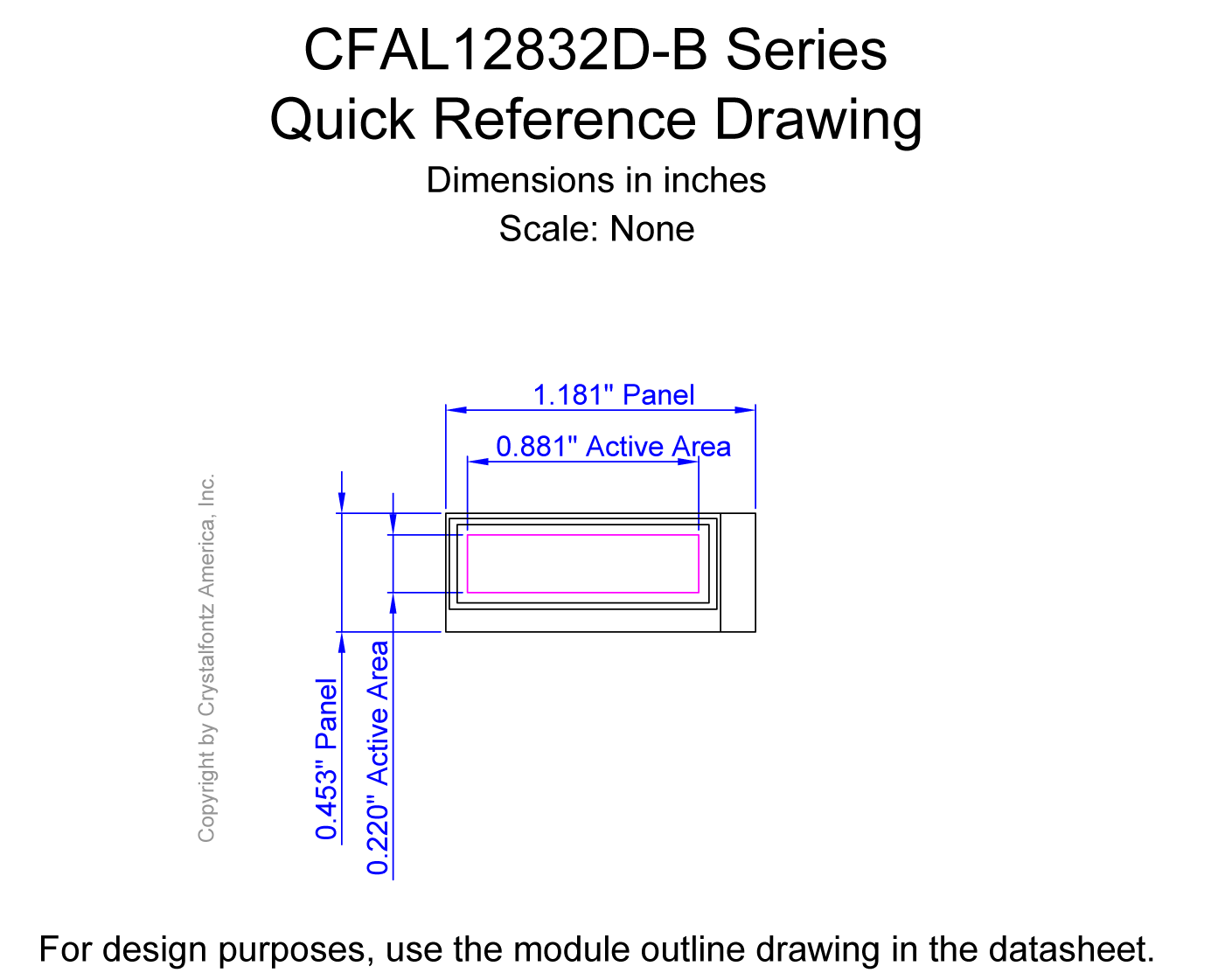

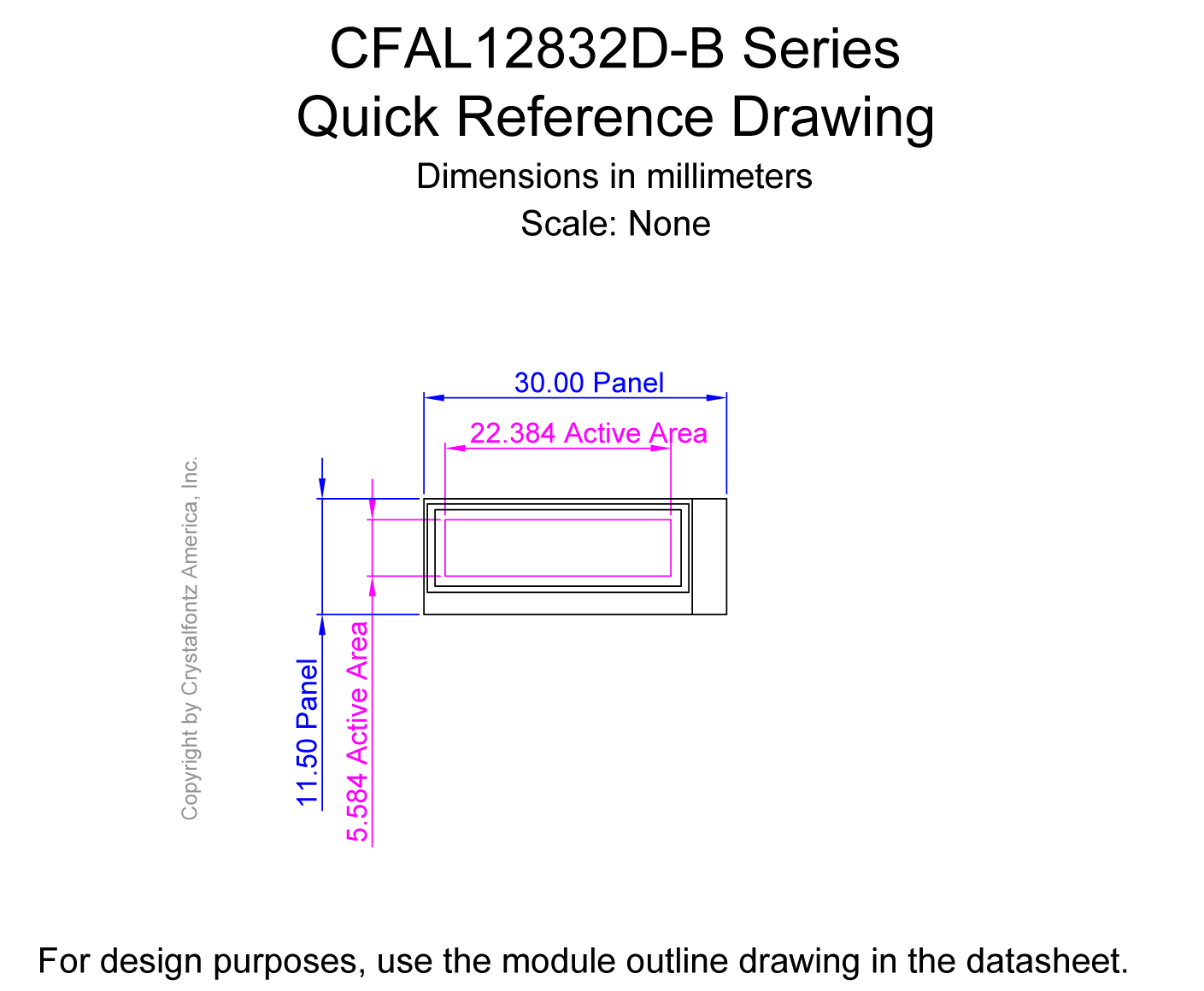

Physical Characteristics

        Column Dots x Row Dots
            128 x 32

    Module Overall        width
        height
        depth

        millimeters
        30
        11.5
        1.45

        inches
        1.18
        0.45
        0.06

*width / height does not include Foldable Tab

        Diagonal Dimension
            0.91"

    Viewing Area        Width
        Height

        millimeters
        24.38
        7.58

        inches
        0.96
        0.30

    Active Area        Width
        Height

        millimeters
        22.38
        5.58

        inches
        0.88
        0.22

    Dot Size        Width
        Height

        millimeters
        0.152
        0.152

        inches
        0.0060
        0.0060

    Dot Pitch        Width
        Height

        millimeters
        0.175
        0.175

        inches
        0.0069
        0.0069

    Flexible Cable (FFC/FPC)        length

        millimeters
        24.99

        inches
        0.984

        Weight
            1.3g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive
View Angle
            160°

        Foreground Color
            White
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.8V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            3.3V

        Supply Current Maximum
            16mA
Supply Current Typical
            13mA
Module Connector Pitch
            0.5mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1306
SSD1306 128 x 64 Dot Matrix

OLED/PLED Segment/Common Driver with Controller
Interface
            I2C, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAL12832DB Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAL12832D-B Datasheet Release 2015-07-16.pdf

picture_as_pdfCFAL12832D-B Preliminary Datasheet.pdf

download Files and Downloads
folder_zip Software Source - Seeeduino v4.2 (3.3v Arduino) SPI/ I2C Sketch
folder_zip Software Source - ATMega2561 3-wire, 4-wire and I2C Demo Code
folder_zip Software Source - ATMega2561 Demo Code for all interfaces
folder_zip Hardware Design - 3D STEP Files
folder_zip CAD Export - CFAL12832D-B Series 2D CAD
picture_as_pdf 1 to 1 Template - CFAL12832D-B* Series 1 to 1 Module Outline
picture_as_pdf Other Document - CFAL12832D-B Pin out to Interface table

Module Overall	width	height	depth
millimeters	30	11.5	1.45
inches	1.18	0.45	0.06
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	24.38	7.58
inches	0.96	0.30

Active Area	Width	Height
millimeters	22.38	5.58
inches	0.88	0.22

Dot Size	Width	Height
millimeters	0.152	0.152
inches	0.0060	0.0060

Dot Pitch	Width	Height
millimeters	0.175	0.175
inches	0.0069	0.0069

Flexible Cable (FFC/FPC)	length
millimeters	24.99
inches	0.984

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Humidity	min	max
Non-condensing	0%	90%

Additional Options
Notices

Additional Options

In addition to the white-on-black OLED above, the CFAL12832D-B* series includes the two variants shown below.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11020: Part Change Notification

Products Affected:	CFAL12832D-B, CFAL12832D-CW, CFAL12832D-CY, CFAL12832D-PW, CFAL12832D-PY, CFAL12832D-BY, CFAL12832D-BB
Date Issued:	November 1, 2018
Summary:	Part Change Notification
Description:	The parts listed are being replaced by new part numbers.
Reason:	The glass used in these displays is being replaced by thinner more efficient glass.
Impact:	The part numbers listed will be replaced by new part numbers. The operation of the displays will not change. The overall thickness of each of the displays will decrease by 0.05mm. The part number changes are: CFAL12832D-CW - EOL CFAL12832D-PY - EOL CFAL12832D-PW - CFAL12832B-0091P-W CFAL12832D-B - CFAL12832B-0091B-W CFAL12832D-BB - CFAL12832B-0091B-B CFAL12832D-BY - CFAL12832B-0091B-Y CFAL12832D-CY - EOL
Recommendation:	Users are recommended to verify that the change in the thickness dimension will not affect the installation of the displays.
Availability:	The new parts will be available when current stock is depleted.

Product Update #10696: CFAL12832D-B REVISED FOR MANUFACTURING & QUALITY IMPROVEMENTS

Product Affected:	CFAL12832D-B
Date Issued:	April 29, 2016
Summary:	CFAL12832D-B REVISED FOR MANUFACTURING & QUALITY IMPROVEMENTS
Description:	The CFAL12832D-B display was revised for manufacturing and quality improvements. All electrical connections remain the same. All important mechanical dimensions remain the same. The mating connector is unchanged. The recommended initialization code for the SSD1306 controller has been updated. Please refer to the sample code under the Datasheets & Files tab on the display's web page. https://www.crystalfontz.com/product/CFAL12832DB GOOD NEWS: Due to the popularity of this display, we've added two additional variants, blue-on-black and yellow-on-black. These displays can be seen under Additional Options on the CFAL12832D-B web page.
Impact:	All orders for these displays will be shipped with inventory that matches the specifications in the revised datasheet: https://www.crystalfontz.com/products/document/3527/CFAL12832D-B_Series_Datasheet_Release_2016-04-28.pdf

Product Update #10433: (New Product) CFAL12832D-B

New Product:	CFAL12832D-B
Date Issued:	October 5, 2012
Summary:	(New Product) CFAL12832D-B
Description:	Under OLED Modules: The extremely small and thin form factor of this 128x32 resolution White OLED graphics module makes it perfect for applications that require an inconspicuous display.
