1.54" Graphic Yellow Monochrome OLED Development Kit

Part Number: CFAL12864D1-0154MY-E1-2

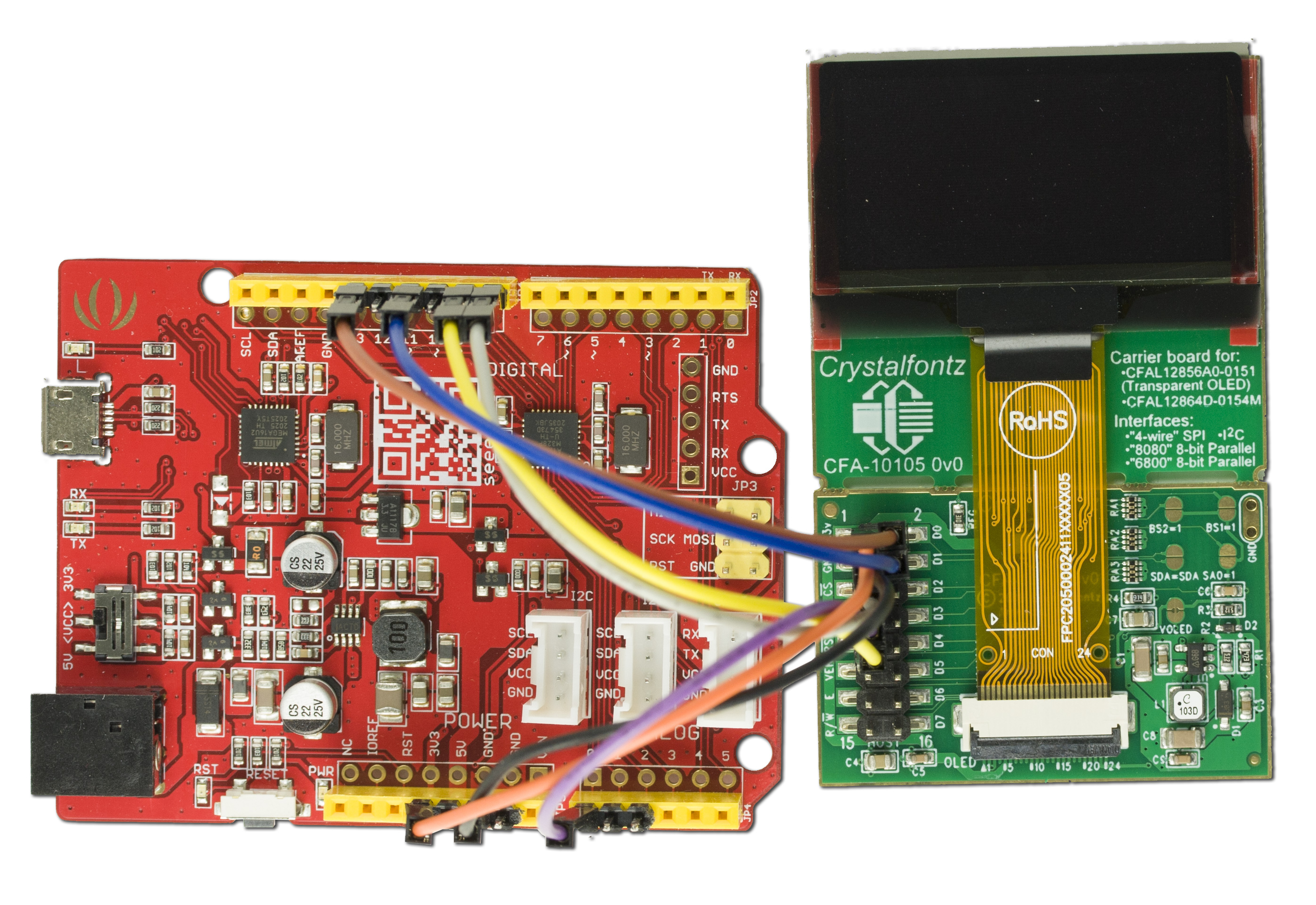

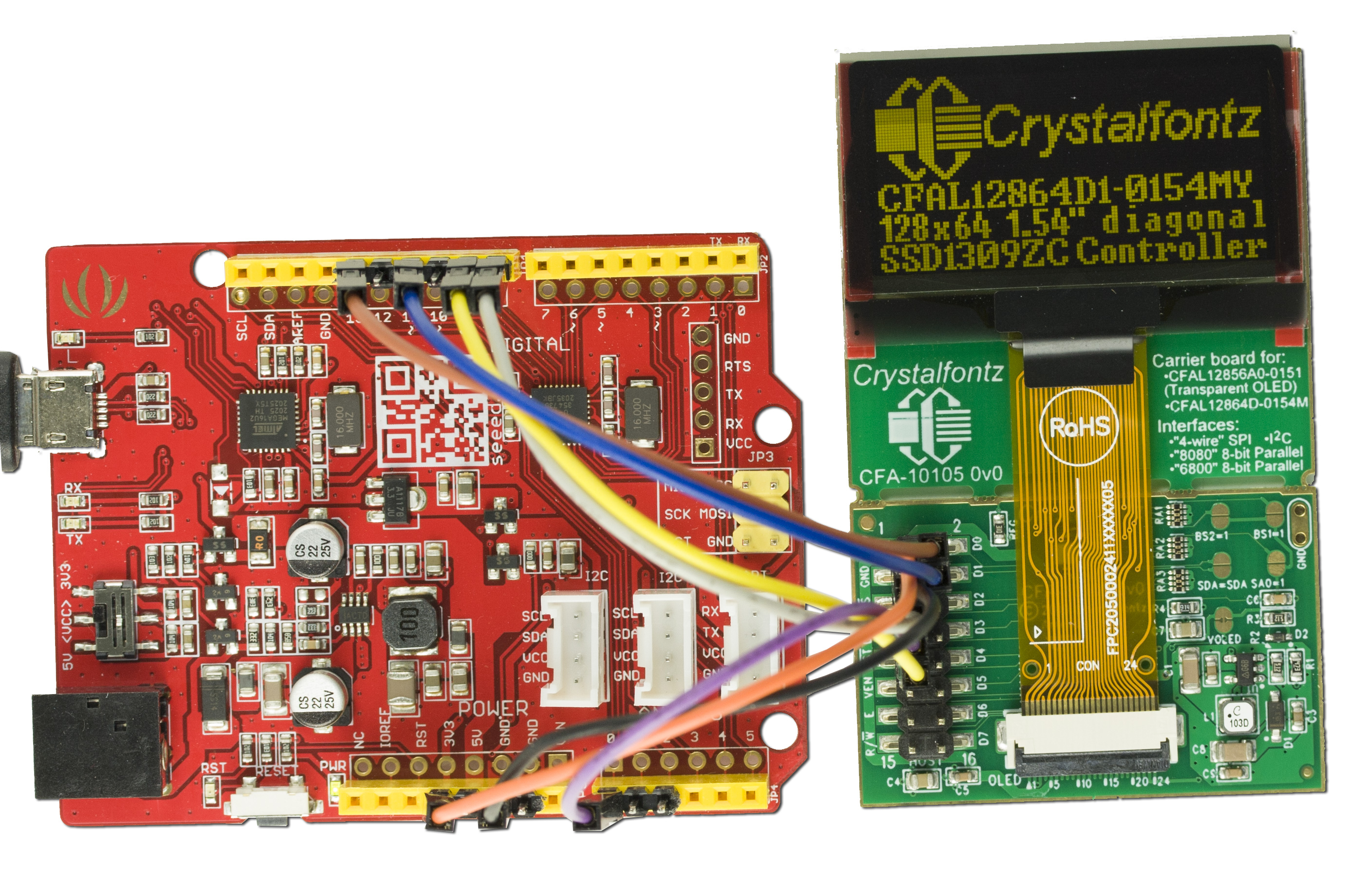

Simply apply power to this OLED dev kit to get it up and running. This kit includes a yellow 1.54" OLED display, a breakout board, and a Seeeduino all connected and loaded with demo-code that displays text and images so all you have to do is plug the included micro-USB into a power supply.

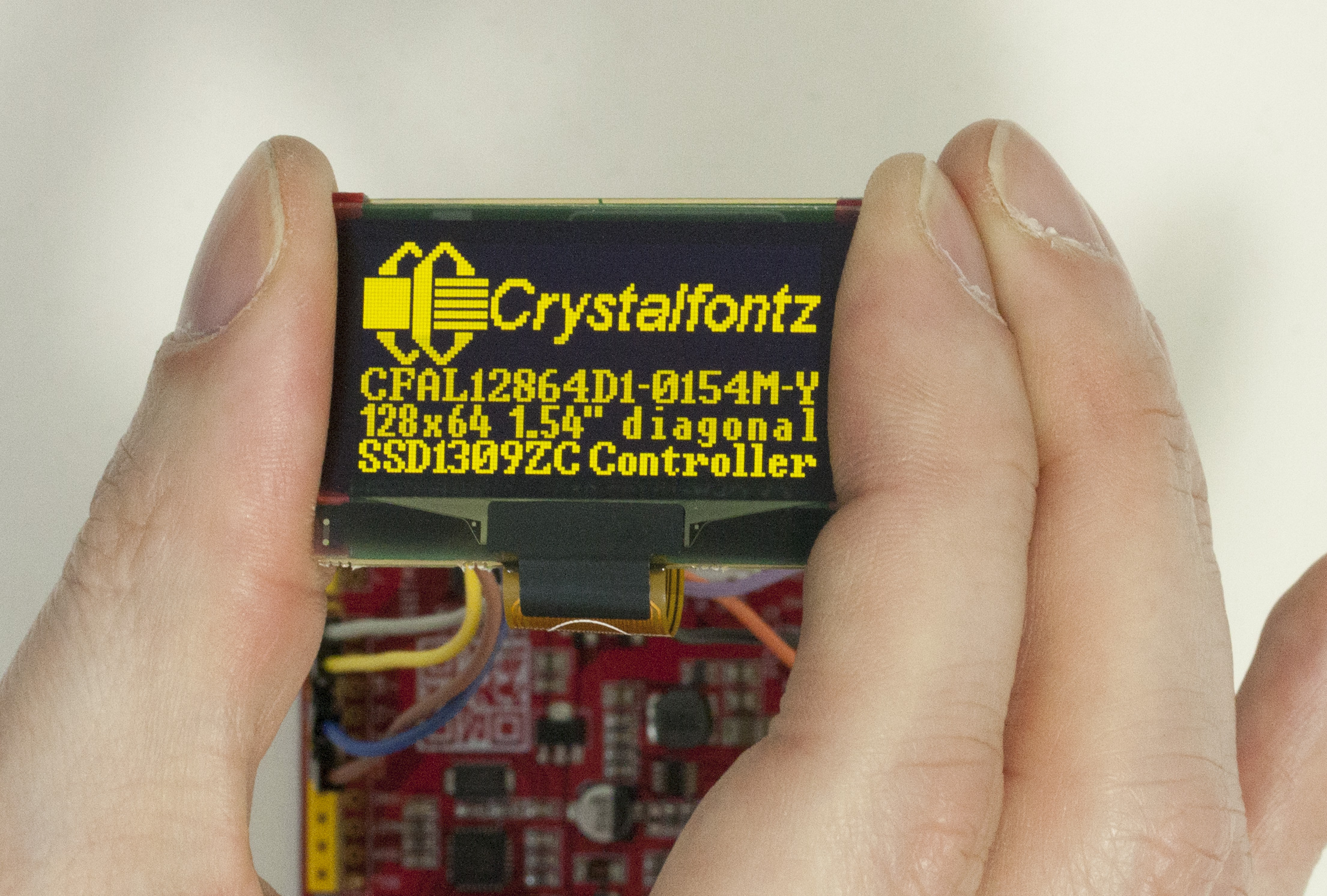

The included 128x64 Yellow Graphic OLED display is high contrast and has a super-wide viewing angle. The OLED breakout board handles boosting the input 3.3v up to power the panel, so no higher voltage input is required. The kit ships with the display mounted on the breakout board.

Check out our demo code and other resources in the sidebar to quickly get to work with this display.

This kit replaces the CFAL12864D-0154M-Y-E1-2.

Features:
  • Yellow Monochrome OLED
  • Standard brightness: 150 nits (can be increased to 850 nits, though will reduce lifetime)
  • Multiple interfaces, controlled by jumpers on breakout board
  • 1.54" diagonal active area
  • SSD1309 controller
  • Slim design


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Price:
Quantity Unit Price
1 * $46.92
0 Units In-Stock & Ready To Ship
Pricing is subject to change.
* Contact us about potential lead times.

Part Change Notices

Subscribe to Part Change Notices by email Email subscription for changes to CFAL12864D1-0154MY-E1-2 or RSS RSS feed for changes to CFAL12864D1-0154MY-E1-2
  • text_snippet
    Part Change Notice #11197: New Seeeduino Version 4.3 Now Shipping
    Products Affected: CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
    Date Issued: May 15, 2023
    Summary: New Seeeduino Version 4.3 Now Shipping
    Description: We are now releasing products as stated in PCN11190.
    https://www.crystalfontz.com/news/pcn.php?id=11190
  • text_snippet
    Part Change Notice #11190: Part Change - Seeeduino 4.2 ->4.3
    Products Affected: CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
    Date Issued: April 13, 2023
    Summary: Part Change - Seeeduino 4.2 ->4.3
    Last revision: 4.2
    Description: Seeed Studios has updated the Seeeduino from v4.2 to v4.3. This change switches from the ATMEGA328P-MU to the ATMEGA328P-AU, and replaces the serial chip. This causes the Seeeduino to identify differently when connected to a computer.
    Reason: Supplier has changed their offering
    Impact: Kits using the Seeeduino will no longer be named "USB Serial Device"
    Availability: Immediate
