128x64 2.4 Inch White OLED from Crystalfontz

Product

Home » Products » OLED Displays » Graphic

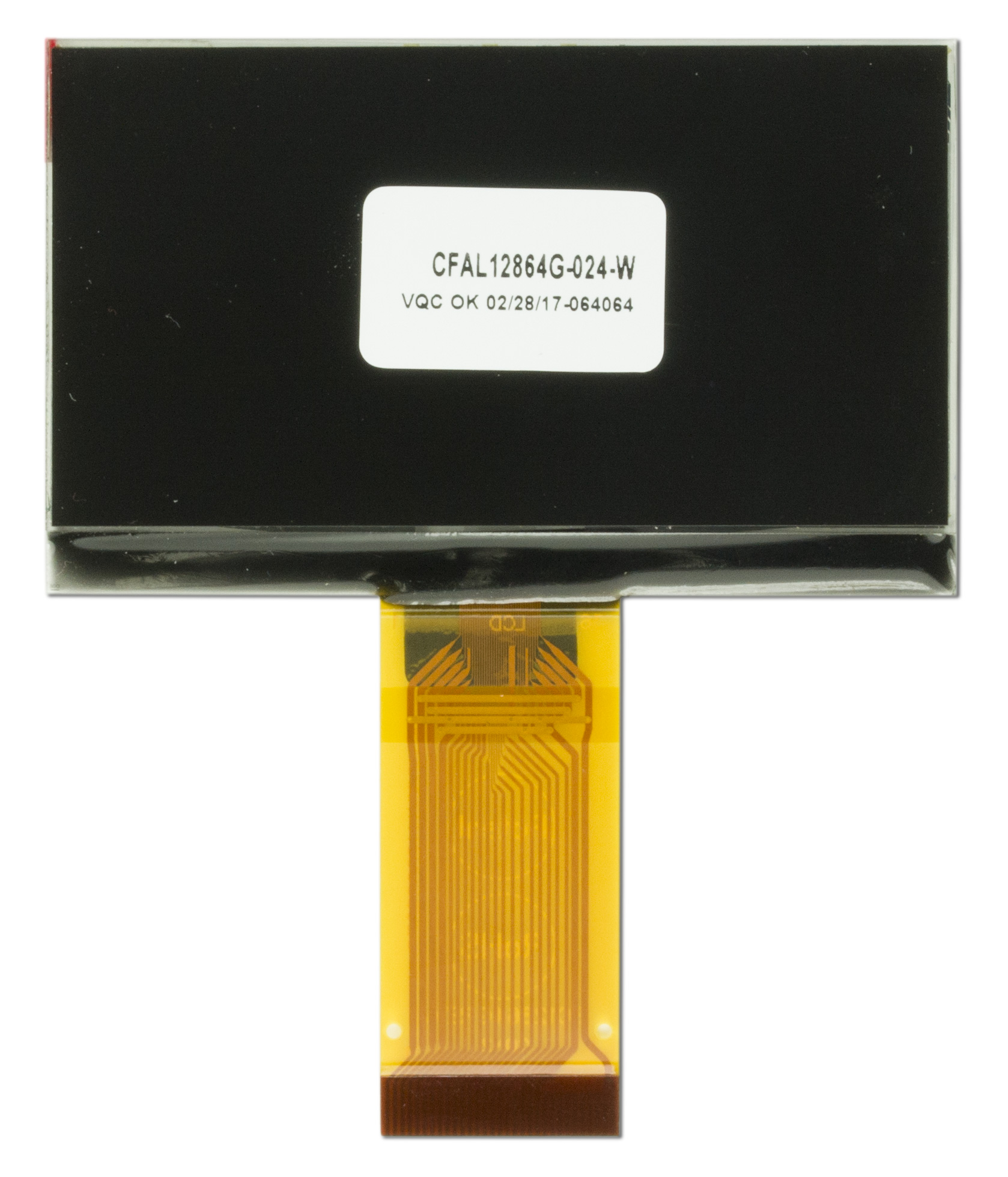

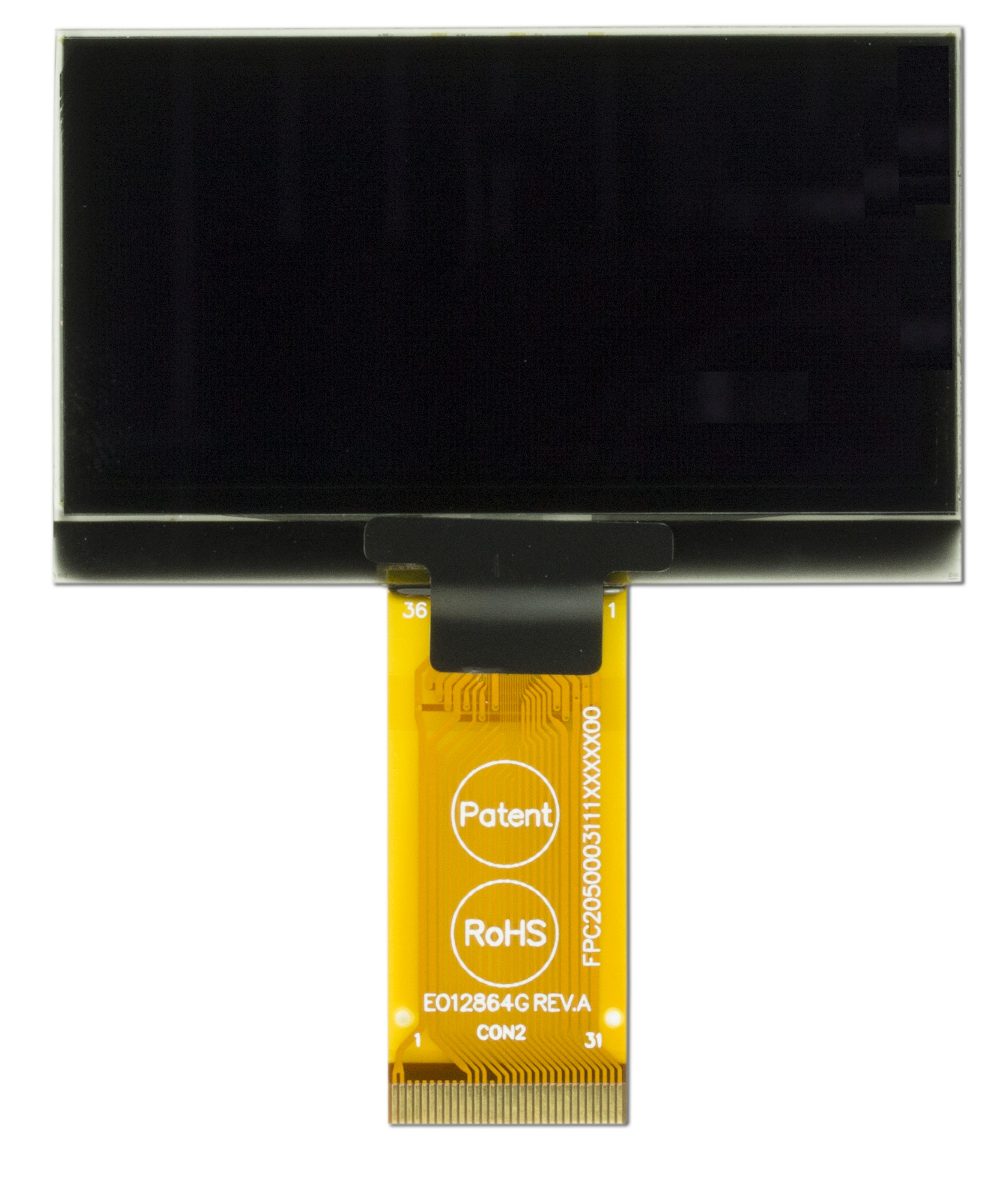

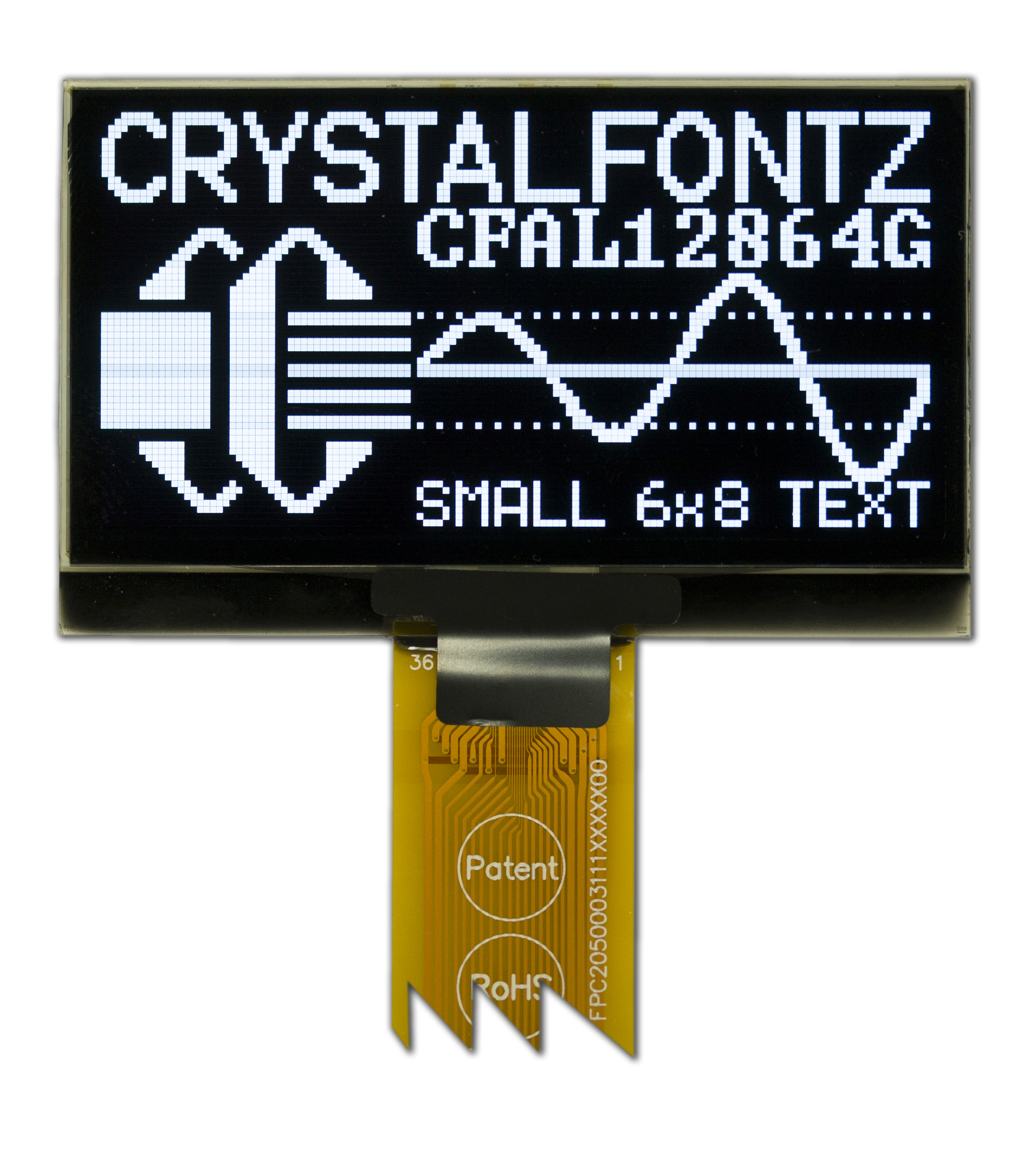

128x64 2.4 Inch White OLEDPart Number: CFAL12864G-024WSmall 128x64 OLED, 2.4inch diagonal dimensions, white monochrome OLED graphic display module with a ZIF FPC that has a built-in SSD1309 integrated controller. This 128x64 OLED display module is lightweight, ultra-thin with super low power consumption.

Resolution: 128x64
Color: White / Light
Interfaces: SPI, I2C, 8-bit Parallel
Type: OLED
Voltage: 3.3
Diagonal Size: 2.4"
Controller: SSD1309
Possible connectors include TE/AMP 3-1734839-1 (top) or Hirose FH41-31S-0.5SH(05) (bottom) or similar.
Product VariationsColorsYellow on Black
No BacklightWhite / Light on Black
No Backlight

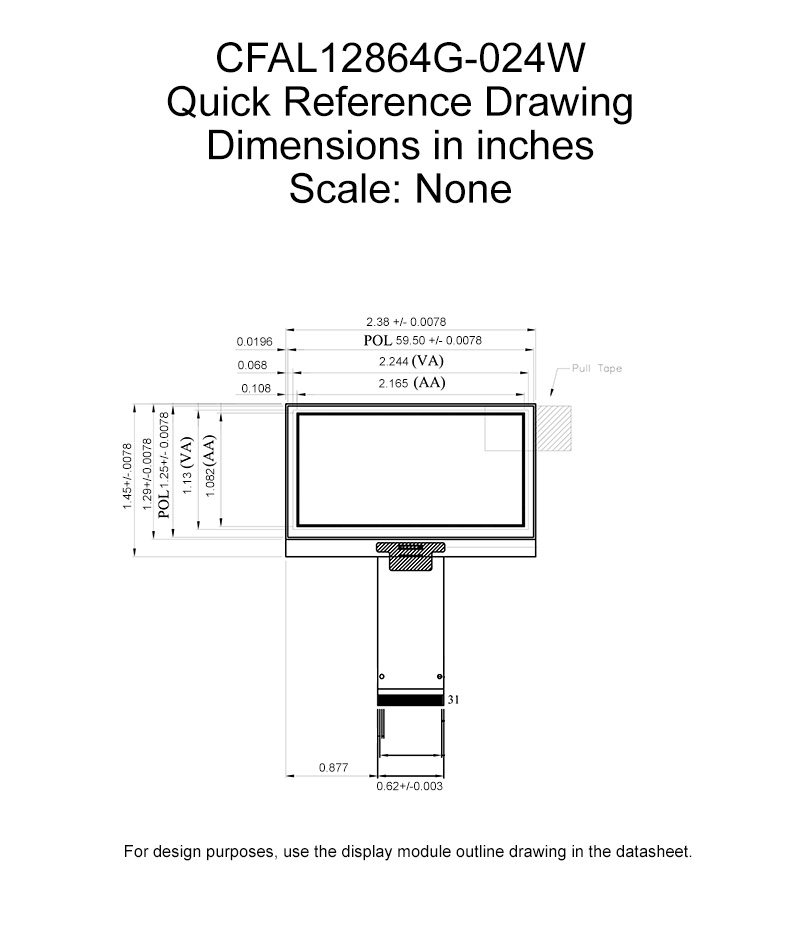

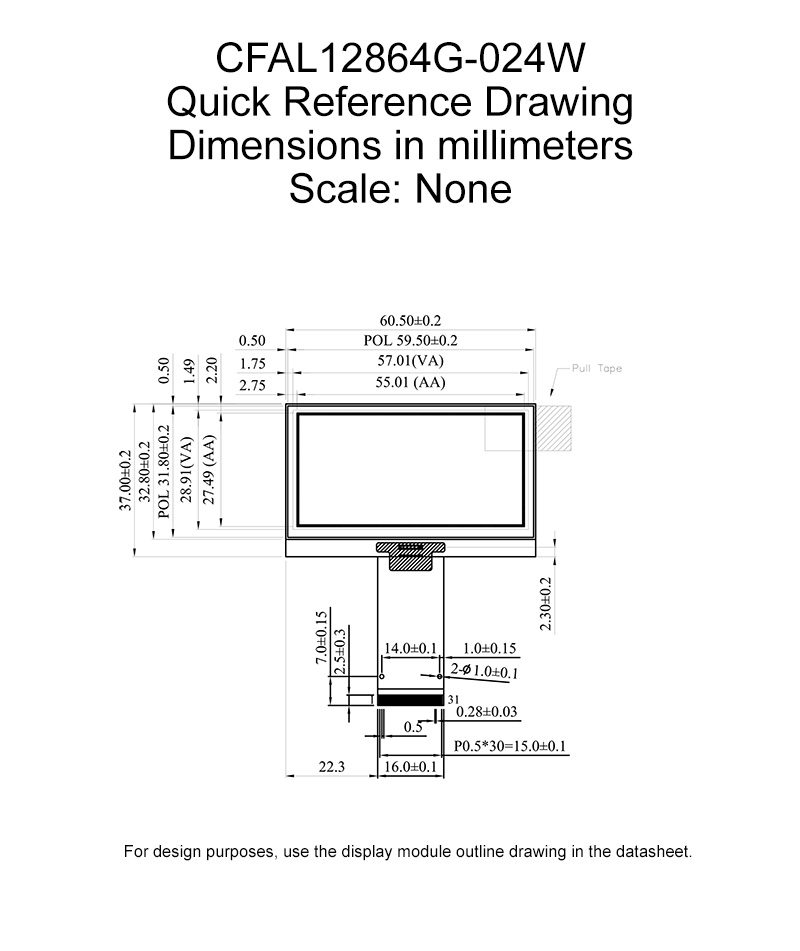

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64


    Module Overall        width
        height
        depth


        millimeters
        60.5
        37
        2.15


        inches
        2.38
        1.46
        0.09



        Diagonal Dimension
            2.42"


    Active Area        Width
        Height


        millimeters
        55.01
        27.46


        inches
        2.17
        1.08



    Dot Size        Width
        Height


        millimeters
        0.4
        0.4


        inches
        0.016
        0.016



    Dot Pitch        Width
        Height


        millimeters
        0.43
        0.43


        inches
        0.017
        0.017



        Weight
            9.2g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive
View Angle
            160°


        Mode
            Passive
Foreground Color
            White / Light
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3.3V


        Supply Voltage for Driving Panel Typical
            13V

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -40°
        80°


        Fahrenheit
        -40°
        176°



    Storage Temperatures        min
        max


        Celsius
        -40°
        80°


        Fahrenheit
        -40°
        176°


 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1309
SSD1309 128 x 64 Dot Matrix

OLED/PLED Segment/Common Driver with Controller
Interface
            8-bit Parallel, I2C, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAL12864G-024W Datasheet

download Files and Downloads
folder_zip Software Source - 3.3v Seeeduino / Arduino SPI Demonstration Code
folder_zip Hardware Design - 3D Model
picture_as_pdf 1 to 1 Template
picture_as_pdf Other Document - Getting Started Guide
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH












Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $28.87

            10
            $26.68

            20
            $25.78

            50
            $24.87

            100
            $23.53

            200
            $23.36

            300
            $22.22

            500
            $22.05

            1000
            $20.45

4720 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering


						Multi-use ZIF Breakout Board
Add a breakout $22.34 ea.





Colors	Yellow on Black No Backlight White / Light on Black No Backlight

Module Overall	width	height	depth
millimeters	60.5	37	2.15
inches	2.38	1.46	0.09

Active Area	Width	Height
millimeters	55.01	27.46
inches	2.17	1.08

Dot Size	Width	Height
millimeters	0.4	0.4
inches	0.016	0.016

Dot Pitch	Width	Height
millimeters	0.43	0.43
inches	0.017	0.017

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Quantity	Unit Price
1	$28.87
10	$26.68
20	$25.78
50	$24.87
100	$23.53
200	$23.36
300	$22.22
500	$22.05
1000	$20.45

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10849: (New Product) CFAL12864G-024W

New Product:	CFAL12864G-024W
Date Issued:	April 20, 2017
Summary:	(New Product) CFAL12864G-024W
Description:	OLED Modules: 128x64 2.4inch white chip-on-glass (COG) monochrome OLED graphic display module with a ZIF FPC that has a built in SSD1309 integrated controller. This OLED display module is lightweight, ultra-thin with super low power consumption. Resolution: 128x64 Color: White / Light Interfaces: SPI, I2C, 8-bit Parallel Type: OLED Voltage: 3.3 Diagonal Size: 2.4" Controller: SSD1309 Pricing as low as $11.31 per module! View product details and purchase here: https://www.crystalfontz.com/product/cfal12864g024w-128x64-2-4inch-white-oled-module
