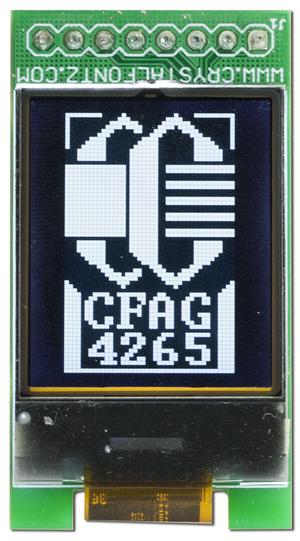

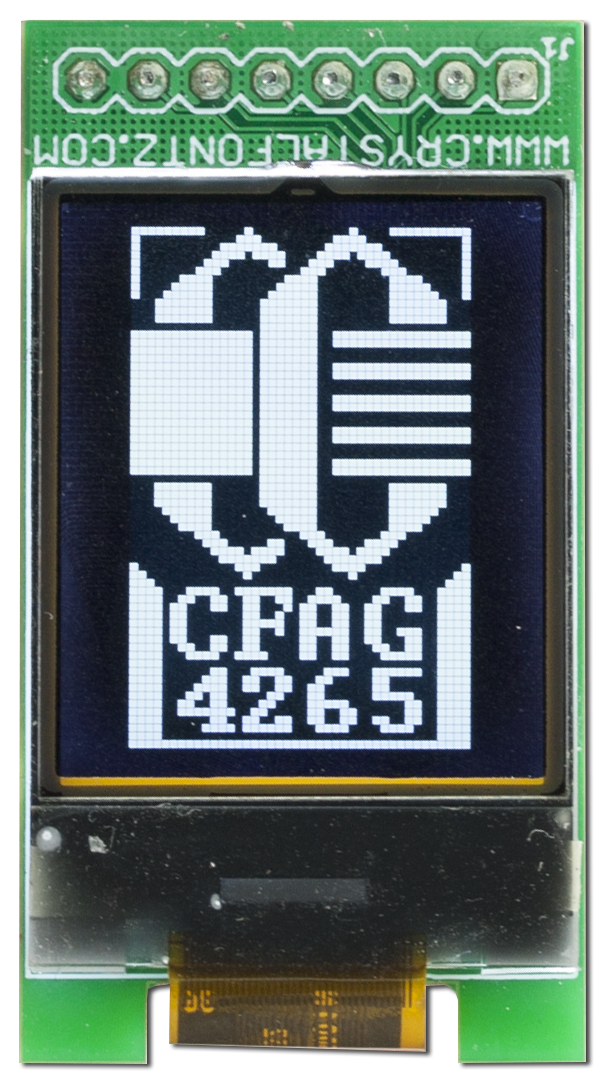

42 x 65 Graphic LCD with Carrier Board

Part Number: CFAO4265A-TTL-CB

Streamline your development with this CFAO4265A-TTL display module mounted to a CFAB-10004 carrier board. The carrier board has the current-controlled, switching LED driver, including SPI control of the LED brightness. All external components for panel voltage generation are included.

  • COG (Chip-On-Glass) display module is mounted on the carrier board with the ZIF connector, the adhesive protection liner is removed, and backlight connections are already soldered.
  • By itself, the carrier board weighs 4 grams.
  • RoHS Compliant.
  • Crystalfontz America, Incorporated is ISO certified

Product Variants


SPI

CFAO4265A-TTL42x65 White on Dark Graphic LCD
CFAO4265A-TTL-CB42 x 65 Graphic LCD with Carrier Board
CFAG4265A0-TFK42x65 One Inch LCD Module
42 x 65 Graphic LCD with Carrier Board (CFAO4265A-TTL-CB)
Qty:
Quantity Price
1 $45.11
10 $43.79
20 $40.78
50 $37.55
100 $34.10
200 $31.31
500 * $28.18
1000 * $27.00
* Pricing is subject to change. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAO4265A-TTL-CB or RSS RSS feed for changes to CFAO4265A-TTL-CB for CFAO4265A-TTL-CB

Compliance Documents

TECHNICAL SPECS

Physical Characteristics

Weight 7.9g

Optical Characteristics

Electronics

Interface SPI

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAO4265A-TTL-CB or RSS RSS feed for changes to CFAO4265A-TTL-CB

Product Update #10909: End-of-Life Notification

Products Affected: CFAO4265A-TFK, CFAO4265A-TTL, CFAO4265A-TTL-CB
Date Issued: December 12, 2017
Summary: End-of-Life Notification
Description: The parts listed have been assigned to End of Life Status.
Reason: Critical components have been discontinued by the manufacturer.
Impact: These parts are not recommended for new designs.
Recommendation: The CFAO4265A-TFK has been replaced by a new design that will function as a "drop-in" replacement.
The new part number is CFAG4265A0-TFK and can be found here:
https://www.crystalfontz.com/product/cfag4265a0tfk-42x65-graphic-one-inch-lcd

A new series of development kits are also available:

Part #: CFAG4265A0-TFK-E1-1

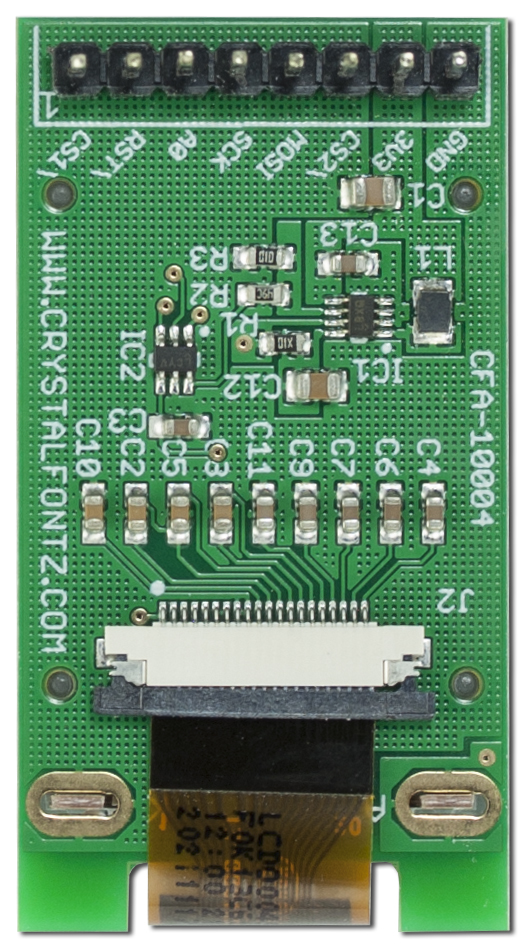

This is a CFAG4265A0-TFK mounted to a CFA10004 carrier board.

Part #: CFAG4265A0-TFK-E1-2
This is a CFAG4265A0-TFK mounted to a CFA10004 carrier board with a Seeeduino 4.2


The CFAO4265A-TTL and CFAO4265A-TTL-CB do not have replacements.



Availability: The new parts are available now. The CFAO4265A-TTL and CFAO4265A-TTL-CB will be available until current stocks are depleted.
Price Change: Current prices are shown on our website.

Part Change Notice #10648: Controller change from ST7565P to ST7565R

Products Affected: CFAO4265A-TFK, CFAO4265A-TTL, CFAO4265A-TFK-CB, CFAO4265A-TTL-CB
Date Issued: March 25, 2015
Summary: Controller change from ST7565P to ST7565R
Description: As part of our continuous improvement, the controller on the CFAO4265A display modules is changing from the Sitronix ST7565P to the ST7565R.
ECO-49.

Sitronix ST7565P controller datasheet:
https://www.crystalfontz.com/controllers/Sitronix/ST7565P/299

Sitronix ST7565R controller datasheet:
https://www.crystalfontz.com/controllers/Sitronix/ST7565R/300
Reason: Improved manufacturability, component availability, and lower cost.
Impact: This change effects all CFAO4265A parts. Testing has shown functional compatibility between the ST7565P and ST7565R.
There are no physical changes to the display.
Recommendation: It is recommended to obtain test units prior to implementing new parts in production volumes.
Availability: Inventory with ST765R controller will be available late Q2 / Early Q3 2015.
Price Change: Lower manufacturing costs are reflected in lower product pricing.

Product Update #10374: New Product in Miscellaneous: CFAO4265A-TTL-CB

New Product: CFAO4265A-TTL-CB
Date Issued: November 8, 2011
Summary: New Product in Miscellaneous: CFAO4265A-TTL-CB
Description: CFAB-10004 carrier board plus CFAO4265A-TTL display.
