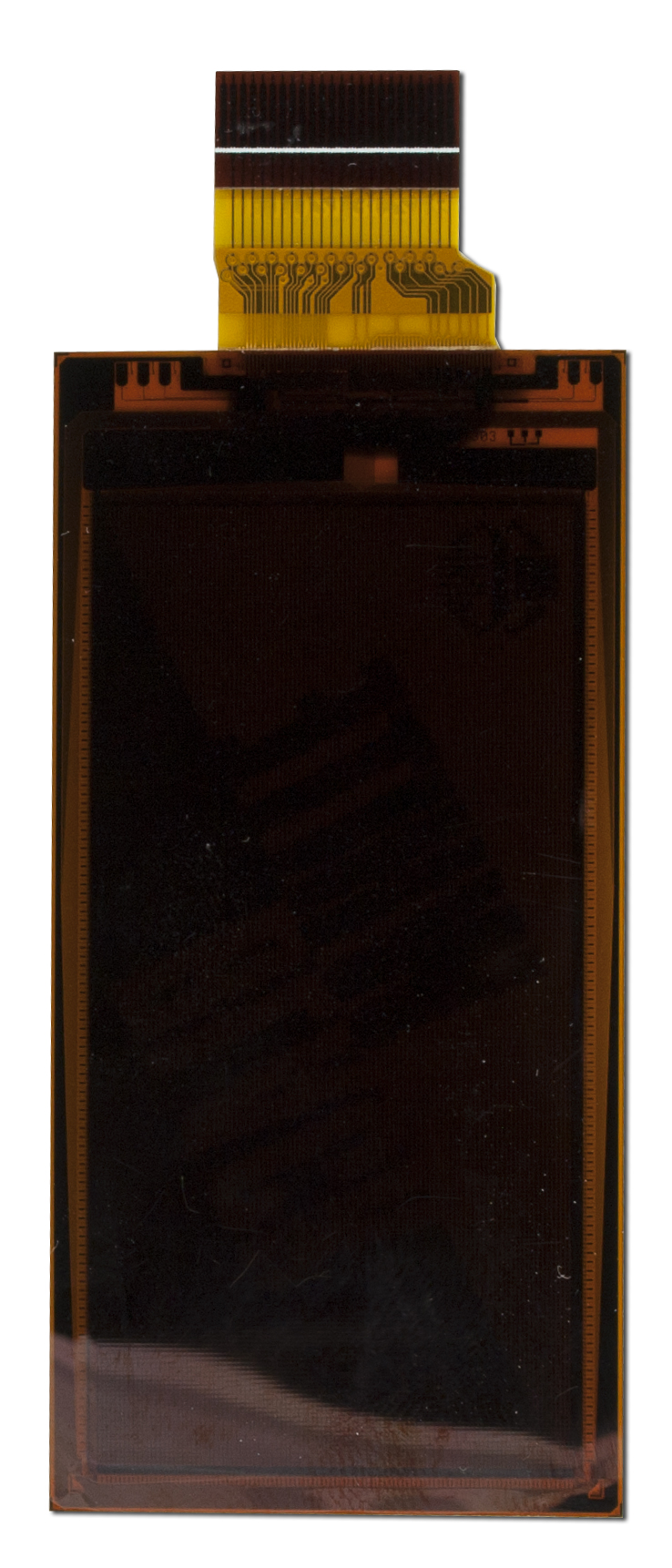

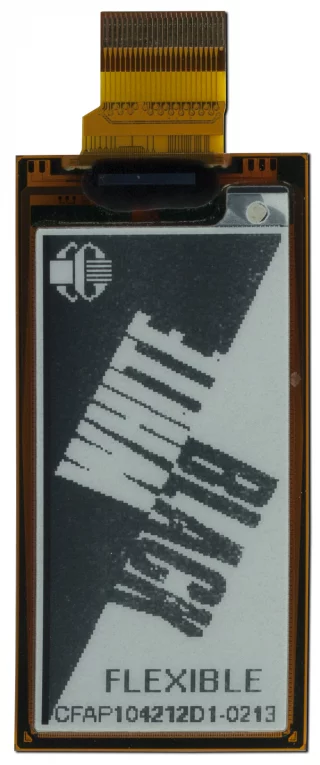

2.13" Flexible ePaper Display

Part Number: CFAP104212D1-0213

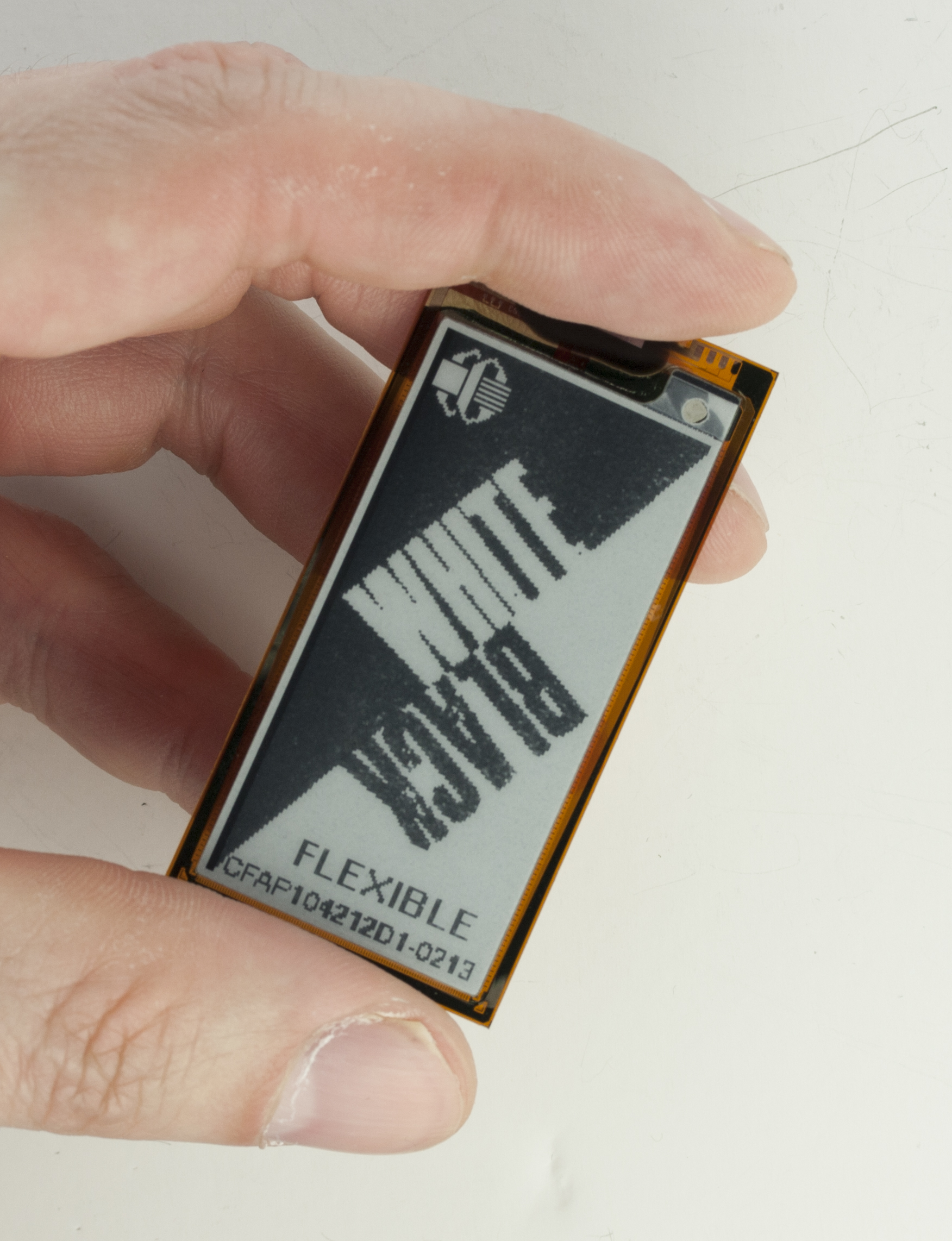

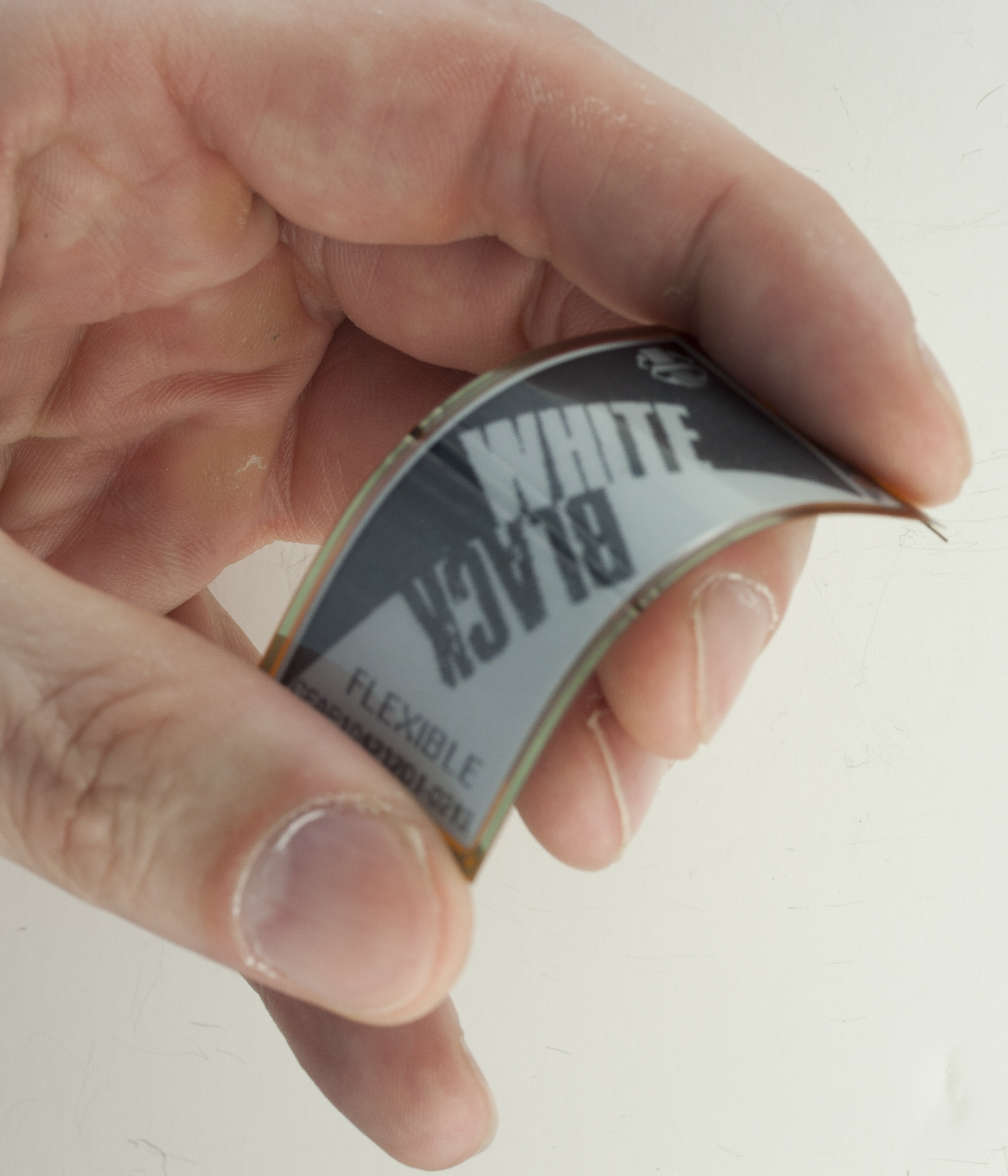

This black and white ePaper display combines the super low-power functionality of a standard ePaper with flexibility! Literally, flexible... bendable! See the datasheet for information about how these can be flexed.

Like all epaper displays this display is bi-stable, meaning once the pixels have been set it takes no power to keep them that way. Send your image over, remove power, and you're good to go!

These displays are perfect for rounded product labeling, corner shelf labels, or anything else that requires very little power and some flexibility.

This ePaper display module supports partial updates, see the datasheet for details.

Adapter / Breakout Board
Want to simplify connecting this display? Our ePaper Adapter Board makes connecting our ePaper simple and fast.

Use our free ePaper software to prepare your bitmap image for this display.

Part Number
CFA - Crystalfontz America
P - ePaper display
104212 - 104x212 pixel resolution
D1 - family and revision (replaces CFAP104212D0-0213)
0213 - 2.13" diagonal active area
Qty:
Quantity Price
1 $21.07
5 $17.09
10 $16.66
20 $16.11
50 $15.57
100 * $15.35
200 * $15.25
300 * $15.13
500 * $15.03
1000 * $14.92
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4518 ePaper Adapter Board
Add a breakout board? $11.68 ea.
4626 24 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Need ZIF Connectors? $0.97 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAP104212D1-0213 or RSS RSS feed for changes to CFAP104212D1-0213 for CFAP104212D1-0213

Video Demonstrations

Flexible ePaper Display Video Demo

See this flexible ePaper display in action.


TECHNICAL SPECS

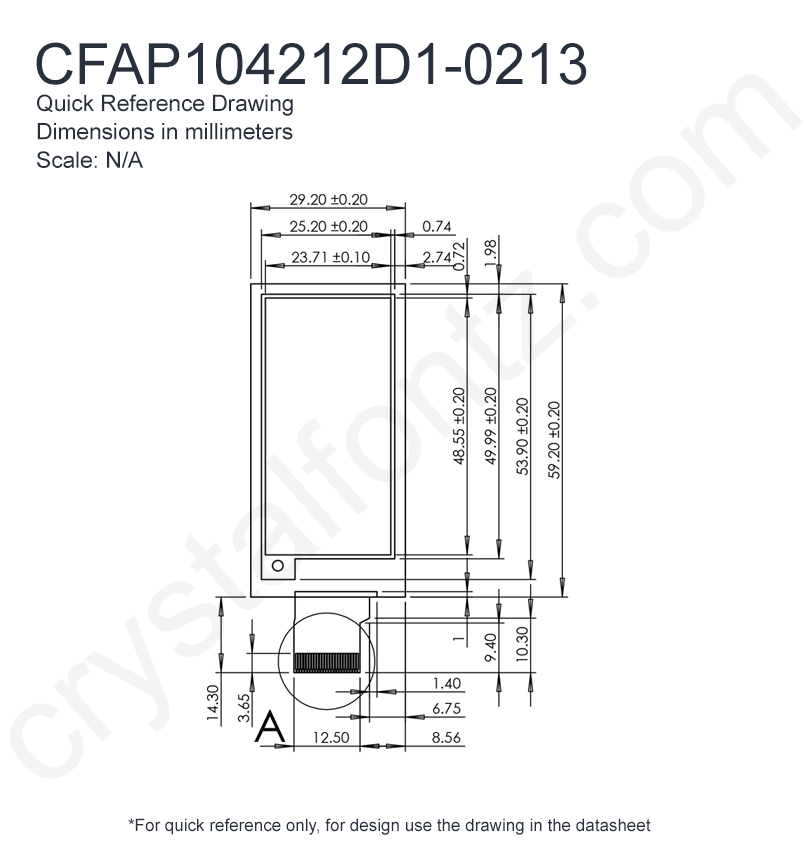

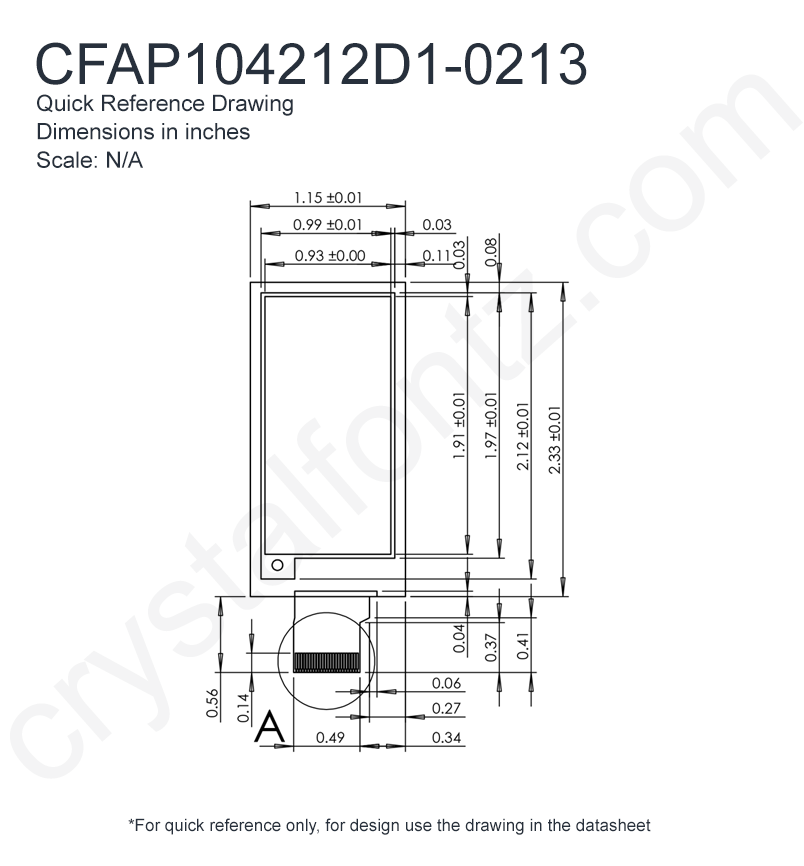

Physical Characteristics

Column Dots x Row Dots 104 x 212
Module Overall width height depth
millimeters 29.2 59.2 0.3
inches 1.150 2.331 0.012
*width / height does not include Foldable Tab
Diagonal Dimension 2.13"
Active Area width height
millimeters 23.71 48.55
inches 0.933 1.911
Dot Pitch width height
millimeters 0.228 0.229
inches 0.0090 0.0090
Flexible Cable (FFC/FPC) length
millimeters 14.3
inches 0.563
Weight 0.6g
Pin Count 24

Optical Characteristics

Glass Type ePaper
View Angle Ultra-Wide°
Foreground Color Black
Background Color White

Electrical Specifications

Supply Voltage for Logic Minimum 2.3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Module Connector Pitch 0.5mm

Environmental

Operating Temperatures min max
Celsius 50°
Fahrenheit 32° 122°
Storage Temperatures min max
Celsius -25° 70°
Fahrenheit -13° 158°
Humidity min max
Non-condensing 40% 70%

Electronics

Interface SPI

Miscellaneous

Foldable Tab Yes
Full Screen Update Time 3s
Time Between Updates 180s

Additional Options

Speed up your prototyping with a breakout board or a complete development kit.

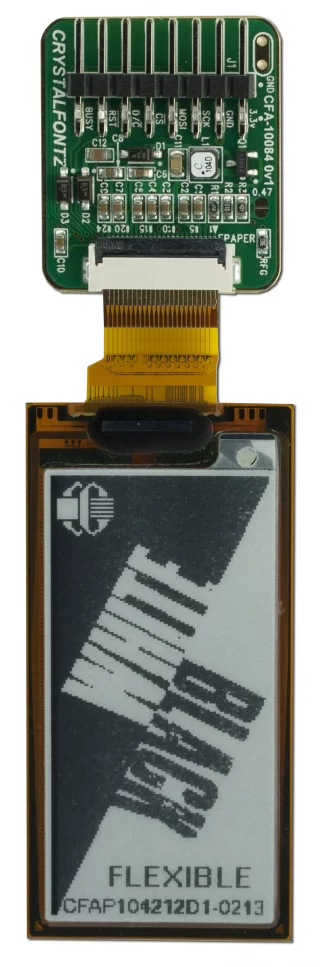

Flexible ePaper with Adapter Board
Part Number: CFAP104212D1-E2

This module includes our 2.13" Flexible eInk/ePaper display attached to our ePaper adapter board for quick prototyping with any Arduino-based controller.

ePaper is perfect for low-energy devices, such as shelf labels or name tags, that require infrequent updates and a slow refresh rate. ePaper displays can be disconnected completely from any power source and their screen will maintain its picture indefinitely.

Part Number
CFA - Crystalfontz America
P - ePaper display
104212 - 104x212 pixel resolution
D1 - Family and revision (replaces CFAP104212D0-E2-1)
E2 - Includes CFA10084 ePaper Adapter Board

Details
Quantity 1 5 10 20 50 100 * 200 * 300 * 500 * 1000 *
Price $33.50 $28.04 $27.23 $26.43 $25.47 $25.15 $24.99 $24.67 $24.51 $24.35
Quantity:

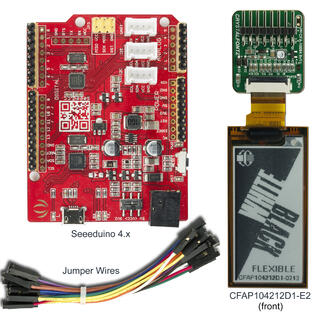

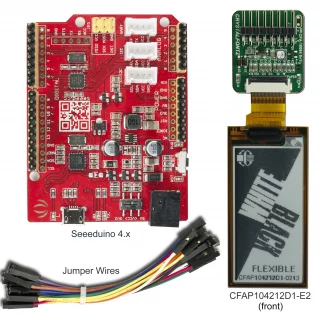

Flexible ePaper Development Kit
Part Number: CFAP104212D1-E2-2

Prototype your new product with ease with our complete flexible ePaper development kit. This kit includes our 2.13" Flexible ePaper display combined with our ePaper adapter board and a Seeeduino (an Arduino Uno compatible controller).

This kit has everything you need to plug-in and go, including a sketch already uploaded to the controller.

Part Number
CFA - Crystalfontz America
P - ePaper display
104212 - 104x212 pixel resolution
D1 - Family and revision (replaces CFAP104212D0-E2-1)
E2 - Includes CFA10084 ePaper Adapter Board
2 - Includes Controller, full development kit

Details
Quantity 1
Price $55.92
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAP104212D1-0213 or RSS RSS feed for changes to CFAP104212D1-0213

Product Update #11198: 2.13" Flexible ePaper Display is now available

New Product: CFAP104212D1-0213
Date Issued: May 22, 2023
Summary: 2.13" Flexible ePaper Display is now available
Description: CFAP104212D1-0213 has been released on our website (https://www.crystalfontz.com/product/cfap104212d10213-104x212-flexible-epaper-epd-display) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
For reference only. For design purposes, please use the specifications in the datasheet.
