Flexible ePaper Development Kit

Part Number: CFAP104212D1-E2-2

Get your ePaper project up and running in minutes with this complete development kit. Ideal for engineers or hardware hackers prototyping battery-powered displays, smart labels, shelf tags, or wearable devices.

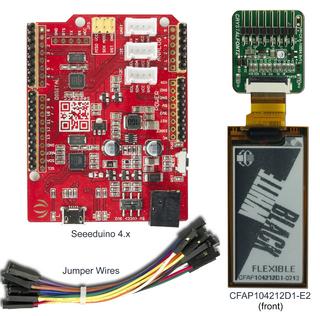

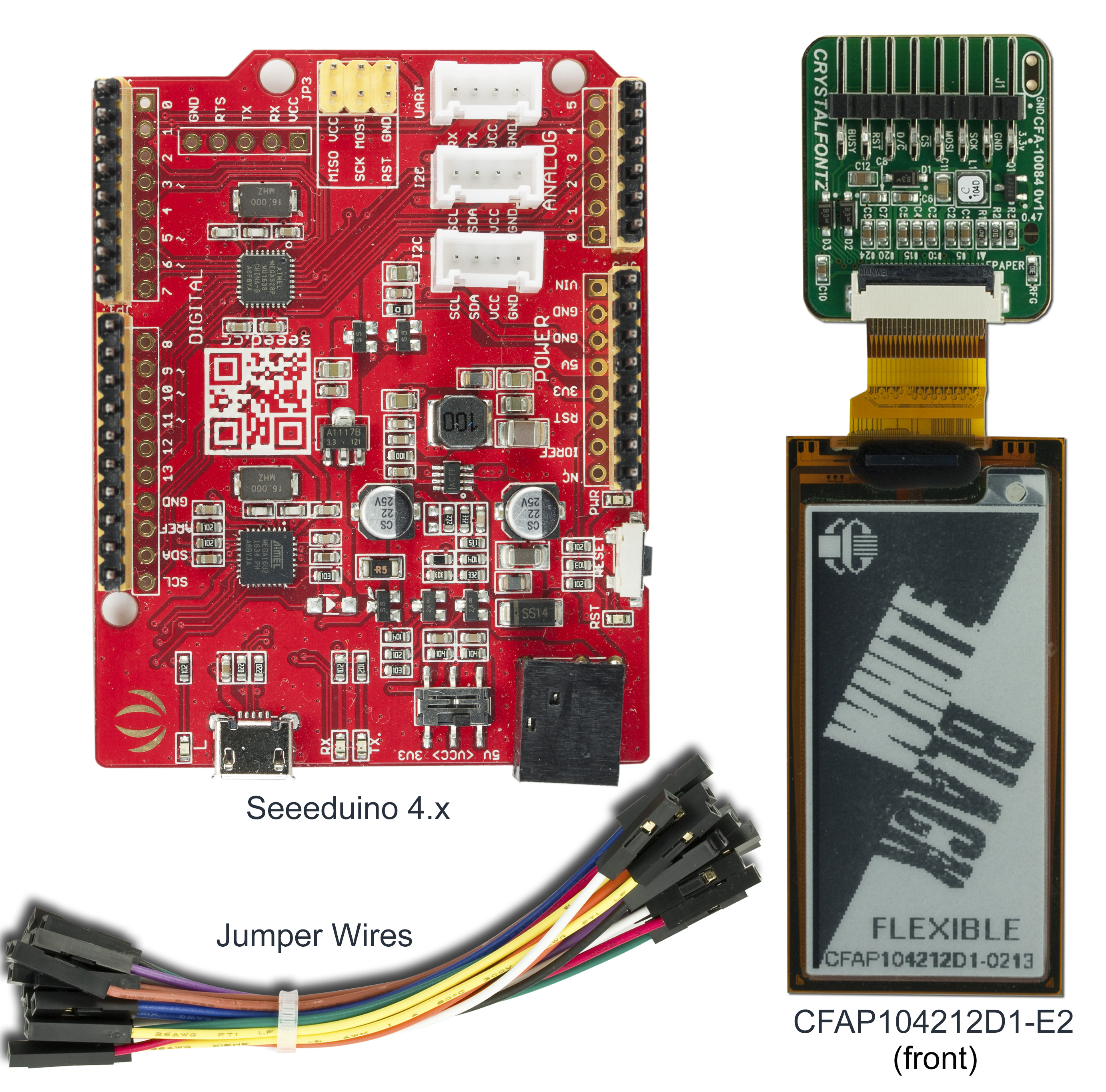

What's Included

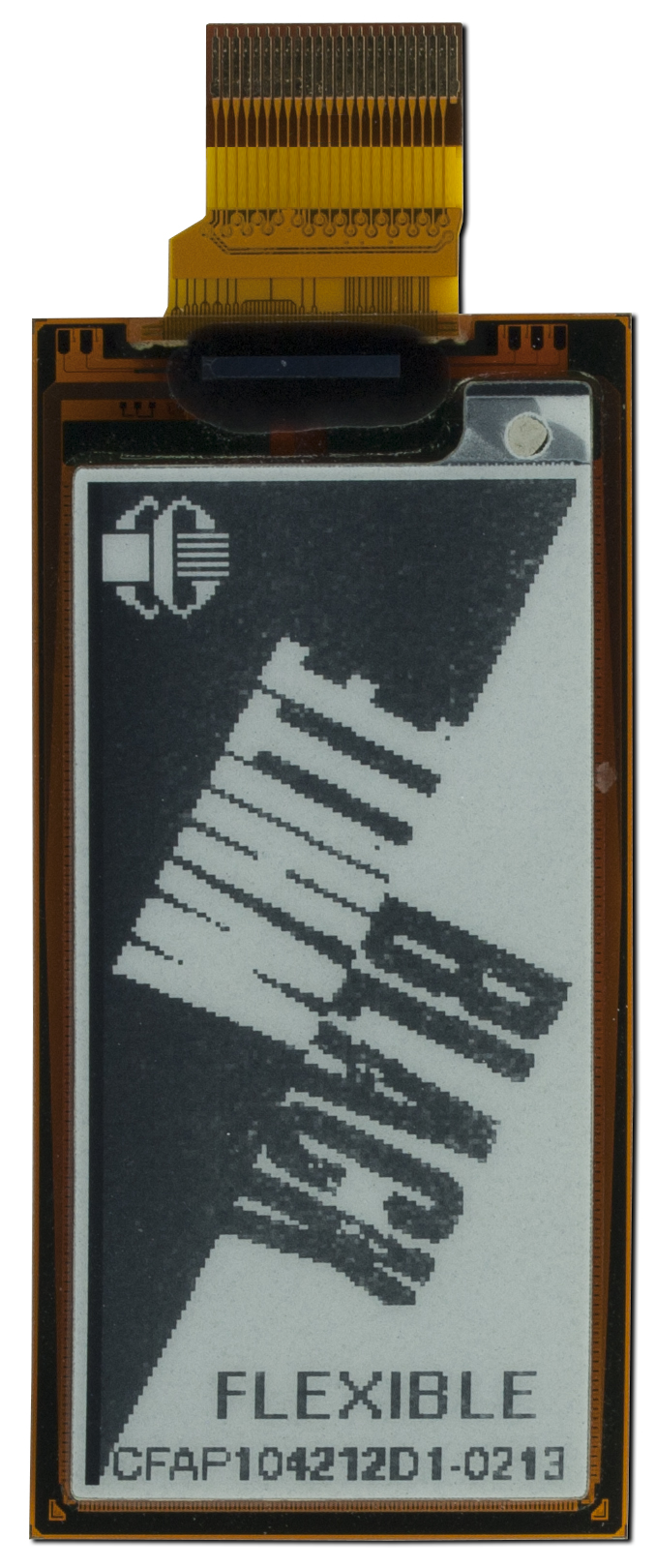

2.13" Flexible ePaper Display (CFAP104212D1) – 104×212 pixel resolution, bendable for curved enclosures

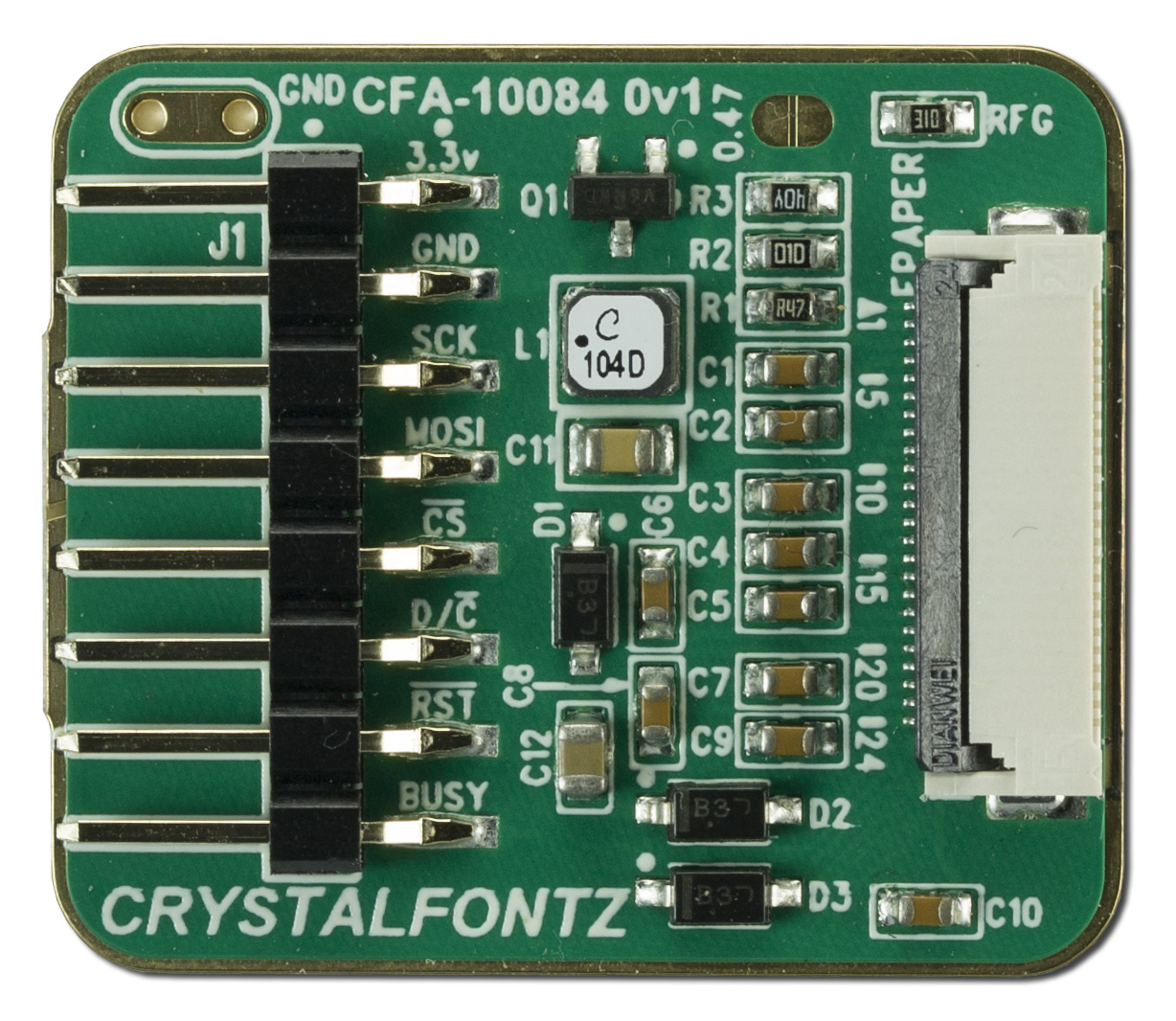

CFA10084 ePaper Adapter Board – handles level shifting and timing
Seeeduino Microcontroller – Arduino Uno compatible, pre-loaded with demo sketch

Why This Kit

Plug and play – ships with working code, no configuration required
Flexible display – mount on curved or irregular surfaces
Ultra-low power – ePaper holds image with zero power draw
Open platform – full Arduino IDE support for easy customization

Part Number
CFA - Crystalfontz America
P - ePaper display
104212 - 104x212 pixel resolution
D1 - Family and revision (replaces CFAP104212D0-E2-1)
E2 - Includes CFA10084 ePaper Adapter Board
2 - Includes Controller, full development kit

Physical Dimensions

Module

Weight 25.1 g
Downloads

Datasheets
picture_as_pdf
CFA10084 Datasheet

picture_as_pdf
CFAP104212D1-0213 Datasheet

Documents & Files
picture_as_pdf Other Document - ePaper Getting Started Guide
link Demo Code Repository on Github

Additional Options
Change Notices

Additional Options

Already have a microcontroller? Just want the display and breakout board? You can purchase them together.

Part Change Notice #11378: Global Demand Increasing Lead Times on ePaper Modules.

Products Affected:	CFAP200200A0-0154, CFAP104212B0-0213, CFAP104212A0-0213, CFAP128296B0-0290, CFAP128296A0-0290, CFAP122250A0-0213, CFAP128296C0-0290, CFAP128296D0-E1-2, CFAP122250A0-E1-2, CFAP122250A0-E1-1, CFAP128296C0-E1-1, CFAP128296C0-E1-2, CFAP128296D0-E1-1, CFAP176264A0-0270, CFAP176264A0-E1-1, CFAP176264A0-E1-2, CFAP104212C0-0213, CFAP104212C0-E1-1, CFAP104212C0-E1-2, CFAP152152A0-0154, CFAP152152A0-E1-1, CFAP152152A0-E1-2, CFAP200200A1-0154, CFAP176264B0-0270, CFAP640384A0-0750, CFAP400300C0-0420, CFAP104212D0-0213, CFAP400300B0-0420, CFAP104212E0-0213, CFAP600448A0-0583, CFAP176264A0-E2-1, CFAP200200A1-E2-2, CFAP176264A0-E2-2, CFAP128296E0-0290, CFAP128296E0-E2-1, CFAP128296E0-E2-2, CFAP122250A0-E2-2, CFAP122250A0-E2-1, CFAP128296C0-E2-2, CFAP152152C0-0154, CFAP152152C0-E2-1, CFAP152152C0-E2-2, CFAP152152B0-0154, CFAP152152B0-E2-1, CFAP152152B0-E2-2, CFAP128296C0-E2-1, CFAP152152A0-E2-1, CFAP152152A0-E2-2, CFAP400300A0-0420, CFAP400300A0-E2-1, CFAP400300A0-E2-2, CFAP104212C0-E2-2, CFAP104212C0-E2-1, CFAP104212D0-E2-2, CFAP104212D0-E2-1, CFAP104212E0-E2-2, CFAP104212E0-E2-1, CFAP176264B0-E2-2, CFAP176264B0-E2-1, CFAP128296D0-E2-1, CFAP128296D0-E2-2, CFAP400300C0-E2-2, CFAP400300C0-E2-1, CFAP400300B0-E2-2, CFAP400300B0-E2-1, CFAP600448A0-E2-2, CFAP600448A0-E2-1, CFAP640384A0-E2-2, CFAP640384A0-E2-1, CFAP200200A3-0154, CFAP200200A3-E2-1, CFAP200200A3-E2-2, CFAP400300B1-0420, CFAP400300B1-E2-1, CFAP400300B1-E2-2, CFAP122250A2-0213, CFAP122250A2-E2, CFAP122250A2-E2-2, CFAP200200A5-0154, CFAP104212D1-0213, CFAP200200A5-E2, CFAP200200A5-E2-2, CFAP104212D1-E2, CFAP104212D1-E2-2
Date Issued:	March 2, 2026
Summary:	Global Demand Increasing Lead Times on ePaper Modules.
Description:	Due to increased global demand for AI chips, semiconductor fabricators are prioritizing AI chip production, which is sidelining display controller manufacturing. Crystalfontz is currently experiencing extended lead times of six months or more on products utilizing EPD display controllers. We request that POs are placed well in advance and forecasts are provided to us so that we plan accordingly. We are actively monitoring the situation and working to reduce the impact this may have on customers.
Reason:	Global semiconductor fabrication capacity constraints driven by AI chip demand have significantly reduced display controller production allocations across the industry. This is an industry-wide condition outside of Crystalfontz's control.
Impact:	Extended lead times of up to six months on affected EPD products Additional display controller types may be impacted as the situation evolves Product availability is subject to change
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com. Customers who can provide purchase forecasts or updated order projections are strongly encouraged to do so.

Product Update #11200: Flexible ePaper Development Kit is now available

New Product:	CFAP104212D1-E2-2
Date Issued:	May 22, 2023
Summary:	Flexible ePaper Development Kit is now available
Description:	CFAP104212D1-E2-2 has been released on our website (https://www.crystalfontz.com/product/cfap104212d1e22-flexible-epaper-development-kit) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
