2.13 Inch 3-color ePaper display from Crystalfontz

Product

                This product has reached end of life  Here's a list of ePaper modules we have available.

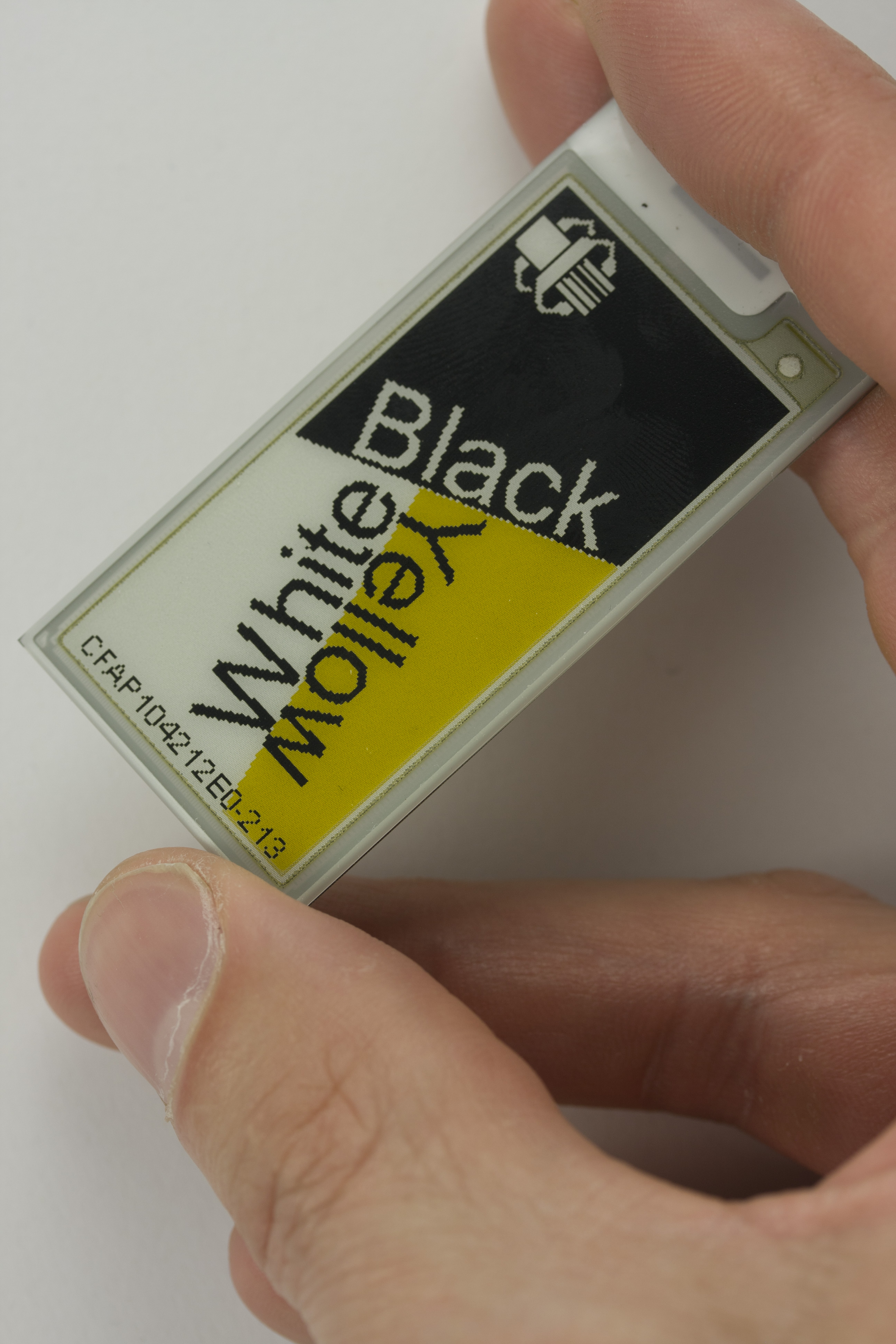

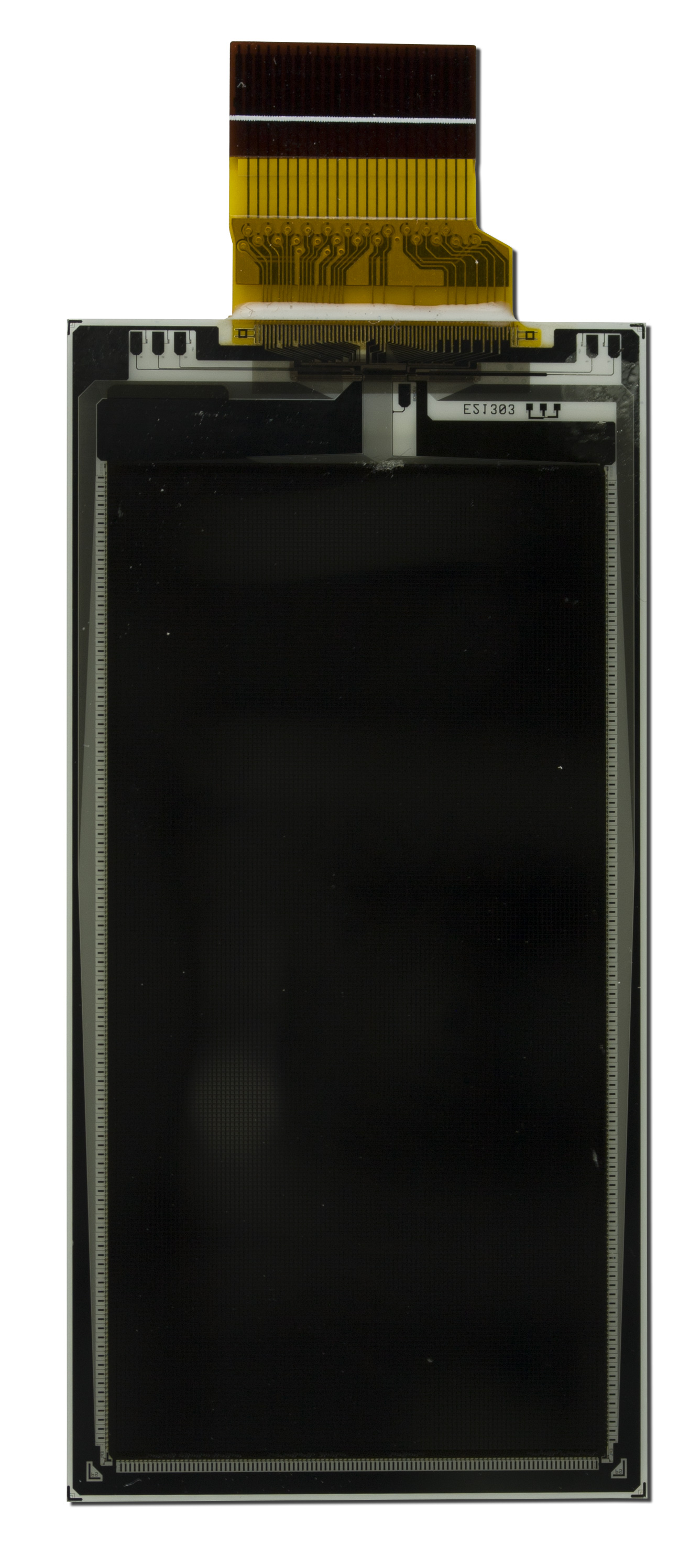

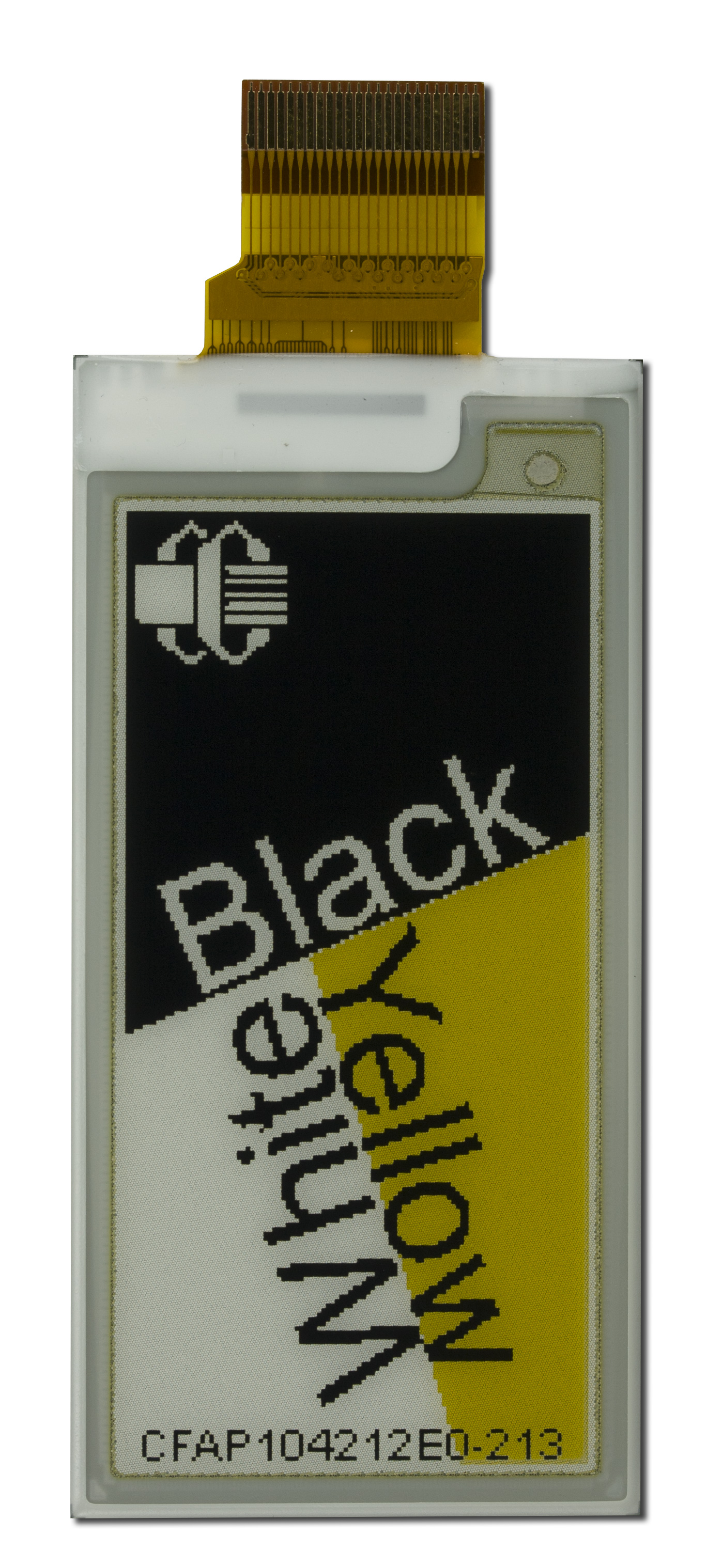

2.13 Inch 3-color ePaper displayPart Number: CFAP104212E0-0213
         ePaper displays are the perfect solution for low power environments where saving energy is key. This 3-color ePaper is perfect for electronic shelf labels, battery-operated devices that require minimal display refreshing or semi-static signage. Whatever you decide to use them for Crystalfontz is here to support you.

This ePaper module has 104x212 pixel resolution packed in a 2.13 inch diagonal screen. 3-colors gives you the ability to make certain elements stand out in yellow, white or black. To extend the life of your ePaper display its recommended you limit refreshing the display to one refresh every few minutes. So if you want to play video, this isn't going to work for you and instead we'd recommend a TFT or OLED display module.

Use our free ePaper software to prepare your bitmap image for this display.

* This ePaper DOES NOT supports partial refresh

Adapter / Breakout Board

Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.

The ZIF connector you need is a standard 24-position 0.5mm pitch.

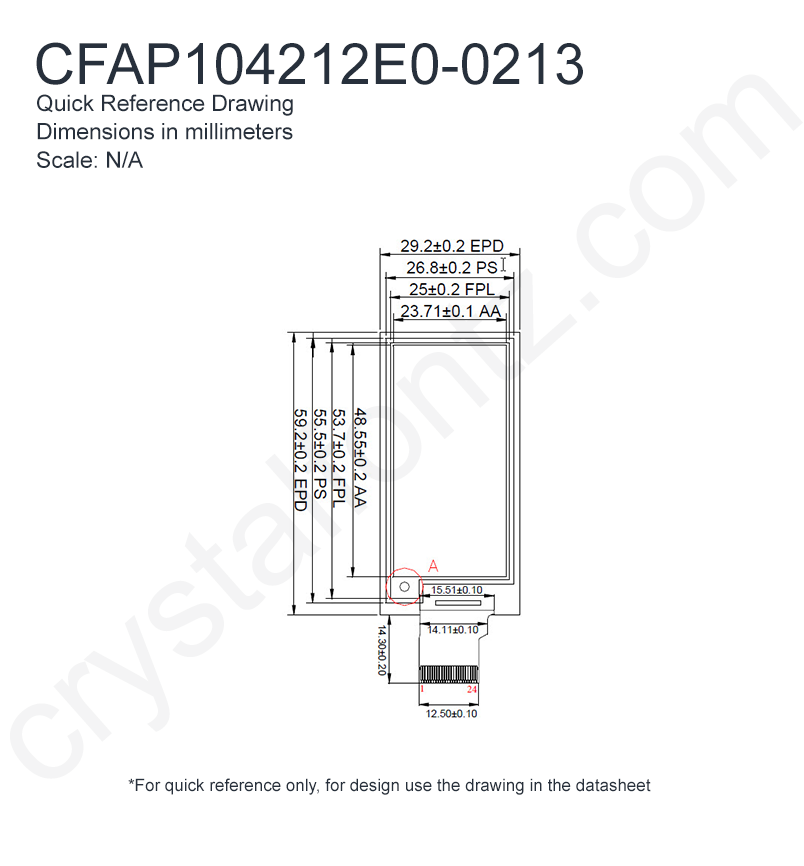

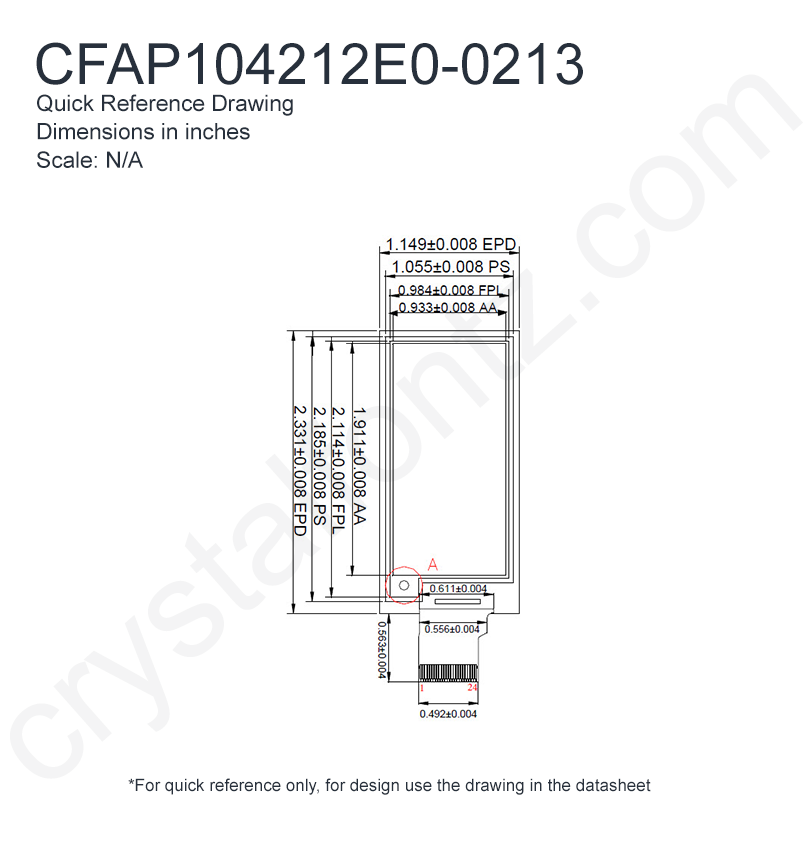

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            104 x 212

    Module Overall        width
        height
        depth

        millimeters
        29.2
        59.2
        0.98

        inches
        1.15
        2.33
        0.04

*width / height does not include Foldable Tab

        Diagonal Dimension
            2.13"

    Active Area        Width
        Height

        millimeters
        23.71
        48.55

        inches
        0.93
        1.91

    Dot Pitch        Width
        Height

        millimeters
        0.228
        0.229

        inches
        0.0090
        0.0090

        Optional Connectors
            CS050Z24GA0

    Flexible Cable (FFC/FPC)        length

        millimeters
        14.3

        inches
        0.563

        Weight
            3g
Pin Count
            24

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            ePaper
View Angle
            Ultra-Wide°

        Foreground Color
            Black / Gold
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Module Connector Pitch
            0.5mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        0°
        40°

        Fahrenheit
        32°
        104°

    Storage Temperatures        min
        max

        Celsius
        -25°
        60°

        Fahrenheit
        -13°
        140°

    Humidity        min
        max

        Non-condensing
        40%
        70%

 cable Electronics
Electronics

        Interface
            SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAP104212E0-0213 Datasheet

 download Files and Downloads
folder_zip Software Source - Arduino / Seeeduino Demo Sketch
picture_as_pdf Hardware Design - CFA10084 Schematic

Module Overall	width	height	depth
millimeters	29.2	59.2	0.98
inches	1.15	2.33	0.04
*width / height does not include Foldable Tab

Active Area	Width	Height
millimeters	23.71	48.55
inches	0.93	1.91

Dot Pitch	Width	Height
millimeters	0.228	0.229
inches	0.0090	0.0090

Flexible Cable (FFC/FPC)	length
millimeters	14.3
inches	0.563

Operating Temperatures	min	max
Celsius	0°	40°
Fahrenheit	32°	104°

Storage Temperatures	min	max
Celsius	-25°	60°
Fahrenheit	-13°	140°

Humidity	min	max
Non-condensing	40%	70%

Additional Options

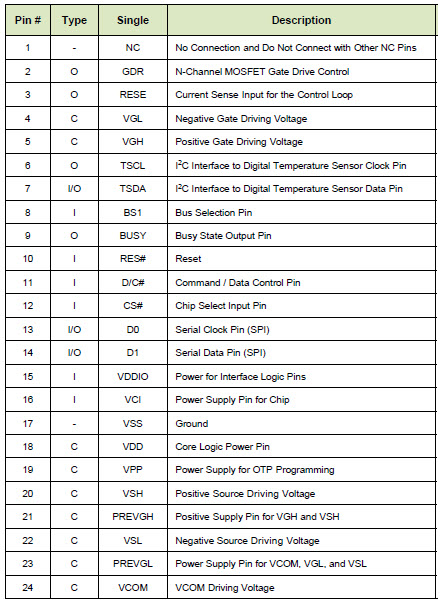

Pin Table
Notices

Additional Options

Speed up your development by purchasing this ePaper display in an Arduino Development kit.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11091: No Longer Stocking Color ePapers

Products Affected:	CFAP400300C0-0420, CFAP104212E0-0213, CFAP128296E0-0290, CFAP128296E0-E2-1, CFAP128296E0-E2-2, CFAP152152B0-0154, CFAP152152B0-E2-1, CFAP152152B0-E2-2, CFAP104212E0-E2-2, CFAP104212E0-E2-1, CFAP400300C0-E2-2, CFAP400300C0-E2-1
Date Issued:	June 25, 2021
Summary:	No Longer Stocking Color ePapers
Description:	Once the current inventory has been depleted, this product will no longer be offered by Crystalfontz.
Reason:	Crystalfontz is no longer stocking color ePapers due to the shelf-life and storage requirements.
