1.54 Inch ePaper Display from Crystalfontz

Product

                This product is no longer available. Please see our other ePaper display modules.

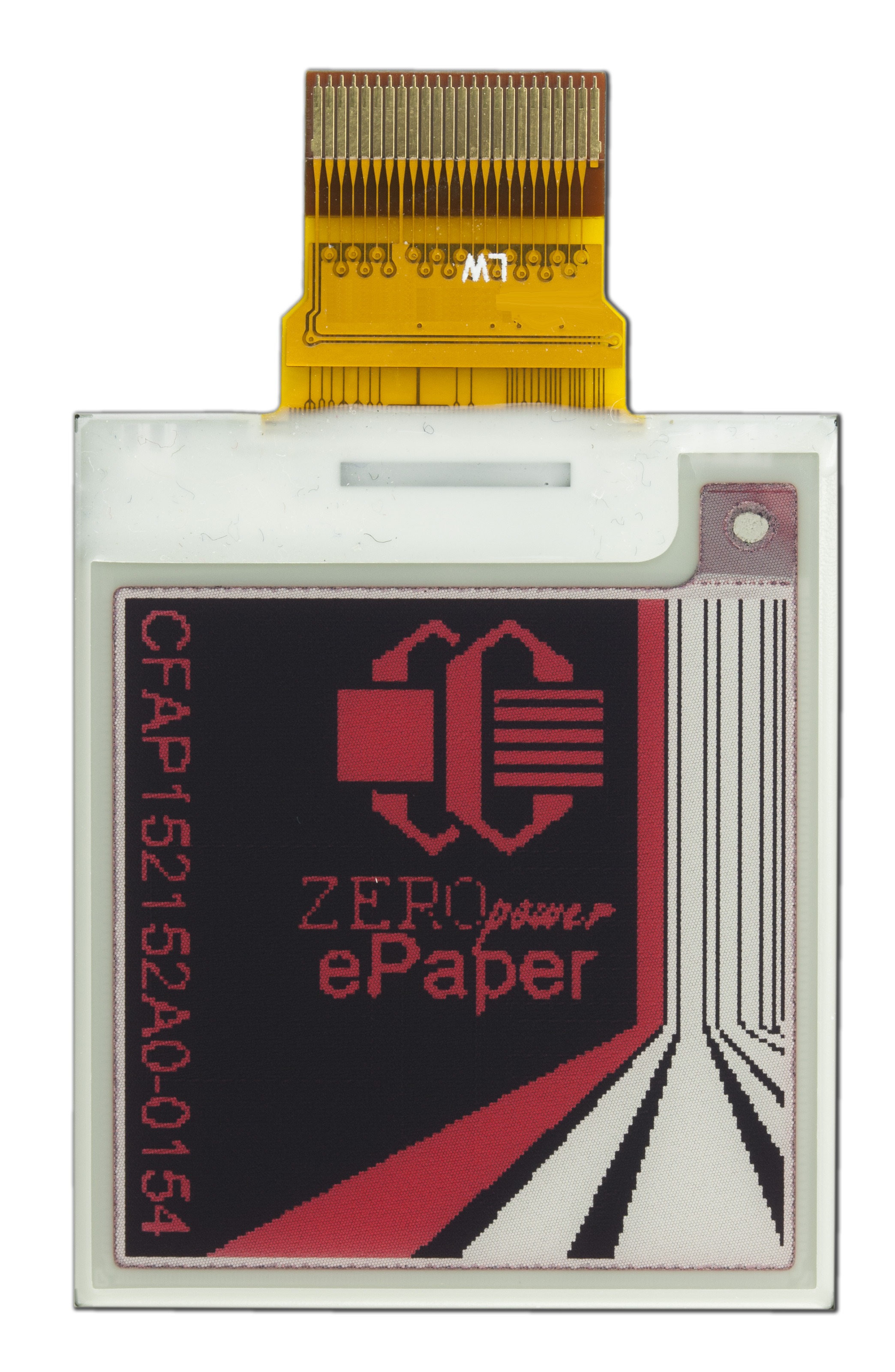

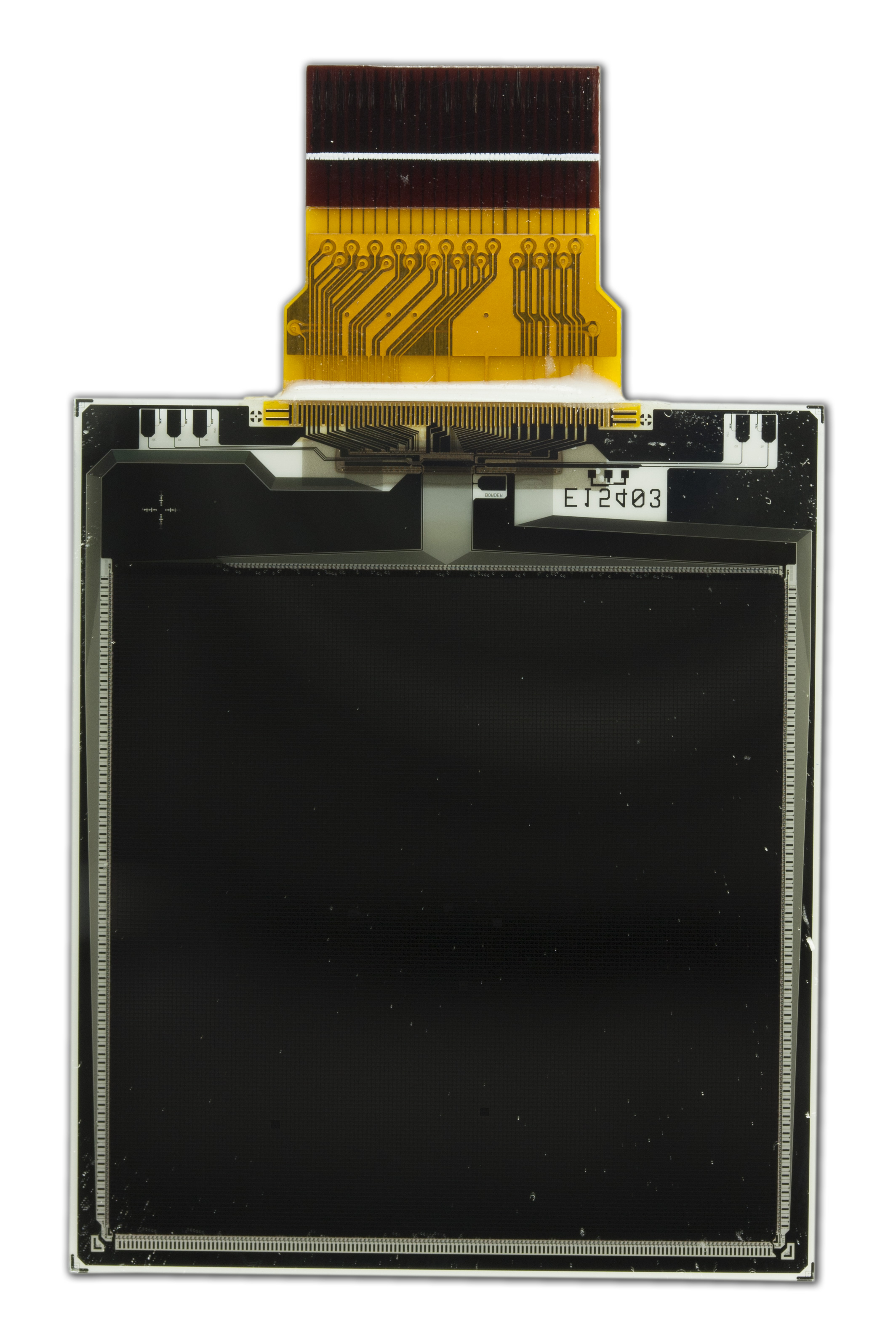

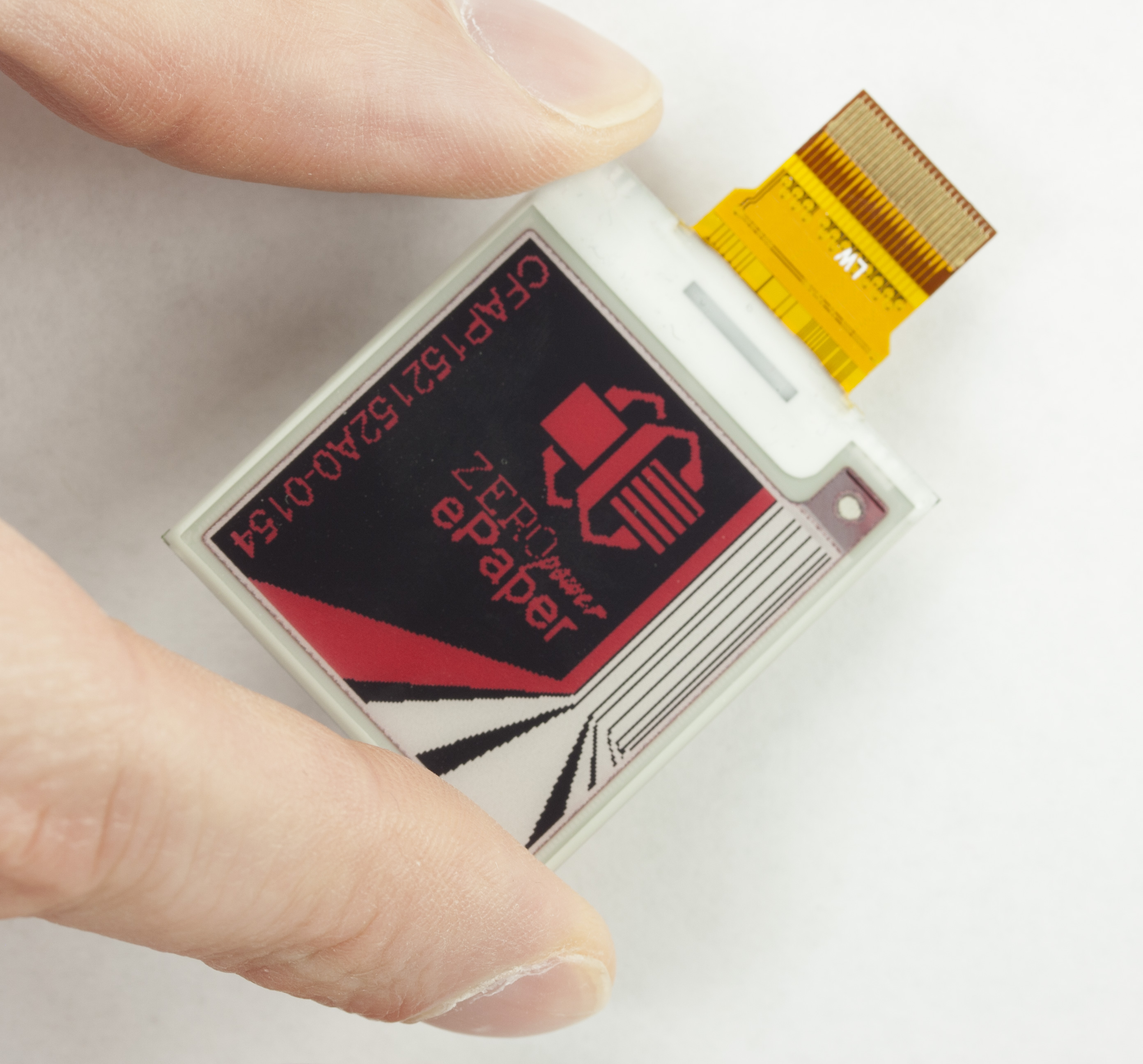

1.54 Inch ePaper DisplayPart Number: CFAP152152A0-0154
         1.54 inch square ePaper / eInk display. These epd displays are ultra-low power displays that only require power when being updated. Once you have the graphic you want displayed, you can literally unplug the display and the screen will continue to show your message.

Get your product up and running quickly with our demonstration Arduino sketch or with our Arduino / Seeeduino demonstration kits.

This ePaper display DOES NOT support partial updates

You can use our free ePaper software to load your bitmap image on to this display.

If you need help with this display, our support is here to help!.

The ZIF connector you need is a standard 24-position 0.5mm pitch.

Adapter / Breakout Board

Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.

Product Variations

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            152 x 152

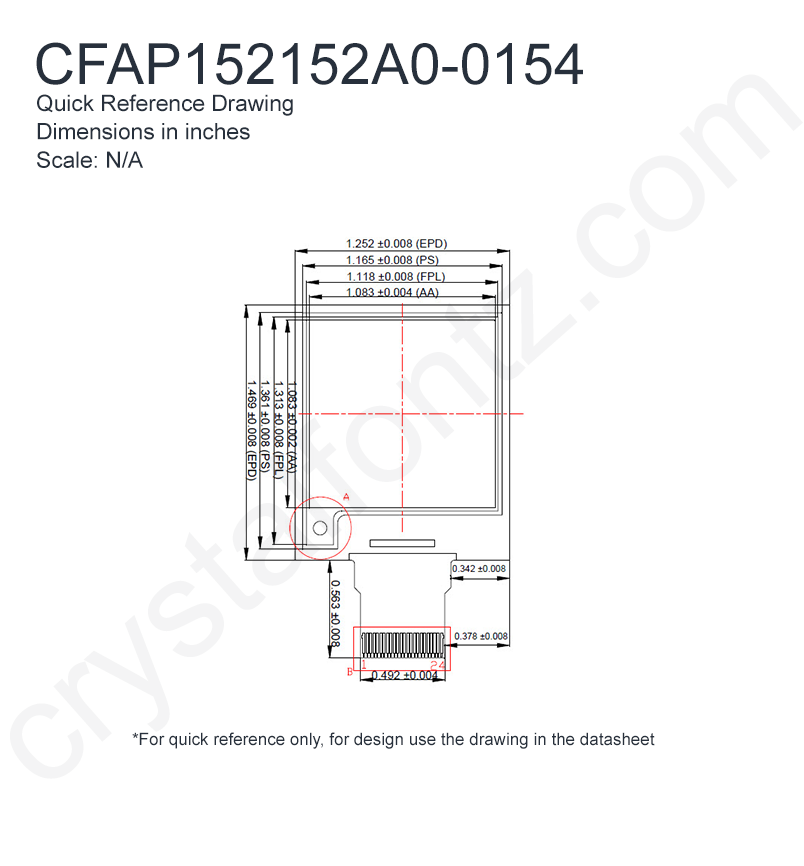

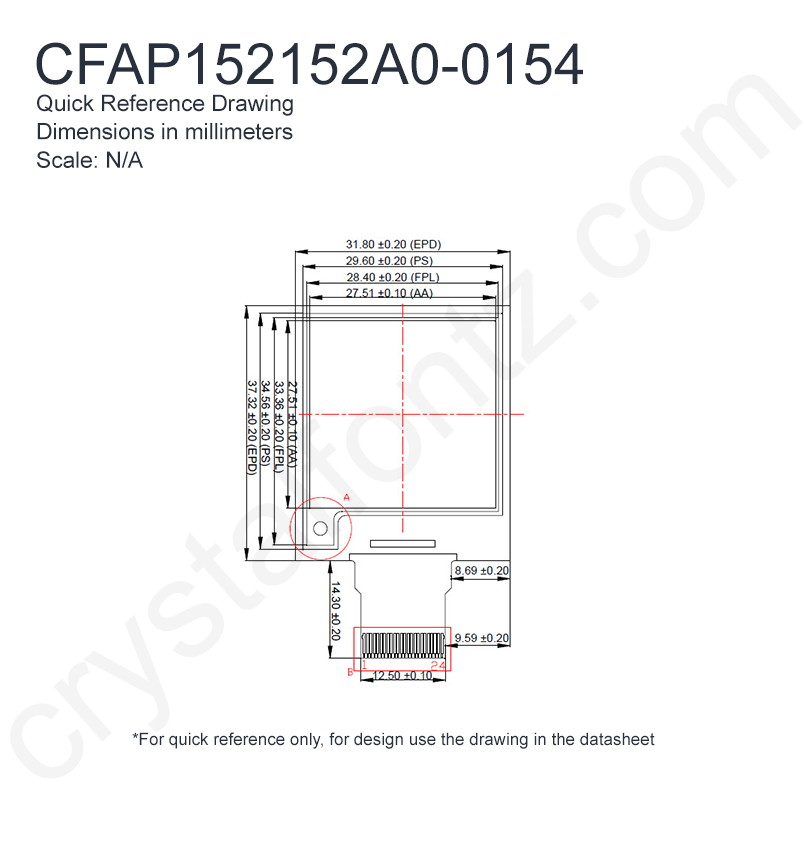

    Module Overall        width
        height
        depth

        millimeters
        31.8
        37.32
        0.98

        inches
        1.25
        1.47
        0.04

        Diagonal Dimension
            1.53"

    Active Area        Width
        Height

        millimeters
        27.51
        27.51

        inches
        1.08
        1.08

    Dot Pitch        Width
        Height

        millimeters
        0.081
        0.081

        inches
        0.0032
        0.0032

        Optional Connectors
            CS050Z24GA0

    Flexible Cable (FFC/FPC)        length

        millimeters
        14.3

        inches
        0.563

        Weight
            2.38g
Pin Count
            24

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            ePaper
Sunlight Readable
            Yes

        Foreground Color
            Red / Black
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Module Connector Pitch
            0.5mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        0°
        40°

        Fahrenheit
        32°
        104°

    Storage Temperatures        min
        max

        Celsius
        -25°
        60°

        Fahrenheit
        -13°
        140°

 cable Electronics
Electronics

        Interface
            SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAP152152A0-0154 Datasheet

 download Files and Downloads
folder_zip Software Source - Arduino / Seeeduino Demo Code
folder_zip Hardware Design - 3D STEP Files
picture_as_pdf Hardware Design - CFA10084 Schematic
link Fork this on Github

Module Overall	width	height	depth
millimeters	31.8	37.32	0.98
inches	1.25	1.47	0.04

Active Area	Width	Height
millimeters	27.51	27.51
inches	1.08	1.08

Dot Pitch	Width	Height
millimeters	0.081	0.081
inches	0.0032	0.0032

Flexible Cable (FFC/FPC)	length
millimeters	14.3
inches	0.563

Operating Temperatures	min	max
Celsius	0°	40°
Fahrenheit	32°	104°

Storage Temperatures	min	max
Celsius	-25°	60°
Fahrenheit	-13°	140°

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11084: Red ePaper End-of-Life notice.

Products Affected:	CFAP128296D0-0290, CFAP176264A0-0270, CFAP104212C0-0213, CFAP152152A0-0154, CFAP176264A0-E2-1, CFAP176264A0-E2-2, CFAP152152A0-E2-1, CFAP152152A0-E2-2, CFAP400300A0-0420, CFAP400300A0-E2-1, CFAP400300A0-E2-2, CFAP128296D0-E2-1, CFAP128296D0-E2-2
Date Issued:	April 28, 2021
Summary:	Red ePaper End-of-Life notice.
Description:	These products will no longer be stocked at our facility or offered for sale on our website.
Reason:	Due to quality issues with the red ink during storage, we have determined that we will no longer offer this line of products to our customers.

Product Update #10929: (New Product!) 1.54 Inch ePaper Display: CFAP152152A0-0154

New Product:	CFAP152152A0-0154
Date Issued:	February 2, 2018
Summary:	(New Product!) 1.54 Inch ePaper Display: CFAP152152A0-0154
Description:	Introducing a new 1.54 inch square ePaper / eInk display to our ePaper catalog! These EPD displays are ultra-low power, that only requires power when being updated. Once you have the graphic you want to be displayed, you can literally unplug the display and the screen will continue to show your message. Get your product up and running quickly with our demonstration Arduino sketch or with our Arduino / Seeeduino demonstration kits! See all the technical specs and development bundles here: https://www.crystalfontz.com/product/cfap152152a00154-epaper-square-eink-display
