Home » Products » Accessories » Dev Kits » ePaper Development Kits

1.54 inch Arduino ePaper Development Kit

Part Number: CFAP152152C0-E2-2

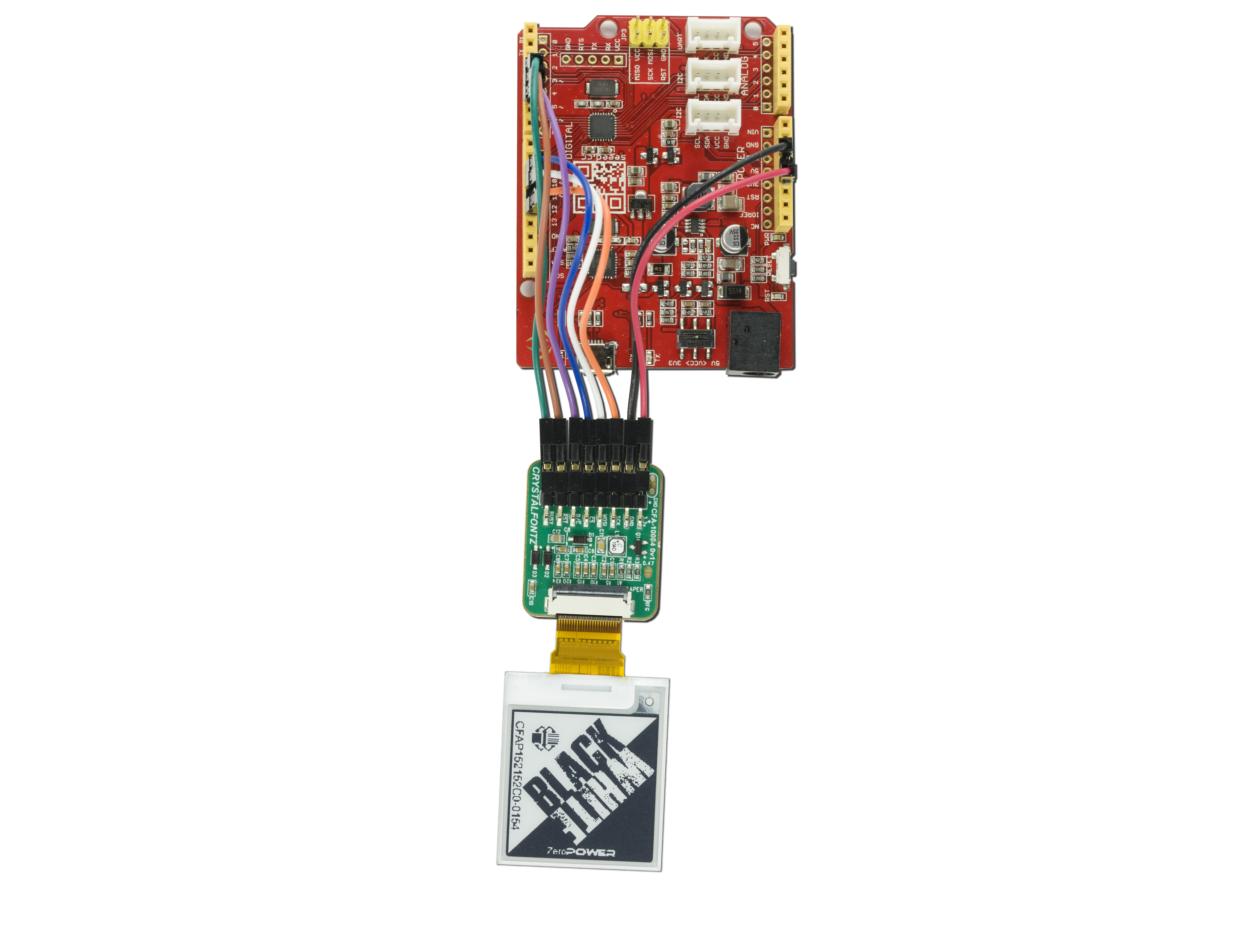

1.54" ePaper development kit. This kit included the 1.54" black and white ePaper display, the CFA10084 ePaper Adapter board and a Seeediuno (Arduino Clone).
1.54 inch Arduino ePaper Development Kit (CFAP152152C0-E2-2)
Qty:
Quantity Price
1 $51.44
* Pricing is subject to change. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAP152152C0-E2-2 or RSS RSS feed for changes to CFAP152152C0-E2-2 for CFAP152152C0-E2-2

Compliance Documents

TECHNICAL SPECS

Physical Characteristics

Diagonal Dimension 1.53"
Weight 26.6g

Electrical Specifications

Module Connector Pitch 2.54mm

Additional Options

Purchase addition displays or modules.

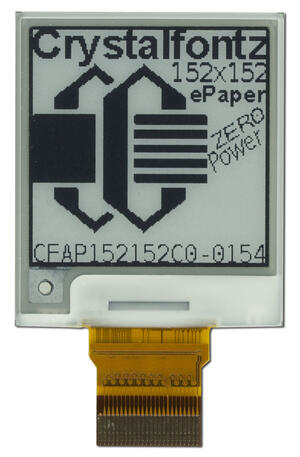

1.54" 152x152 Square ePaper Display
Part Number: CFAP152152C0-0154

Ultra-low-power, 152x152 pixel, Black and White, Square, ePaper Display. Electrophoretic displays are perfect for semi-static content that doesn't need a fast refresh, such as electronic signage, electronic shelf labels, barcodes, etc. Once this display is updated it requires no power or connection whatsoever. Its display will remain indefinitely.

Use our free ePaper software to load your bitmap image on to this display.

*This ePaper supports partial updates see datasheet for details.

Adapter / Breakout Board
Want to get this display up and running quickly with an Arduino or Seeeduino? We have an ePaper Adapter Board that makes connecting our ePaper simple and fast.

The ZIF connector you need is a standard 24-position 0.5mm pitch.

Details
Quantity 1 10 20 50 100 200 500 1000
Price $7.71 $6.29 $6.08 $5.86 $5.81 $5.78 $5.73 $5.69
Quantity:

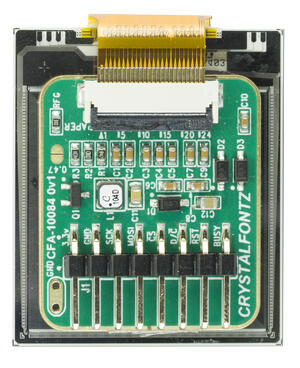

1.54" ePaper Display with Adapter Board
Part Number: CFAP152152C0-E2-1

Black and white 1.54 inch ePaper display module with ePaper adapter module included.

Details
Quantity 1 10 20 50 100 200 500 1000 *
Price $22.39 $19.49 $19.31 $19.15 $19.00 $18.84 $18.69 $18.29
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAP152152C0-E2-2 or RSS RSS feed for changes to CFAP152152C0-E2-2

Part Change Notice #11197: New Seeeduino Version 4.3 Now Shipping

Products Affected: CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued: May 15, 2023
Summary: New Seeeduino Version 4.3 Now Shipping
Description: We are now releasing products as stated in PCN11190.
https://www.crystalfontz.com/news/pcn.php?id=11190

Part Change Notice #11190: Part Change - Seeeduino 4.2 ->4.3

Products Affected: CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued: April 13, 2023
Summary: Part Change - Seeeduino 4.2 ->4.3
Last revision: 4.2
Description: Seeed Studios has updated the Seeeduino from v4.2 to v4.3. This change switches from the ATMEGA328P-MU to the ATMEGA328P-AU, and replaces the serial chip. This causes the Seeeduino to identify differently when connected to a computer.
Reason: Supplier has changed their offering
Impact: Kits using the Seeeduino will no longer be named "USB Serial Device"
Availability: Immediate
