200x200 ePaper Development Kit

Part Number: CFAP200200A1-E2-2

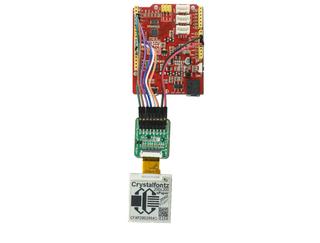

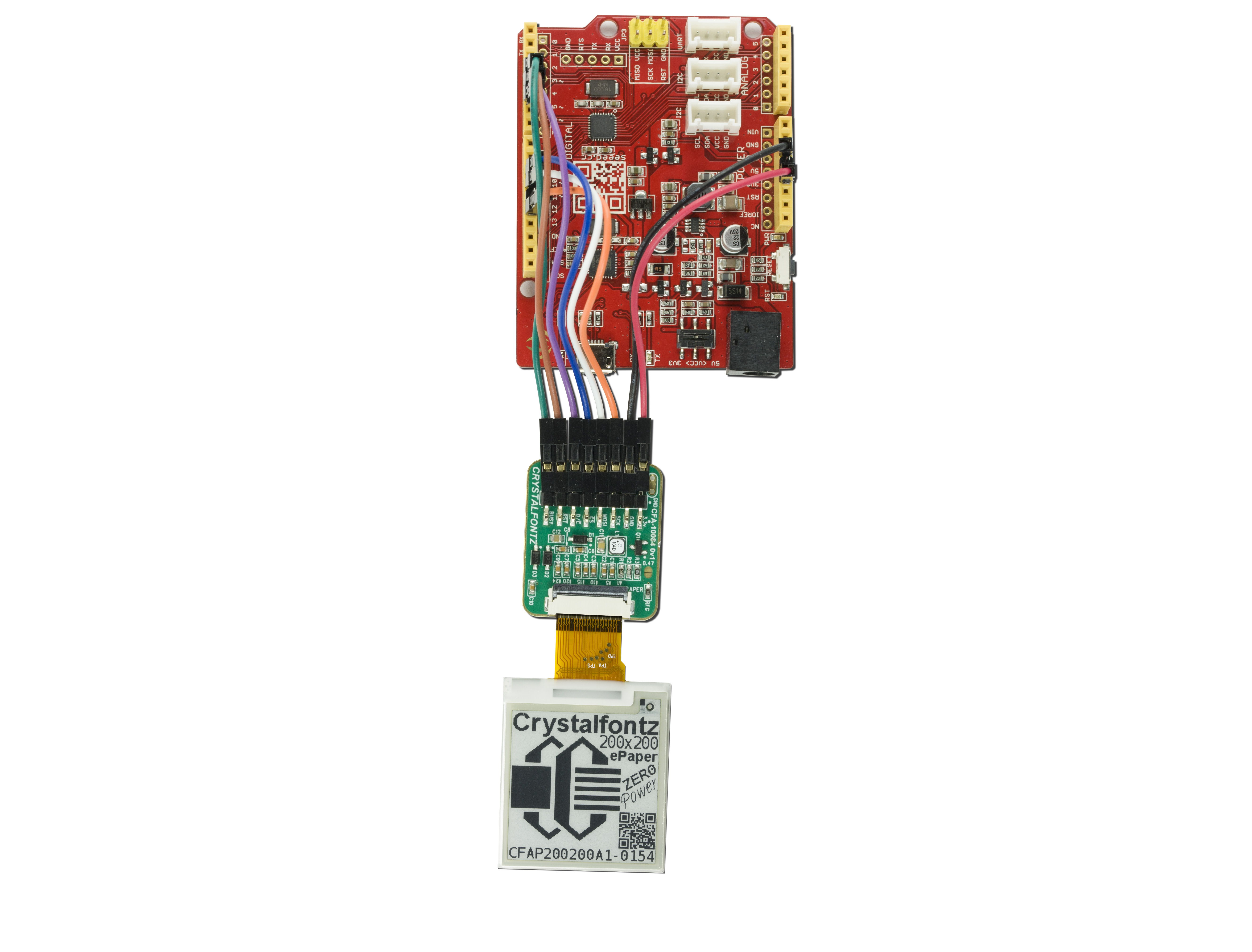

This is a bundle of our 200x200 ePaper module with our CFA10084 ePaper adapter board and 3.3v Seeeduino / Arduino clone.

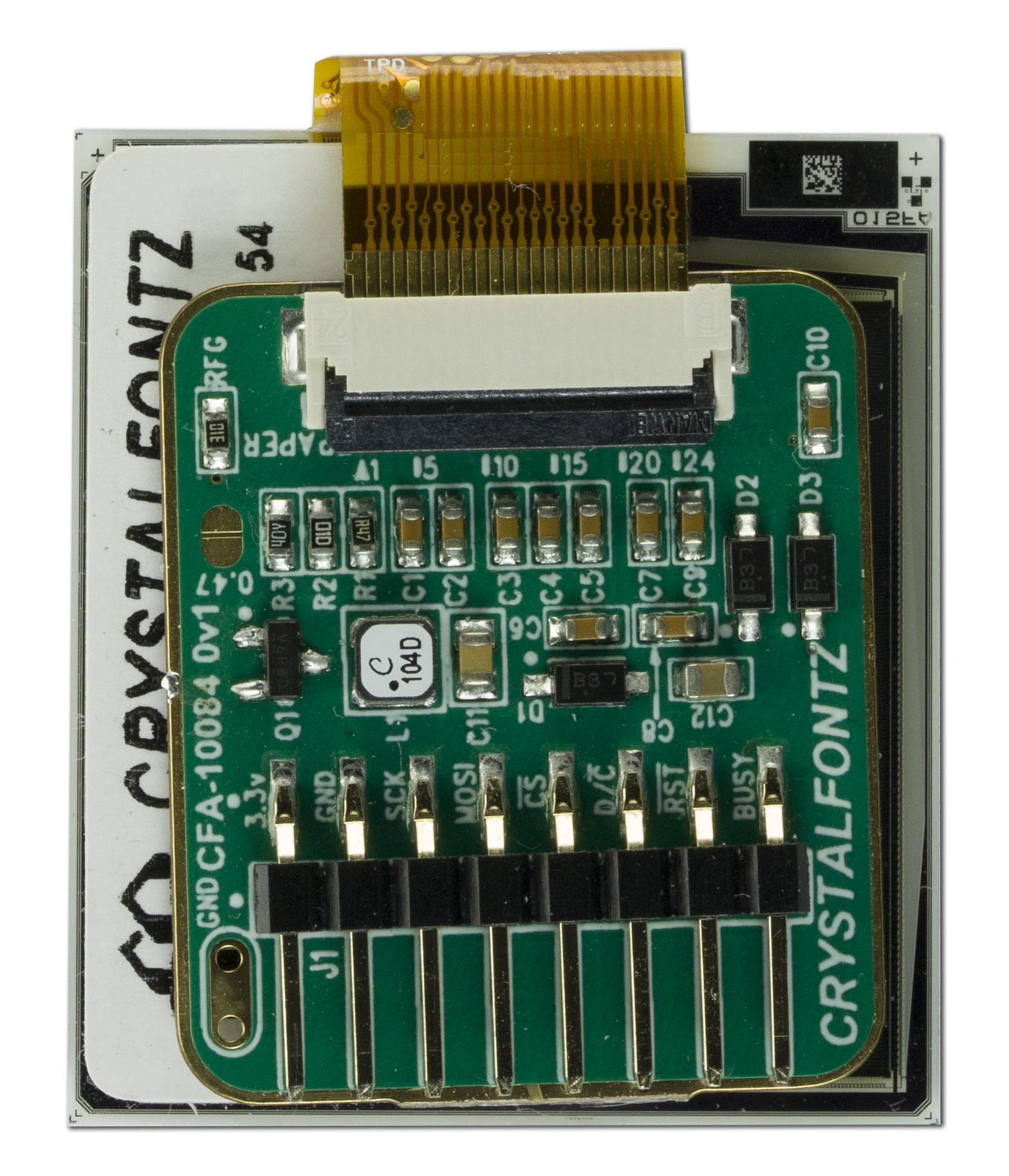

The CFA10084 ePaper adapter board is designed to attach to the back of the ePaper screen.

*Comes fully assembled and tested.

Physical Characteristics
Physical Characteristics

Diagonal Dimension 1.54"

Weight 26g
Electrical Specification
Electrical Specifications

Module Connector Pitch 2.54mm
Files and Downloads

picture_as_pdf Hardware Design - CFA10084 Schematic

Change Notices

Part Change Notice #11378: Global Demand Increasing Lead Times on ePaper Modules.

Products Affected:	CFAP200200A0-0154, CFAP104212B0-0213, CFAP104212A0-0213, CFAP128296B0-0290, CFAP128296A0-0290, CFAP122250A0-0213, CFAP128296C0-0290, CFAP128296D0-E1-2, CFAP122250A0-E1-2, CFAP122250A0-E1-1, CFAP128296C0-E1-1, CFAP128296C0-E1-2, CFAP128296D0-E1-1, CFAP176264A0-0270, CFAP176264A0-E1-1, CFAP176264A0-E1-2, CFAP104212C0-0213, CFAP104212C0-E1-1, CFAP104212C0-E1-2, CFAP152152A0-0154, CFAP152152A0-E1-1, CFAP152152A0-E1-2, CFAP200200A1-0154, CFAP176264B0-0270, CFAP640384A0-0750, CFAP400300C0-0420, CFAP104212D0-0213, CFAP400300B0-0420, CFAP104212E0-0213, CFAP600448A0-0583, CFAP176264A0-E2-1, CFAP200200A1-E2-2, CFAP176264A0-E2-2, CFAP128296E0-0290, CFAP128296E0-E2-1, CFAP128296E0-E2-2, CFAP122250A0-E2-2, CFAP122250A0-E2-1, CFAP128296C0-E2-2, CFAP152152C0-0154, CFAP152152C0-E2-1, CFAP152152C0-E2-2, CFAP152152B0-0154, CFAP152152B0-E2-1, CFAP152152B0-E2-2, CFAP128296C0-E2-1, CFAP152152A0-E2-1, CFAP152152A0-E2-2, CFAP400300A0-0420, CFAP400300A0-E2-1, CFAP400300A0-E2-2, CFAP104212C0-E2-2, CFAP104212C0-E2-1, CFAP104212D0-E2-2, CFAP104212D0-E2-1, CFAP104212E0-E2-2, CFAP104212E0-E2-1, CFAP176264B0-E2-2, CFAP176264B0-E2-1, CFAP128296D0-E2-1, CFAP128296D0-E2-2, CFAP400300C0-E2-2, CFAP400300C0-E2-1, CFAP400300B0-E2-2, CFAP400300B0-E2-1, CFAP600448A0-E2-2, CFAP600448A0-E2-1, CFAP640384A0-E2-2, CFAP640384A0-E2-1, CFAP200200A3-0154, CFAP200200A3-E2-1, CFAP200200A3-E2-2, CFAP400300B1-0420, CFAP400300B1-E2-1, CFAP400300B1-E2-2, CFAP122250A2-0213, CFAP122250A2-E2, CFAP122250A2-E2-2, CFAP200200A5-0154, CFAP104212D1-0213, CFAP200200A5-E2, CFAP200200A5-E2-2, CFAP104212D1-E2, CFAP104212D1-E2-2
Date Issued:	March 2, 2026
Summary:	Global Demand Increasing Lead Times on ePaper Modules.
Description:	Due to increased global demand for AI chips, semiconductor fabricators are prioritizing AI chip production, which is sidelining display controller manufacturing. Crystalfontz is currently experiencing extended lead times of six months or more on products utilizing EPD display controllers. We request that POs are placed well in advance and forecasts are provided to us so that we plan accordingly. We are actively monitoring the situation and working to reduce the impact this may have on customers.
Reason:	Global semiconductor fabrication capacity constraints driven by AI chip demand have significantly reduced display controller production allocations across the industry. This is an industry-wide condition outside of Crystalfontz's control.
Impact:	Extended lead times of up to six months on affected EPD products Additional display controller types may be impacted as the situation evolves Product availability is subject to change
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com. Customers who can provide purchase forecasts or updated order projections are strongly encouraged to do so.

Part Change Notice #10980: ePaper adapter board now comes attached to displays in kits.

Products Affected:	CFAP176264A0-E2-1, CFAP200200A1-E2-2, CFAP200200A1-E2-1, CFAP176264A0-E2-2
Date Issued:	August 7, 2018
Summary:	ePaper adapter board now comes attached to displays in kits.
Description:	Product Development Kits containing the ePaper adapter board have been changed. Previously these kits were shipped with just the tail of the display connected to the adapter board by the ZIF connector. The kits will now be shipped with the displays also connected to the adapter board with double backed tape.
Reason:	To prevent damage to the tail during shipping and general handling.
Recommendation:	The display can be shipped without being attached to the adapter board. This must be requested as "special instructions" when the kit is ordered
Price Change:	N/A
