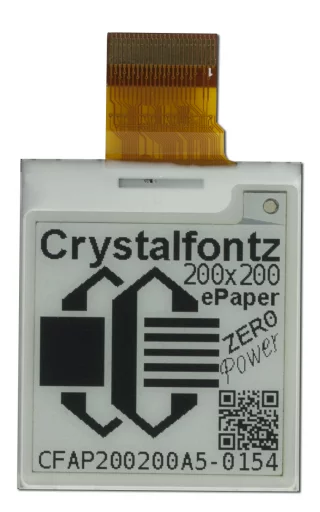

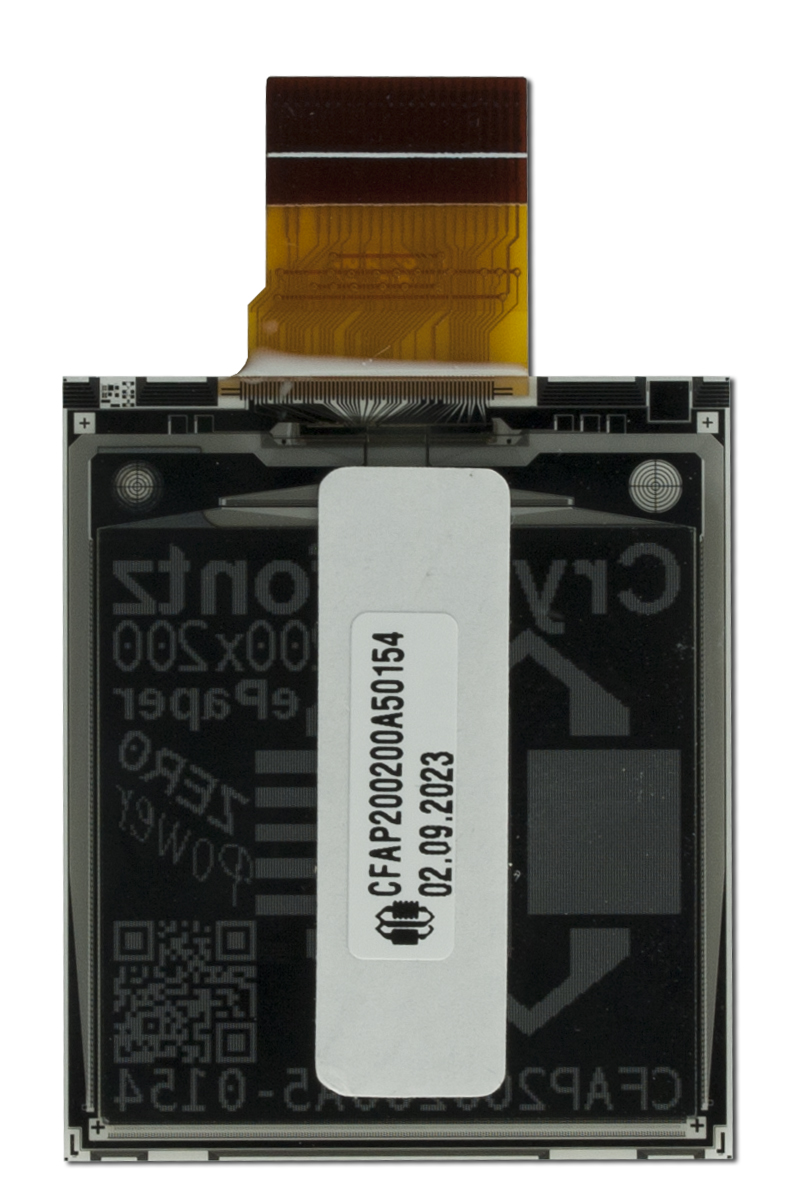

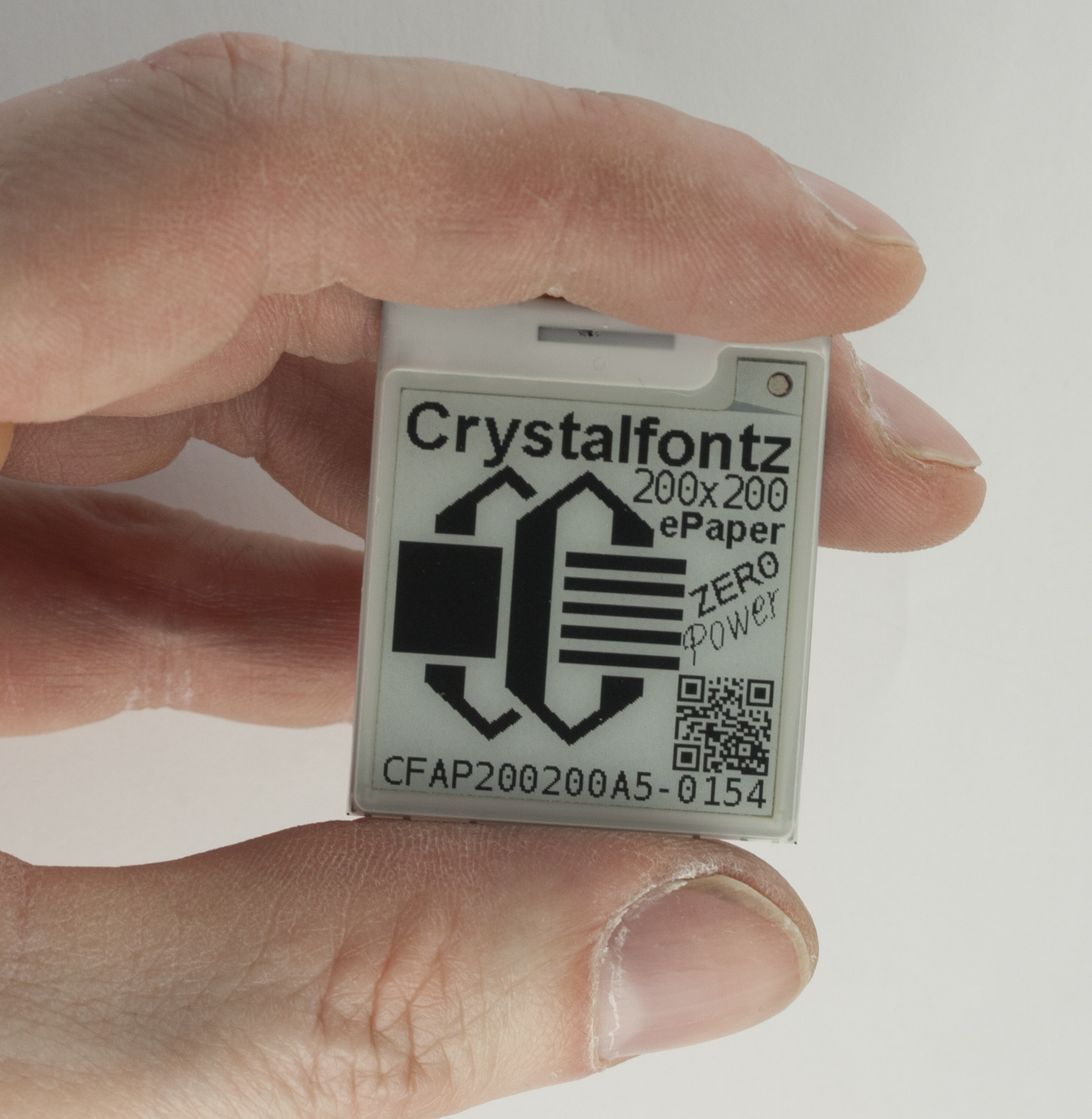

1.54" 200x200 Square ePaper Display

Part Number: CFAP200200A5-0154

This black and white square 200x200 pixel ePaper display module is a perfect size for small, low-power electronic shelf labels. EPD/ePaper displays are bi-stable, meaning once an image is displayed on the ePaper, it remains visible even when the display is disconnected from power.

This display module includes built-in voltage generation, requiring only a few external components, or check out our ePaper Adapter Board that handles the external components.

Ultra-thin, light weight, and low power, ePaper has a clear advantage over other display technologies for small handheld battery-operated devices or devices powered by solar. Epaper displays are growing rapidly in popularity and can be scanned by barcode readers. That makes this square display a great choice for displaying a QR code.
  • Wide viewing angle makes the display easily readable from all directions.
  • Supports 3 or 4 wire SPI for communications
  • Sunlight Readable! Displays reflect light like ordinary paper, making them easy to read in direct sunlight.
  • Bi-stable image displays without any flickering.
  • Supports partial screen updates
  • Long lifetime: ~5 years / ~1M updates.
  • Very fast updates ~2sec for a full screen update
Use our free ePaper software to prepare your bitmap image for this display.

Part Number:
CFA - Crystalfontz America
P - ePaper display
200200 - 200x200 pixel resolution
A5 - family and revision (this part replaces the CFAP200200A30154)
0154 - 1.54" diagonal
Qty:
Quantity Price
1 $11.07
5 $9.22
10 $9.00
20 $8.71
50 $8.42
100 $8.31
200 $8.25
300 $8.19
500 $8.14
1000 * $8.08
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4626 24 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $0.97 ea.
4518 ePaper Adapter Board
Add a breakout board? $11.68 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAP200200A5-0154 or RSS RSS feed for changes to CFAP200200A5-0154 for CFAP200200A5-0154

Video Demonstrations

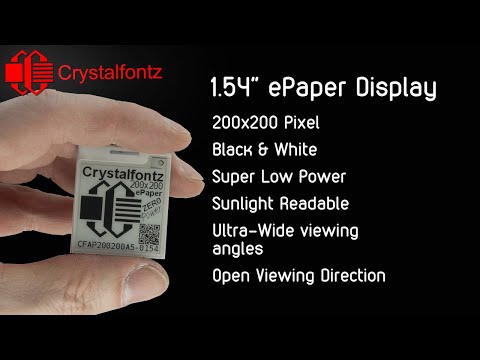

Watch this video to see how this ePaper display looks and operates.

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 200 x 200
Module Overall width height depth

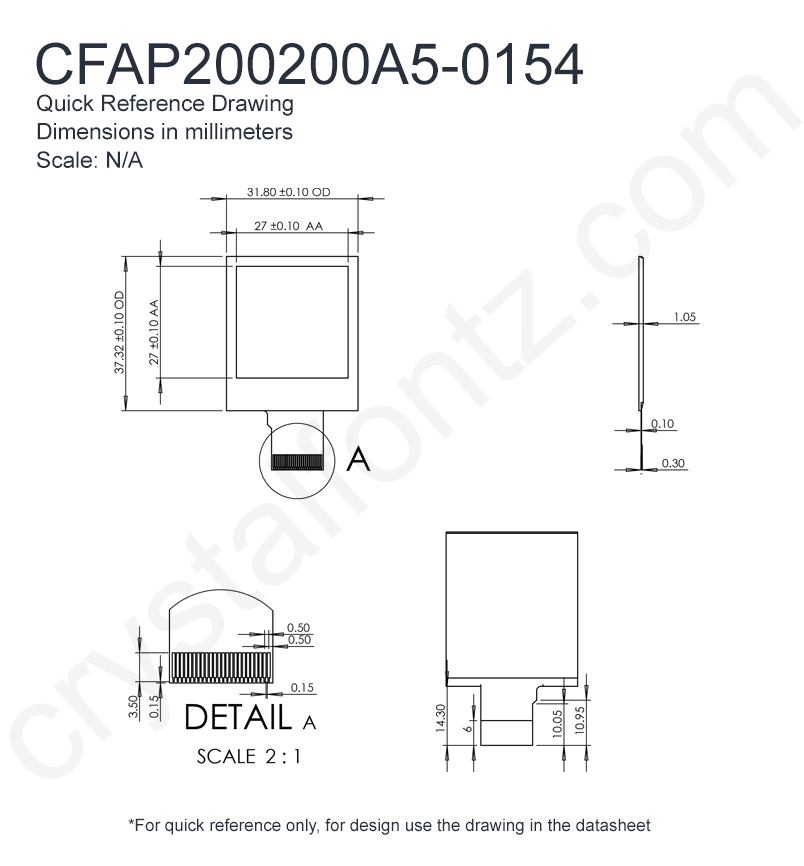

millimeters 31.8 37.32 1.05

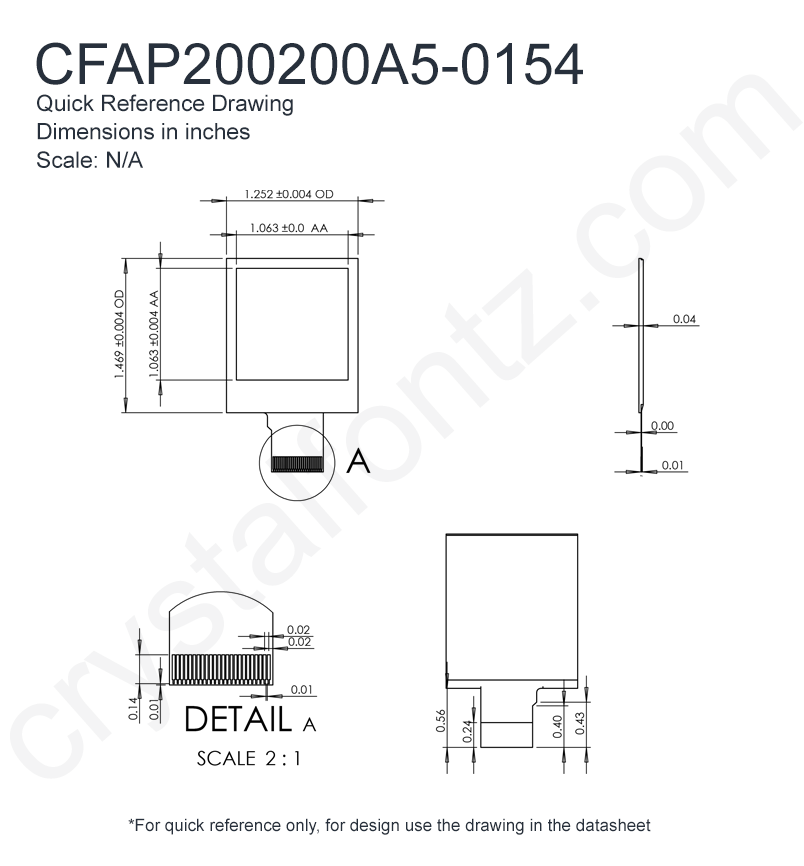

inches 1.252 1.469 0.041
*width / height does not include Foldable Tab
Diagonal Dimension 1.5"
Active Area width height
millimeters 27 27
inches 1.063 1.063
Dot Pitch width height
millimeters 0.135 0.135
inches 0.0053 0.0053
Optional Connectors CS050Z24GA0
Weight 2.1g
Pin Count 24

Optical Characteristics

Glass Type ePaper
Sunlight Readable Yes
Foreground Color black
Background Color white

Electrical Specifications

Supply Voltage for Logic Minimum 2.2V
Supply Voltage for Logic Maximum 3.7V
Supply Voltage for Logic Typical 3.3V
Module Connector Pitch 0.5mm

Environmental

Operating Temperatures min max
Celsius 50°
Fahrenheit 32° 122°
Storage Temperatures min max
Celsius -25° 60°
Fahrenheit -13° 140°
Humidity min max
Non-condensing 40% 70%

Electronics

Interface SPI

Miscellaneous

Foldable Tab Yes
Full Screen Update Time 2s
Time Between Updates 180s

Additional Options

Purchase this display with an adapter board or in a complete development kit to speed up your prototyping .

1.54" ePaper with Breakout Board
Part Number: CFAP200200A5-E2

This module comprises a 200x200 1.54" ePaper display and the CFA10084 ePaper adapter board mounted on the back of the display. The adapter board breaks the display's ZIF tail out to a 0.1" header so the black and white ePaper display can easily be integrated into a product or demonstrated with minimal work.

The adapter board takes care of all the circuitry required to operate the display so only the COM and power lines need to be supplied.

A full 1.54" black and white ePaper demonstration kit is also available.

Key Features:

  • ePaper reflects light like paper, meaning it's sunlight-readable and can be viewed from wide angles
  • Supports 3 or 4 wire SPI for communications
  • Bi-stable image displays without flickering and with no power once the image is displayed
  • Supports partial screen updates
  • ~5 years / ~1M updates
  • ~2sec for a full screen update


Part Number:
CFA - Crystalfontz America
P - ePaper
200200 - 200x200 pixel resolution
A5 - Family and revision (replaces CFAP200200A3-E2-1)
E2 - Includes Breakout board

Details
Quantity 1 5 10 20 50 100 200 300 500 1000 *
Price $25.81 $21.60 $20.99 $20.37 $19.63 $19.38 $19.26 $19.01 $18.89 $17.76
Quantity:
1.54" 200x200 ePaper Development Kit
Part Number: CFAP200200A5-E2-2

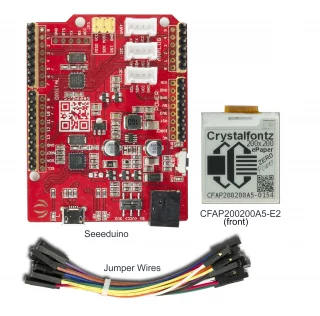

Need to get to development fast? This is a full and working demo kit for the 1.54" Square ePaper Display. The 1.54" black and white display is connected to the ePaper adapter board and wired to a Seeeduino running demonstration code so you can have a functioning demo in your hands as fast as possible.

The kit includes

  • Seeeduino pre-programmed with a demonstration program
  • CFA10084 ePaper adapter board
  • CFAP200200A5-0154 black and white ePaper display
  • ll necessary wires and headers to connect them together.
We can also provide just the ePaper and adapter board.

Part Number:
CFA - Crystalfontz America
P - ePaper
200200 - 200x200 pixel resolution
A5 - Family and revision (replaces CFAP200200A3-E2-1)
E2 - Includes Breakout board
2 - Includes a Seeeduino with a demonstration program

Details
Quantity 1
Price $58.50
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAP200200A5-0154 or RSS RSS feed for changes to CFAP200200A5-0154

Product Update #11186: 1.54" 200x200 Square ePaper Display is available for sale.

New Product: CFAP200200A5-0154
Date Issued: March 14, 2023
Summary: 1.54" 200x200 Square ePaper Display is available for sale.
Description: CFAP200200A5-0154 has been released on our website (https://www.crystalfontz.com/product/cfap200200a50154-200x200-square-epaper-display) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
For reference only. For design purposes, please use the specifications in the datasheet.
