10 Pin to DB9 Cable

Part Number: WR-232-Y13

Pricing

Quantity Price
1 $5.45
20 $4.36
50 $3.82
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to WR-232-Y13 or RSS RSS feed for changes to WR-232-Y13 for WR-232-Y13

10 Pin to DB9 Cable (WR-232-Y13)
10 Pin to DB9 Cable
Close

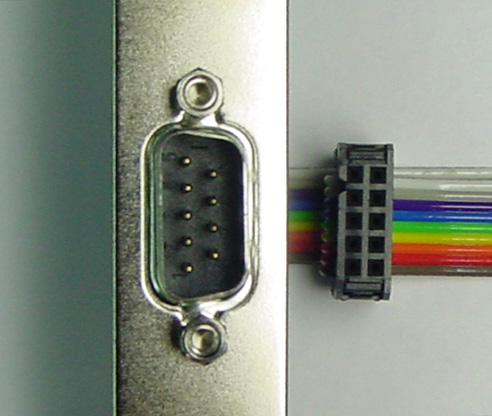

This is a close-up of the ends of the ribbon cable.
This is a close-up of the ends of the ribbon cable.
This is a close-up of the ends of the ribbon cable.
Close

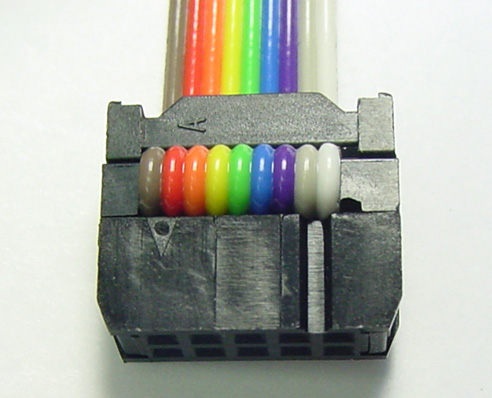

This is a close-up of the 10 pin connector .
This is a close-up of the 10 pin connector .
This is a close-up of the 10 pin connector .
Close

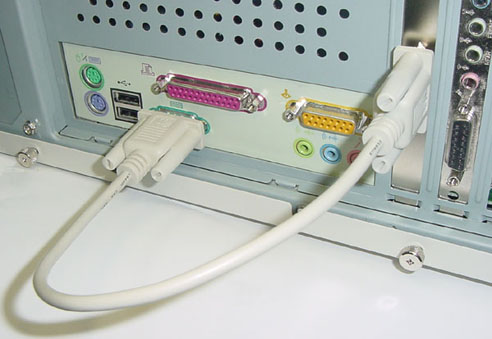

This shows the bracket end of the WR232Y13 in the
PC expansion slot (with the ribbon cable inside), and the WR232Y10 13 cable
connecting the WR232Y13 bracket end with the serial port.
This shows the bracket end of the WR232Y13 in the
PC expansion slot (with the ribbon cable inside), and the WR232Y10 13 cable
connecting the WR232Y13 bracket end with the serial port.
This shows the bracket end of the WR232Y13 in the PC expansion slot (with the ribbon cable inside), and the WR232Y10 13" cable connecting the WR232Y13 bracket end with the serial port.
Close

Description

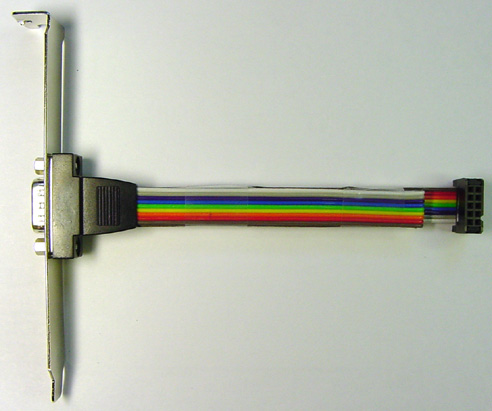

A RS232 10 pin connector to DB9 male ribbon cable with PC expansion slot bracket. Used in conjunction with the WR232Y10 cable, one can connect the CFA533 or CFA633 display modules to a standard 9-pin RS232 connection as found on a PC.

TECHNICAL SPECS

Physical Characteristics

Flexible Cable (FFC/FPC) length
millimeters 880
inches 34.646
Weight 41g
For reference only. For design purposes, please use the specifications in the datasheet.
