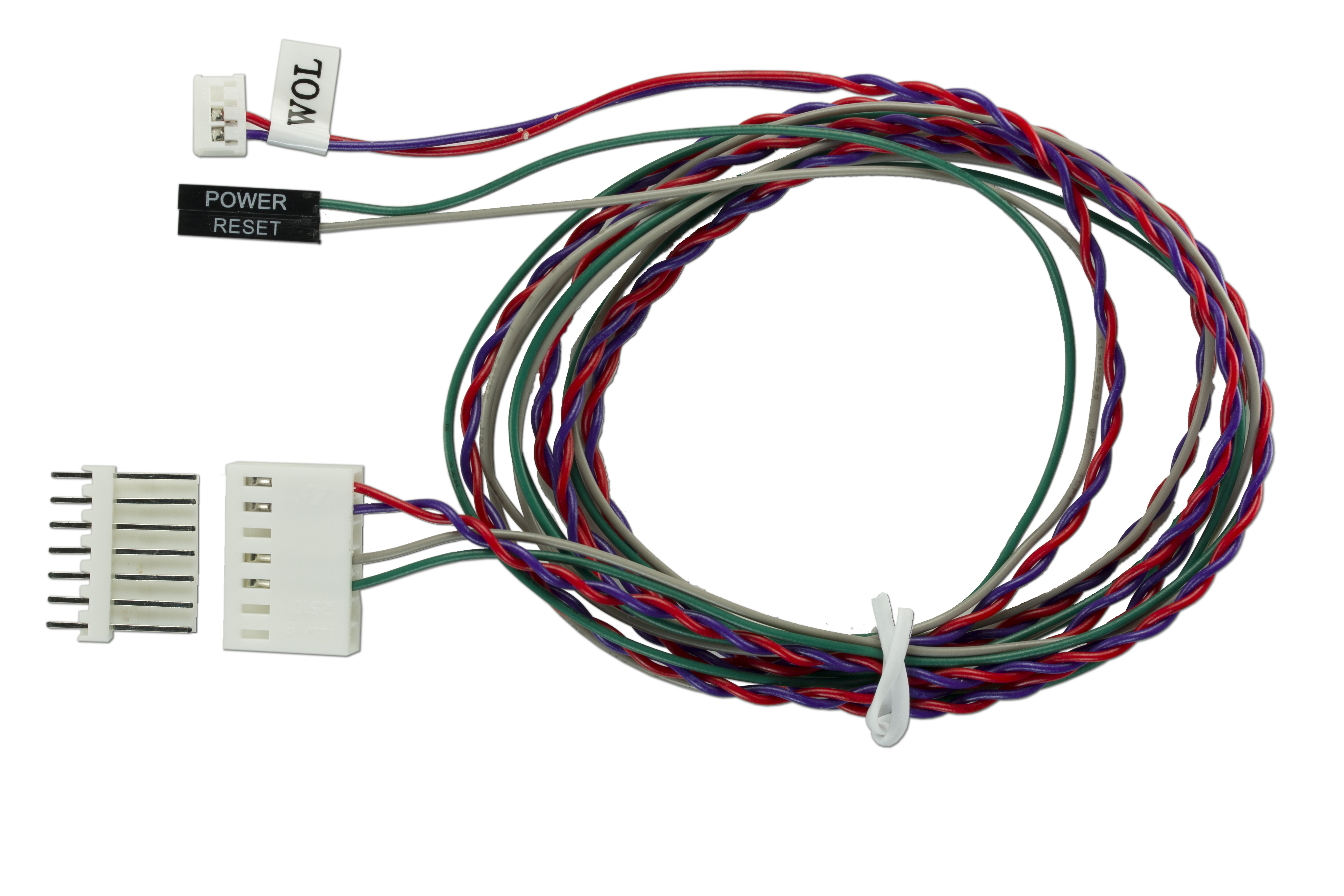

Long ATX Power Cable

Part Number: WR-PWR-Y44

Pricing

Quantity Price
1 $5.45
20 $4.36
50 $3.82
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to WR-PWR-Y44 or RSS RSS feed for changes to WR-PWR-Y44 for WR-PWR-Y44

Long ATX Power Cable (WR-PWR-Y44)
Long ATX Power Cable
Close

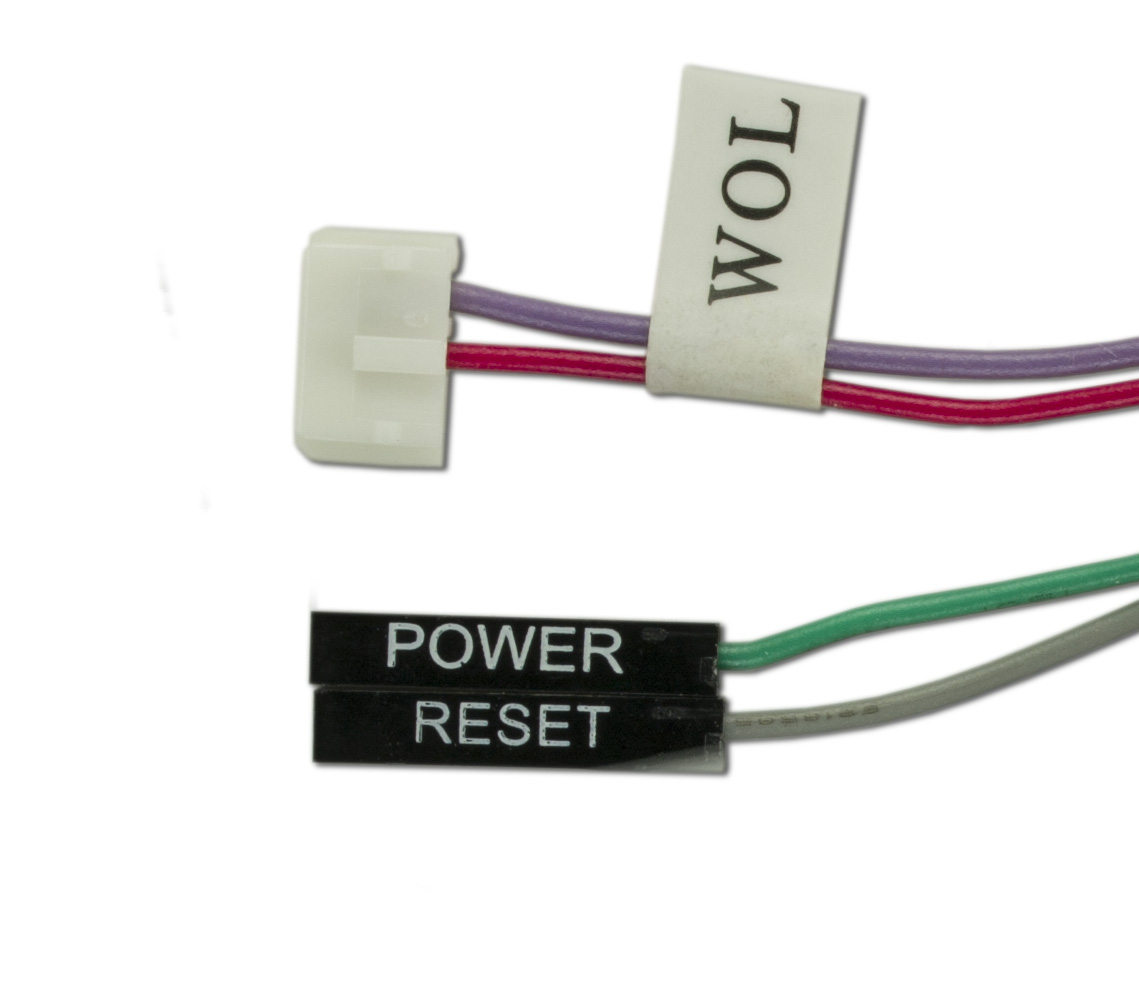

These are the connections that are made to the motherboard. The RESET and POWER wires push onto the corresponding pins of your motherboard. The WOL connector plugs into the WOL header that is available on most motherboards.
These are the connections that are made to the motherboard. The RESET and POWER wires push onto the corresponding pins of your motherboard. The WOL connector plugs into the WOL header that is available on most motherboards.
These are the connections that are made to the motherboard. The "RESET" and "POWER" wires push onto the corresponding pins of your motherboard. The "WOL" connector plugs into the "WOL" header that is available on most motherboards.
Close

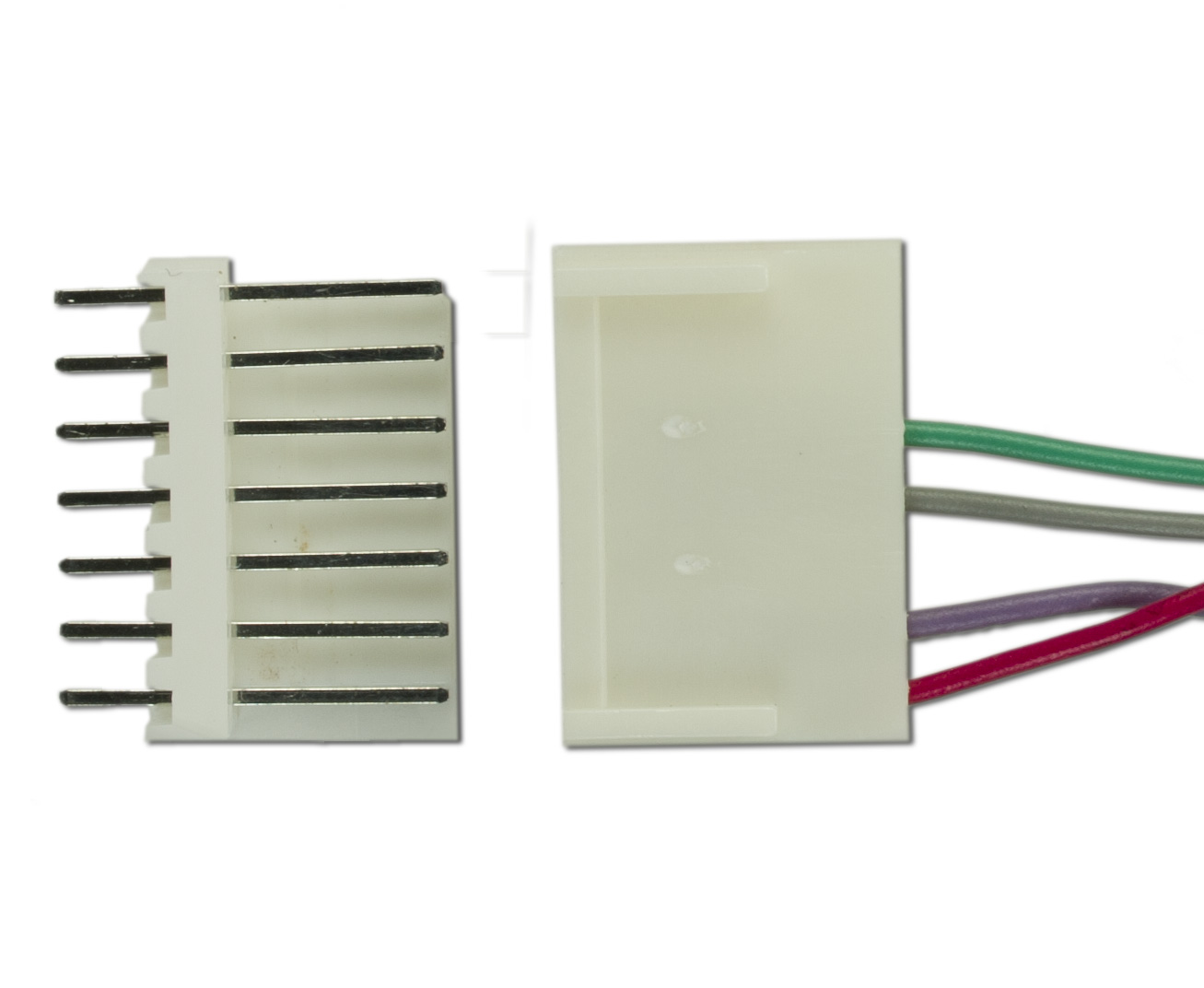

This is the end of the cable that attached to the 633. If you purchase a 633 and a WRPWRY14 at the same time, the connector will be soldered into the 633. If the cable is purchased separately, the header shown is supplied, ready for you to solder it into the J8 position of your 633
This is the end of the cable that attached to the 633. If you purchase a 633 and a WRPWRY14 at the same time, the connector will be soldered into the 633. If the cable is purchased separately, the header shown is supplied, ready for you to solder it into the J8 position of your 633
This is the end of the cable that attached to the 633. If you purchase a 633 and a WRPWRY14 at the same time, the connector will be soldered into the 633. If the cable is purchased separately, the header shown is supplied, ready for you to solder it into the "J8" position of your 633
Close

Description

TECHNICAL SPECS

Physical Characteristics

Flexible Cable (FFC/FPC) length
millimeters 990
inches 38.976
Weight 10.4g

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to WR-PWR-Y44 or RSS RSS feed for changes to WR-PWR-Y44

Product Update #10606: (New Product) WR-PWR-Y44

New Product: WR-PWR-Y44
Date Issued: July 14, 2014
Summary: (New Product) WR-PWR-Y44
Description: Cables: .58m ATX power supply and control cable
