Micro USB to 4-Pin Cable

Part Number: WR-USB-Y34

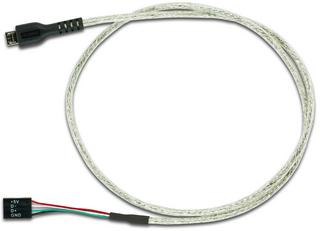

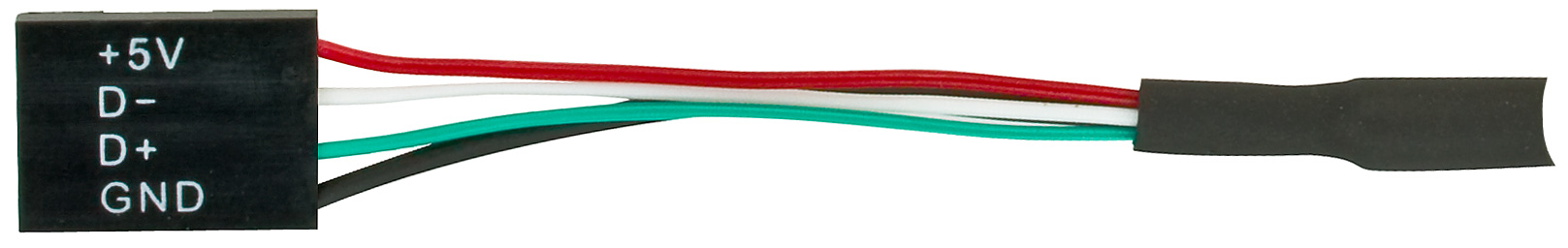

This USB 2.0 Micro USB to 4-pin adapter cable connects Micro USB devices to motherboard USB headers with 0.100" (2.54mm) pitch connectors. The cable supports USB 2.0 Hi-Speed data transfer rates up to 480 Mbps, making it ideal for interfacing Crystalfontz LCD modules like our CFA735 USB LCDs to internal motherboard USB headers.

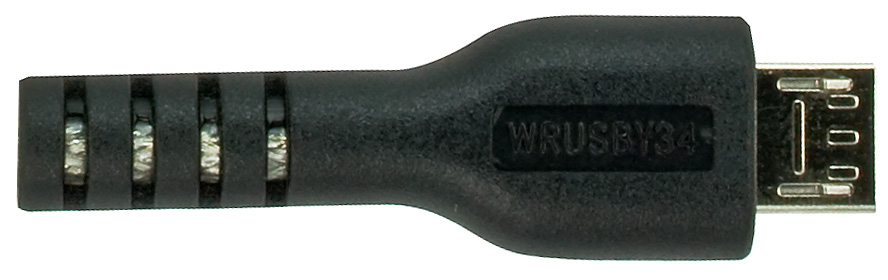

The Micro USB connector (not to be confused with the older, larger Mini USB) provides a compact, reliable connection standard found on many peripheral devices, mobile phones, and embedded display modules. Use this cable for data communication, firmware updates, or charging compatible devices via your motherboard's internal USB pins.

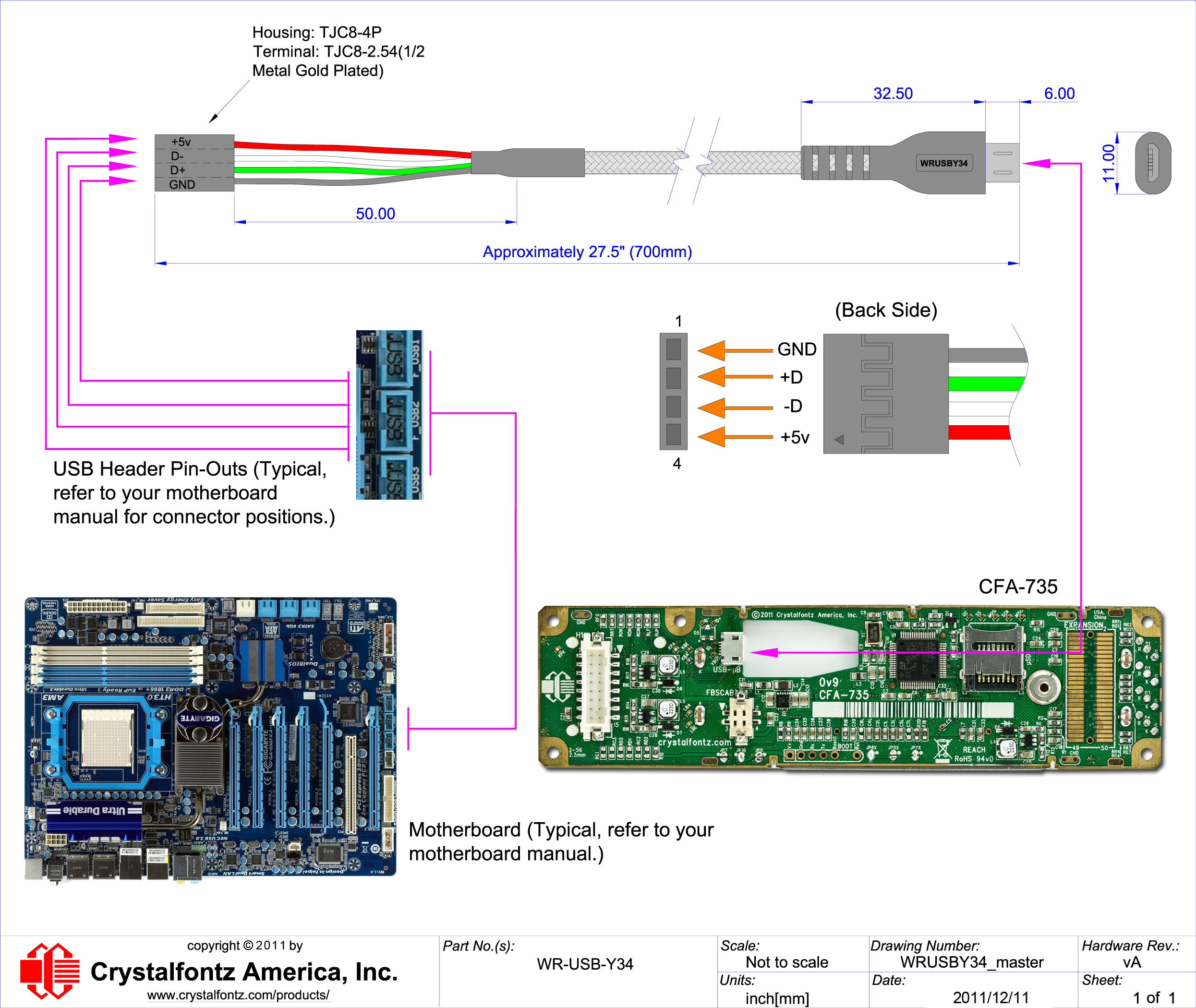

In the datasheet, you can find the USB pin-out diagram.

Need a cable for newer motherboards with smaller headers? See our Micro USB cable with 2mm pitch 4-pin connector.

• square_foot Physical Characteristics

  Physical Characteristics

  Overall Cable Length	Length
  millimeters	0.67 m
  inches	2 ft. 2.35 in.

  Weight

  13g
