Engineering Project: Crystalfontz 835 and an Arduino Mega 2560

June 9, 2016 12:15 pm

Crystalfontz 835 Keypad LCD Display ModulesCrystalfontz actively supports learning, especially for engineers-in-training. A few months ago, we were approached by a senior student working on a capstone project at EWU and the project was unveiled at a poster presentation on June 1st at the university.

We are impressed by this project, incorporating a Crystalfontz 835 LCD module and an Arduino Mega 2560 microcontroller to build a 32-Ton Automated Hydraulic Press Brake.

Design & Build: 32-Ton Automated Hydraulic Press Brake

A capstone project is a culminating project to integrate everything the student has learned. For this project, the team’s goal was, among other things, to build a press capable of “bending A36 steel plate up to 1/4″ in thickness, at least 19″ wide.” No small task.

A programmable, easy-to-integrate, LCD with a keypad was necessary for automation and user interaction with the hydraulic press break. The CFA835 was perfect for this task.

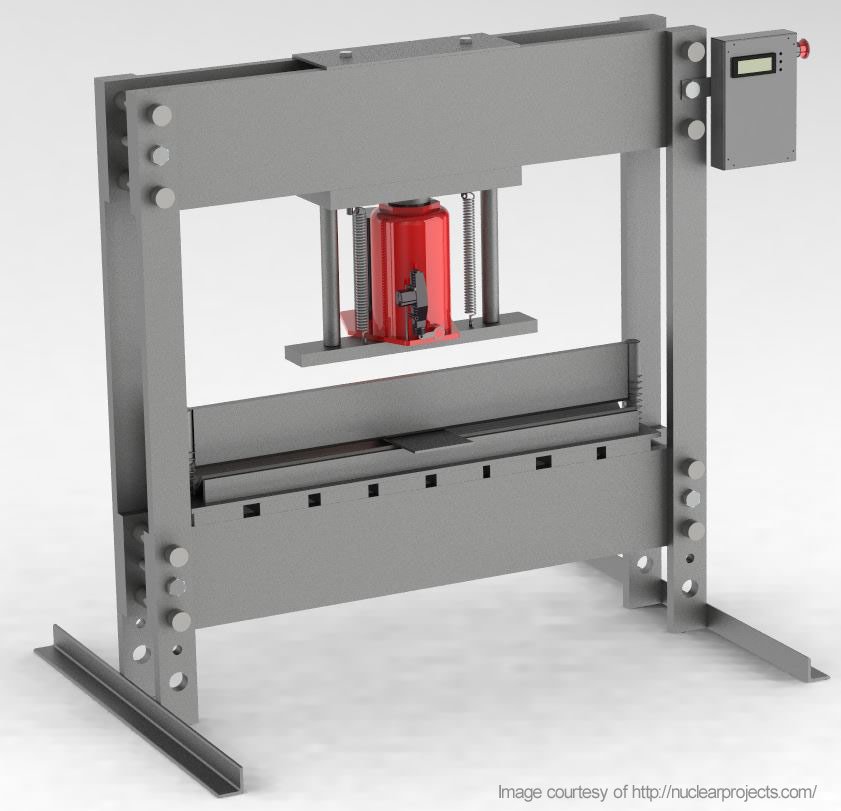

32 Ton Hydraulic Press Brake - image courtesy of http://nuclearprojects.com/



Learn More About This Project

The mechanical engineering student in charge of this project did an excellent job documenting his process and progress on his blog.

Read more here:

Questions?

If you are searching for an LCD for your OEM product or engineering project, please contact our helpful customer support team via chat, phone, or email — to see what display will best suit your needs or answer any questions about our modules.
