All existing CFA635-YYE-KS products have transitioned to CFA635-YYK-KS as part of our continuous improvement process.

RS232 20x4 Character LCD [EOL]

Part Number: CFA635-YYE-KS

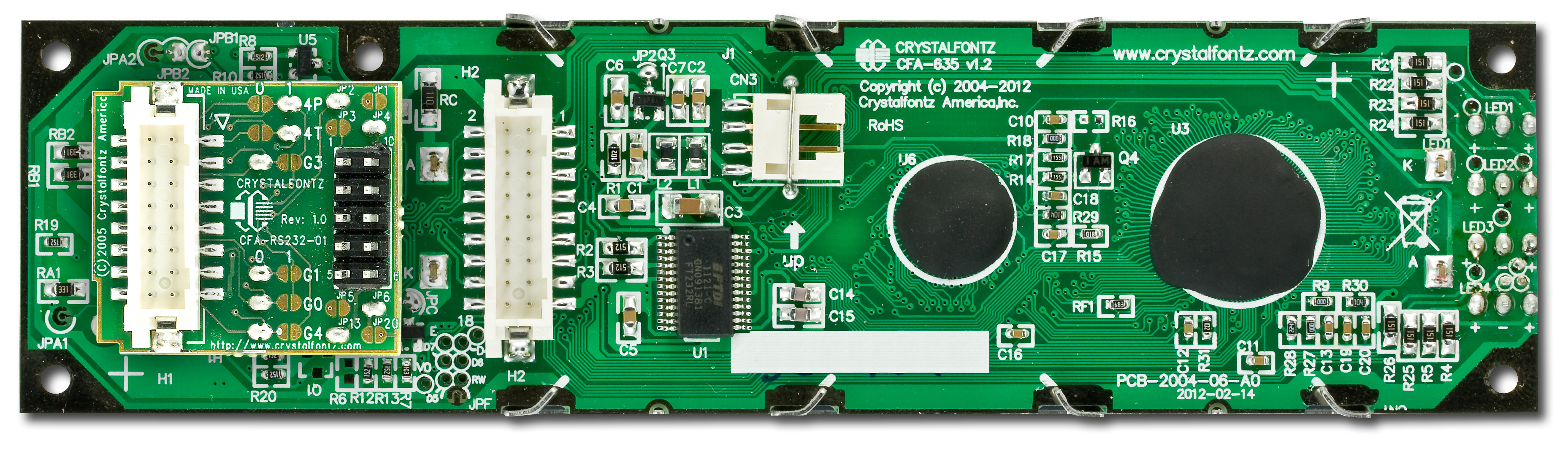

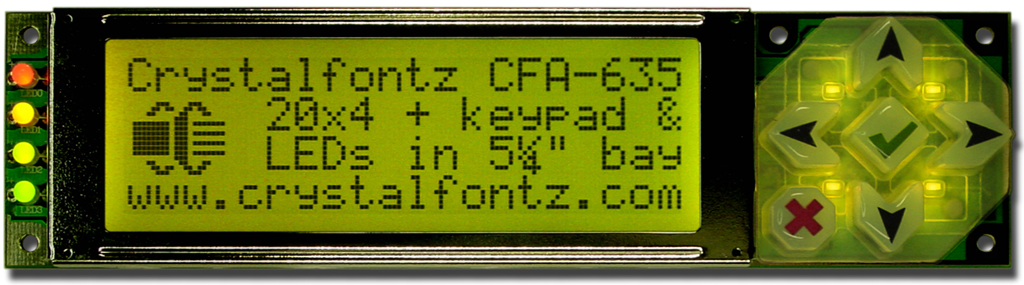

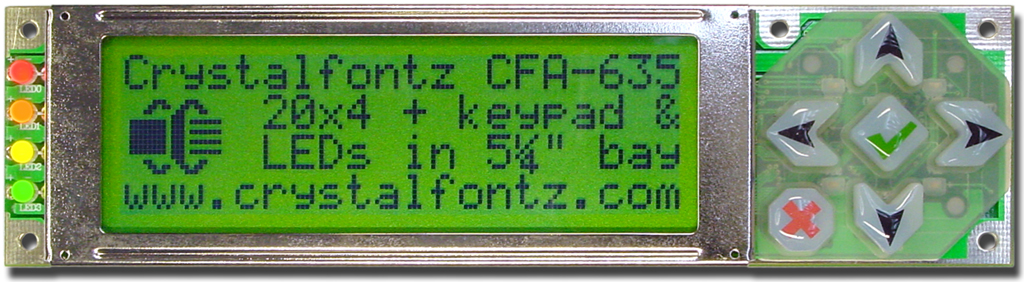

Full-Swing RS232 Serial 20x4 character LCD module, Keypad, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective, 0°C to +50°C operation, and 12:00 viewing angle.

  • LED backlit 20x4 LCD
  • Integrated LED backlit 6-button translucent silicon keypad with screened legend
  • Four bicolor (red + green) LEDs. The LEDs’ brightness can controlled by the host software, which allows mixing the LEDs to produce other colors (yellow and orange)
  • Fully decoded keypad: any key combination is valid and unique
  • LCD characters are contiguous in both X and Y directions to allow the host software to display "gapless" bar graphs in horizontal or vertical directions
  • Robust packet based communications protocol with 16-bit CRC
  • Compact size: fits in a 1U rack mount case (37mm overall height)
  • ATX power supply control functionality allows the buttons on the CFA-635 to replace the "power" and "reset" buttons on your system, simplifying your front panel design (requires additional cables or hardware).
  • Built-in factory re-programmable microcontroller
  • Non-volatile memory capability ("EEPROM"):
    • Customize the "power-on" display and LED settings
    • 16-byte "scratch" register for storing IP, netmask, system serial number

Datasheet

CFA635-xxx-KS Data Sheet Release 2014-03-18.pdf
(Datasheet V 2014-03-18, Hardware h1v2, Firmware u2v0)
Previous Versions of Datasheets
CFA635-xxx-KS Data Sheet Release 2013-10-02.pdf
(Datasheet V 2013-10-02, Hardware h1v2, Firmware s2v0)
Preliminary h1v2/s2v0 CFA635 KS Datasheet
(Datasheet V Preliminary, Hardware 1.2, Firmware s2.0)
CFA635-YYE-KS Data Sheet v2.1.pdf
(Datasheet V 2.1, Hardware 1.1, Firmware s1.6)
CFA635-YYE-KS Data Sheet v2.0.pdf
(Datasheet V 2.0, Hardware 1.1, Firmware s1.6)
CFA635YYEKS v1.0.pdf
(Datasheet V 1.0, Hardware 1.0, Firmware 1.3)

TECHNICAL SPECS

Physical Characteristics

Characters x Lines 20 x 4
Module Overall width height depth
millimeters 142 37 34.29
inches 5.591 1.457 1.350
*depth doesn't include Keypad
Diagonal Dimension 3.19"
Viewing Area width height
millimeters 82.95 27.5
inches 3.266 1.083
Active Area width height
millimeters 77.95 22.35
inches 3.069 0.880
Character Size width height
millimeters 3.2 4.85
inches 0.126 0.191
Character Pitch width height
millimeters 3.9 5.6
inches 0.154 0.220
Dot Size width height
millimeters 0.6 0.65
inches 0.024 0.026
Dot Pitch width height
millimeters 0.65 0.7
inches 0.026 0.028
Weight 66g
Keystroke Travel 2.4mm

Optical Characteristics

Glass Type/Glass Color STN/Yellow-Green
Polarizer Transflective
View Direction 12 o'clock
Sunlight Readable Yes
Backlight Color Yellow-Green
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color Yellow-Green

Electrical Specifications

Module Connector Pitch 2.54mm

Environmental

Operating Temperatures min max
Celsius 50°
Fahrenheit 32° 122°
Storage Temperatures min max
Celsius -10° 60°
Fahrenheit 14° 140°
Humidity min max
Non-condensing 0% 90%

Electronics

Interface RS232

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA635-YYE-KS or RSS RSS feed for changes to CFA635-YYE-KS

Part Change Notice #10853: CFA635 series Firmware revision 2.1.

Products Affected: CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KU, CFA635-YYE-KL, XES635BK-TFE-KU, XES635BK-TMF-KU, XES635BK-YYE-KU, CFA635-TMF-KU, CFA635-YYE-KU
Date Issued: May 3, 2017
Summary: CFA635 series Firmware revision 2.1.
Last revision: 2.0
Description: The CFA635 series of advanced display modules will be changing from the previous firmware revision of 2.0 to the new firmware revision 2.1.
Reason: As part of our continuous improvement, the firmware has been updated for use with the hardware v1.5.
Impact: The new firmware is designed with a priority of backward compatibility. The following commands will differ from earlier versions:

Command 1 (0x01) - Get Hardware and Firmware Version
This command will report the following strings:
Serial Versions (KS) - CFA635: h1.5,f2.1
USB Versions (KU) - CFA635: h1.5 f2v1

Commands 18,19 and 20, which control the temperature sensors on the FBSCAB, have been limited to support the FBSCAB's maximum of 16 temperature sensors.
Recommendation: Design changes have been made to maximize backward compatibility. For most applications, the CFA635 hardware revision 1.5 will be a form and fit replacement.

If your application uses ATX power supply control, fan control, or temperature measurement through the SCAB, you will need change to the equivalent FBSCAB components.

We recommend testing the new version CFA635 in your system to verify compatibility.
Availability: CFA635 firmware version 2.1 will begin shipping installed in hardware version 1.5 in the second quarter of 2017 after the inventory of hardware version 1.2 is depleted.

Part Change Notice #10852: CFA635 series Hardware revision 1.5

Products Affected: CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KU, CFA635-YYE-KL, XES635BK-TFE-KU, XES635BK-TMF-KU, XES635BK-YYE-KU, CFA635-TMF-KU, CFA635-YYE-KU
Date Issued: May 3, 2017
Summary: CFA635 series Hardware revision 1.5
Last revision: 1.2
Description: The CFA635 series of advanced display modules will be changing from the previous hardware revision 1.2 to the new hardware revision 1.5.
Reason: As part of our continuous improvement, the processor and PCB layout have been changed to improve availability, manufacturability, and quality
Impact: The revised CFA635 series has Wide Temperature (-20°C to +70°C) operating range. Part numbers have changed accordingly:
TMF series modules will become TML series.
TFE series modules will become TFK series.
YYE series modules will become YYK series.

The CFA635 series now supports a single FBSCAB. The SCAB is no longer supported:

All four fans may be used on serial (-KS) and logic level (-KL) modules.
Maximum temperature sensors is 16.

ATX power supply control functions previously supported by J8 on the SCAB are now supported by H1 on the CFA-635.

The power supply and backlight circuits have been improved:
The backlight driver is a constant current design-the backlight current and brightness are now insensitive to supply voltage variations.

The incoming power supply range is 2.5v to 5.5v, so the CFA635 can easily be used in 3.3v systems.

The yellow backlight of the CFA635-YYK series is redesigned to improve brightness.

ATX functions supported by J8 on the SCAB are now supported by H1.

Command 1 (0x01) - Get Hardware and Firmware Version
This command will report the following strings:
Serial Versions (KS) - CFA635 h1.5,f2.1
USB Versions (KU) - CFA635 h1.5,f2.1

The command set, fan electrical specifications, temperature electrical specifications and mechanical dimensions are unchanged.
Recommendation: Design changes have been made to maximize backward compatibility.

If your application uses ATX power supply control, fan control, or temperature measurement through the SCAB, you will need to change to the equivalent FBSCAB components.

We recommend testing the new version CFA635 in your system to verify compatibility.
Availability: CFA635 hardware version 1.5 will begin shipping in the second quarter of 2017, after the inventory of version 1.2 is depleted.

Part Change Notice #10672: Resistor change in keypad LED sub circuit.

Products Affected: CFA635-YYE-KS, CFA635-YYE-KL, CFA635-YYE-KU
Date Issued: August 28, 2015
Summary: Resistor change in keypad LED sub circuit.
Description: As part of our continuous improvement process, the keypad LED sub circuit was reviewed and modified to give the LEDs more room in the tolerance stack to accommodate variations in all components circuit for improved visual consistency.
Reason: Due to manufacturing variances, recent shipments of this product had LEDs in the keypad which varied in appearance. It was determined that changing the resistors RB1 and RB2 from 20 Ohm to 49.9 Ohm resistors would ensure the correct color, accommodating for similar manufacturing variances.
Impact: All variants of the CFA635-YYE will have improved visual consistency.
Availability: Immediate.
Price Change: There is no price change associated with this change.

Part Change Notice #10658: Deprecation of "Drive Bay Kit Configurator" / New part numbers for drive bay kits.

Products Affected: CFA631-RMF-KU, CFA633-YYB-KS, CFA633-TMC-KS, CFA633-RMC-KS, CFA633-YYB-KU, CFA633-TMC-KU, CFA633-RMC-KU, CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, CFA631-TMF-KU, CFA635-TFE-KU, CFA635-YYE-KL, CFA635-TMF-KU, CFA635-YYE-KU, DS635-AL, DS635-BG, DS635-BK, DS635-AK, CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-YYH-KI, CFA633-YYH-KS, CFA633-TMI-KS, CFA633-YYH-KU, CFA633-TMI-KU, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-YFH-KU, CFA632-YDI-KU, CFA634-TFH-KS, CFA634-TMI-KS, CFA634-YFH-KS, CFA634-YDI-KS, CFA634-TFH-KU, CFA634-TMI-KU, CFA634-YFH-KU, CFA634-YDI-KU, CFA633-RDI-KU, CFA633-RDI-KS, CFA533-TFH-KU, CFA533-TFH-KS, CFA633-TFH-KU, CFA633-TFH-KS, CFA533-TFH-KL, CFA533-TFH-KC, CFA735-TFK-KR, CFA735-TFK-KT, CFA735-TML-KR, CFA735-TML-KT, CFA735-YYK-KR, CFA735-YYK-KT, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP, CFA634-YDI-KC, CFA634-TMI-KC, CFA634-YFH-KC, CFA634-TFH-KC, CFA634-YFH-KL, CFA634-TFH-KL, CFA634-TMI-KL, CFA634-YDI-KL, CFA634-TFH-KP, CFA634-YFH-KP, CFA634-TMI-KP, CFA634-YDI-KP, CFA634-TFH-KN, CFA634-YFH-KN, CFA634-TMI-KN, CFA634-YDI-KN, CFA631P-TMF-KU
Date Issued: July 1, 2015
Summary: Deprecation of "Drive Bay Kit Configurator" / New part numbers for drive bay kits.
Description: Starting August 1, 2015 the "Drive Bay Kit Configurator" located at https://www.crystalfontz.com/products/select_kit.html will no longer be functional for ordering one of our Serial or USB displays (CFA533, CFA631, CFA632, CFA633, CFA634, CFA635, and CFA735) in a bracket or SLED. This functionality is being moved to the Customize and Add to Cart process when checking out. This will allow for further customization by our customers to better fit their needs.

This change will eliminate the current "kits", but will add options not previously available such as pre-configured ATX functionality, and ALL the currently available interfaces will be orderable in a drive bay bracket or SLED.
The new part numbers will have the bracket / SLED and overlay type as a PREFIX to the configured part number. The choice for bracket / SLED to a display order will be via the cart options. Our CFA835 displays were introduced with these configuration options.
To see how the new options will look, and what the new part numbers will look like, please see one of our CFA835 parts:
https://www.crystalfontz.com/cart/addtocart.php?product_id=2277&qty=1
NOTE: The SLED is only available for the CFA635, CFA735, and CFA835 products.
Reason: As part of our continuous improvement process, we are integrating the ordering of displays in drive bay and SLED kits as part of the display ordering process.
Impact: Drive bay kits in their current configuration will no longer be available.
Recommendation: Place orders prior to 2015-08-01 for upcoming production needs via our website or by contacting our logistics department via email: sales@crystalfontz.com, or by calling 1-888-206-9720 (International call +1-509-892-1200).
After the 2015-08-01, please contact our engineering department via support@crystalfontz.com to assist you with ordering your bracket / SLED kits.
Availability: Starting 2015-08-01, the bracket and SLED options for our serial and USB display will be part of the ordering process for the displays
Price Change: Pricing bracket / SLED configurations will reflect manufacturing costs.

Product Update #10495: Converting CFA635 serial parts number with cable bundle

Products Affected: CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS
Date Issued: June 17, 2013
Summary: Converting CFA635 serial parts number with cable bundle
Last revision: N/A
Description: CFA635-TFE-KS1, CFA635-TMF-KS1, and CFA635-YYE-KS1 parts are be deprecated and converted to two new part numbers, each with one serial cable and the necessary power cable.

The CFA635-TFE-KS1, CFA635-TMF-KS1, and CFA635-YYE-KS1 parts shipped with the following cables:
WR-232-Y08
WR-232-Y22
WR-PWR-Y24

If you need to connect the CFA635-TFE-KS, CFA635-TMF-KS, or CFA635-YYE-KS to a DB-9 port, order:
CFA635-TFE-KS5
CFA635-TMF-KS5
CFA635-YYE-KS5
which includes a WR-232-Y08 serial cable and WRP-WR-Y24 power cable.

If you need to connect the CFA635-TFE-KS, CFA635-TMF-KS, or CFA635-YYE-KS to a 0.100 in. 2 x 5 header, order:
CFA635-TFE-KS6
CFA635-TMF-KS6
CFA635-YYE-KS6
which includes a WR-232-Y22 serial cable and WR-PWR-Y24 power cable.
Reason: As part of our continuous improvement process, and customer feedback the “KS1” part with both external and internal serial communications cables only a single cable is required, and often used.
Impact: All parts with -KS1 suffix
Recommendation: Determine the new part to order based on the connection from the Serial CFA635 to your host system, and then order the appropriate part with the -KS5 or -KS6 suffix.

If you need assistance determining your replacement part, or need to continue to order a part with both serial cables, please contact our Engineering Support Team at support@crystalfontz.com
Availability: Effective date: 2013-06-18
The new -KS5 and -KS6 part numbers will be available
The -KS1 parts will become deprecated
Price Change: Reduced pricing is in effect for the new parts due to one fewer cable being bundled

Part Change Notice #10406: Supporting firmware for the reactivation of the CFA635 family of modules.

Products Affected: CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, CFA635-TFE-KU, CFA635-YYE-KL, XES635BK-TFE-KU, XES635BK-TMF-KU, XES635BK-YYE-KU, CFA635-TMF-KU, CFA635-YYE-KU
Date Issued: March 20, 2012
Summary: Supporting firmware for the reactivation of the CFA635 family of modules.
Last revision: 1v6
Description: The CFA635 family of modules is being reactivated with a new LCD controller chip, the Rockworks RW1067. The majority of the changes to the firmware have been in support of the RW1067 LCD controller and are transparent to the user interface. The changes to the CFA635 2v0 firmware:

For hardware changes related to this firmware update, please see PCN #10405

Updates
Command 1 (0x01): Get Hardware & Firmware Version
Modules with the serial interface, -KL and -KS suffix, will report: CFA635:h1v2,s2v0
Modules with the USB interface, -KU suffix, will report: CFA635:h1v2, u2v0

Command 12 (0x0C): Set LCD Cursor Style
Option 4 = inverting, blinking block is no longer supported. This option will result in a blinking underscore.

Command 22 (0x16): Send Command Directly to the LCD Controller
Any command sent specifically to the Samsung S6A0073 will need to be reviewed / modified for the commands / registers of the Rockworks RW1067. Please contact the Crystalfontz Engineering Support Team at support@crystalfontz.com for the RW1067 datasheet.

Enhancements
Command 28 (0x1C): Set ATX Power Switch Functionality
Added auto polarity switch.
Improved pulse length functionality.
Added feature to hold until system off during power down.

Fixes
Updates to timings and sequence of Serial interface power up to prevent possible corruption of data displayed
Reason: When the CFA635 family was scheduled for End of Life (see PCN #10365) there was no replacement available for the Samsung S6A0073 LCD controller. The CFA735 family was designed as replacement for the CFA635, allowing a path for improved performance, graphics, and the ability for end users to write their own firmware to take advantage of the capabilities of the enhanced hardware.

After the development of the CFA735 family, the RW1067 was developed as a replacement for the Samsung S6A0073 LCD controller for Crystalfontz America, Inc by Rockworks (China).
Impact: This announcement impacts all variants, interfaces, and part numbers that currently use the CFA635 family of modules. The CFA635 can continue to be used in current and future designs.
Recommendation: Continue to order and build with the CFA635 as required by production schedules. Transition to the CFA635 1v2 hardware and supporting firmware should be a seamless process. Engineering samples for qualification for the revised CFA635 are scheduled to be available Q3 of 2012.
Availability: Q2 2012
Review / Update customer Defined Part custom firmware

Q3 2012
New hardware and supporting firmware available for engineering samples
Estimated - Begin transition to 1v2 hardware as 1v1 hardware inventory is depleted
NOTE: We will not ship production orders of 1v2 hardware until the 1v1 inventory is depleted

Q4 2012
Estimated - CFA635 1v1 hardware to be exhausted, transition to CFA635 1v2 hardware complete
Price Change: No scheduled price change at this time.

Part Change Notice #10405: Reactivation of the CFA635 family of modules with 1v2 hardware and supporting firmware.

Products Affected: CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, CFA635-TFE-KU, CFA635-YYE-KL, XES635BK-TFE-KU, XES635BK-TMF-KU, XES635BK-YYE-KU, CFA635-TMF-KU, CFA635-YYE-KU
Date Issued: March 20, 2012
Summary: Reactivation of the CFA635 family of modules with 1v2 hardware and supporting firmware.
Last revision: 1v1
Description: The CFA635 family of modules is being reactivated with a new LCD controller chip, the Rockworks RW1067. The changes to the CFA635 1v2 hardware are as follows:

  1. LCD controller changing from Samsung S6A0073 to Rockworks RW1067

  2. Supporting driving circuitry between the LCD controller and the LCD glass has been updated to support the Rockworks RW1067

  3. The PCB layout has been updated to support the Rockworks RW1067

  4. Firmware updates to support the Rockworks RW1067 and functional improvements – See PCN #10406


The only changes to the CFA635 family are to support the Rockworks RW1067 controller. There are no other physical changes to the CFA635.
Reason: When the CFA635 family was scheduled for End of Life (see PCN #10365) there was no replacement available for the Samsung S6A0073 LCD controller. The CFA735 family was designed as replacement for the CFA635, allowing a path for improved performance, graphics, and the ability for end users to write their own firmware to take advantage of the capabilities of the enhanced hardware.

After the development of the CFA735 family, the RW1067 was developed as a replacement for the Samsung S6A0073 LCD controller for Crystalfontz America, Inc by Rockworks (China).
Impact: This announcement impacts all variants, interfaces, and part numbers that currently use the CFA635 family of modules. The CFA635 can continue to be used in current and future designs.
Recommendation: Continue to order and build with the CFA635 as required by production schedules. Transition to the CFA635 1v2 hardware and supporting firmware should be a seamless process. Engineering samples for qualification for the revised CFA635 are scheduled to be available Q3 of 2012.
Availability: Q2 2012
Review / Update customer Defined Part custom firmware

Q3 2012
New hardware and supporting firmware available for engineering samples

Estimated - Begin transition to 1v2 hardware as 1v1 hardware inventory is depleted

NOTE: We will not ship production orders of 1v2 hardware until the 1v1 inventory is depleted

Q4 2012
Estimated - CFA635 1v1 hardware to be exhausted, transition to CFA635 1v2 hardware complete
Price Change: No scheduled price change at this time.

Product Update #10377: CFA635 to CFA735 Migration

Products Affected: CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, CFA635-TFE-KU, CFA635-YYE-KL, CFA635-TMF-KU, CFA635-YYE-KU, CFA735-TFK-KR, CFA735-TFK-KT, CFA735-TML-KR, CFA735-TML-KT, CFA735-YYK-KR, CFA735-YYK-KT
Date Issued: January 3, 2012
Summary: CFA635 to CFA735 Migration
Description: Detailed in formation on migrating from the CFA635 family to the CFA735 family of intelligent modules. The document covers the similarities and differences between the two family of modules.
Reason: Support for the CFA735 product announcement.
Recommendation: All CFA635 users should download and read the document.
Availability: Q1 2012 – Initial run of CFA735 family available. Limited Quantities.

Q2 2012 – Production level shipments of CFA735 family.

Q3 2012 - CFA735 fully replaces CFA635.
Attachment: CFA735_Migration_doc.pdf (734KB)

Part Change Notice #10365: End of Life announcement: CFA635 family of Intelligent Modules.

Products Affected: CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, CFA635-TFE-KU, CFA635-YYE-KL, XES635BK-TFE-KU, XES635BK-TMF-KU, XES635BK-YYE-KU, CFA635-TMF-KU, CFA635-YYE-KU
Date Issued: October 6, 2011
Summary: End of Life announcement: CFA635 family of Intelligent Modules.
Last revision: HW: v1.1, FW: v1.6
Description:

Effective 2012-03-19:

The CFA635 family of modules is no longer End of Life and is recommended for new designs.

For a hardware changes please see PCN #10405

For a firmware changes please see PCN #10406




2011-10-06:
Effective immediately, Crystalfontz America, Inc is announcing the End of Life (EOL) for the CFA635 family of modules.

The CFA635 is a character based intelligent LCD module built around a Cypress PSoC® micro-controller and a Samsung S6A0073 LCD controller. Samsung announced the EOL of the S6A0073 at the end of 2007. After the announcement, Crystalfontz America, Inc began designing a replacement module and planned for continuing to manufacture and support the CFA635 family until a compatible replacement module was designed and available.

REVISED: 2011-12-15
REVISED: 2012-03-19
Reason: As part of our continuous improvement process, the engineering services group at Crystalfontz America Inc. is announcing the End of Life (EOL) to our CFA635 family of modules. This end of life is scheduled to take place at the end of 2012 Q2.

The CFA635 is being replaced with the first of a new generation of intelligent modules from Crystalfontz America, Inc. This new module is the CFA735 family. The CFA735 family has been primarily designed to be a replacement for the CFA635 family with a number of enhancements / improvements.
Impact: This announcement impacts all variants, interfaces, and part numbers that currently use the CFA635 family of modules.

The CFA635 family is not recommended for new designs.
Recommendation: Continue to order and build with the CFA635 as required by schedules. Plan on making transition to the CFA735 family of modules when available.

To obtain more information on the CFA635 family replacement, the CFA735 family, please send an email to support@crystalfontz.com. We will provide you the following when available:
  • preliminary datasheet

  • notification of the initial run of CFA735 modules

  • notice of any updates or changes to the CFA735

Availability: Q4 2011:
  • Pilot run of CFA735 family available

  • CFA735 New product announcement


Q1 2012:
  • Final shipments of CFA635 from partner factory


Q2 2012:
  • CFA635 begins phase out and inventory draw down

  • Last CFA635 orders accepted

  • Production level shipments of CFA735 start


Q3 2012:
  • CFA635 inventory purged

  • CFA735 fully replaces CFA635
Price Change: There is no scheduled price change to the CFA635 family at this time. Pricing will be reviewed on a monthly basis.
Attachment: CFA635_EOL_Notes.pdf (75KB)

Part Change Notice #10282: Keypad height change

Products Affected: CFA633-YYB-KS, CFA633-TMC-KS, CFA633-RMC-KS, CFA633-YYB-KU, CFA633-TMC-KU, CFA633-RMC-KU, CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, CFA635-TFE-KU, CFA635-YYE-KL, CFA635-TMF-KU, CFA635-YYE-KU, CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-YYH-KI
Date Issued: June 6, 2010
Summary: Keypad height change
Description: Over the next 6 months or so, we will be transitioning to a keypad that is 1.5mm taller than the keypad currently shipping on these modules.
Reason: We have found that in all cases that we are aware of, the keypad being 1.5mm taller will alleviate some customer difficulties.
Recommendation: If you need the keypad to remain the same height for your application, please email support@crystalfontz.com so that we can set aside some of the shorter keypads for your company's application.
Availability: ~0-6 months.
Price Change: None.

Part Change Notice #10280: Firmware change

Products Affected: CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, CFA635-TFE-KU, CFA635-YYE-KL, XES635BK-TFE-KU, XES635BK-TMF-KU, XES635BK-YYE-KU, CFA635-TMF-KU, CFA635-YYE-KU
Date Issued: April 10, 2010
Summary: Firmware change
Description: Firmware / reset circuit change from v1.4 to v1.6
Reason: To make LCD module less sensitive to supply variations
Impact: Range checking on command 0 is corrected.
Parameter checking on command 20 is corrected.
Module will return "CFA635:h1.1,v1.6" for command 1.

Customers who have customized part numbers will not be affected by this change unless they contact Crystalfontz to have their part definition changed.
Availability: 2010/05/01
Price Change: N/A
For reference only. For design purposes, please use the specifications in the datasheet.
