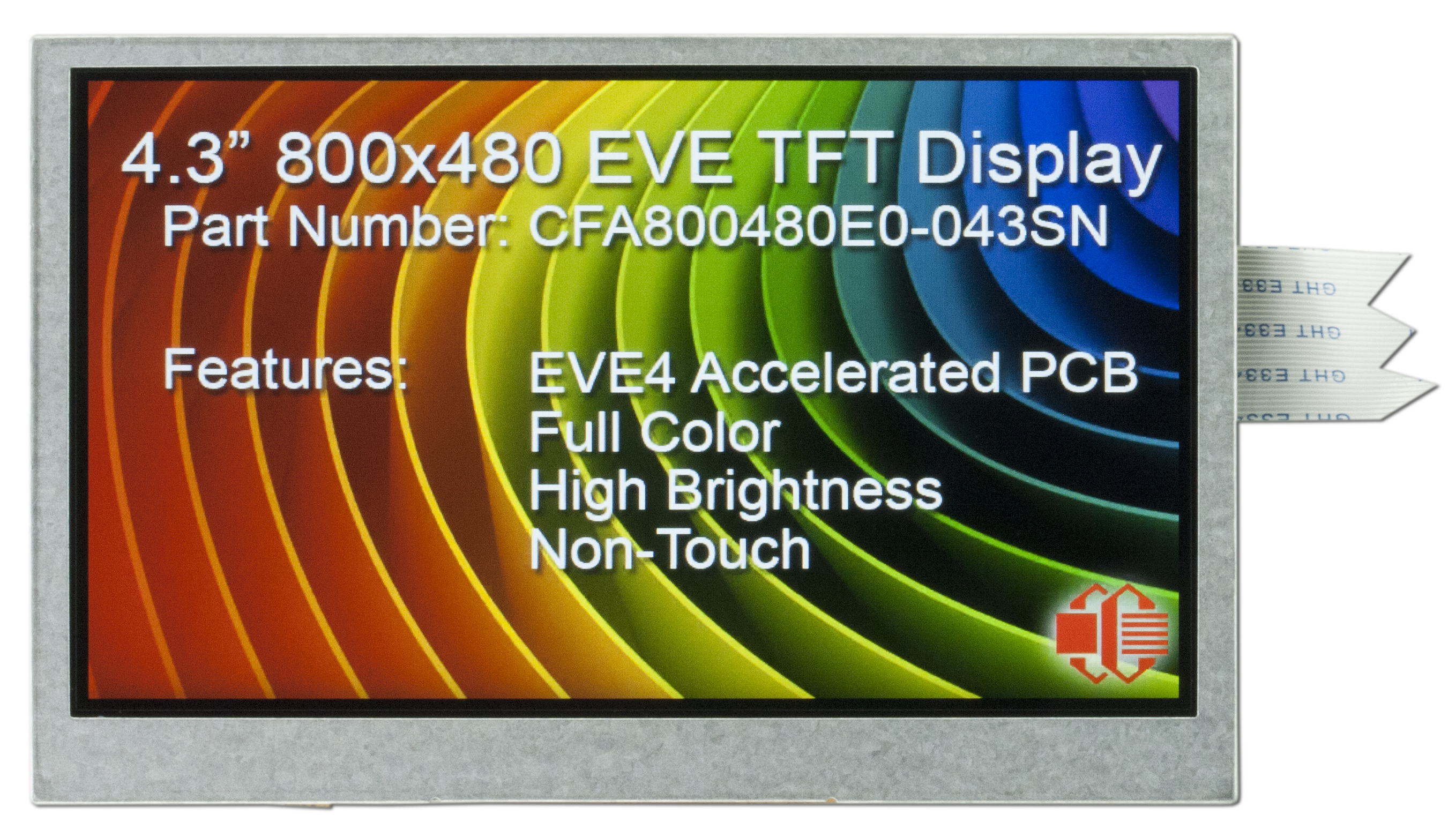

4.3" 800x480 EVE Development Kit

Part Number: CFA800480E0-043SN-KIT

This full development kit for the 4.3" EVE Accelerated TFT display module makes getting started with the EVE module a breeze. It includes the display wired up and a Seeeduino microcontroller loaded with a demo sketch, so once power is applied you can see the display in action. Key features:

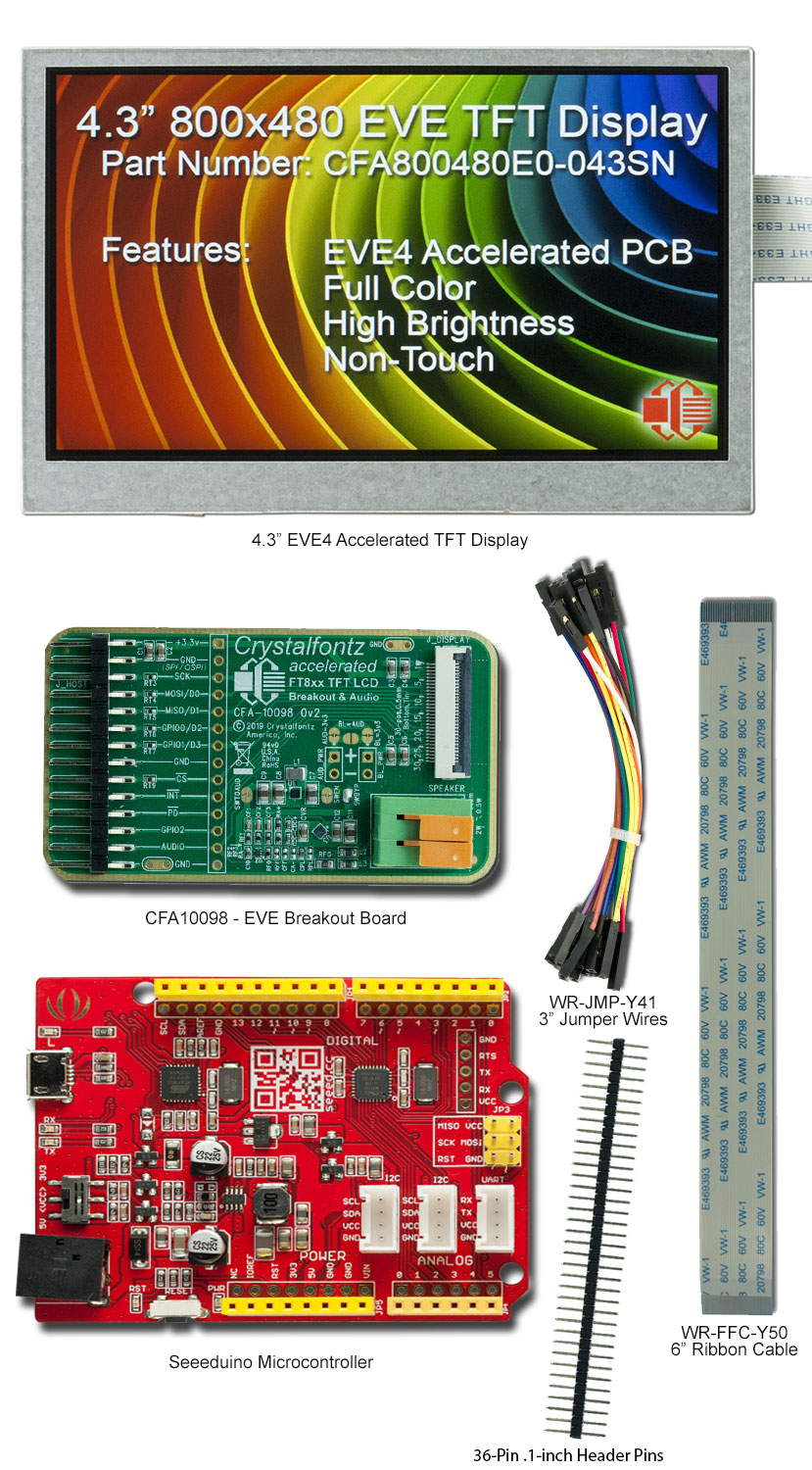

• Seeeduino demo kit including an EVE breakout board, all wires/headers required, the Seeeduino, and display module
• Graphics accelerating BT817 chip for easy graphics control
• Sunlight Readable
• SPI interface
• IPS
• Full color TFT

Part Number:
CFA - Crystalfontz America
800480 - 800x480 pixel resolution
E0 - EVE part, Family and revision
043 - 4.3" diagonal dimension
S - Sunlight readable
N - No touchscreen
KIT - Full Seeeduino kit

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  800 x 480

  Module Overall	width	height	depth
  millimeters	105.5	67.15	8.55
  inches	4.15	2.64	0.34

  Diagonal Dimension

  4.3"

  Active Area	Width	Height
  millimeters	95.04	53.86
  inches	3.74	2.12

  Weight	108.2g
  Pin Count	30

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	IPS – TFT/Dark
  Polarizer	Transmissive
  View Angle	160°
  Sunlight Readable	Yes

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Black

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	3V
  Supply Voltage for Logic Maximum	3.6V

  Supply Voltage for Logic Typical	3.3V
  Supply Voltage for Driving Panel Typical	3.3V

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	2.7V
  Forward Voltage Maximum	9V

  Forward Voltage Typical	5V
  Forward Current Typical	188mA

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Interface

  SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFA800480E0-043Sx Series Datasheet




• download Files and Downloads
  picture_as_pdf Other Document - Getting Started Guide


  link Demo Code Repository on Github

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity REACH


• Change Notices
