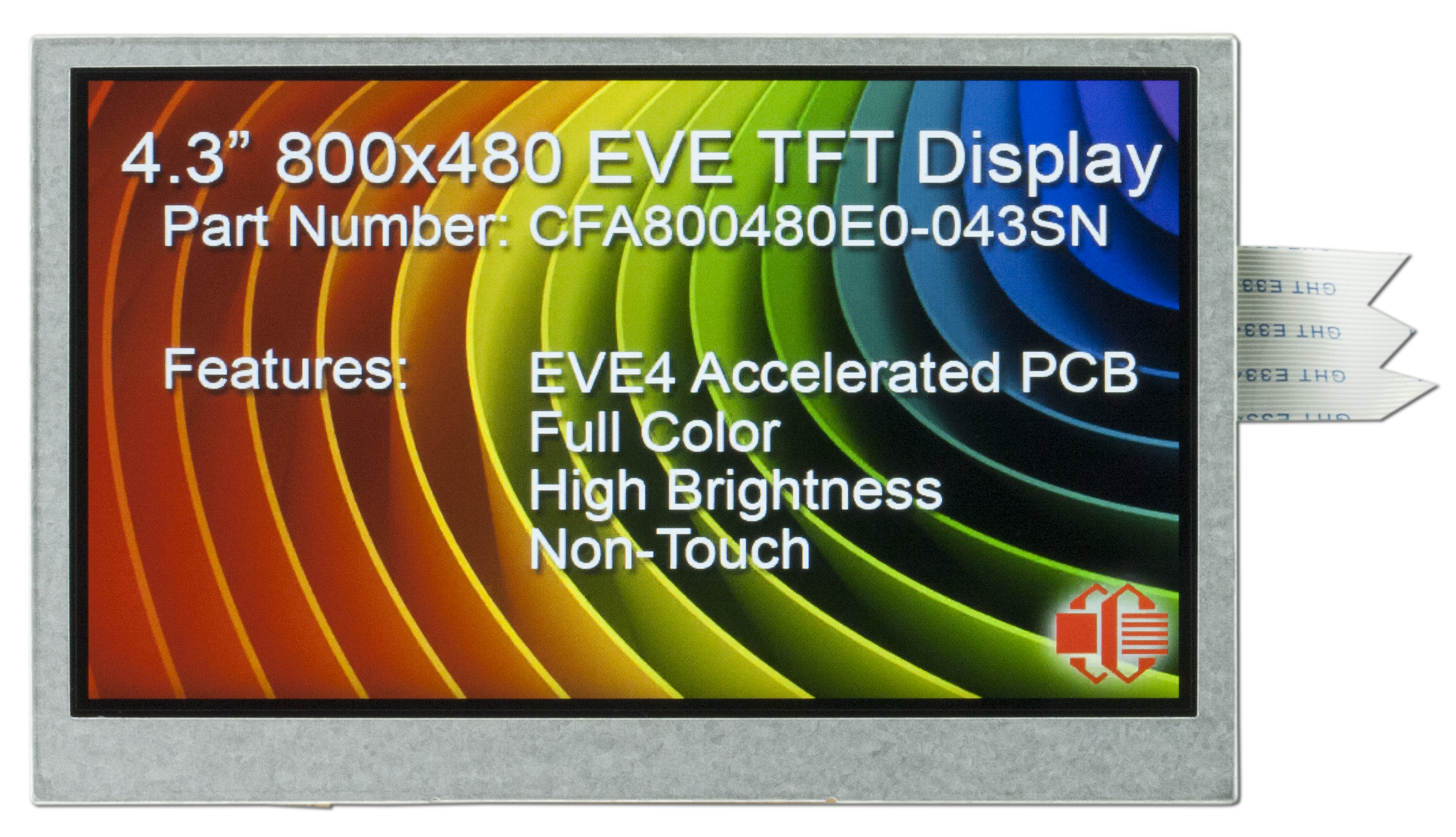

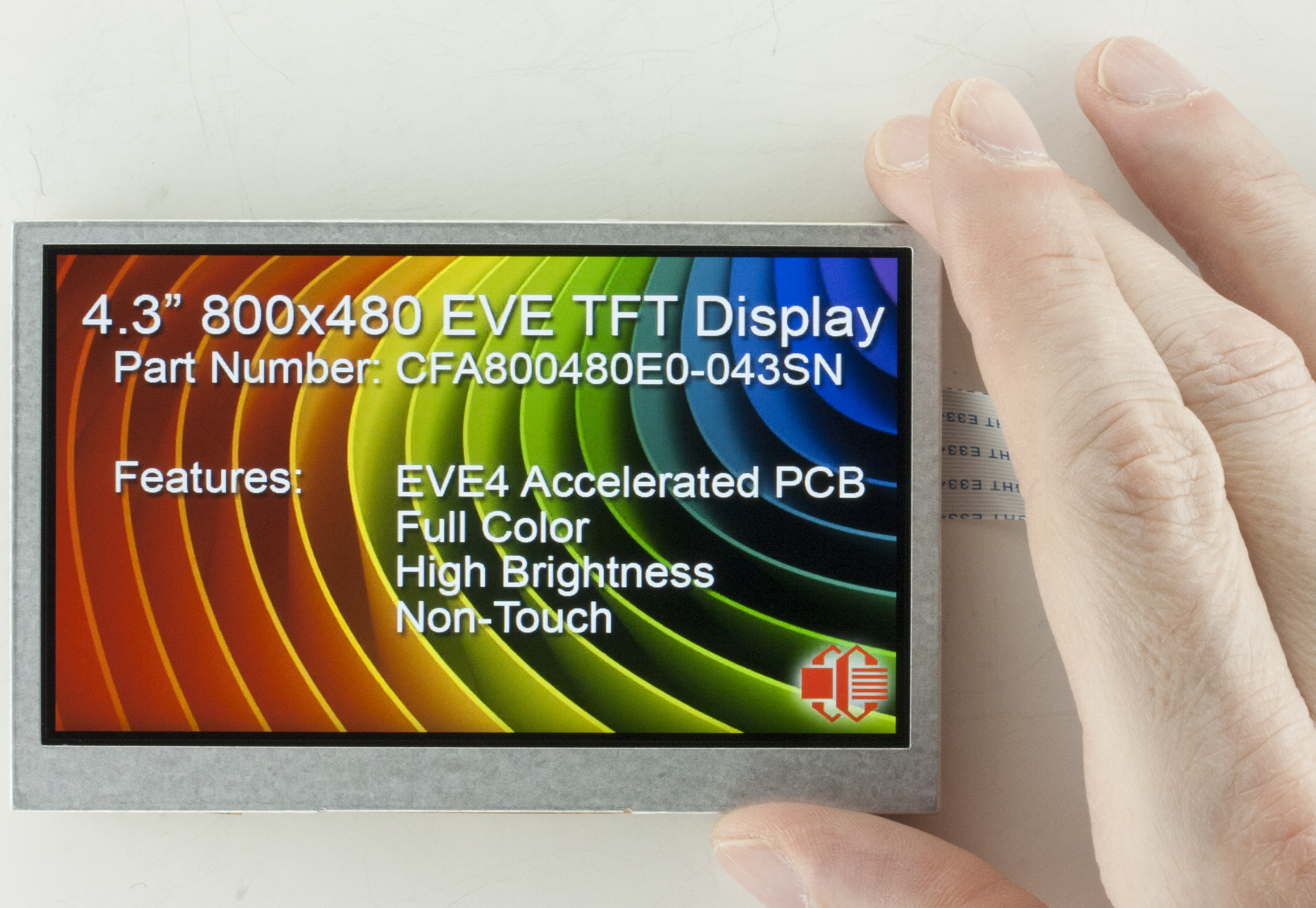

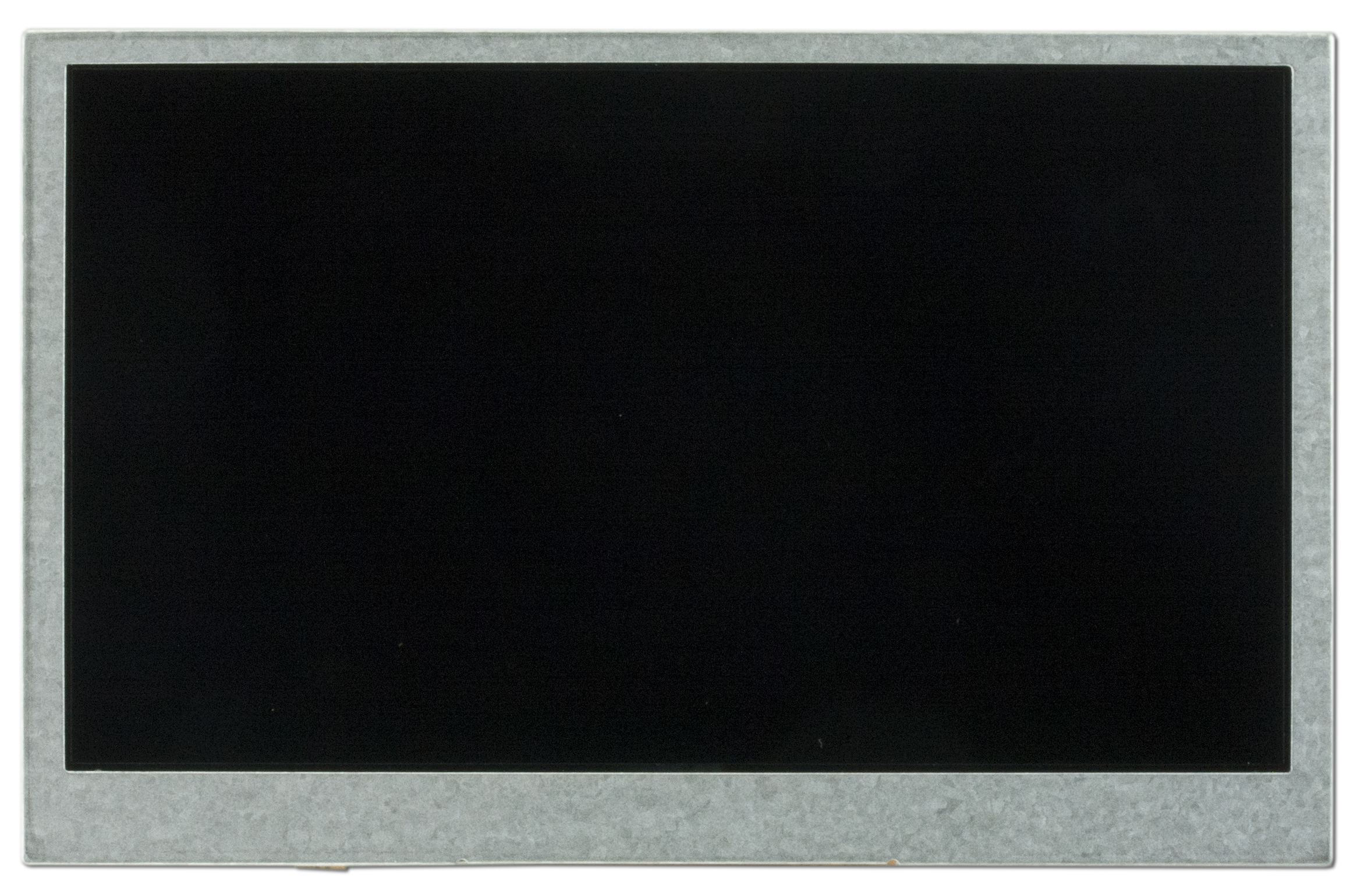

800x480 4.3" EVE Accelerated TFT Display Module

Part Number: CFA800480E0-043SN

This 4.3" TFT display module is driven by the embedded video engine (EVE) chip BT817 from Bridgetek. This simplifies the control of the display, backlight, and audio. The BT817 allows simple SPI commands to control this 800x480 display with full graphics and text. Plus, Bridgetek provides a suite of development tools to help make designing user interfaces easier.

The included 4.3" TFT display is sunlight readable with a bright backlight at 1,000 nits. It is IPS, so it can be used at any viewing angle without color inversion.

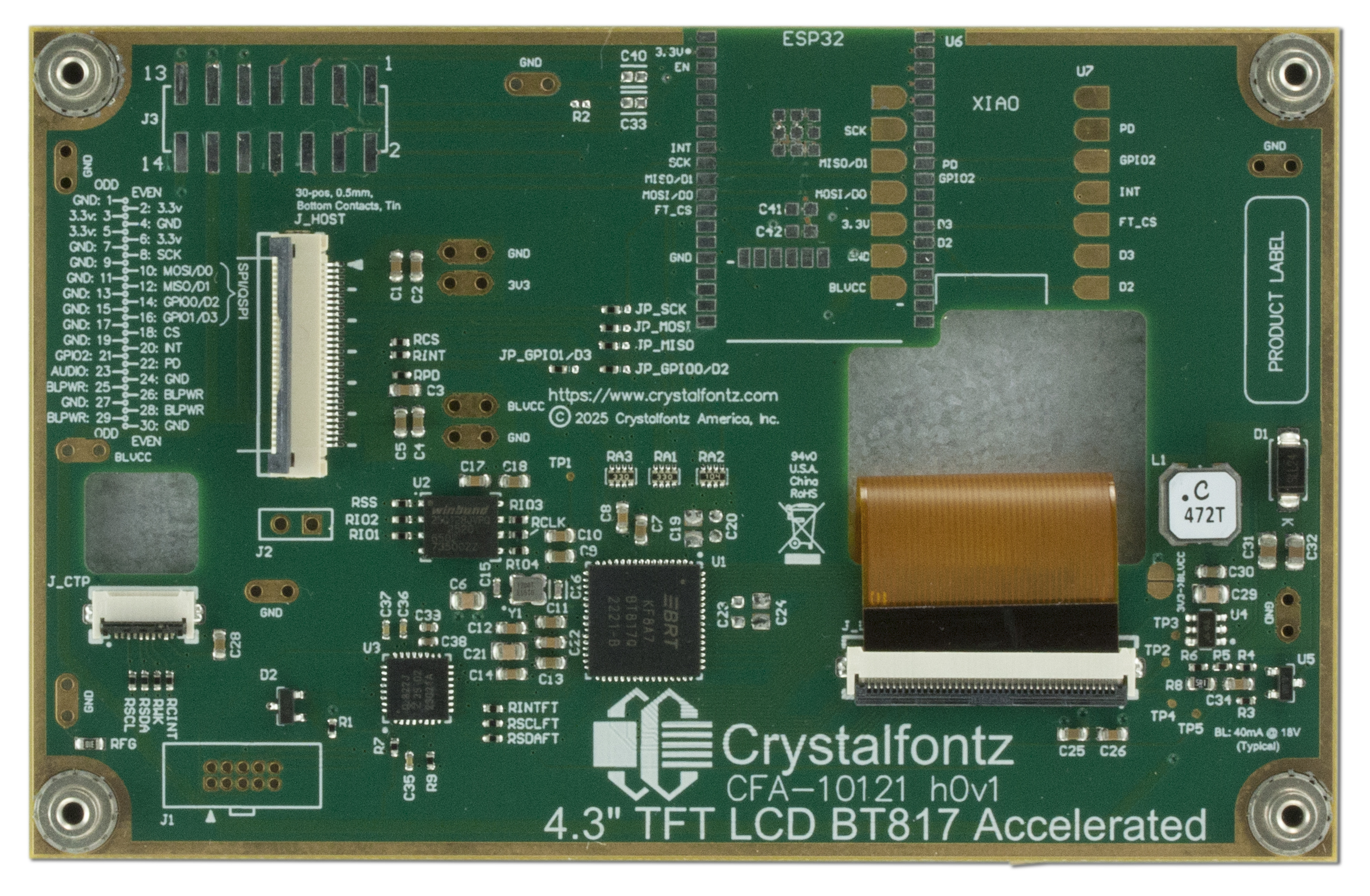

A single 30-pin ZIF connector brings out all the signals necessary for the display and backlight. The PCB also includes four threaded mounts (for size 2-56) to secure this module into a final design.

Key Features:

• 4.3" diagonal IPS TFT
• Sunlight readable (1000 nits)
• 16M colors
• Bridgetek's BT817 EVE integrated
• 4-wire SPI / Quad SPI
• Threaded mounting posts for easy integration
• Can be powered off of a single voltage source

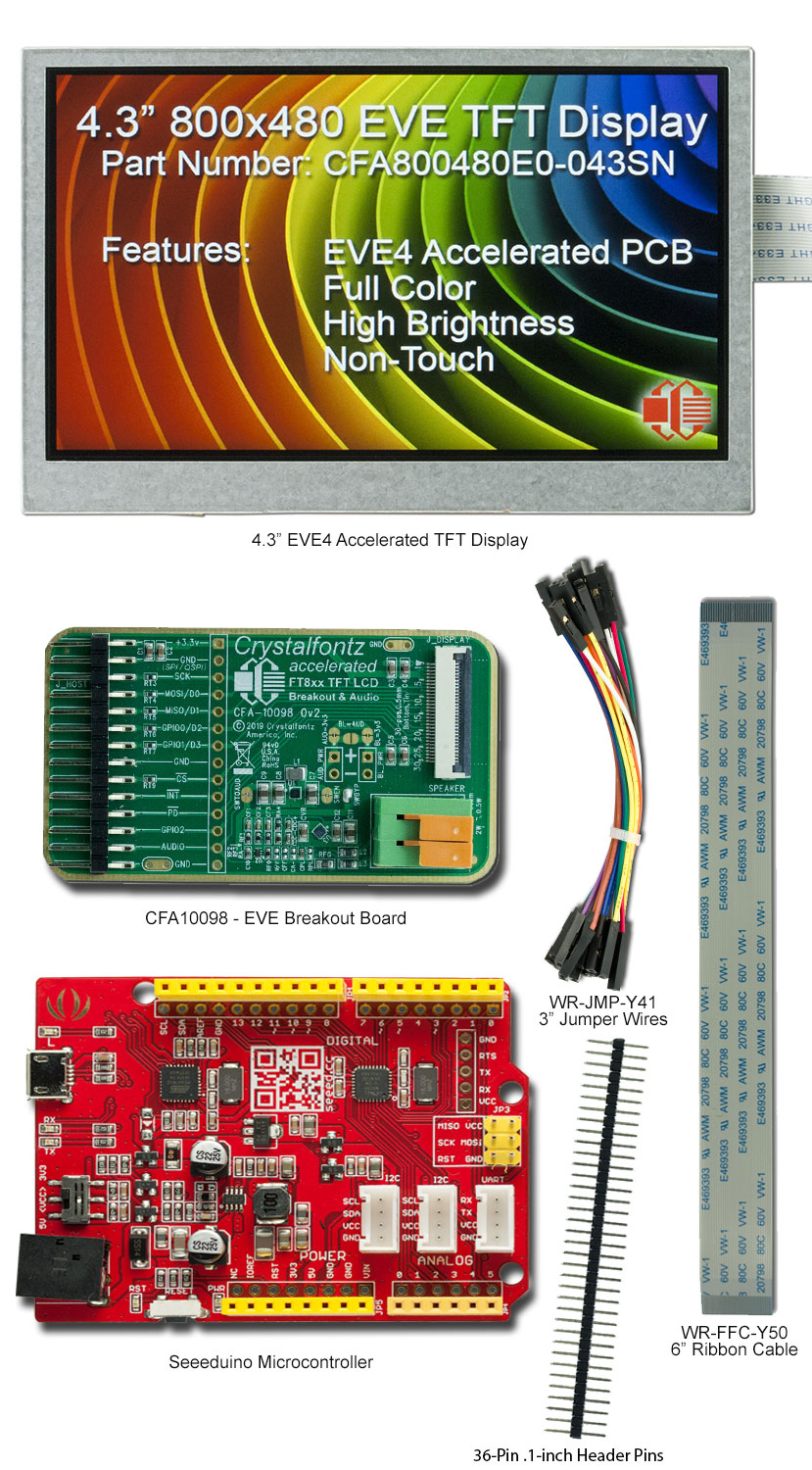

• This module is available in a complete 4.3" EVE development kit

Part Number:
CFA - Crystalfontz America
800480 - 800x480 pixel resolution
E0 - EVE part, Family and revision
043 - 4.3" diagonal dimension
S - Sunlight readable
N - No touchscreen

• square_foot Physical Characteristics

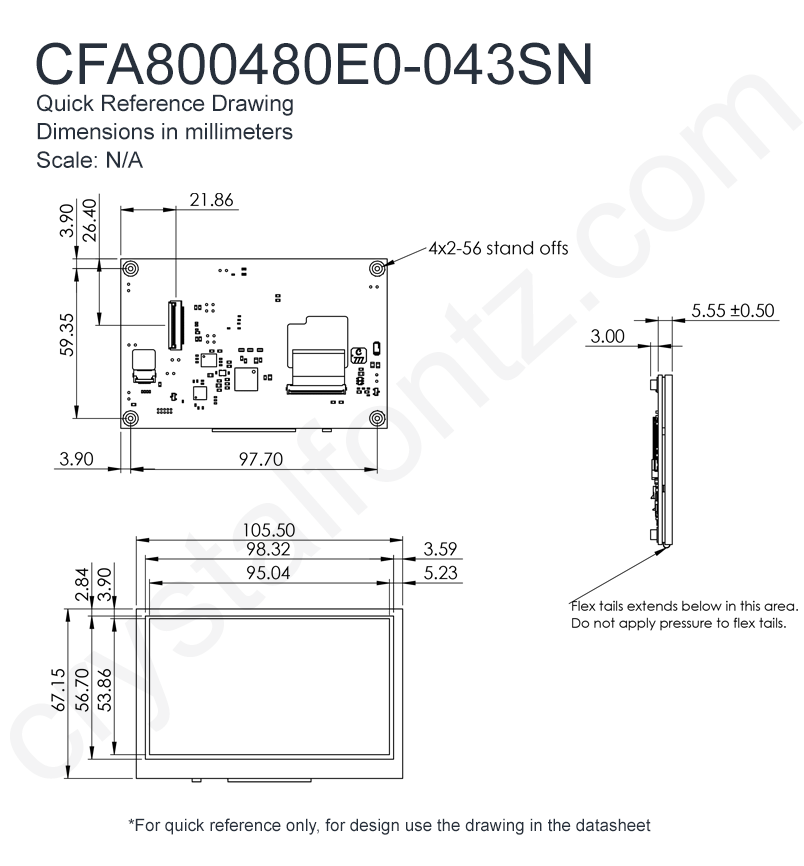

  Physical Characteristics

  Column Dots x Row Dots

  800 x 480

  Module Overall	width	height	depth
  millimeters	105.5	67.15	8.55
  inches	4.15	2.64	0.34
  *width / height does not include Foldable Tab

  Diagonal Dimension

  4.3"

  Active Area	Width	Height
  millimeters	95.04	53.86
  inches	3.74	2.12

  Weight	65.6g
  Pin Count	30

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	IPS – TFT/Dark
  Polarizer	Transmissive
  View Angle	160°
  Sunlight Readable	Yes

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Black

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	3V
  Supply Voltage for Logic Maximum	3.6V
  Supply Voltage for Logic Typical	3.3V

  Supply Voltage for Driving Panel Typical	3.3V
  Supply Current Minimum	2.7mA
  Supply Current Maximum	9mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	2.7V
  Forward Voltage Maximum	9V

  Forward Voltage Typical	5V
  Forward Current Typical	188mA

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Interface

  SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFA800480E0-043Sx Series Datasheet




• download Files and Downloads
  folder_zip Hardware Design - 3D Model


  link Demo Code Repository on Github

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity REACH
  <

• Additional Options
