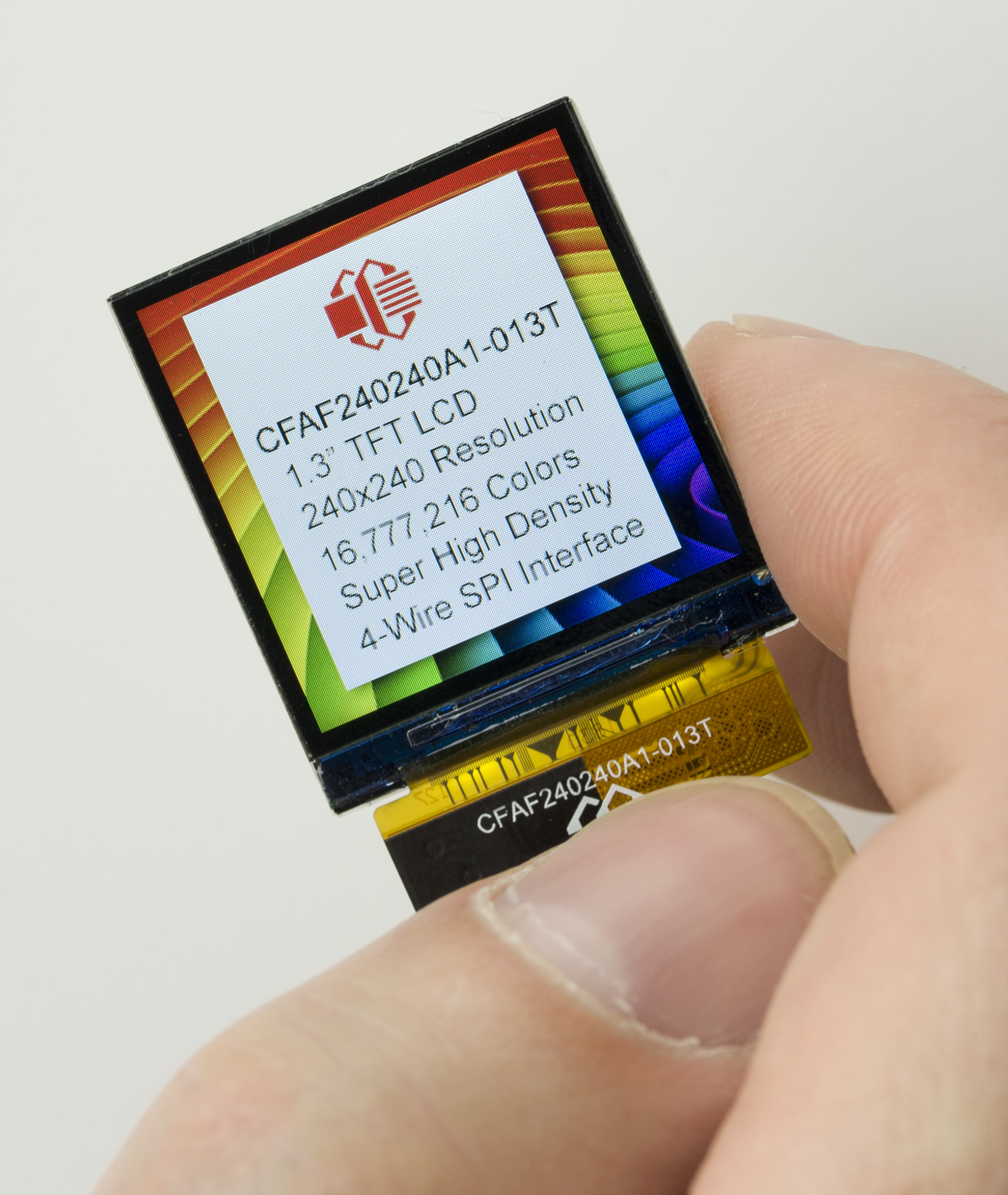

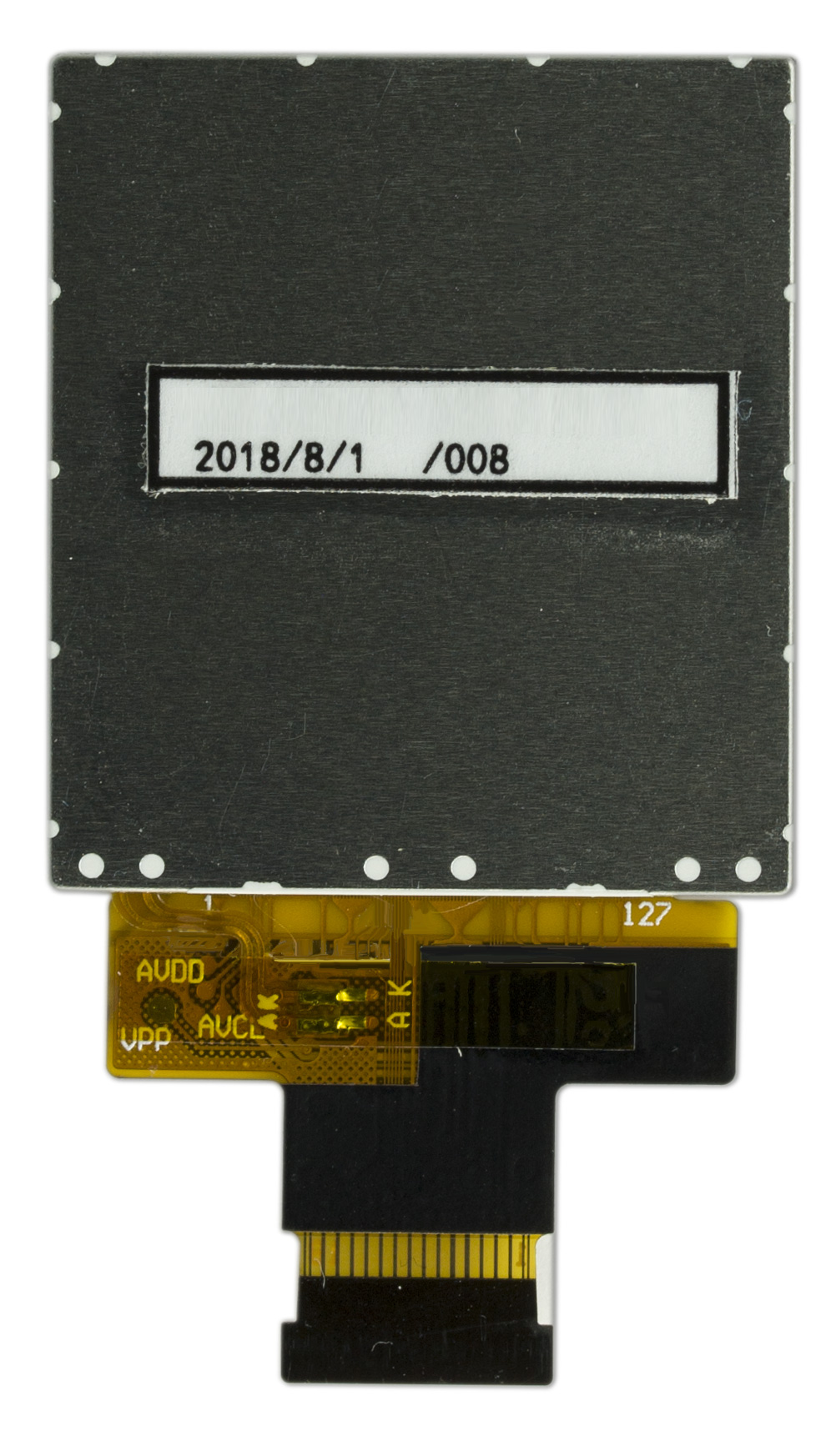

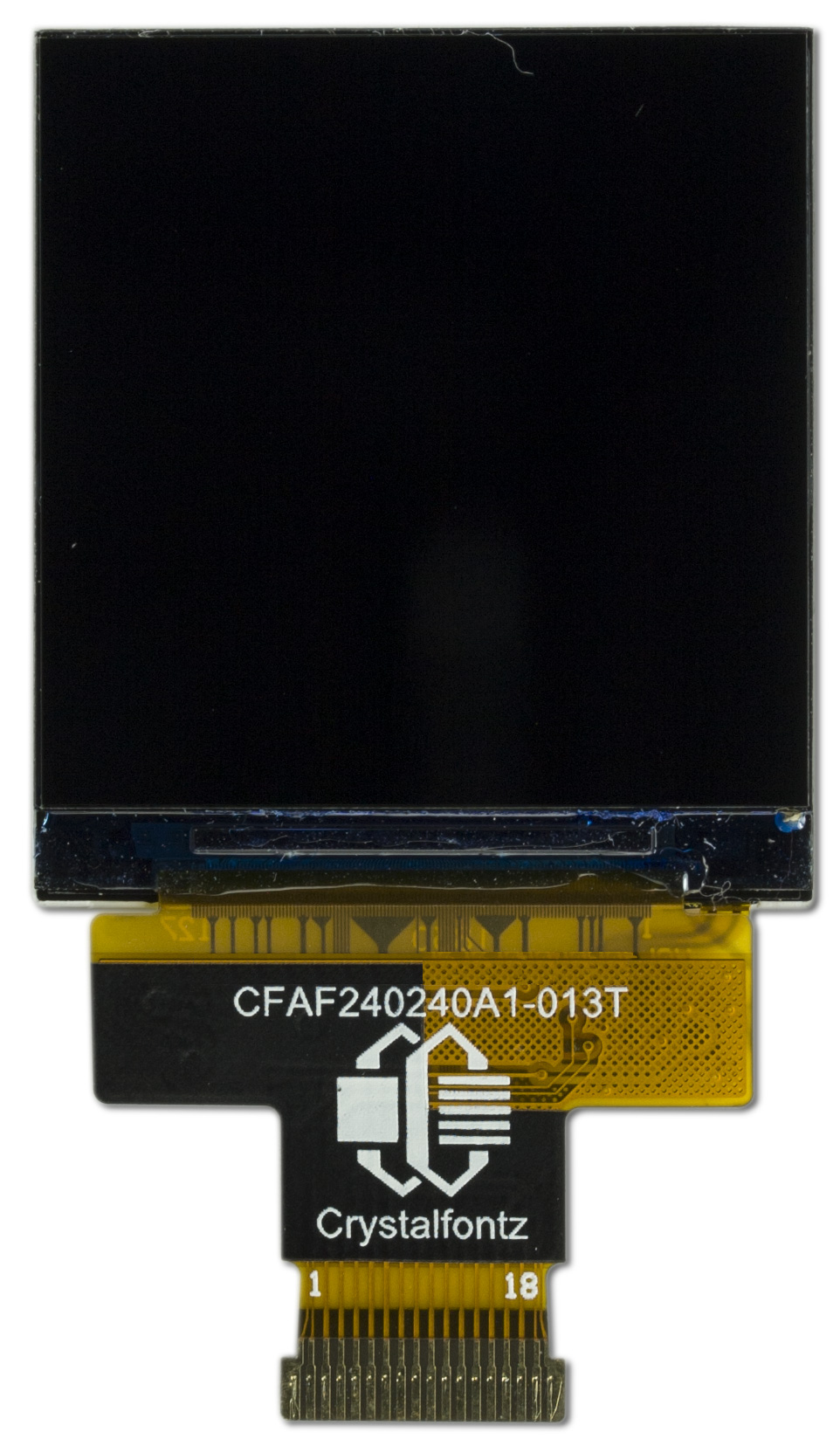

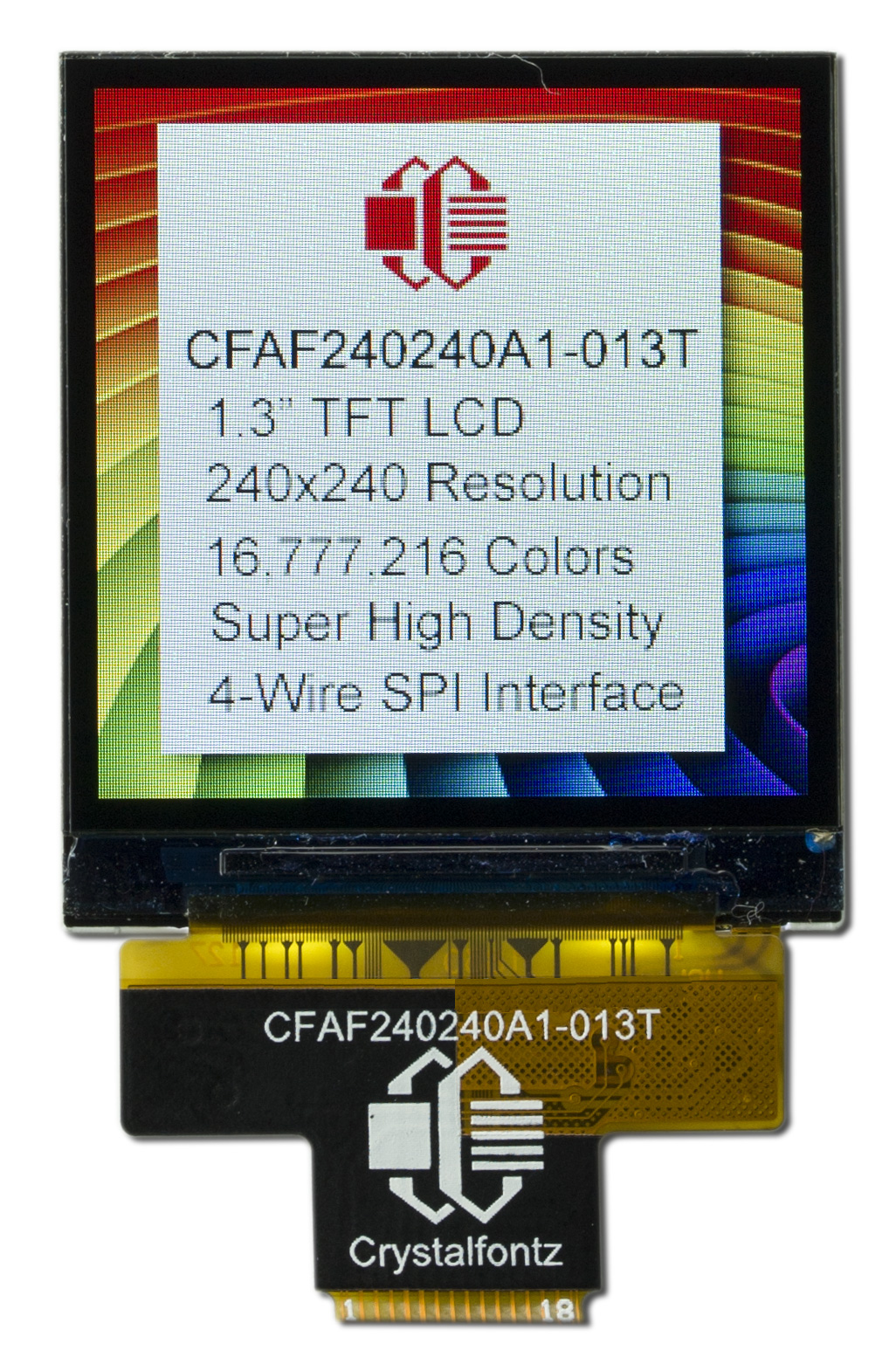

240x240 Color TFT LCD Display

Part Number: CFAF240240A1-013T

This full-color, IPS, TFT LCD module is a beautiful high-density display. It boasts crisp, bright images over a 4-wire SPI interface. And don't worry about SPI being too slow, check out the video below showing a video played on this display, and the demo code on GitHub.

At 1.3" diagonal, this little TFT is perfect for devices that need full-color graphics in an ultra-compact form factor. This display is the ideal fit for your next-generation wearable device.

Is power a concern? The Sitronix ST7789H2 controller has Content Adaptive Backlight Control (CABC) which allows the backlight power to be automictically minimized.

Looking for a thin display? This TFT is just 1.5mm thick - less than 1/16 inch!

For a slightly larger wearable display, check out the 128x128 1.45" Full Color TFT LCD Display, or check out our list of small displays.

The 18-pin ZIF connector makes the connection to your PCB as easy as mounting any other SMT component. No special soldering operation is needed. We even carry 18-position, 0.5mm pitch ZIF connectors to go with it.

Want an even easier way to bring this display up? Get this small TFT with a breakout board module or the full Seeeduino development kit for a plug-and-play option.

The CFAF240240A1-013T requires only a single 3.3v supply for all the display functions. The backlight's anode (A,+) and cathode (K, -) pins are brought out independently to provide flexibility in your backlight driving circuit design, but also uses only 3.3v.

This small, low-power, full color, high-density display is a perfect 240x240 LCD for use with an Arduino, as wearables, or in any low voltage or battery-powered device.

Key Features:
  • Small, Full Color TFT (1.3" diagonal)
  • Low voltage (3.3v for logic and backlight)
  • SPI interface
  • IPS (ultra-wide viewing angle)
  • 18-position ZIF tail
Qty:
Quantity Price
1 $9.43
10 $8.25
20 $8.13
50 $7.96
100 $7.84
200 $7.67
500 $7.48
1000 $7.43
* Contact us about potential lead times.
Components worth considering
4633 18 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector
Add 5 ZIF Connectors $0.69 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF240240A1-013T or RSS RSS feed for changes to CFAF240240A1-013T for CFAF240240A1-013T

Video Demonstrations

High Density 240x240 1.3" TFT LCD

This is a quick video showing our new 1.3 inch TFT LCD. This is a small, full-color TFT. It's controlled via 4-wire SPI. It has a ST7789H2 controller. This display runs off a single 3.3v supply which controls the logic and backlight.


1.3" TFT with PSoC6 BLE Pioneer Kit DMA SPI

Crystalfontz CFAF240240A1-013T IPS wearable TFT with PSoC6 BLE Pioneer Kit DMA SPI


ESP32 Video over SPI

Demonstration of this display playing video over the SPI interface using an ESP32 Microprocessor.



TECHNICAL SPECS

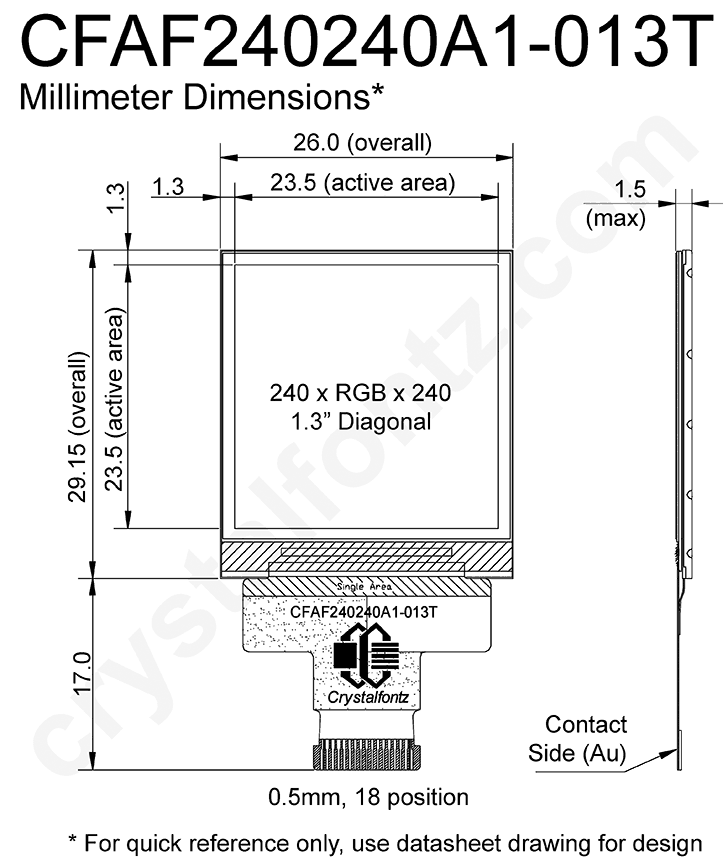

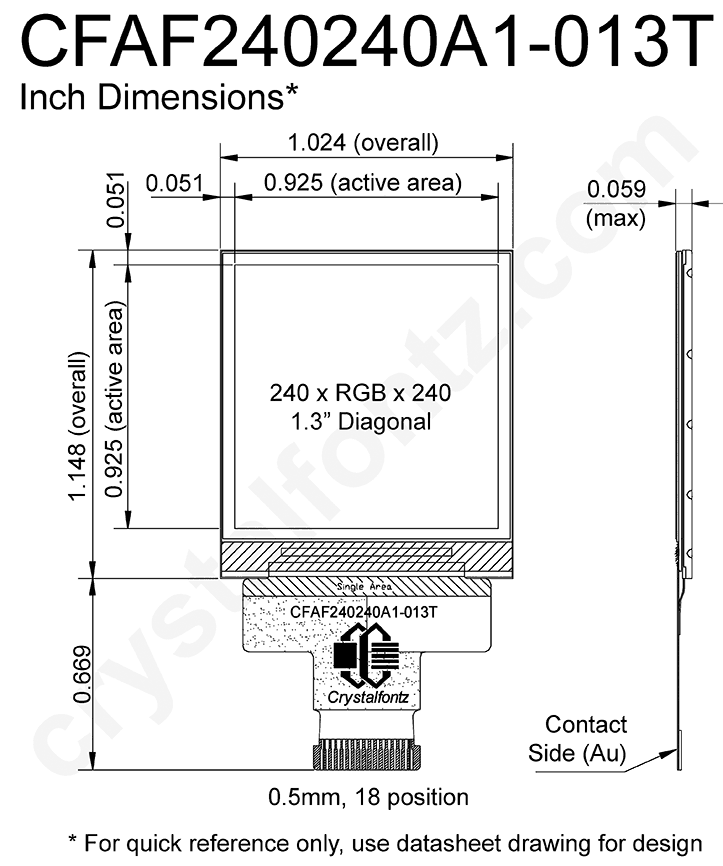

Physical Characteristics

Column Dots x Row Dots 240 x 240
Module Overall width height depth
millimeters 26 29.15 1.5
inches 1.024 1.148 0.059
*width / height does not include Foldable Tab
Diagonal Dimension 1.3"
Active Area width height
millimeters 23.4 23.4
inches 0.921 0.921
Dot Pitch width height
millimeters 0.0975 0.0975
inches 0.0038 0.0038
Optional Connectors CS050Z18GA0
Flexible Cable (FFC/FPC) length
millimeters 15.4
inches 0.606
Weight 2.2g
Pin Count 18

Optical Characteristics

Glass Type TFT
Polarizer Transmissive
Backlight Color White
Backlight Type LED
Mode Passive
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Typical 2.8V
Supply Voltage for Driving Panel Typical 2.8V

Backlight Electrical Specifications

Forward Voltage Minimum 2.5V
Forward Voltage Maximum 3.3V
Forward Voltage Typical 3.3V
Forward Current Typical 20mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Sitronix ST7789H2

Sitronix ST7789H2
The ST7789H2 is a single-chip controller/driver for 262K-color, graphic type TFT-LCD.
Interface SPI

Miscellaneous

Foldable Tab Yes
Nits 320

Additional Options

Purchase this display with an adapter board or a complete development kit.

240x240 1.3" TFT Development Kit
Part Number: CFAF240240A1-013T-E1-2

This is a TFT Seeedunio kit for our tiny TFT with adapter board. This kit includes the small TFT mounted to an adapter board, already connected to a Seeeduino loaded with demonstration code. That means all you need to do when the kit arrives is plug in the USB cord to power to see a functioning display.

The included TFT is a crisp 1.3", 16.7M full color, 240x240 IPS display. The adapter board is designed with the display in mind, so there is no PCB overlap. Plus the board includes a backlight driver so the entire display, including the backlight, can be driven with a single 3.3v power input.

Details
Quantity 1
Price $42.10
Quantity:
240x240 1.3" TFT with Breakout Board
Part Number: CFAF240240A1-013T-E1-1

This kit comprises one of our smallest TFTs. and an adapter board to easily connect it to your system. Plus, the adapter board includes a backlight driver, so only a single 3.3v power input is required to bring up the display.

The adapter board is specifically designed for use with this display, so it fits directly behind the display with no PCB overlap. The display is a 1.3", 16.7M full color, IPS display that looks incredibly sharp.

This little kit would be great in a wearable, as a small gauge or indicator, or anywhere you can think to integrate a small, full-color display.

We also offer a full Seeeduino kit to easily bring up this kit.

Details
Quantity 1 10 20 50 100 200 * 300 * 500 * 1000 *
Price $24.50 $20.00 $19.33 $18.65 $18.38 $18.25 $18.11 $17.97 $17.84
Quantity:
For reference only. For design purposes, please use the specifications in the datasheet.
