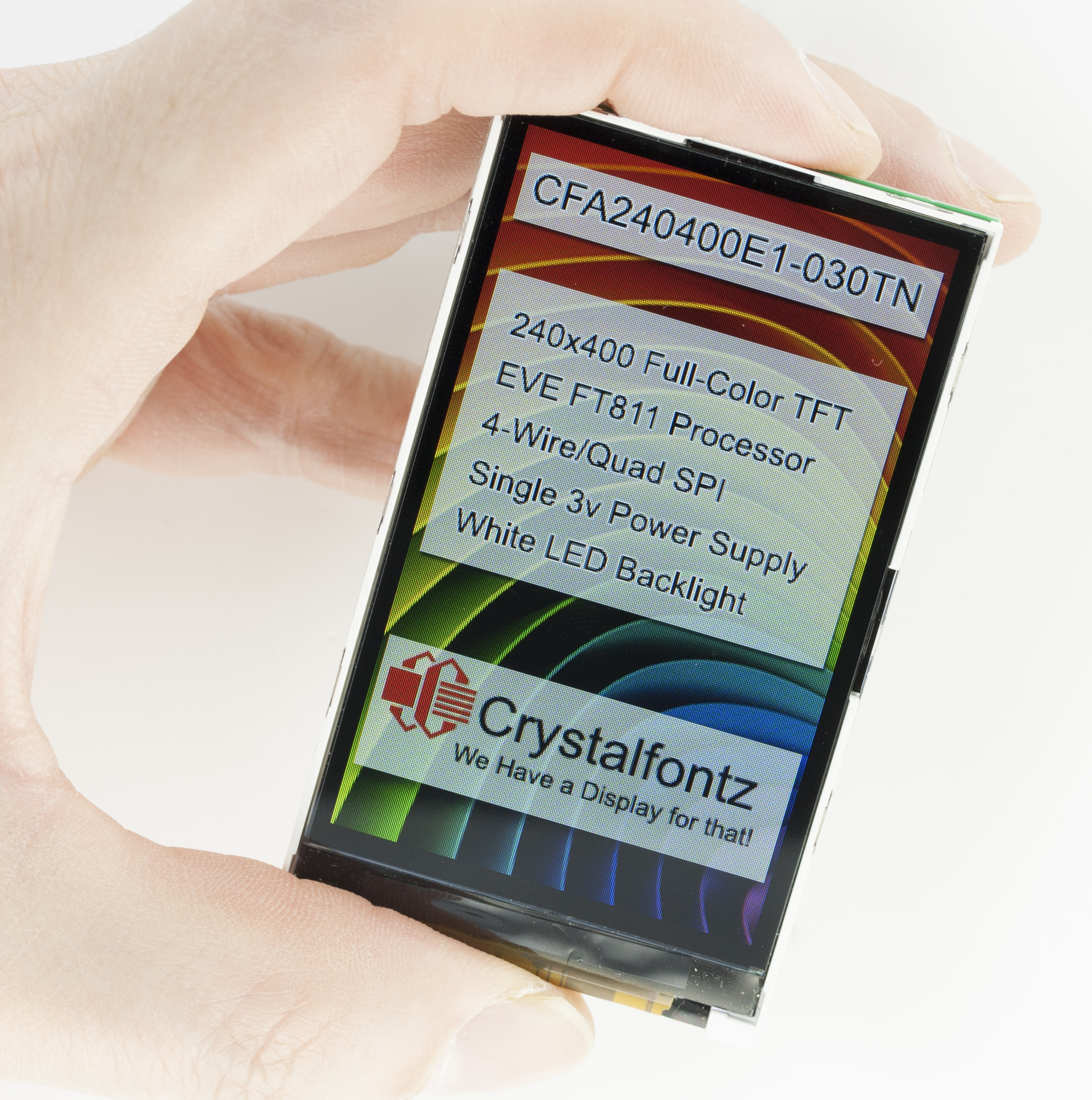

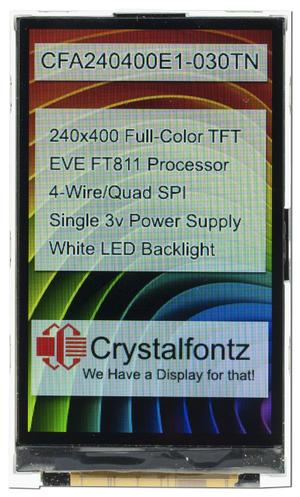

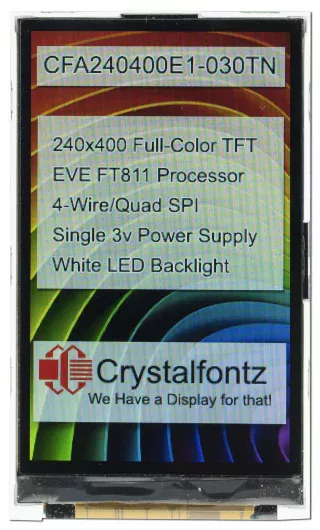

3" 240x400 EVE TFT Display

Part Number: CFA240400E1-030TN

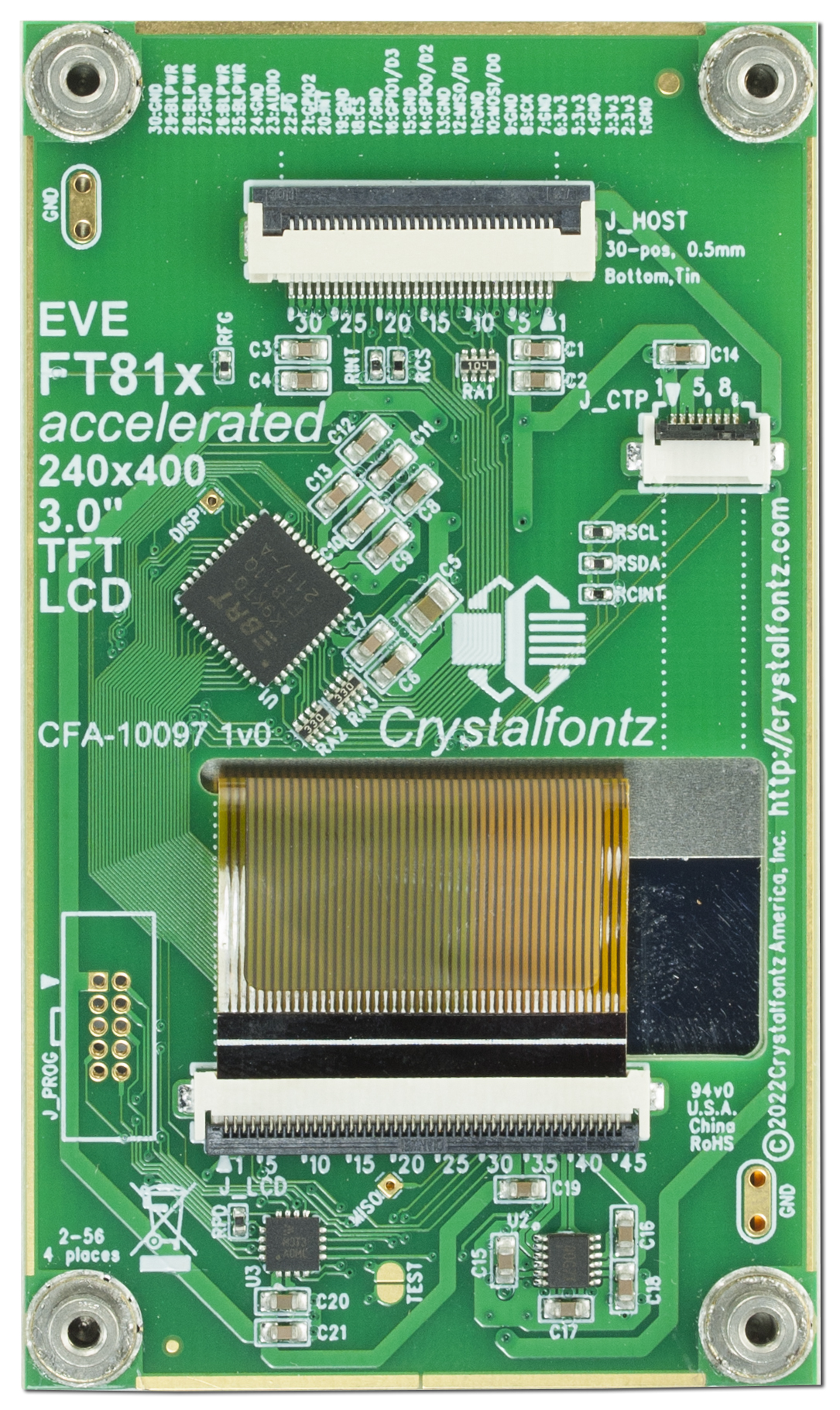

This display module combines a 3" TFT display with an embedded video engine (EVE) PCB for a powerful display module. The EVE PCB, powered by an FTDI/Bridgetek FT81x, accepts high-level commands, simplifying the creation of beautiful interfaces.

EVE Graphics Accelerator features include:
  • User interface design software by FTDI/Bridgetek to simplify the design process
  • Enhanced sketch processing
  • Anti-aliasing of primitive displayed objects
  • PWM output for display backlight dimming control
  • Support playback of motion-JPEG encoded AVI videos
  • 30-pin FPC / ZIF Connection
Find out more about the powerful EVE chip on our blog.

The TFT display included in this module is a 3" TFT with a resolution of 240x400.

We have everything you need to develop with the FTDI EVE platform including 12-inch 30-pin FPC cables, 6-inch 30-pin FPC cables and an EVE breakout board, and any product support you may need.

The complete 3" 240x400 Full-Color EVE development kit for this module is also available. The development kit includes everything needed to get this display module working.

This model does not have a touch screen. For a 3" EVE module with touch, check out the 240x400 Touchscreen EVE TFT.

Currently Shipping: HW Version 1v0, Firmware Version: 1v1

Part Number:
CFA - Crystalfontz (no 4th letter indicates a display with value-added)
240400 - Pixel Resolution
E - EVE
1 - Revision
030 - 3.0" Diagonal
T - Standard Brightness
N - No Touch
Qty:
Quantity Price
1 * $61.90
5 * $51.69
10 * $50.33
20 * $48.63
50 * $46.93
100 * $46.25
200 * $45.91
300 * $45.57
500 * $45.23
1000 * $44.89
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4649 30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Add 5 ZIF Connectors $0.53 ea.
4665 Assorted Imperial Screws
Need mounting screws? $2.68 ea.
4606 6-inch 30-pin FFC Cable
Ribbon cable? $2.00 ea.
4763 240x400 EVE TFT Display Development Kit
Get the whole dev kit. $90.42 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFA240400E1-030TN or RSS RSS feed for changes to CFA240400E1-030TN for CFA240400E1-030TN

Video Demonstrations

Super cool 3" 240x400 TFT Display Demo Video

Video demonstration of our 3-inch 240x400 EVE-powered TFT.


TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 240 x 400
Module Overall width height depth
millimeters 45.04 77 7.6
inches 1.773 3.031 0.299
Diagonal Dimension 3"
Active Area width height
millimeters 38.88 64.8
inches 1.531 2.551
Dot Pitch width height
millimeters 0.162 0.162
inches 0.0064 0.0064
Weight 29g
Pin Count 30

Optical Characteristics

Glass Type TFT
Polarizer IPS
View Angle 80°
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 2.97V
Supply Voltage for Logic Maximum 3.63V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 3.3V
Supply Current Maximum 70mA
Supply Current Typical 54mA

Backlight Electrical Specifications

Forward Voltage Typical 3.3V
Forward Current Maximum 80.1mA
Forward Current Typical 39.7mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Interface SPI

Miscellaneous

Nits 400

Additional Options

Purchase this display in a development kit and get everything you need to start prototyping.

240x400 EVE TFT Display Development Kit
Part Number: CFA240400E1-030TN-KIT

This EVE IPS TFT development kit includes everything needed to quickly get the 3" 240x400 EVE TFT up and running. This kit is perfect for engineering teams testing the display or for home users building a project that needs a display.

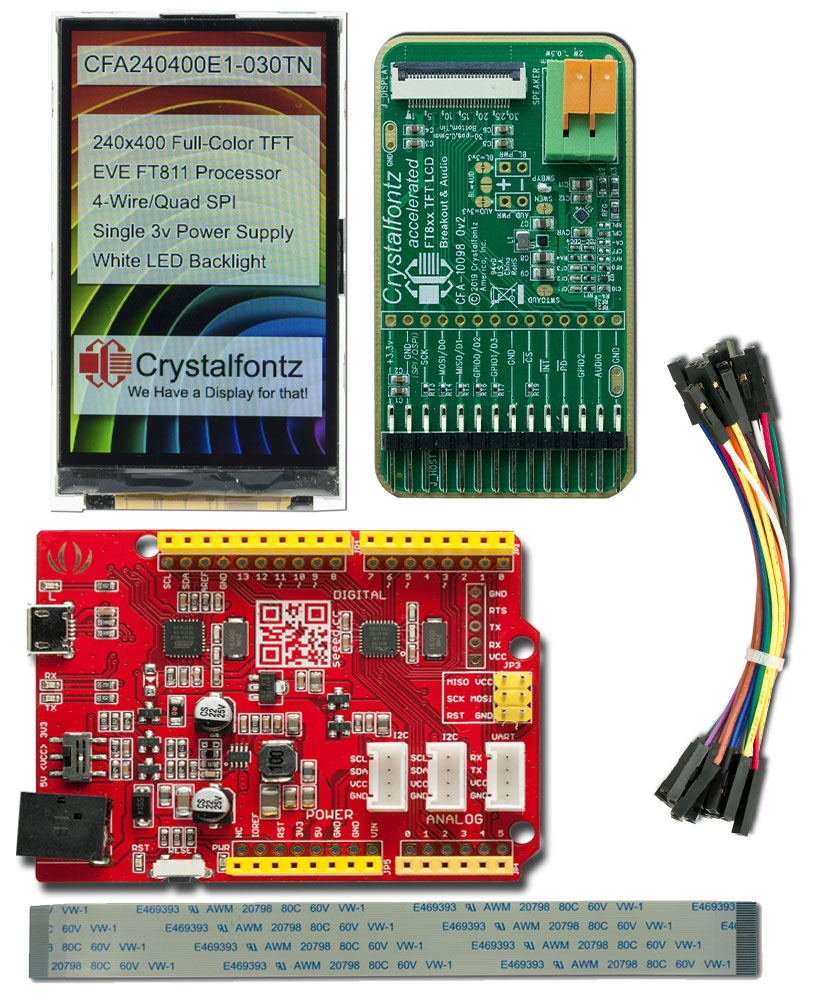

The kit includes the following:

To order just the display module, check out the 3" 240x400 Full-Color TFT Display.

This kit includes a non-touch display. If you're looking for a kit with a touchscreen display, check out this 240x400 EVE TFT Development Kit.

Part Number:
CFA - Crystalfontz (no 4th letter indicates a display with value-added)
240400 - Pixel Resolution
E - EVE
1 - Revision
030 - 3.0" Diagonal
T - Standard Brightness
N - No Touch
KIT - Includes Seeeduino, cables, wiring, code, etc.

Details
Quantity 1 *
Price $90.42
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA240400E1-030TN or RSS RSS feed for changes to CFA240400E1-030TN

Product Update #11158: 3" 240x400 EVE TFT Display is now available

New Product: CFA240400E1-030TN
Date Issued: November 14, 2022
Summary: 3" 240x400 EVE TFT Display is now available
Description: CFA240400E1-030TN has been released on our website (https://www.crystalfontz.com/product/cfa240400e1030tn-240x400-eve-tft-display) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.

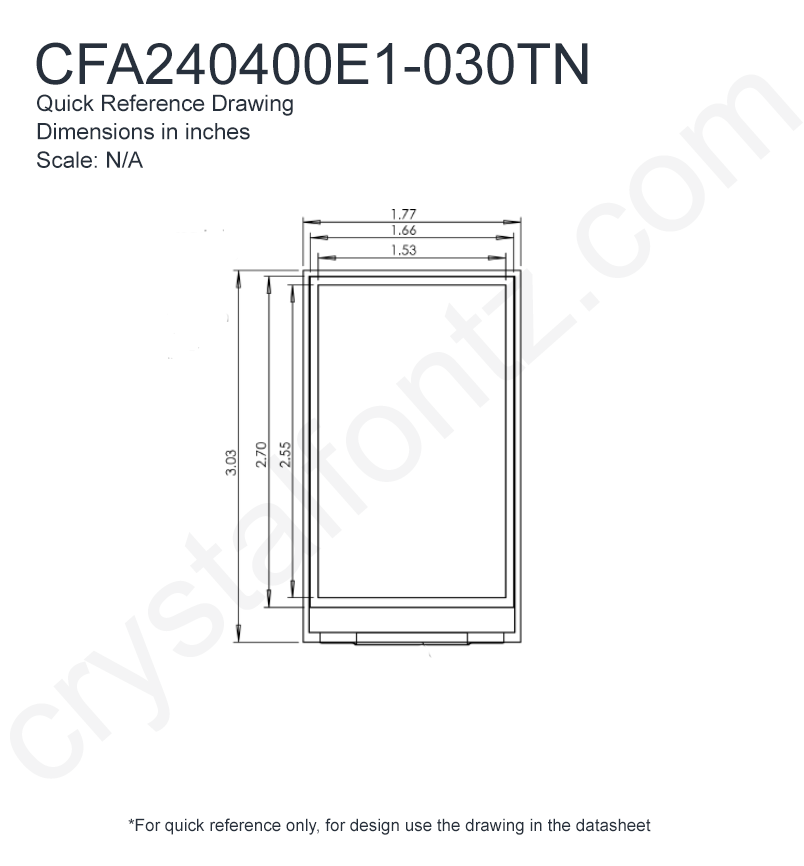

For reference only. For design purposes, please use the specifications in the datasheet.
