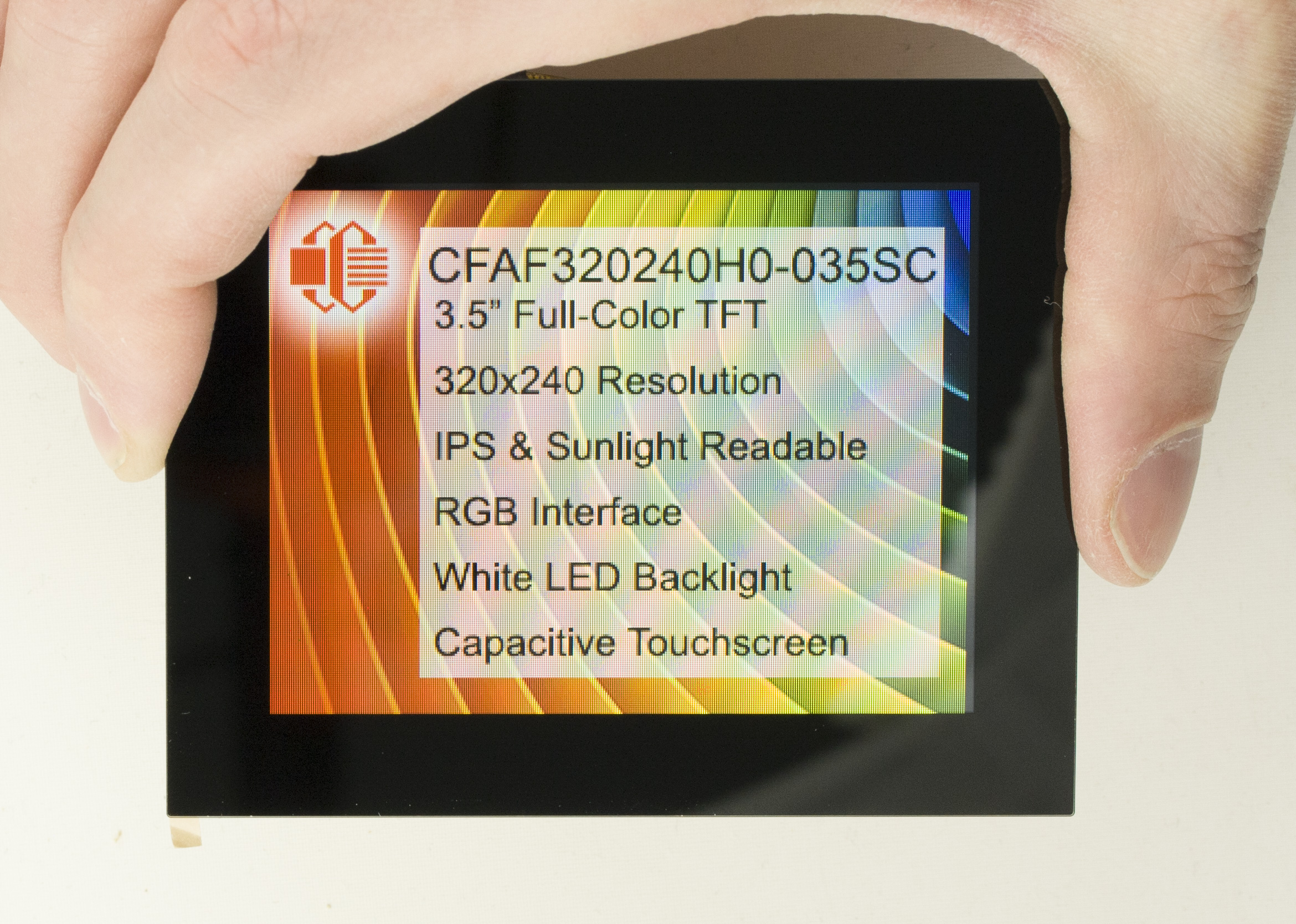

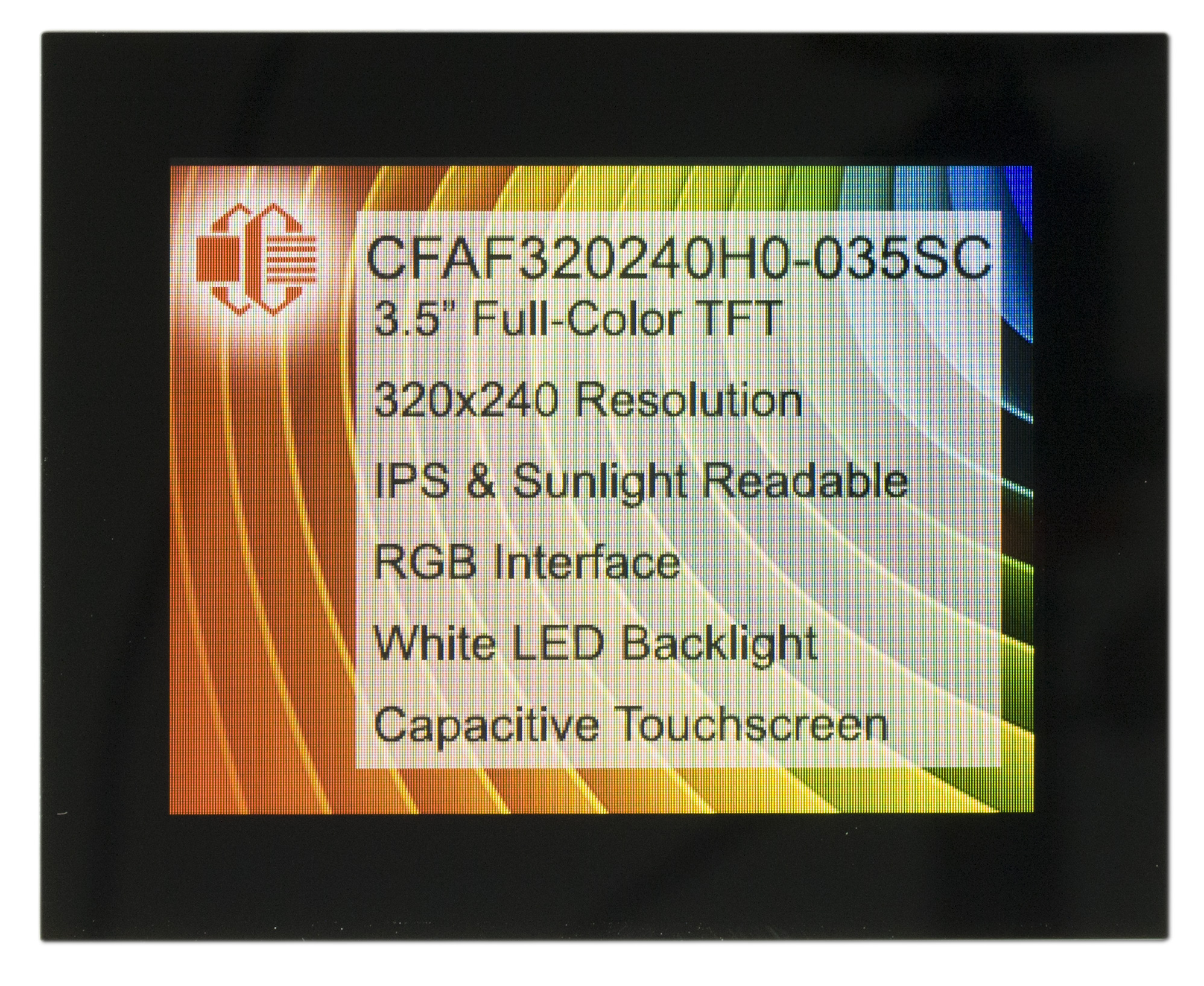

3.5" Capacitive Touchscreen TFT Display

Part Number: CFAF320240H0-035SC

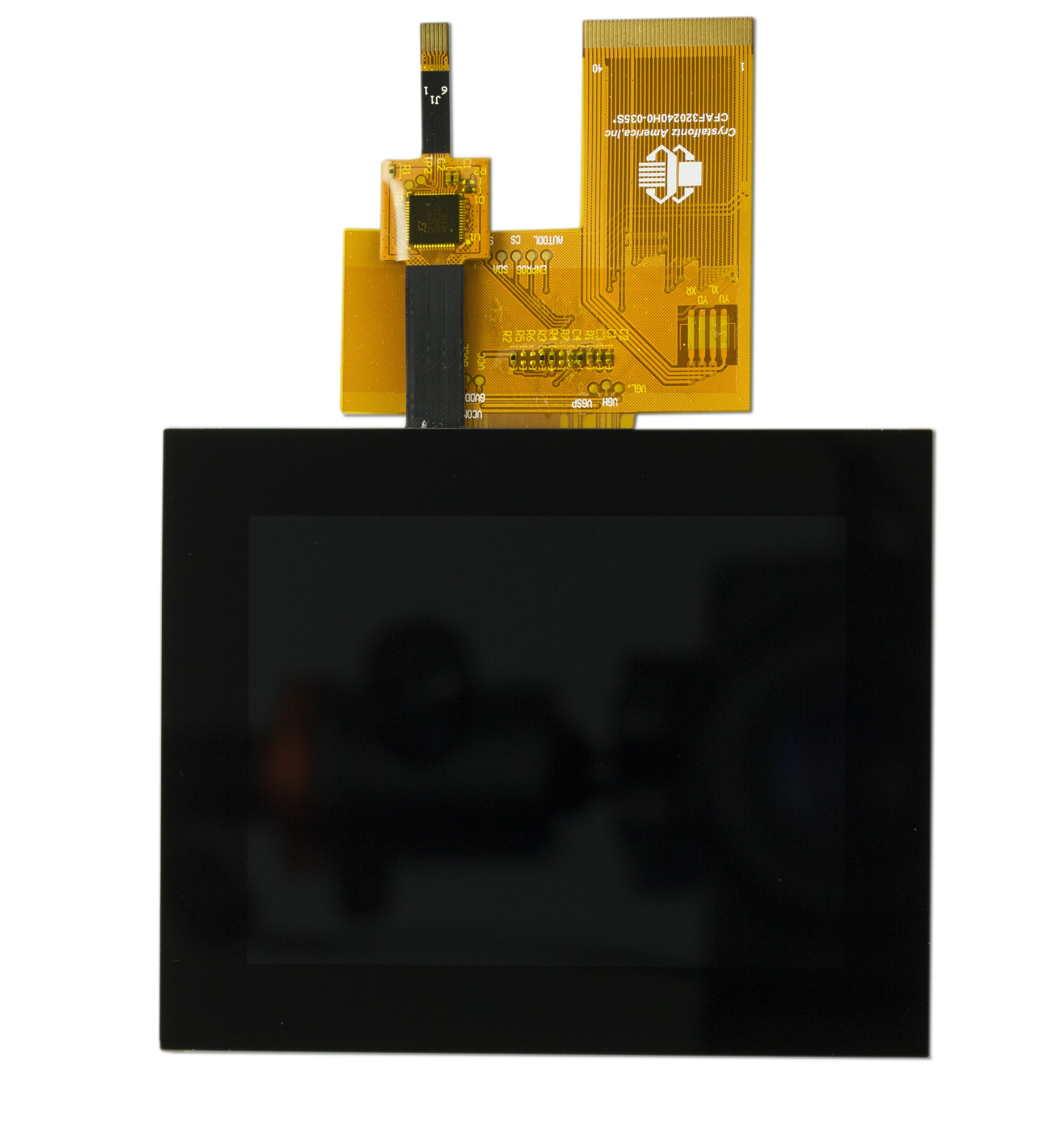

With a lovely overhanging capacitive touchscreen, this display is a sleek choice for your project. Easily attach the display to your housing using the included tape.

Sunlight readable, IPS, and supporting 16.7 million colors, this display makes your graphics visible from any angle and even in direct sunlight.

Product Features:
  • 320(RGB) x 240 pixels
  • 3.5" diagonal
  • Capacitive Touchscreen
  • RGB interface (24-bit, 16.7M colors)
  • Sitronix ST7272A TFT Controller
  • CF1216 Touch Controller
  • Free Viewing Angle

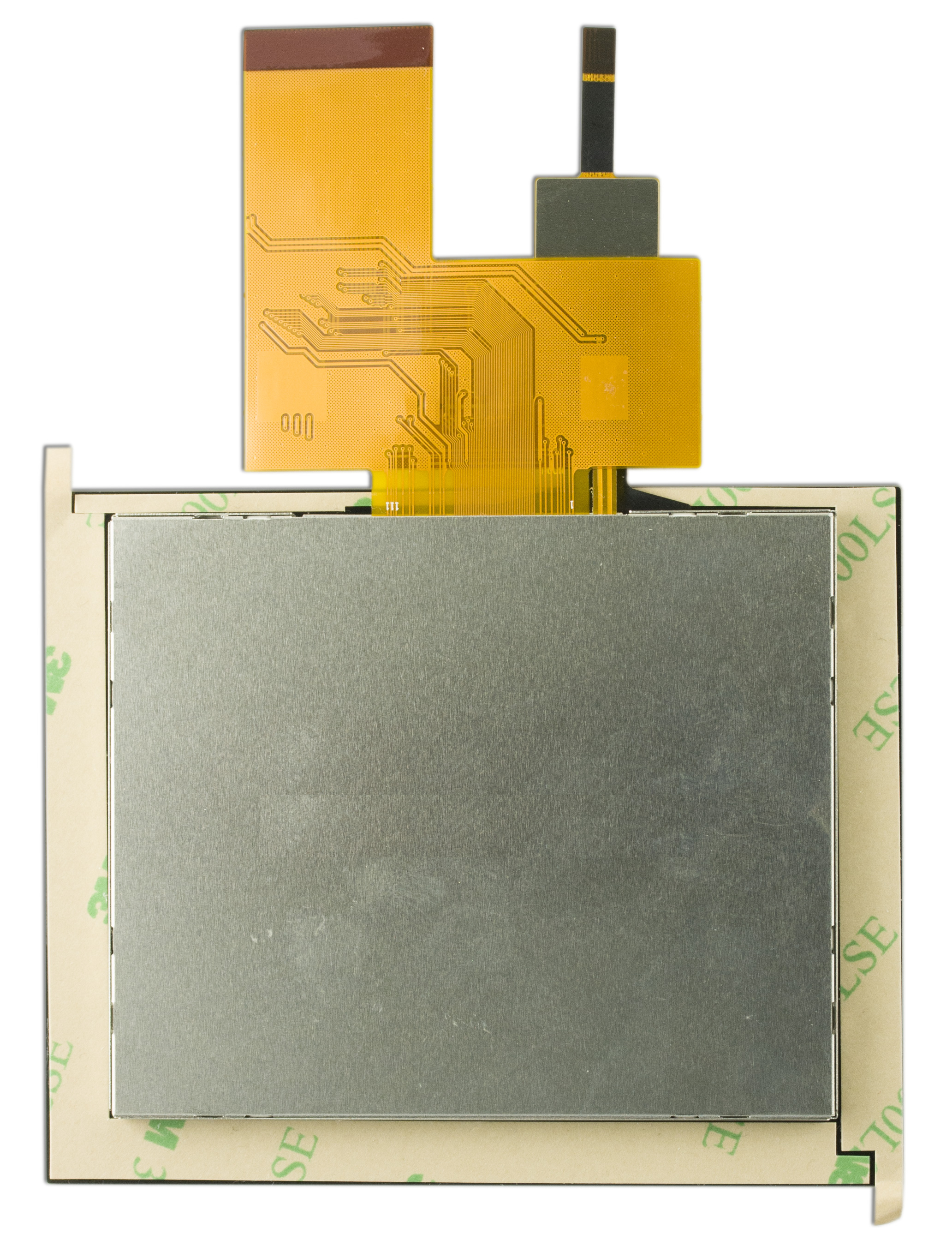

  • 40-pin ZIF tail for display
  • 6-pin ZIF tail for touchscreen
  • Sunlight Readable (850 nit backlight)
  • 3.3v logic, 19.2v backlight
Part Number:
CFA - Crystalfontz America
F - TFT
320240 - Pixel resolution
H0 - Family
035 - 3.5" diagonal
S - Sunlight readable
C - Capacitive Touchscreen

Product Variants


DOT-CLK interface / Generic RGB

CFAF320240H0-035SN3.5" 320x240 IPS Sunlight Readable TFT Display
CFAF320240H0-035SC3.5" Capacitive Touchscreen TFT Display
CFAF320240H0-035SR3.5" Resistive Touchscreen TFT Display
3.5" Capacitive Touchscreen TFT Display (CFAF320240H0-035SC)
Qty:
Quantity Price
1 $70.50
5 $59.21
10 $57.32
20 $55.38
50 $53.44
100 $52.67
200 $52.28
300 $51.89
500 * $51.51
1000 * $51.12
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4637 40 Position, 0.50mm Pitch, Gold, FCC FPC ZIF connector
Add 5 ZIF Connectors? $1.45 ea.
4672 6 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Touchscreen ZIF Connectors? $0.40 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF320240H0-035SC or RSS RSS feed for changes to CFAF320240H0-035SC for CFAF320240H0-035SC

Compliance Documents

Video Demonstrations

3.5" IPS TFT Displays

A quick video demonstration of the 3 different 3.5-inch Sunlight readable IPS TFT displays.


TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 320 x 240

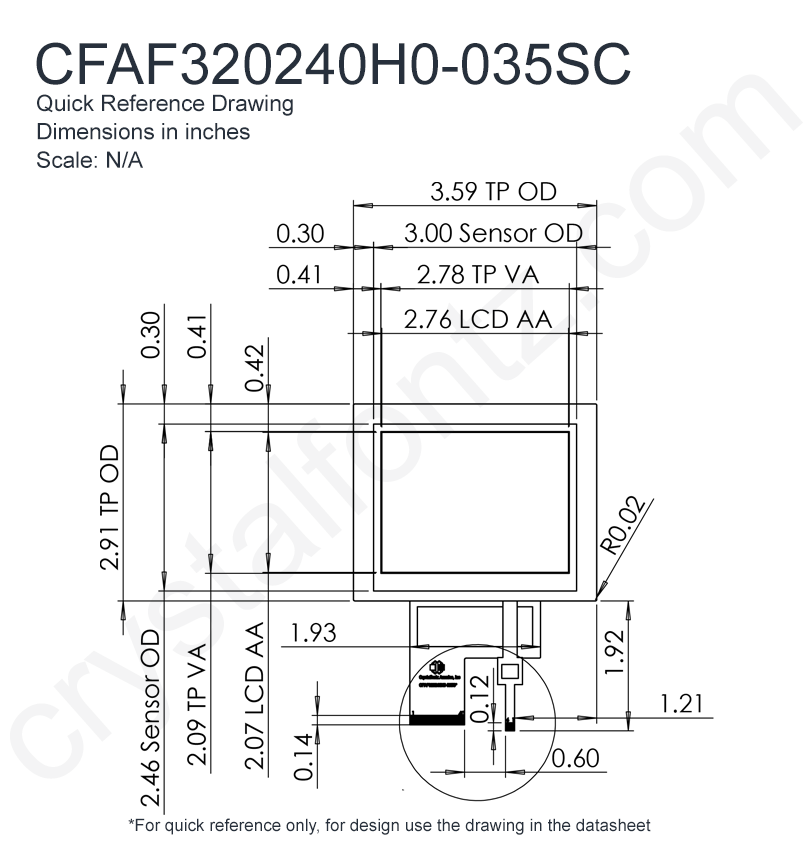

Module Overall width height depth
millimeters 91.3 73.9 4.88
inches 3.594 2.909 0.192
Diagonal Dimension 3.5"
Active Area width height
millimeters 70.08 52.56
inches 2.759 2.069
Dot Pitch width height
millimeters 0.219 0.219
inches 0.0086 0.0086
Weight 48g
Pin Count 40

Optical Characteristics

Glass Type/Glass Color TFT/Dark
Polarizer Transmissive
View Direction Any o'clock
View Angle 160°
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 3.3V
Supply Current Maximum 35.2mA
Supply Current Typical 23.4mA
Module Connector Pitch 0.5mm
Touchscreen Connector Pitch 0.5mm

Backlight Electrical Specifications

Forward Voltage Minimum 18V
Forward Voltage Maximum 20.4V
Forward Voltage Typical 19.2V
Forward Current Typical 40mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents Sitronix ST7272A
480x480 System-On-Chip Driver
for 320RGBx240 Dual Gate TFT LCD
Interface DOT-CLK interface / Generic RGB

Miscellaneous

Nits 930
Touch Screen Capacitive

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF320240H0-035SC or RSS RSS feed for changes to CFAF320240H0-035SC

Part Change Notice #11144: 3.5" Capacitive Touchscreen TFT Display now available!

New Product: CFAF320240H0-035SC
Date Issued: July 21, 2022
Summary: 3.5" Capacitive Touchscreen TFT Display now available!
Description: CFAF320240H0-035SC has been released on our website (https://www.crystalfontz.com/product/cfaf320240h0035sc-320x240-capacitive-touchscreen-tft-display) and is now available for sale. Orders can be placed directly from the website or by submitting a purchase order to sales@crystalfontz.com. Contact support for any technical questions.
For reference only. For design purposes, please use the specifications in the datasheet.
