6-Position ZIF Breakout Board from Crystalfontz

Product

Home » Products » Accessories » Carrier Boards


      6-Position ZIF Breakout Board
      Part Number: CFABB-CS050Z06G-A0

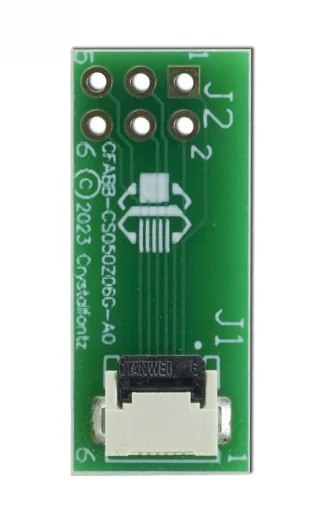

         This ZIF breakout board includes our 6-pin 0.5-millimeter pitch ZIF connector broken out to 0.1" through holes. Grab this breakout board for quick prototyping with displays that have a ZIF tail with 6 pins or fewer at a 0.5 mm pitch.

Don't forget to add a few of our dual-row headers to populate the through holes.

This breakout board was specifically designed to connect to our multi-use ZIF breakout board. Solder this to the empty through holes on the multi-use board to add any size ZIF connector so you can have a perfect fit.

Part Number:

CFA- Crystalfontz America

BB- Breakout Board

CS050Z06G-A0- includes this connector

Connector Part Number:

CS- Crystalfontz Connector

050- 0.5mm pitch

Z - Top and Bottom Connectors

06- 06 pins

G - Gold

A0- Family and revision
 square_foot Physical Characteristics
Physical Characteristics

        Weight
            0.9g
Pin Count
            6

 picture_as_pdf Datasheets
CS050ZxxGA0 Datasheet

 download Files and Downloads
 Hardware Design - Mechanical Drawing
picture_as_pdf Other Document - CFA10102 Integration Guide
picture_as_pdf Other Document - Getting Started Guide
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1 *
            $6.08

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						6 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Add ZIF connectors? $0.40 ea.

						6-inch Female to Female Jumper Wires
Need jumper wires? $7.30 ea.

						72 Pin Header
Add Header Pins? $0.66 ea.

						Multi-use ZIF Breakout Board
Need a breakout board? $19.43 ea.

Quantity	Unit Price
1 *	$6.08

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11232: 6-Position ZIF Breakout Board is now available

New Product:	CFABB-CS050Z06G-A0
Date Issued:	October 2, 2023
Summary:	6-Position ZIF Breakout Board is now available
Description:	CFABB-CS050Z06G-A0 has been released on our website (https://www.crystalfontz.com/product/cfabbcs050z06ga0-6-position-zif-breakout-board) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
