Product

480x128 Bar-Type TFT Display

Part Number: CFAF480128A0-039TN

3.9" 480x128 pixel resolution, bar-type, TFT LCD. 40-pin RGB interface with a ZIF connection. 6:00 viewing direction for optimal viewing and standard storage and operating temperatures. This TFT is Perfect for 1U server appliances, musical equipment or any applications or products requiring a wide-screen and or a super wide aspect ratio of 3.75 to 1, which is about 16 to 4.

Product Variants

Details480x128 Bar-Type Resistive Touchscreen TFT480x128 Bar-Type Resistive Touchscreen TFT
DOT-CLK interface / Generic RGB, Full-Color
Details480x128 Wide-Format Capacitive TFT Display480x128 Wide-Format Capacitive TFT Display
DOT-CLK interface / Generic RGB, Full-Color
  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 480 x 128
    Module Overall width height depth
    millimeters 105.5 37 3.05
    inches 4.154 1.457 0.120
    *width / height does not include Foldable Tab
    Diagonal Dimension 3.87"
    Viewing Area Width Height
    millimeters 97.04 27.34
    inches 3.820 1.076
    Active Area Width Height
    millimeters 95.04 25.34
    inches 3.742 0.998
    Dot Pitch Width Height
    millimeters 0.066 0.198
    inches 0.0026 0.0078
    Optional Connectors CS050Z40GB0
    Flexible Cable (FFC/FPC) length
    millimeters 47.19
    inches 1.858
    Weight 24g
    Pin Count 40
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type TFT
    Polarizer Transmissive
    View Direction 0.25 o'clock
    Backlight Color White
    Backlight Type LED
    Foreground Color RGB
    Background Color Black
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 3V
    Supply Voltage for Logic Maximum 3.6V
    Supply Voltage for Logic Typical 3.3V
    Supply Current Maximum 25mA
    Supply Current Typical 15mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 14V
    Forward Voltage Maximum 17V
    Forward Voltage Typical 15V
    Forward Current Typical 40mA
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Controller Documents Himax HX8278-A-LT
    TFT LCD Single Chip Digital Driver Preliminary version 00 March, 2017
    Interface DOT-CLK interface / Generic RGB
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Price
1 $46.58
10 $40.50
20 $39.07
50 $37.61
100 * $37.04
200 * $36.46
500 * $34.14
1000 * $31.65
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4637 40 Position, 0.50mm Pitch, Gold, FCC FPC ZIF connector
Add 5 ZIF Connectors $1.45 ea.
4832 40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.

Additional Options

Speed up your development time with an EVE FTDI Display or development kit.

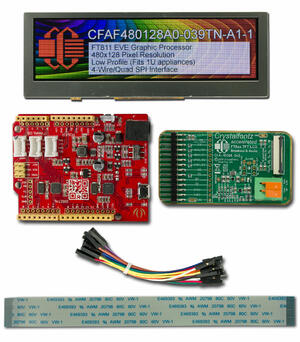

480x128 3.9" Bar-Type EVE Dev Kit
Part Number: CFAF480128A0-039TN-A1-2
Details
Quantity 1
Price $103.40
Quantity:
480x128 3.9" Bar-Type EVE Display
Part Number: CFAF480128A0-039TN-A1-1
Details
Quantity 1 5 10 20 50 100 * 200 * 300 * 500 * 1000 *
Price $72.70 $60.23 $58.64 $56.66 $54.68 $53.89 $53.49 $53.10 $52.70 $52.30
Quantity:
