480x128 3.9" Bar-Type EVE Dev Kit from Crystalfontz

Product

Home » Products » Accessories » Dev Kits » EVE Development Kits

480x128 3.9" Bar-Type EVE Dev KitPart Number: CFAF480128A0-039TN-A1-2

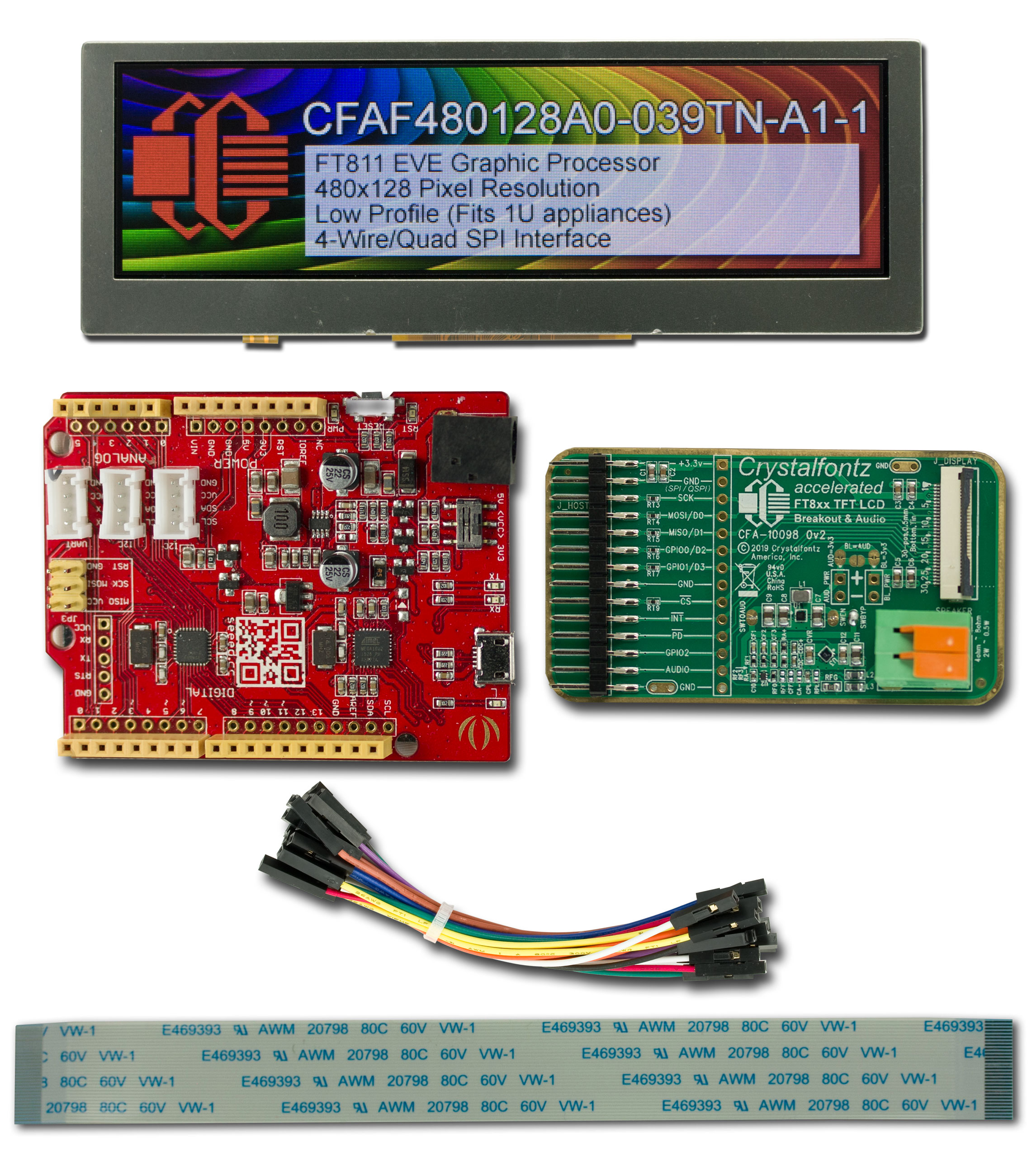

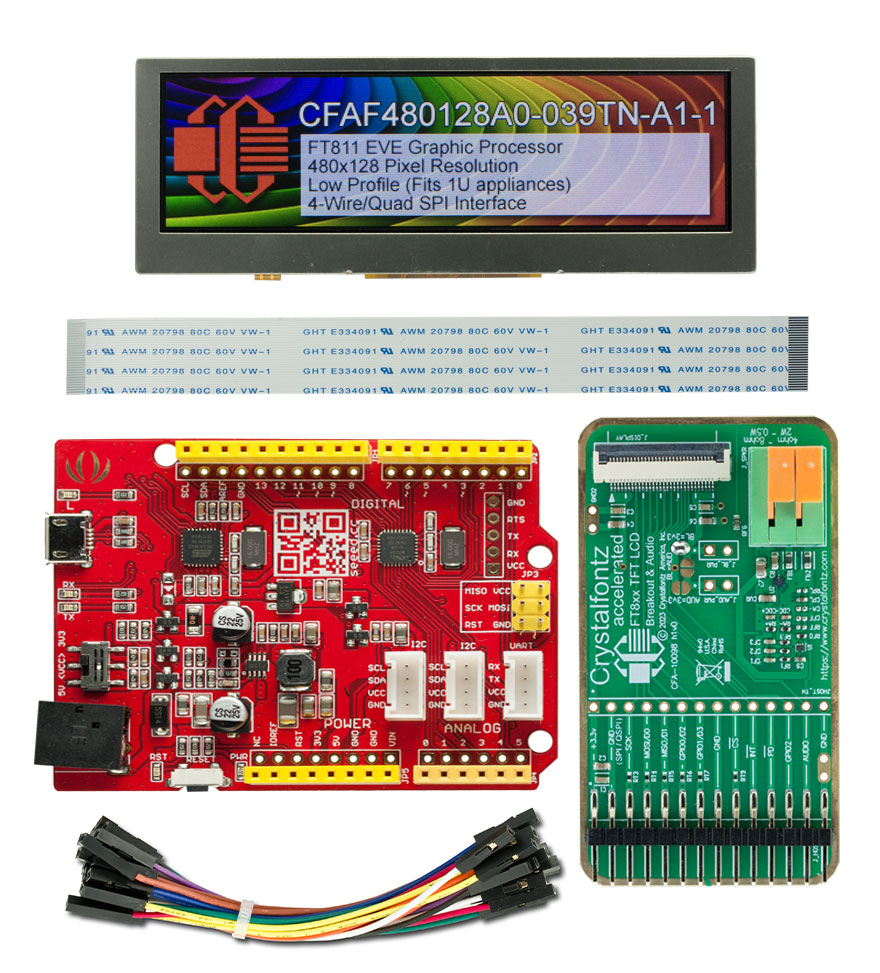

                        This EVE development kit allows quick and easy demonstration or use of the 480x128 3.9" Bar-Type EVE Display. Comprised of the 3.9" EVE module, an EVE breakout board, and a Seeeduino connected and running a complete functioning demo.
3.9" Bar-type TFT
Bright backlight: 500 Nits
TFT
16.7M colors
Bridgetek's EVE integrated for graphics control
4-Wire/Quad SPI communication
Seeeduino and CFA10098 kit with all wires included
Programmed and running demo code
Product VariationsColorsRGB on Dark
White LED BacklightRGB on Black
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            480 x 128

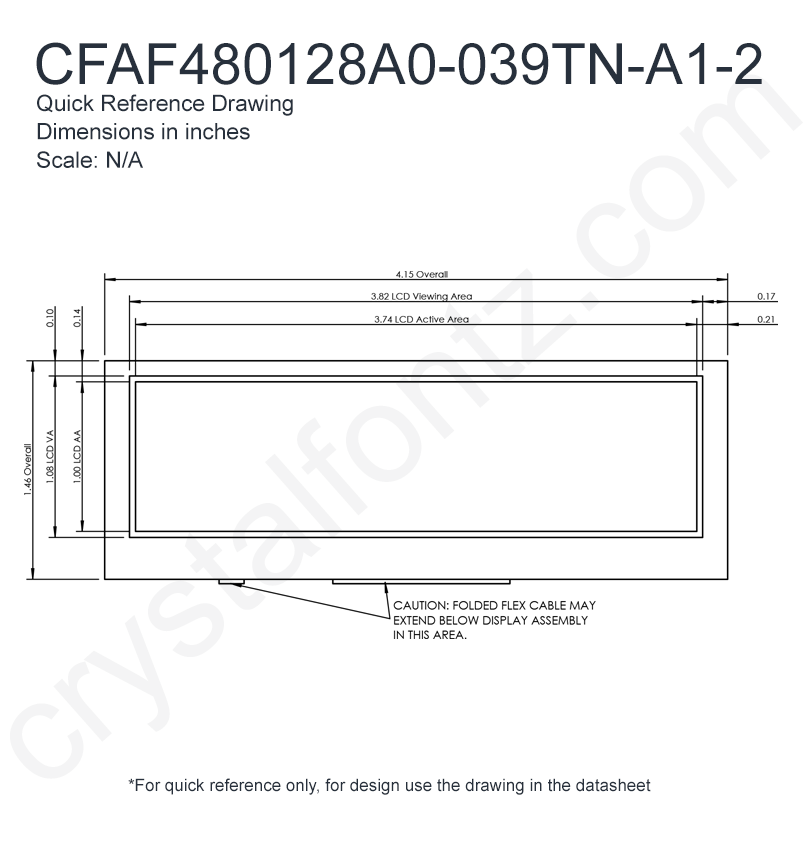

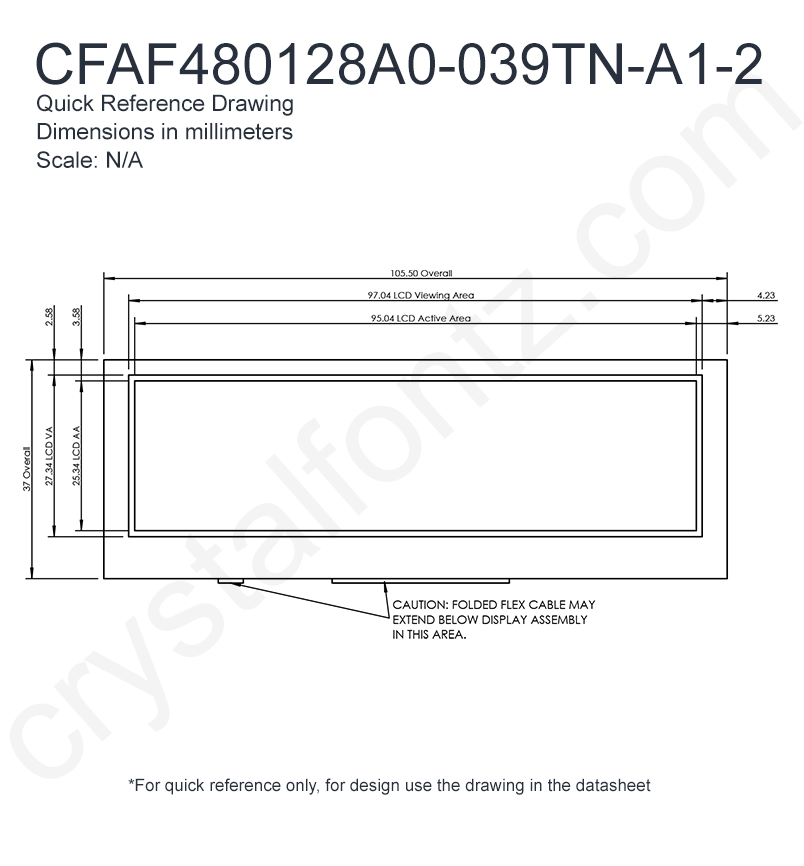

    Module Overall        width
        height
        depth


        millimeters
        105.5
        37
        10.73


        inches
        4.15
        1.46
        0.42



        Diagonal Dimension
            3.87"


    Viewing Area        Width
        Height


        millimeters
        97.04
        32.34


        inches
        3.82
        1.27



    Active Area        Width
        Height


        millimeters
        95.04
        25.34


        inches
        3.74
        1.00



    Dot Pitch        Width
        Height


        millimeters
        0.066
        0.198


        inches
        0.0026
        0.0078



        Optional Connectors
            CS050Y30TB0


        Weight
            75.7g
Pin Count
            30

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transmissive


        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Typical
            3.3V

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°


 cable Electronics
Electronics

        Interface
            SPI

picture_as_pdf Datasheets
picture_as_pdfCFAF480128A0-039TN-A1-1 Datasheet

download Files and Downloads
link Demo Code Download on Github
link GitHub Repository on Github








Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $98.79

5 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering


						MicroSD Card Reader
Need a MicroSD Reader? $8.14 ea.





Colors	RGB on Dark White LED Backlight RGB on Black White LED Backlight

Module Overall	width	height	depth
millimeters	105.5	37	10.73
inches	4.15	1.46	0.42

Viewing Area	Width	Height
millimeters	97.04	32.34
inches	3.82	1.27

Active Area	Width	Height
millimeters	95.04	25.34
inches	3.74	1.00

Dot Pitch	Width	Height
millimeters	0.066	0.198
inches	0.0026	0.0078

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$98.79

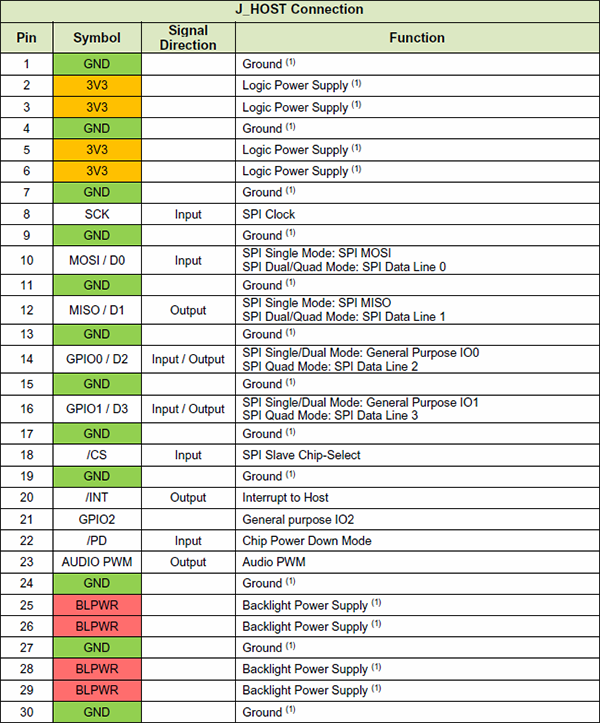

Pin Table
Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11220: Changing Manufacturing Facility

Products Affected:	WR-FFC-Y50, CFAF320240F-035T-TS-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480E3-050SR-KIT, CFA800480E3-050SW-KIT
Date Issued:	August 7, 2023
Summary:	Changing Manufacturing Facility
Description:	The WR-FFC-Y50 will be manufactured at a different facility. There are no changes to the functionality of the Flat Flex Cable.
Reason:	Continuous improvement
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11202: Audio Power Supply Removed

Products Affected:	CFA10098, CFAF240400C0-030SC-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480E3-050SR-KIT, CFA800480E3-050SW-KIT
Date Issued:	May 25, 2023
Summary:	Audio Power Supply Removed
Description:	The audio power supply has been removed from the board. Audio power will now only be able to be supplied externally. Hardware Version Changes: h0v2 to h1v0
Reason:	The audio power supply chip is no longer available and it was determined that it would be better for external power supplies to be used to demonstrate the EVE's audio capabilities.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11197: New Seeeduino Version 4.3 Now Shipping

Products Affected:	CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued:	May 15, 2023
Summary:	New Seeeduino Version 4.3 Now Shipping
Description:	We are now releasing products as stated in PCN11190. https://www.crystalfontz.com/news/pcn.php?id=11190

Part Change Notice #11190: Part Change - Seeeduino 4.2 ->4.3

Products Affected:	CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued:	April 13, 2023
Summary:	Part Change - Seeeduino 4.2 ->4.3
Last revision:	4.2
Description:	Seeed Studios has updated the Seeeduino from v4.2 to v4.3. This change switches from the ATMEGA328P-MU to the ATMEGA328P-AU, and replaces the serial chip. This causes the Seeeduino to identify differently when connected to a computer.
Reason:	Supplier has changed their offering
Impact:	Kits using the Seeeduino will no longer be named "USB Serial Device"
Availability:	Immediate

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAF480128A0-039TN-A1-2
