480x128 3.9" Bar-Type EVE Display

Part Number: CFAF480128A0-039TN-A1-1

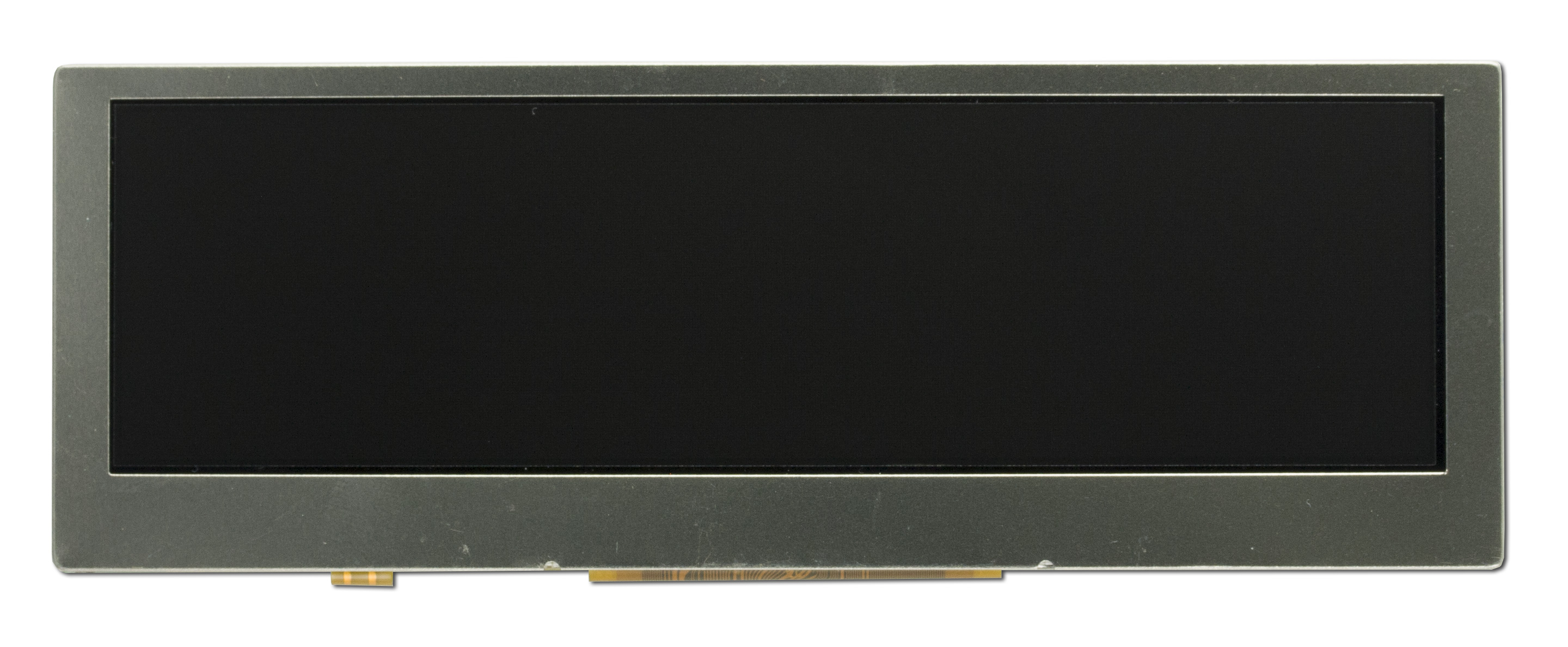

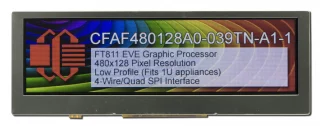

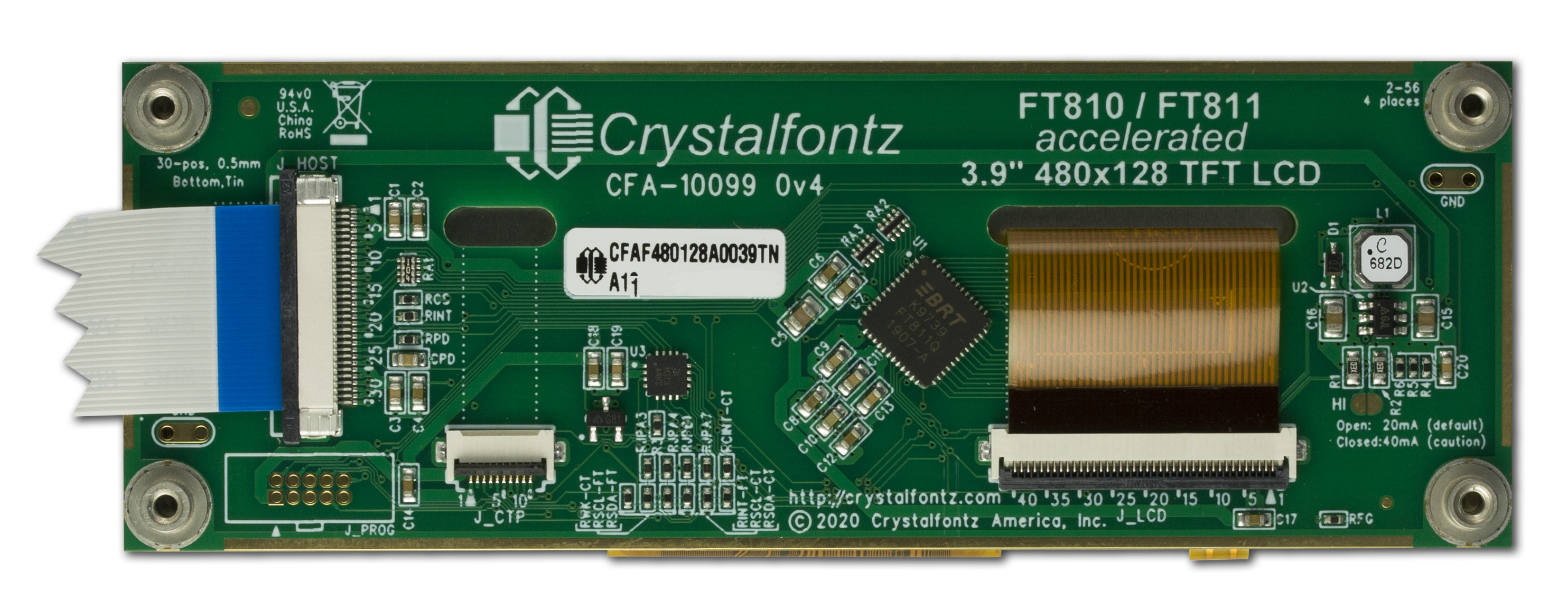

Are you looking for a sleek TFT display to add to your 1U appliance, dashboard, or other project? This 3.9" EVE module is a great choice. Not only does it have a gorgeous 480x128 Bar-Type TFT Display on the front, the display is backed up by a PCB specially designed for this display to match the display form factor. The PCB includes mounting standoffs to secure the display into a product.

Just getting started? Check out our 480x128 3.9" Bar-Type EVE Development Kit, it has everything you need to start developing and debugging with FTDI EVE.

Additionally, the module uses an FTDI/Bridgetek EVE chip to control the graphics, backlight, and audio, each mapped as SPI device for easy control. Check out this blog post for more about the benefits of using an EVE module.

Check out our entire family of EVE modules for other size displays and touch options.

Currently Shipping: HW Version 0v4, Firmware Version: 0v2

Features to note:
  • 3.9" - Fits in a 1U appliance
  • Bright backlight: 500 Nits
  • TFT
  • 16.7M colors
  • Bridgetek's EVE integrated for graphics control
  • 4-Wire/Quad SPI communication
Qty:
Quantity Price
1 $72.70
5 $60.23
10 $58.64
20 $56.66
50 $54.68
100 * $53.89
200 * $53.49
300 * $53.10
500 * $52.70
1000 * $52.30
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4607 12-inch 30-pin FFC
Need a FFC Cable? $2.30 ea.
4595 EVE Breakout Board
Need a breakout board? $24.63 ea.
4665 Assorted Imperial Screws
Mounting screws $3.08 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF480128A0-039TN-A1-1 or RSS RSS feed for changes to CFAF480128A0-039TN-A1-1 for CFAF480128A0-039TN-A1-1

Video Demonstrations

Video demonstration of our 3.9" Bar-Type FTDI EVE TFT Display.

TECHNICAL SPECS

Physical Characteristics

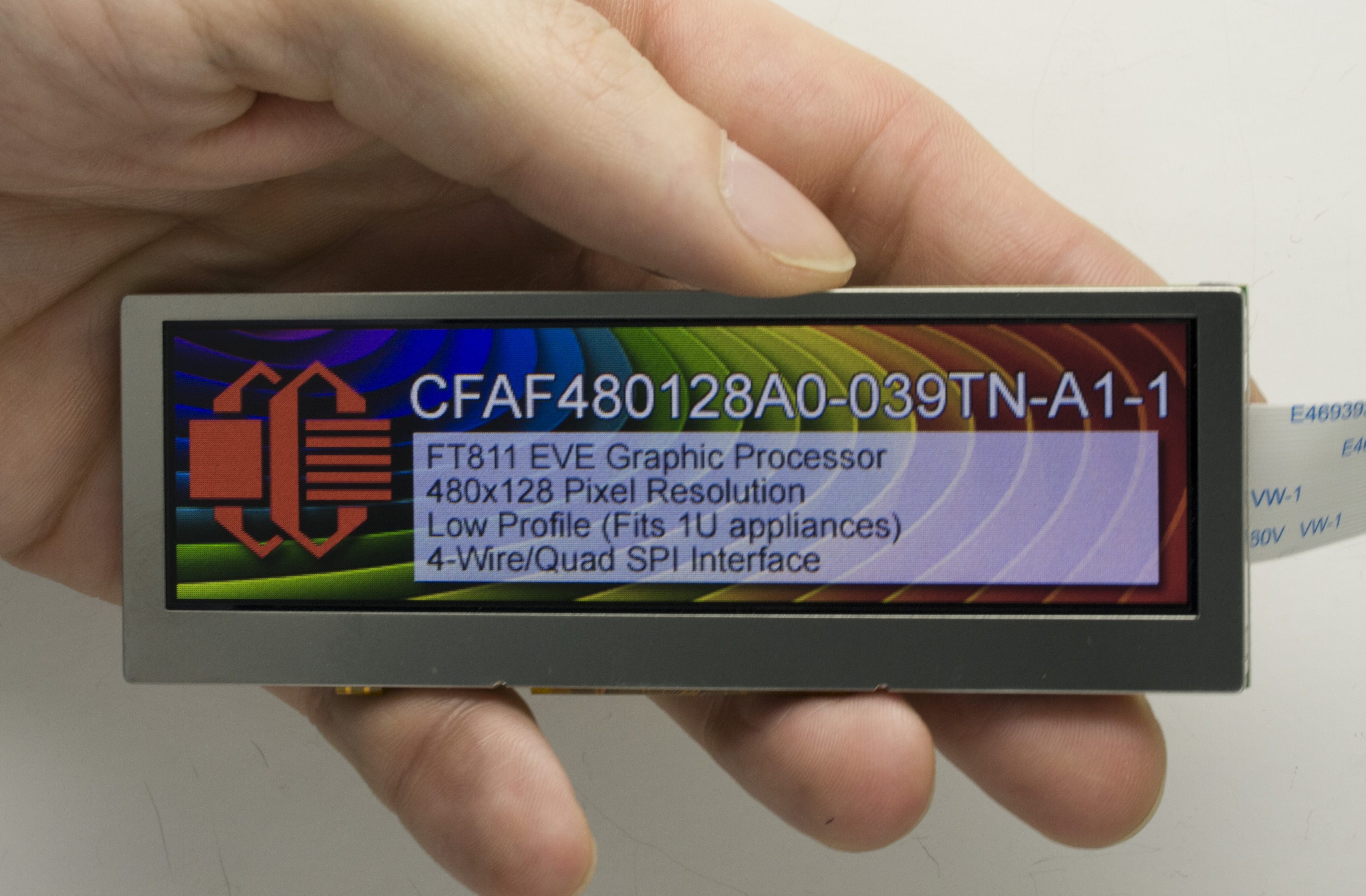

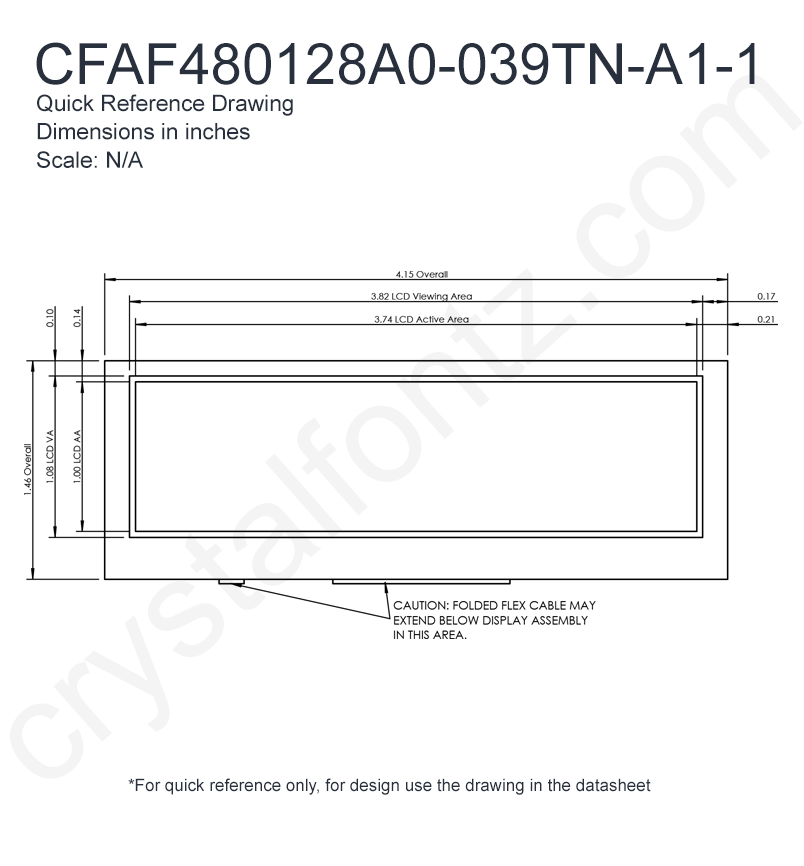

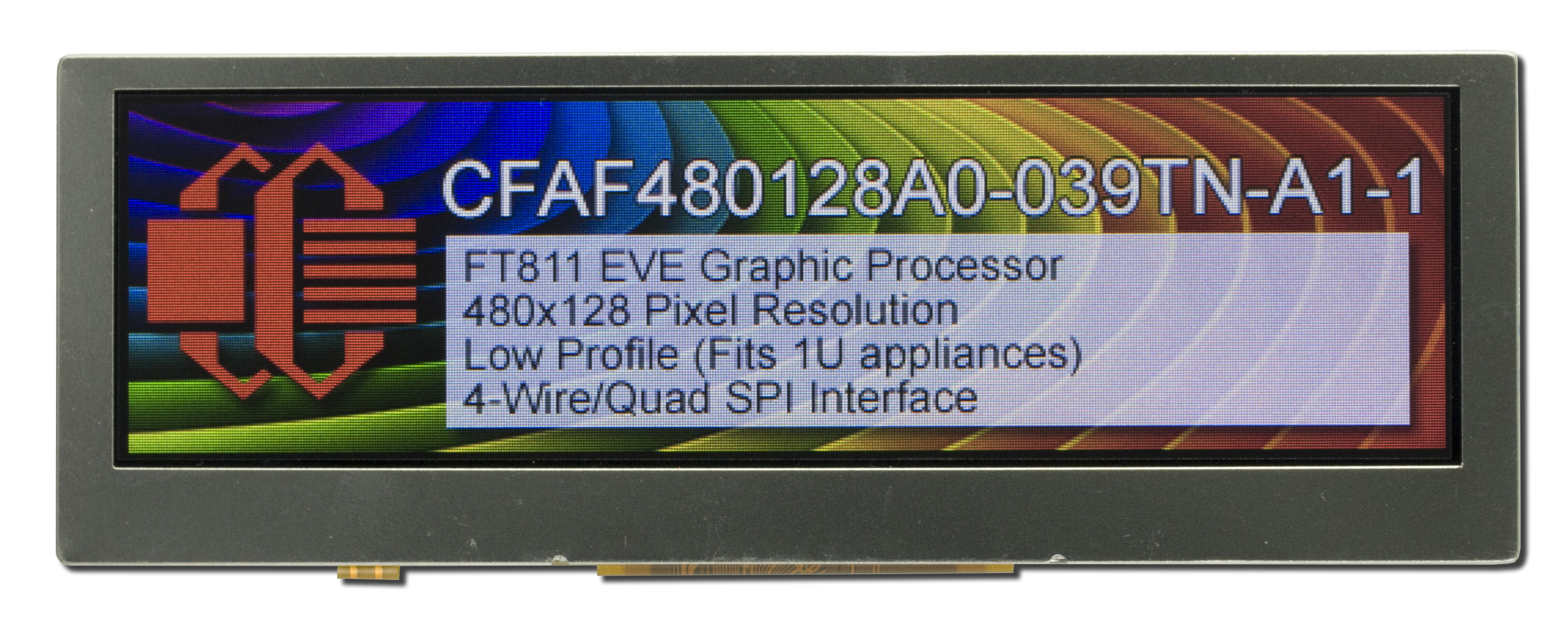

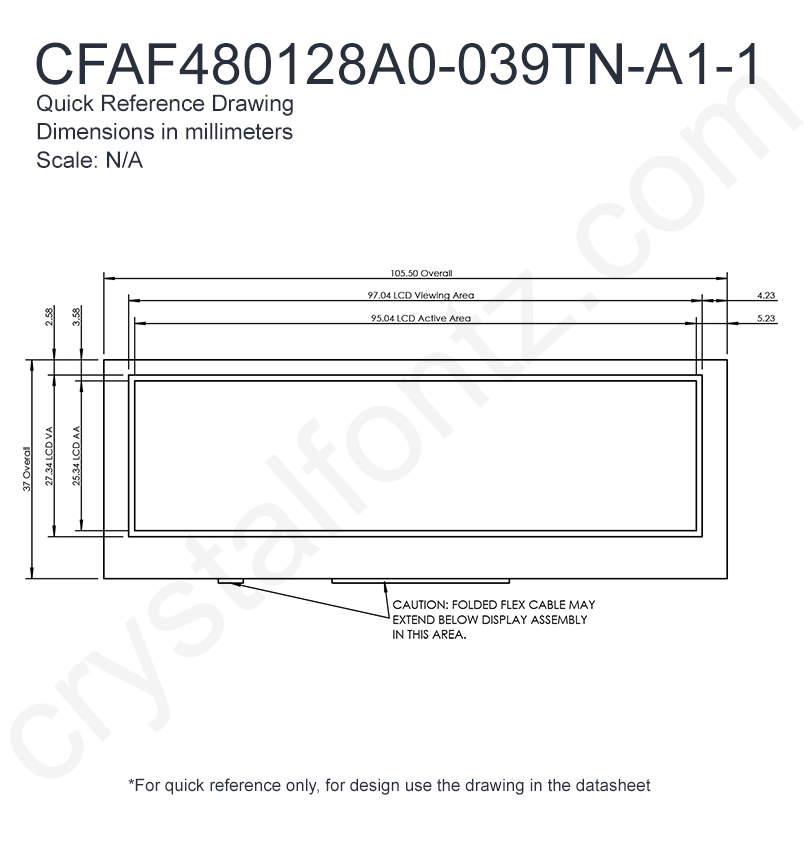

Column Dots x Row Dots 480 x 128
Module Overall width height depth
millimeters 105.5 37 10.73
inches 4.154 1.457 0.422
Diagonal Dimension 3.87"
Viewing Area width height
millimeters 97.04 32.34
inches 3.820 1.273
Active Area width height
millimeters 95.04 25.34
inches 3.742 0.998
Dot Pitch width height
millimeters 0.066 0.198
inches 0.0026 0.0078
Optional Connectors CS050Y30TB0
Weight 42g
Pin Count 30

Optical Characteristics

Glass Type TFT
Polarizer Transmissive
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Black

Electrical Specifications

Supply Voltage for Logic Typical 3.3V

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Interface SPI
For reference only. For design purposes, please use the specifications in the datasheet.
