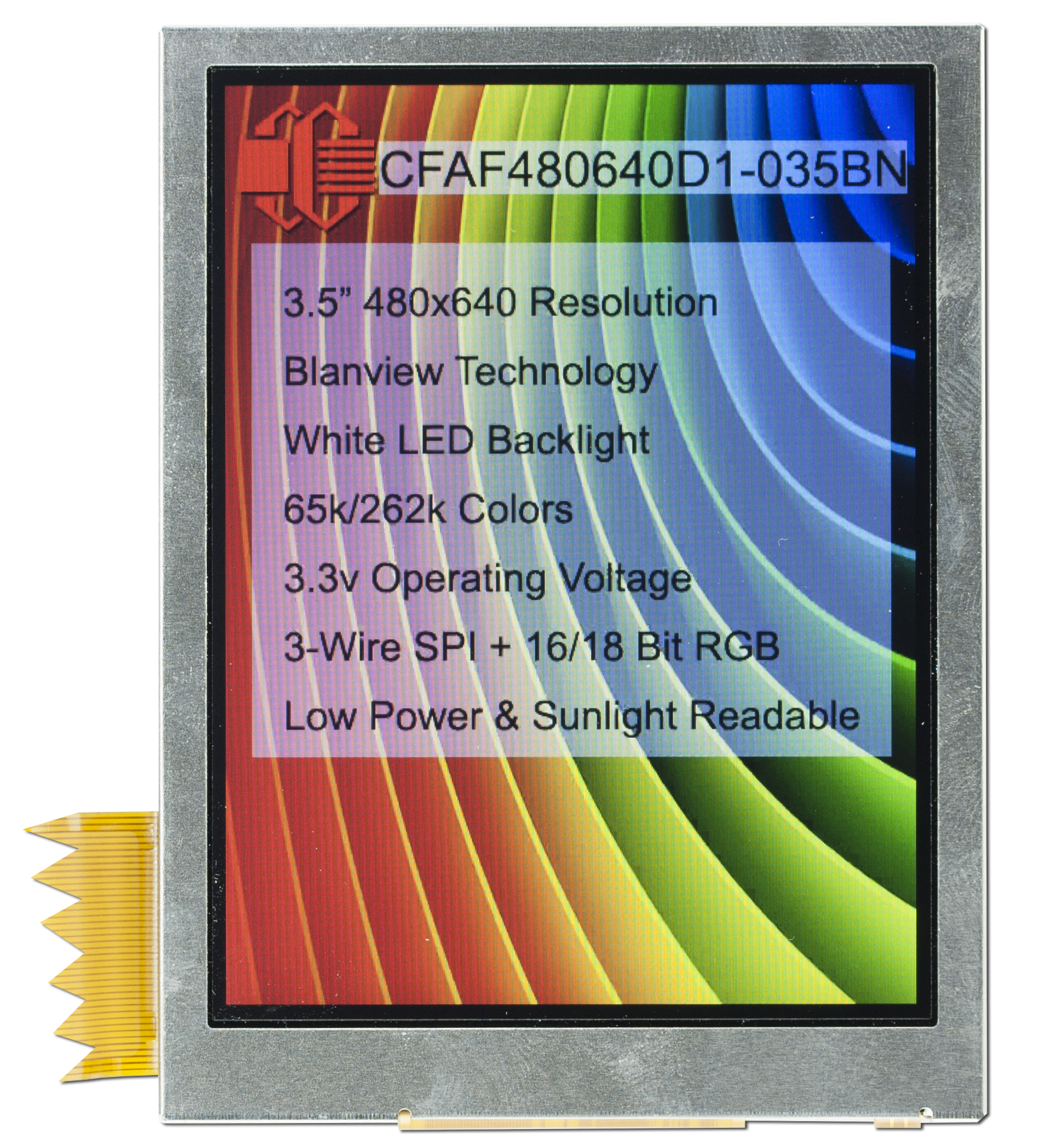

480x640 3.5" Blanview Sunlight Readable Display

Part Number: CFAF480640D1-035BN

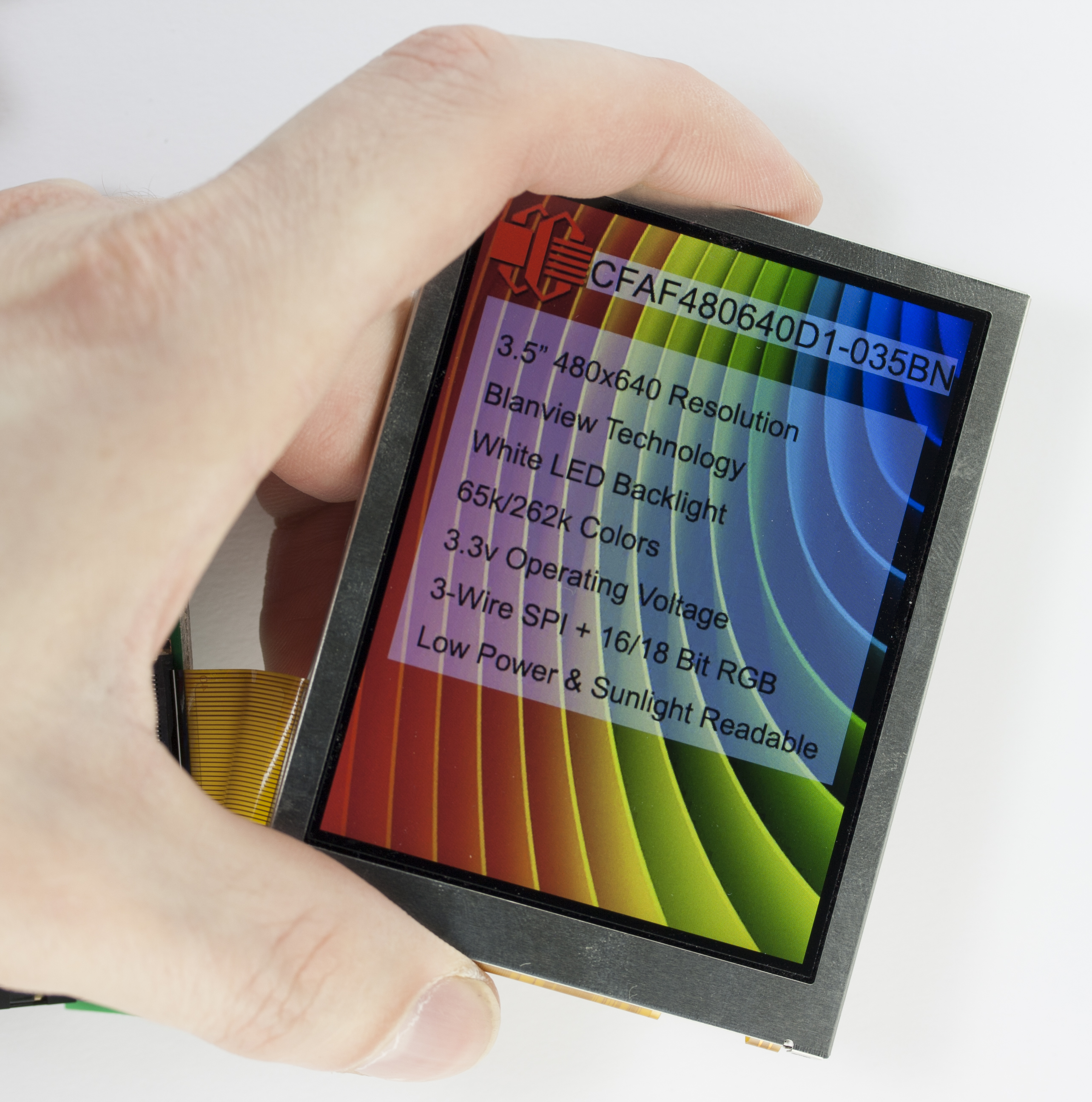

This 3.5" display uses Blanview technology to combine the benefits of transmissive and transflective displays for sunlight readability without using a high-powered backlight. That makes this display a great choice for power-constrained applications.

The high pixel density means a ton of detail can be packed onto this display. The wide viewing angles in all directions mean you don't have to worry about the angle from which the user will be viewing the display.

This display really offers the best of all worlds - visible in most lighting situations, at just about any angle, and able to display a huge amount of detail - all with low power consumption.

For a similar TFT display with a touchscreen and a different pinout, consider this 3.5" Blanview capacitive touch-screen display.

Key Features

• Sunlight Readable
• Low Power
• High Contrast
• 480x640 Resolution
• 3-wire SPI initialization + RGB interface
  • 16-bit RGB option (2 bytes)
  • 18-bit RGB option (3 bytes)
• Viewing direction is any direction just like IPS
• 65k & 262k color options

Part Number
CFA- Crystalfontz America
F- TFT
480640- 480x640 pixel resolution
D1- Family and revision
035- 3.5" diagonal
B- Blanview
N- No touch screen

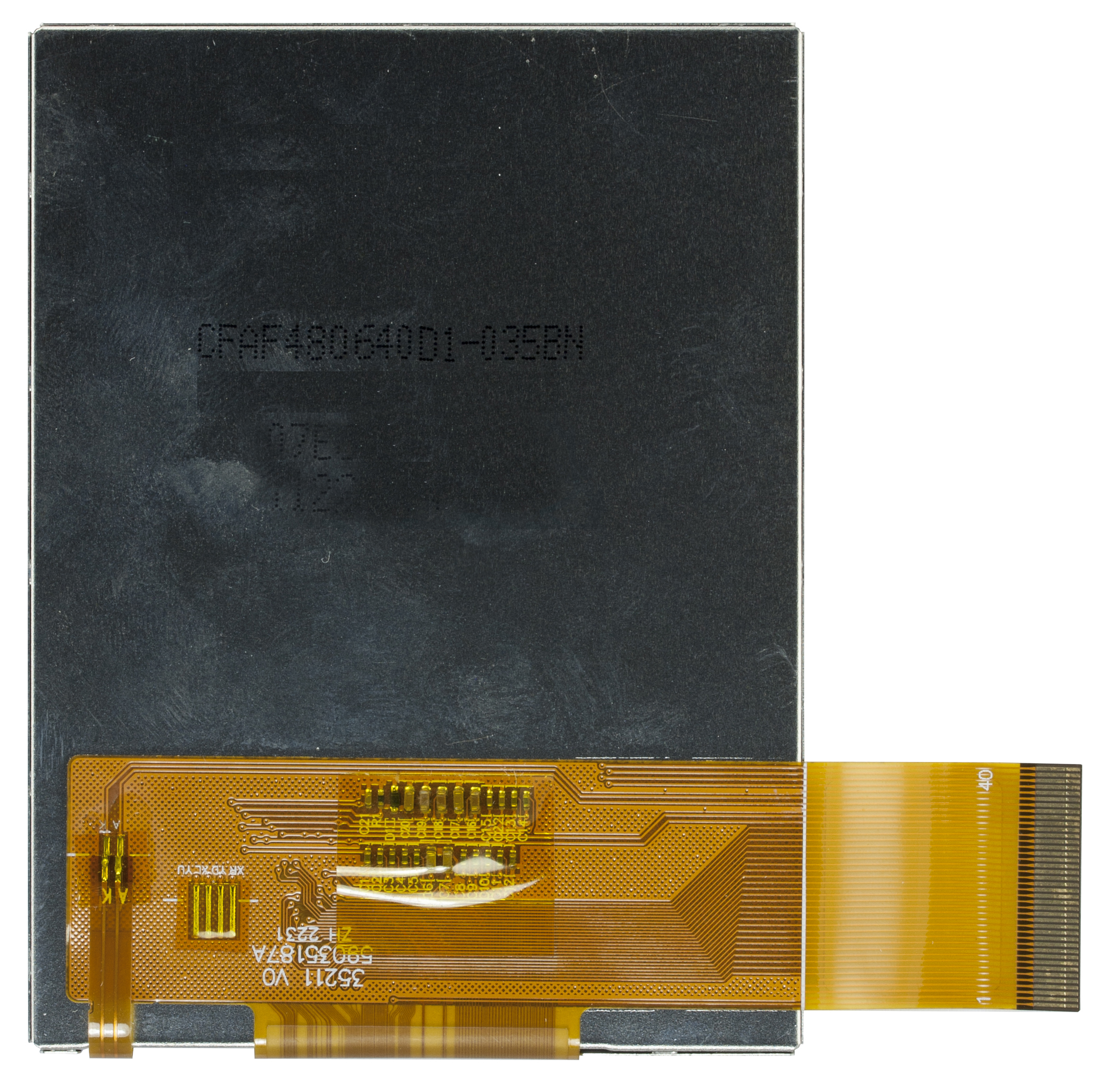

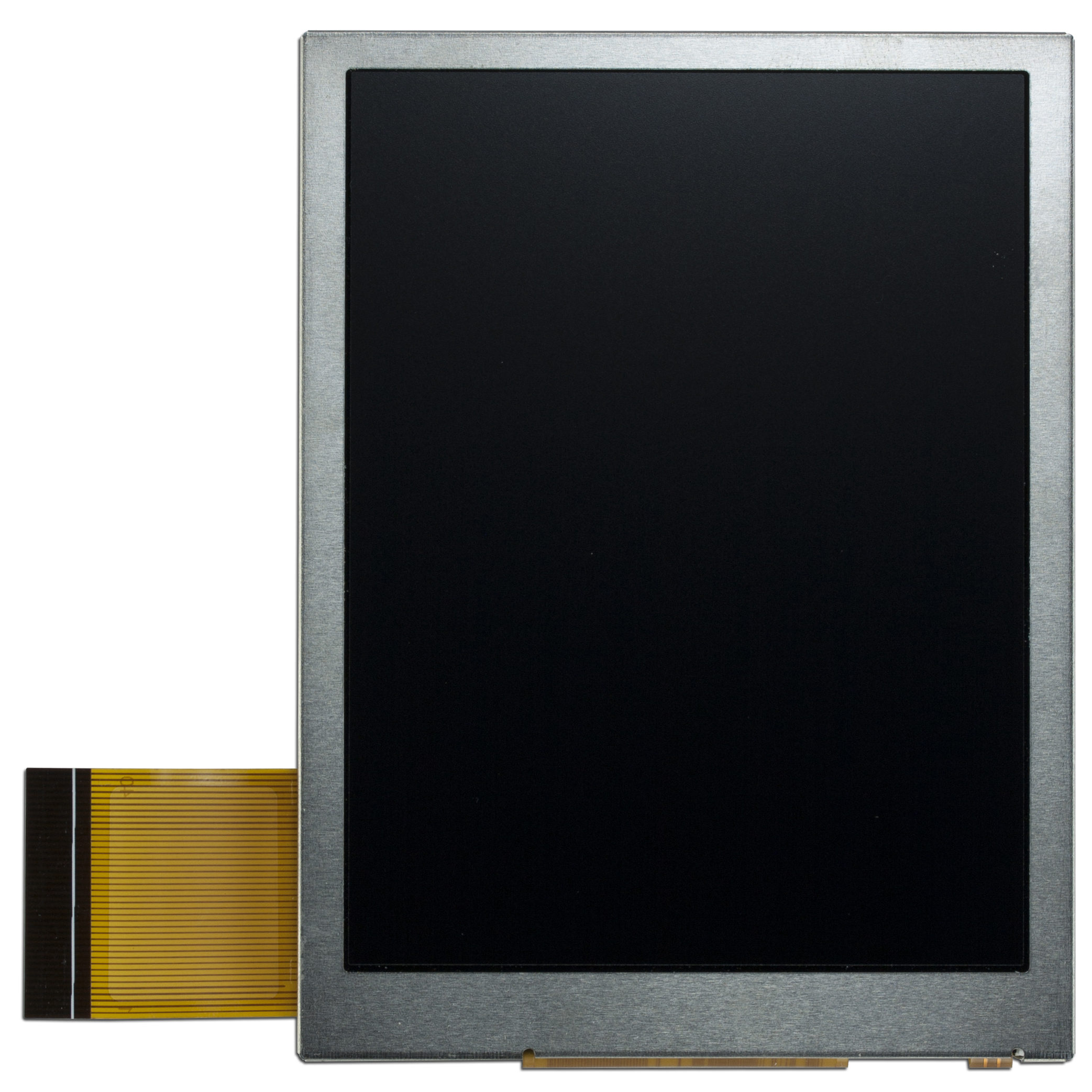

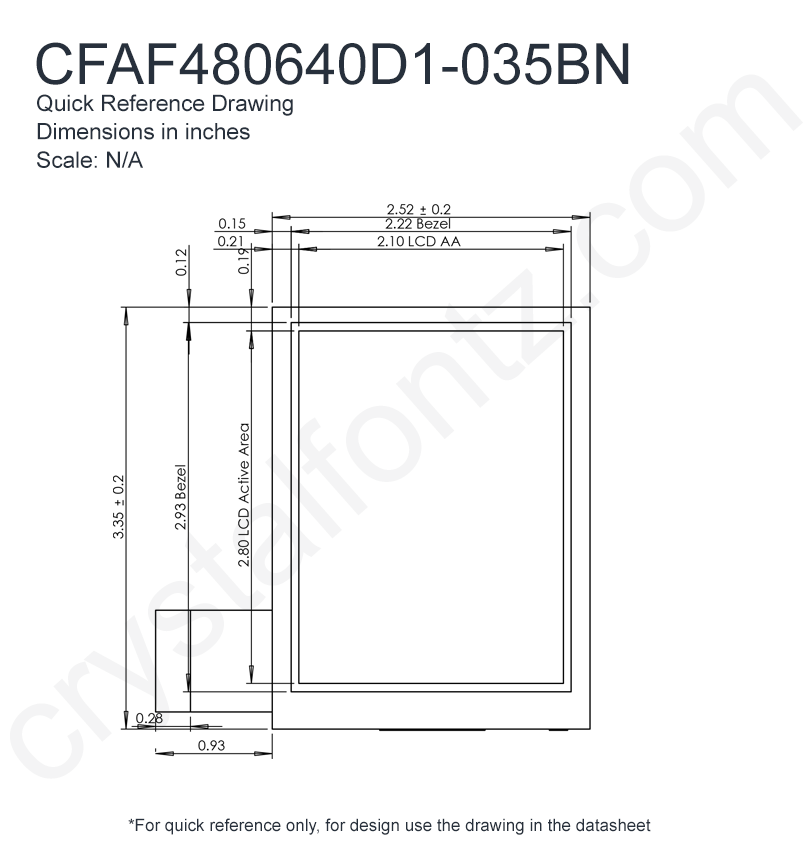

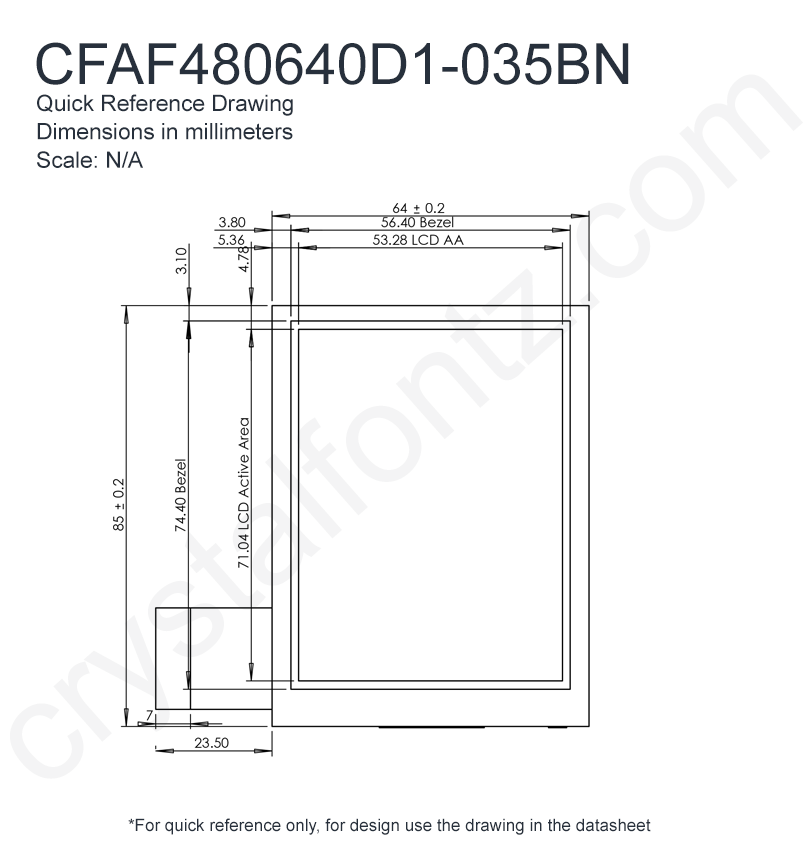

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  480 x 640

  Module Overall	width	height	depth
  millimeters	64	85	3.1
  inches	2.520	3.346	0.122

  Diagonal Dimension

  3.5"

  Active Area	Width	Height
  millimeters	71.04	53.28
  inches	2.797	2.098

  Dot Pitch	Width	Height
  millimeters	0.111	0.111
  inches	0.0044	0.0044

  Weight	33.5g
  Pin Count	40

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT
  Polarizer	Transflective
  View Angle	160°
  Sunlight Readable	Yes

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Dark

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	2.5V
  Supply Voltage for Logic Maximum	3.6V

  Supply Voltage for Logic Typical	3.3V
  Supply Current Minimum	15mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	16.8V
  Forward Voltage Maximum	20.4V

  Forward Voltage Typical	18.6V
  Forward Current Minimum	15mA

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Ilitek ILI9806E a-Si TFT LCD Single-Chip Driver 480(RGB)x864 Resolution, 16.7M-color Without internal GRAM
  Interface	16-bit Parallel, 18-bit Parallel, DOT-CLK interface / Generic RGB, SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAF480640D1-035BN Datasheet


• download Files and Downloads
  folder_zip Software Source - ILI9806E RGB Initialization Code


  folder_zip Hardware Design - 3D Model

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
