In order to keep this display in production over the long term, we are revising it to the CFAF800480E1-050SN-A2. Please contact sales@crystalfontz.com with any questions.

[EOL] 800x480 5" EVE TFT Display

Part Number: CFAF800480E1-050SN-A1-1

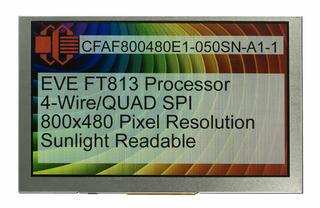

This TFT display module includes a vibrant 5" TFT display mounted on an accelerated graphics embedded video engine (EVE) board. The EVE chip simplifies the creation of a beautiful user interface by leveraging FTDI/Bridgetek's development tools.

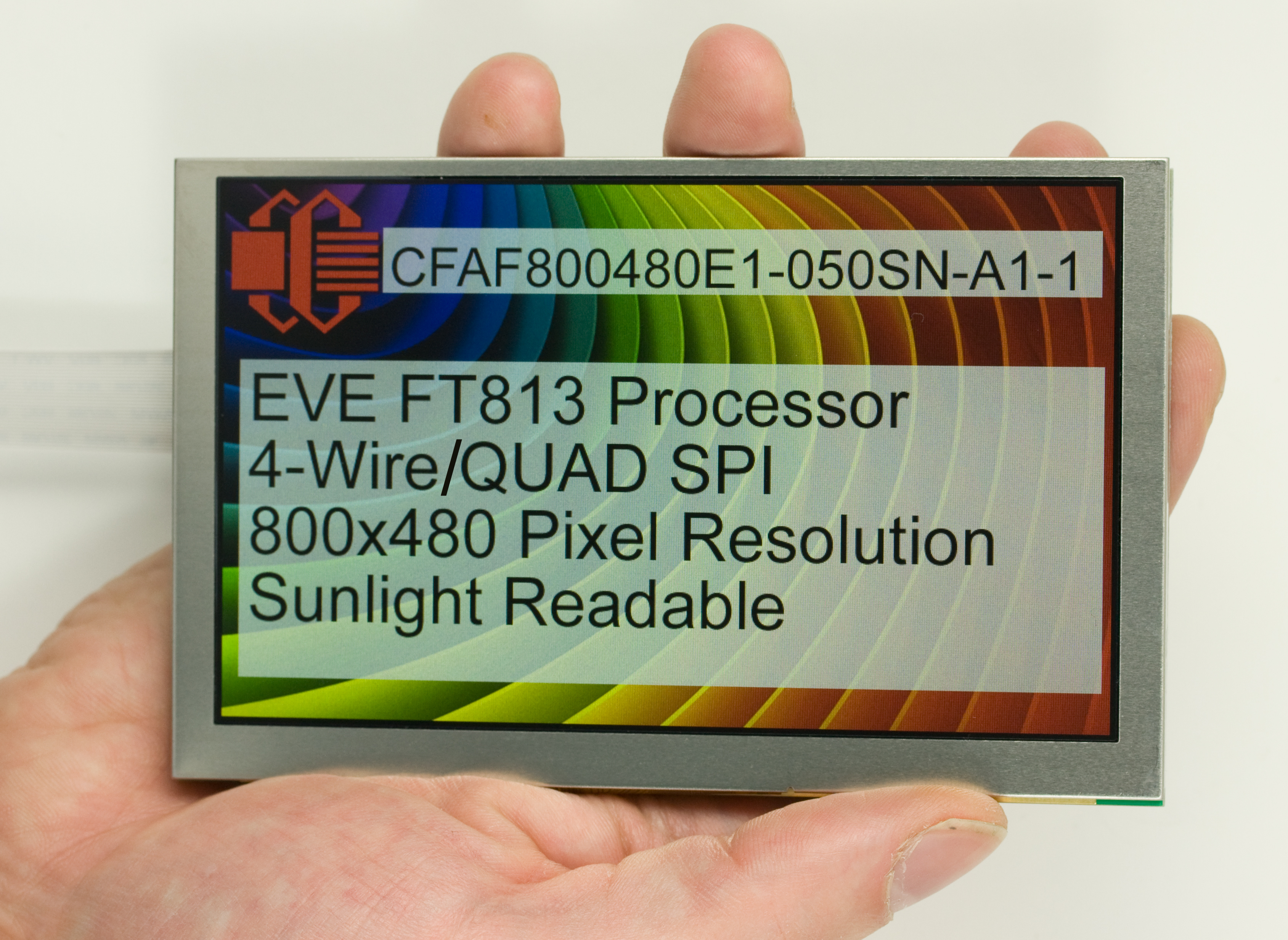

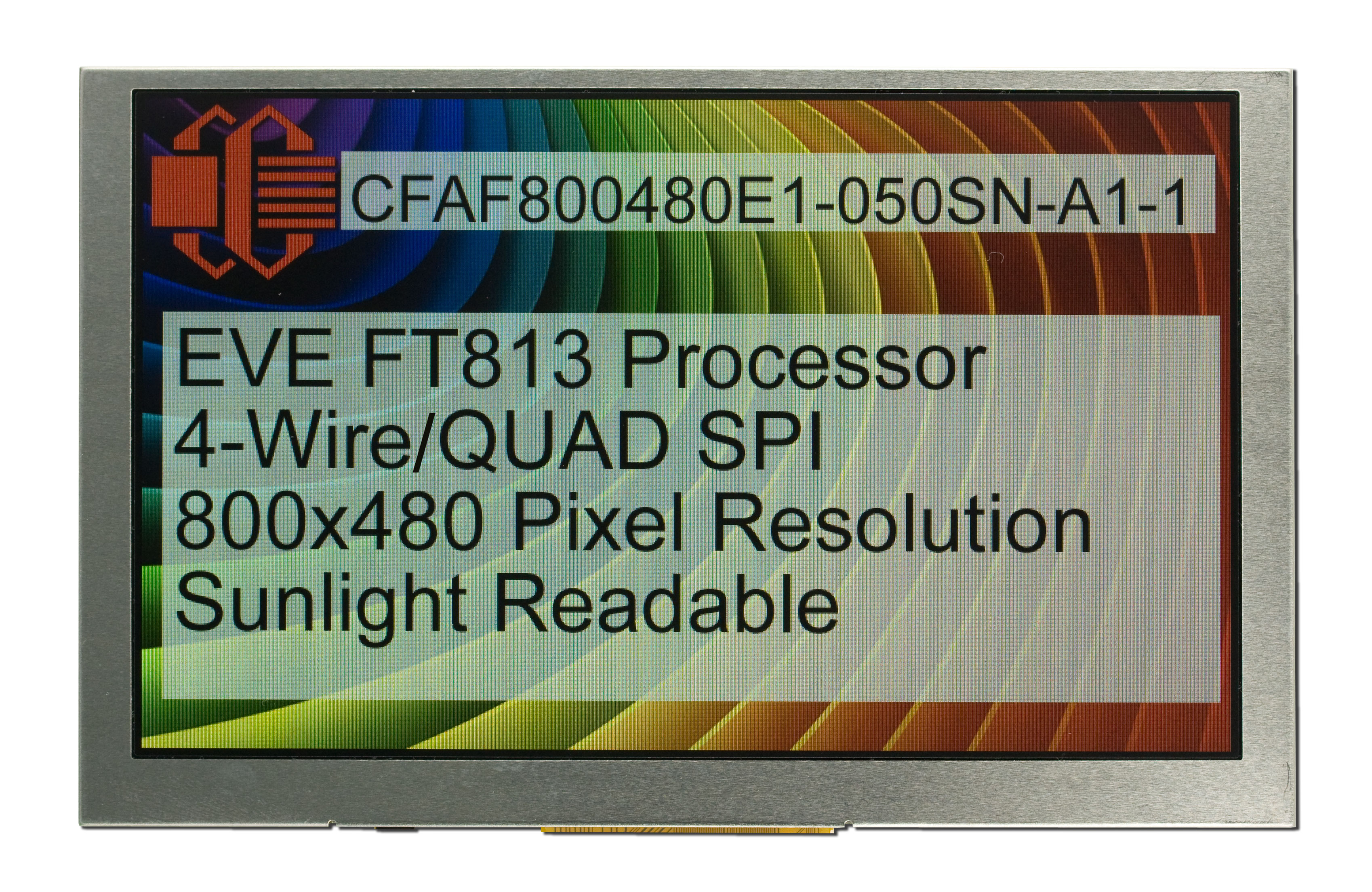

The included 5" TFT display is a beauty. It is sunlight readable (1,000 nits), IPS, and 16M colors. That means whatever you want to display will be visible in most lighting conditions and from wide angles.

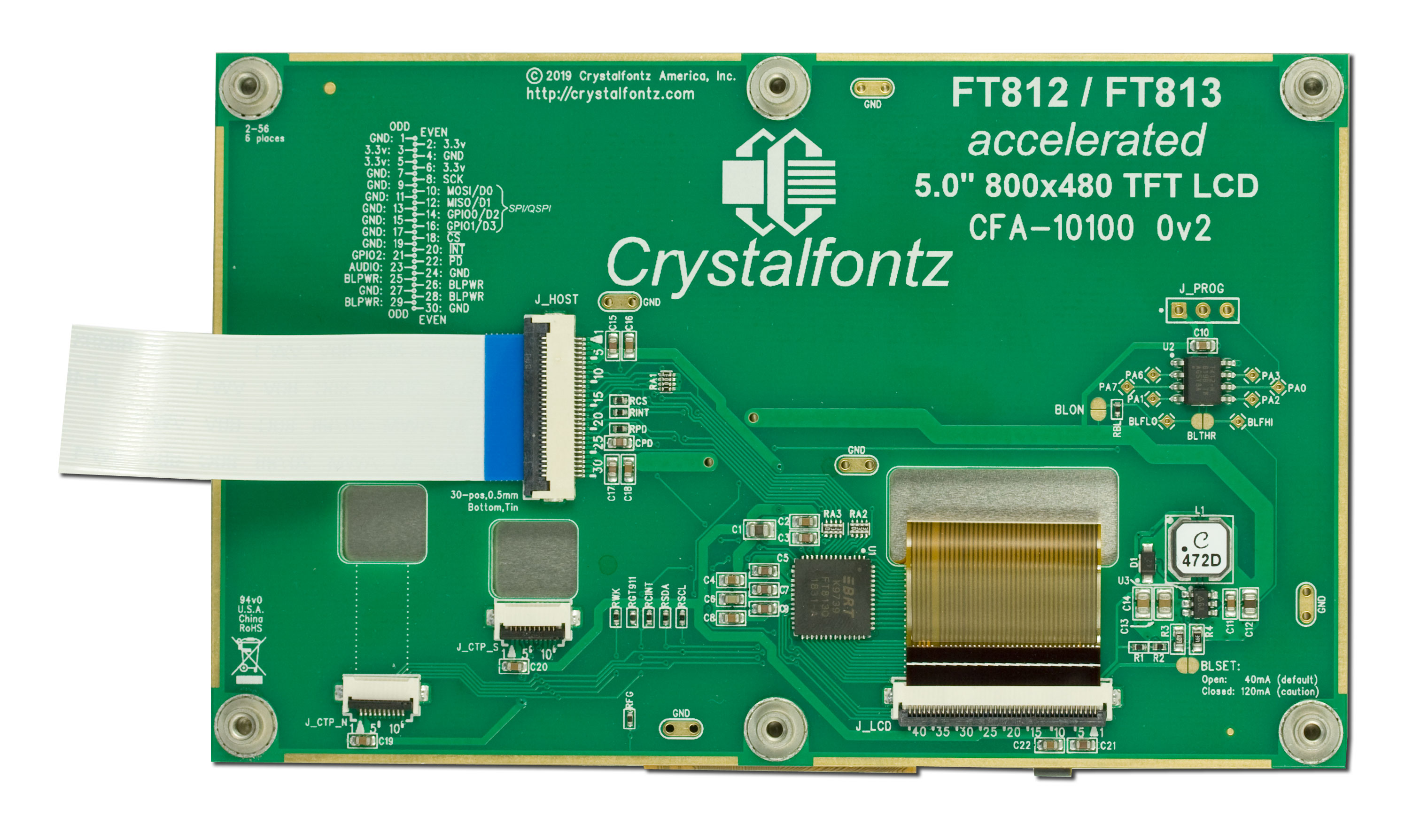

The board on this TFT module does some heavy lifting. A 30-pin ZIF / FFC connector brings in all the necessary signals for the display. The board boosts up the input voltage (3.3 to 5 volts) to power the backlight, and the included EVE chip can control the backlight, display, and audio. Plus, with six threaded mounts (size 2-56), securing this module in your project is easy.

For a module that includes touchscreen check out the 5" EVE module with capacitive touchscreen.

This module is also available as part of a full 5" EVE development kit. If you'd rather peruse the kit pieces separately: 6-inch 30-pin FFC cables, 12-inch 30-pin FFC cables, Seeeduino, and an EVE breakout board.

Key Features:
  • 5"
  • Sunlight readable 1000 nits
  • IPS
  • 16M colors
  • Integrated EVE chip
  • SPI/I2C
  • Threaded mounting posts for easy integration
  • 30-pin ZIF Connection

Product Variations


  • square_foot Physical Characteristics

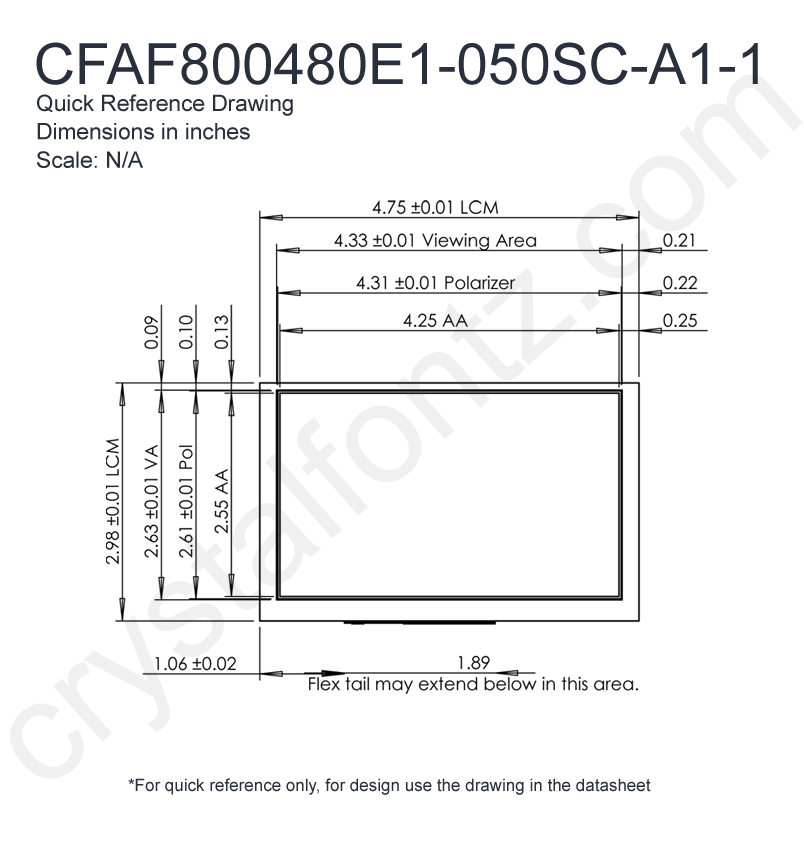

    Physical Characteristics

    Column Dots x Row Dots 800 x 480
    Module Overall width height depth
    millimeters 120.7 75.8 8.75
    inches 4.75 2.98 0.34
    Diagonal Dimension 4.96"
    Viewing Area Width Height
    millimeters 110.3 66.8
    inches 4.34 2.63
    Active Area Width Height
    millimeters 108 64.8
    inches 4.25 2.55
    Dot Pitch Width Height
    millimeters 0.135 0.135
    inches 0.0053 0.0053
    Optional Connectors CS050Y30TB0
    Weight 90.1g
    Pin Count 30
  • visibility Optical Characteristics

    Optical Characteristics

    Polarizer Transmissive
    View Direction 12 o'clock
    View Angle 160°
    Sunlight Readable Yes
    Backlight Color White
    Backlight Type LED
    Foreground Color RGB
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 3V
    Supply Voltage for Logic Maximum 3.6V
    Supply Voltage for Logic Typical 3.3V
    Supply Current Typical 20mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Typical 12:00V
    Forward Current Maximum 140mA
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Interface SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads
Other components worth considering
4649 30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Add 5 ZIF Connectors $0.61 ea.
4606 6-inch 30-pin FFC Cable
Add a ribbon cable $2.30 ea.
4665 Assorted Imperial Screws
Add mounting screws $3.08 ea.

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF800480E1-050SN-A1-1 or RSS RSS feed for changes to CFAF800480E1-050SN-A1-1
  • text_snippet
    Part Change Notice #11076: FTDI Chip Upgrade to FT817
    Products Affected: CFAF800480E1-050SC-A1-1, CFAF800480E1-050SC-A1-2, CFAF800480E1-050SN-A1-1, CFAF800480E1-050SN-A1-2
    Date Issued: February 10, 2021
    Summary: FTDI Chip Upgrade to FT817
    Description: We are changing this product by upgrading the FTDI chip to an FT817 and adding external flash to support storing image data. Changing to the new controller will require some slight software modifications for the touch versions.

    In addition, we will be adding a resistive touch option as well as a cap touch option with glass that exceeds the frame of the display for an extended mounting surface.

    Current PCB Version: h0v2
    Current Firmware Version: f0v0
    Reason: Upgrade the EVE chip and add compatibility with the resistive touch display.
    Availability: First Quarter of 2021
    Price Change: Price is subject to change.
