This 800x480 5" EVE TFT Display is End-Of-Life and has been replaced by the CFA800480E3-050SN.

800x480 5" EVE TFT Display [EOL]

Part Number: CFAF800480E1-050SN-A2

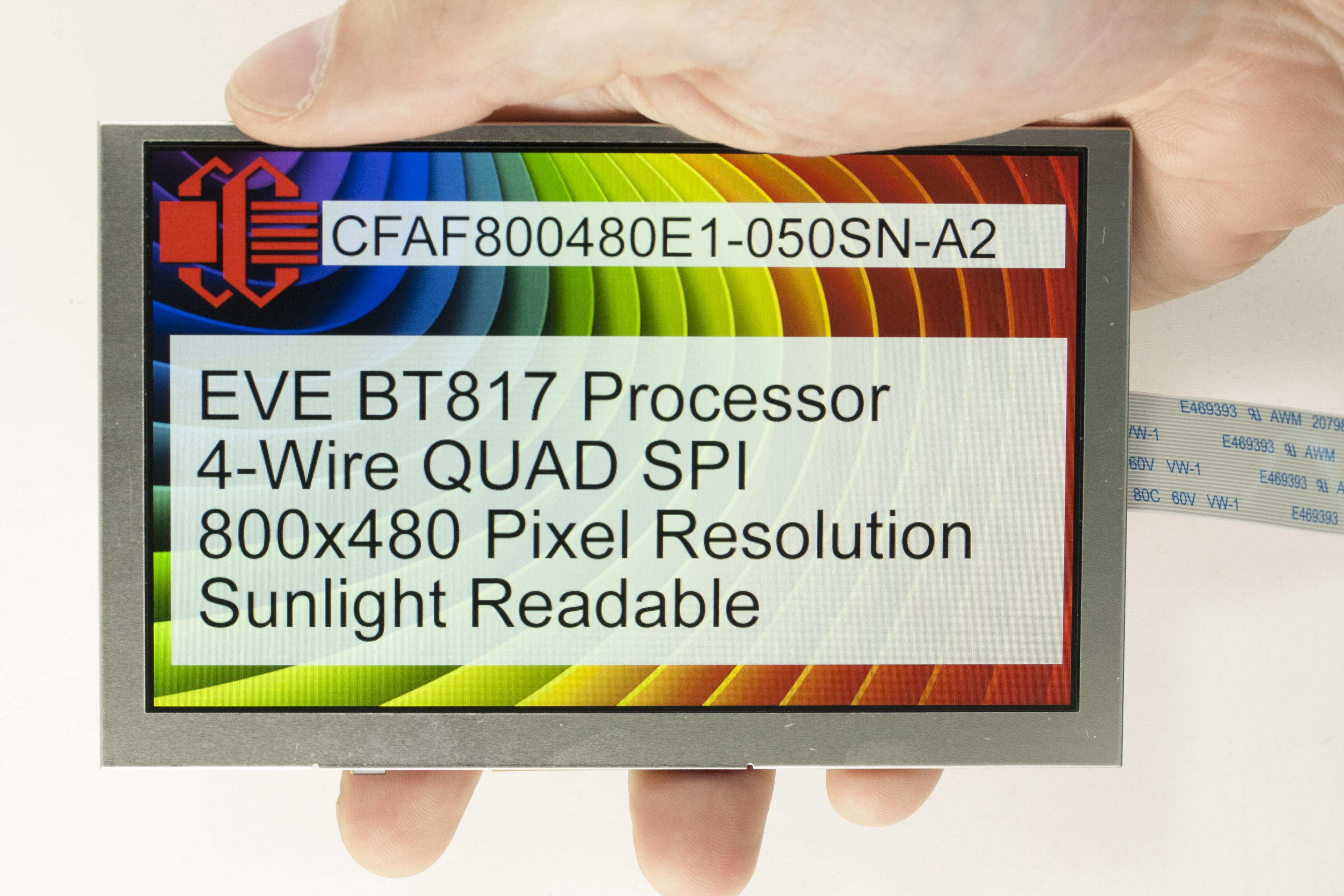

This TFT display module includes a vibrant 5" TFT display mounted on an accelerated graphics embedded video engine (EVE) board. The EVE chip simplifies the creation of a beautiful user interface by leveraging FTDI/Bridgetek's development tools.

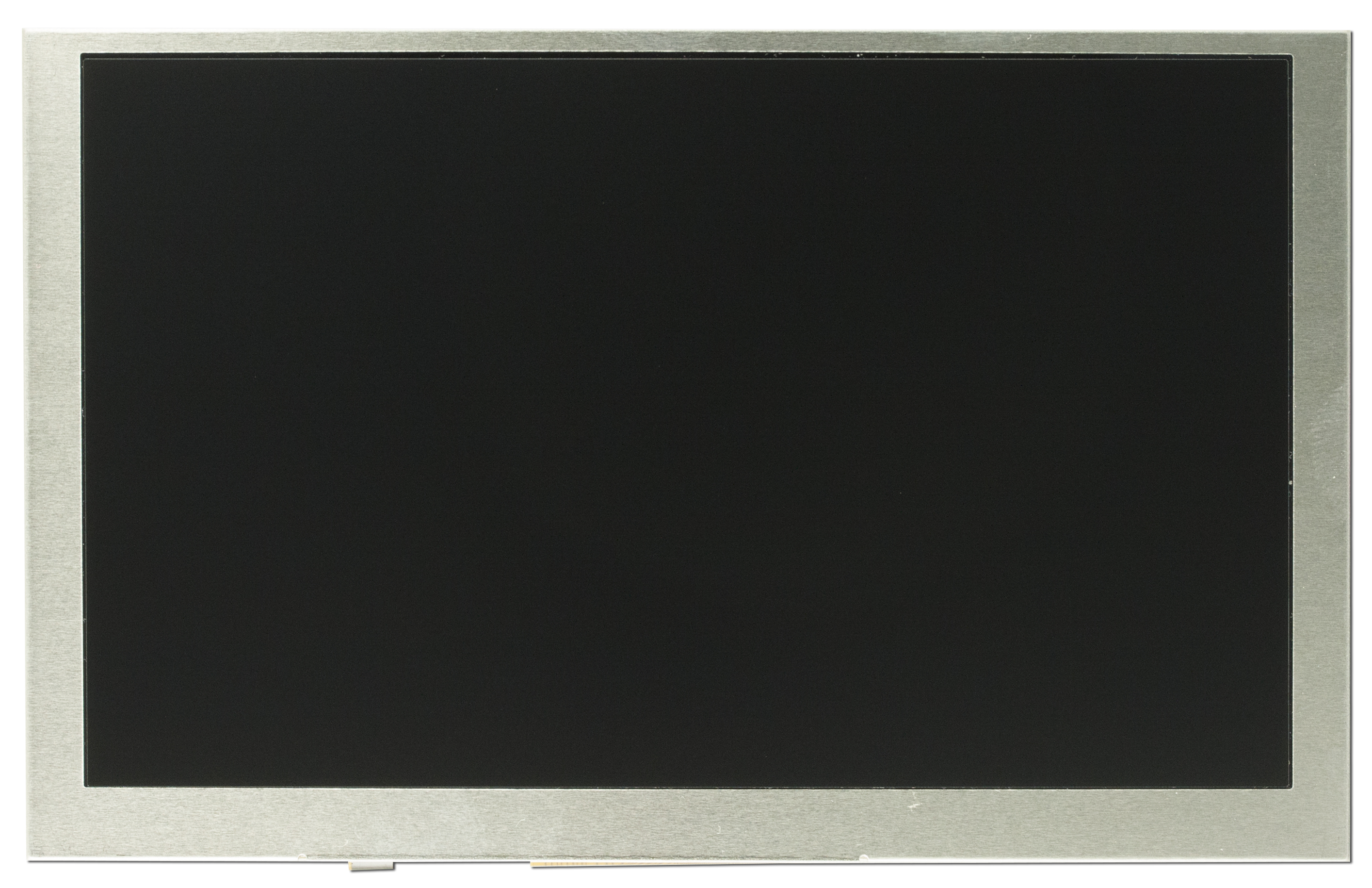

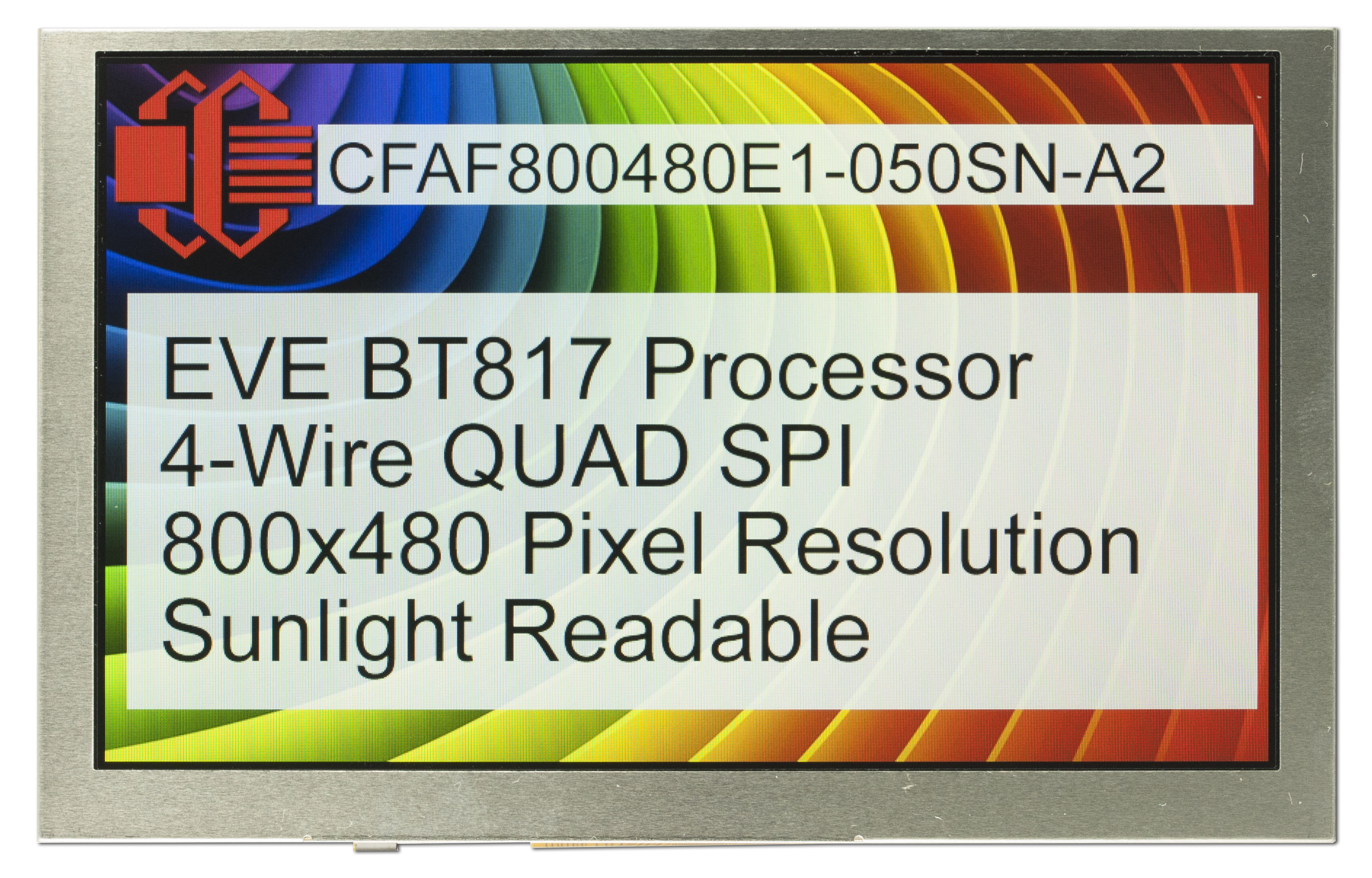

The included 5" TFT display is a beauty. It is sunlight readable (1,000 nits), IPS, and 16M colors. That means whatever you want to display will be visible in most lighting conditions and from wide angles.

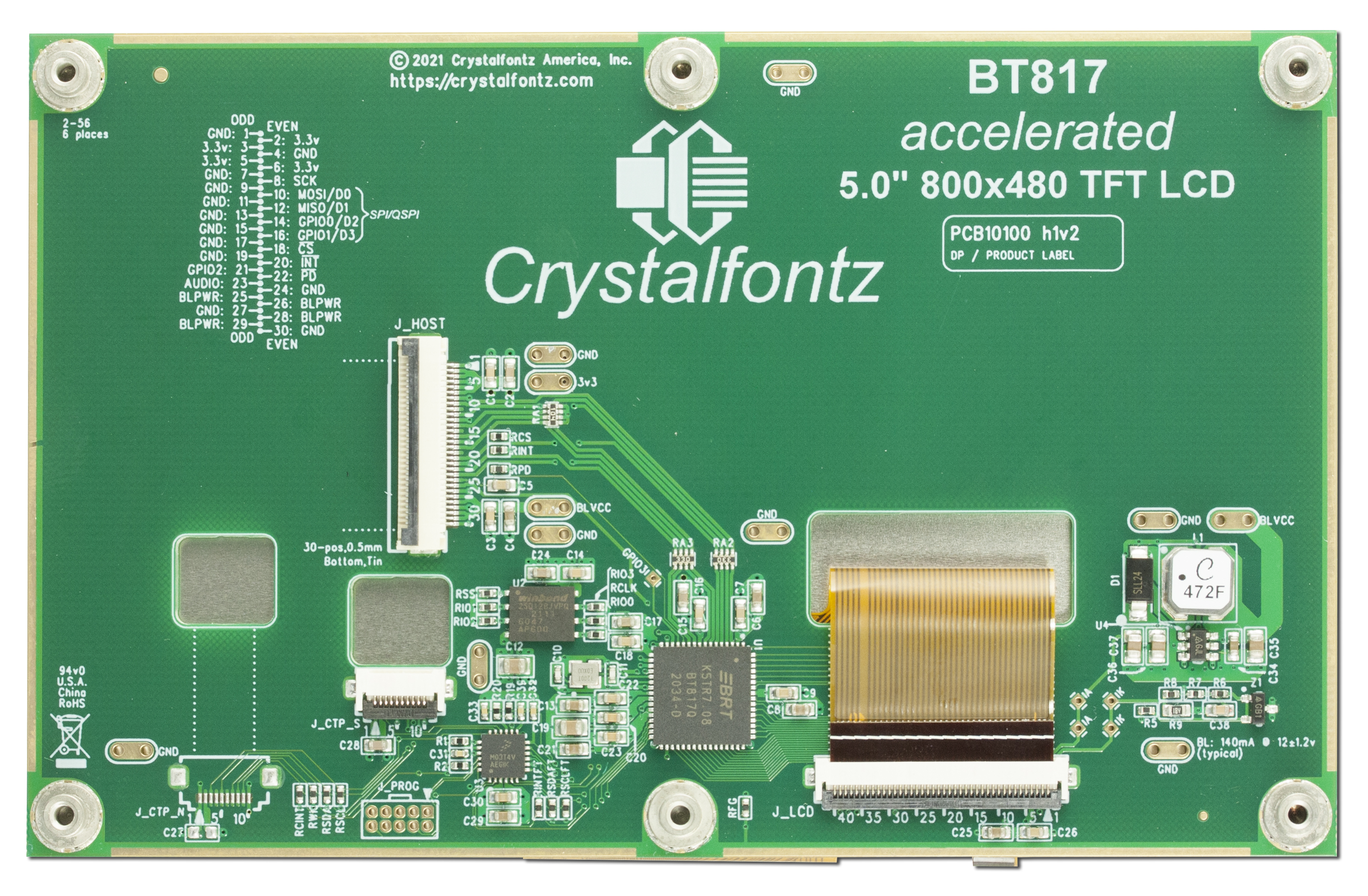

The board on this TFT module does some heavy lifting. A 30-pin ZIF / FFC connector brings in all the necessary signals for the display. The board boosts up the input voltage (3.3 to 5 volts) to power the backlight, and the included EVE chip can control the backlight, display, and audio. Plus, with six threaded mounts (size 2-56), securing this module in your project is easy.

This is a replacement for CFAF800480E1-050SN-A1-1. Please see PCN 11076 for more information.

Features to note:
  • 5"
  • Sunlight readable (1000 nits)
  • IPS
  • TFT
  • 16M colors
  • Bridgetek's BT817 EVE integrated
  • 4-wire SPI / Quad SPI
  • Threaded mounting posts for easy integration
  • Can be powered off of a single voltage source
  • This module is available in a complete 5" EVE development kit
Currently Shipping: HW Version 1v2, Firmware Version: 1v0

  • square_foot Physical Characteristics

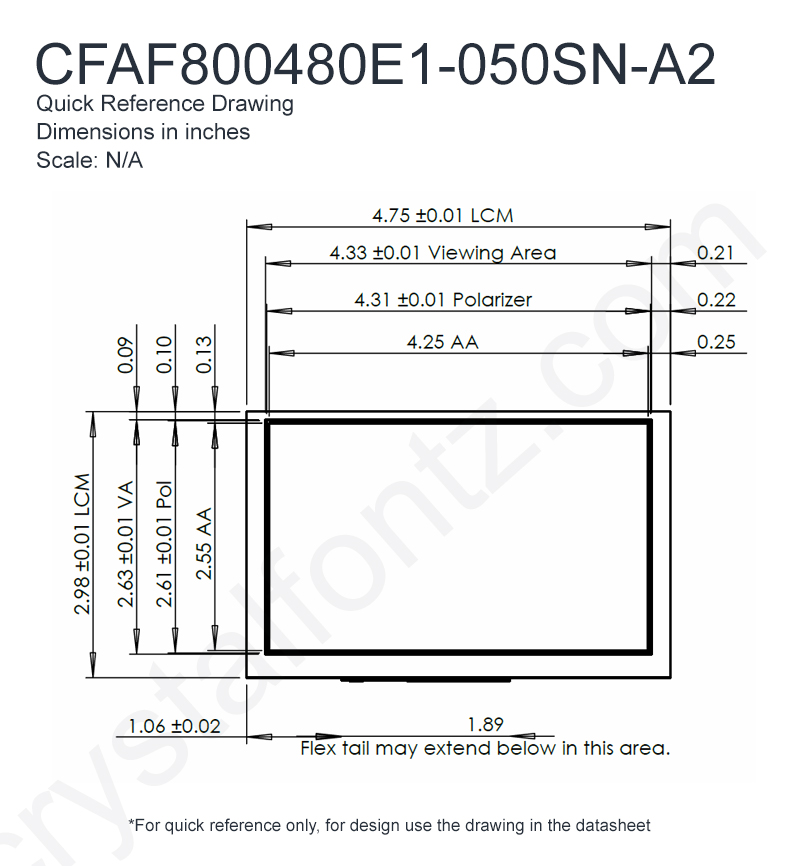

    Physical Characteristics

    Column Dots x Row Dots 800 x 480
    Module Overall width height depth
    millimeters 120.7 75.8 8.75
    inches 4.752 2.984 0.344
    Diagonal Dimension 5"
    Viewing Area Width Height
    millimeters 110 66.8
    inches 4.331 2.630
    Active Area Width Height
    millimeters 108 64.8
    inches 4.252 2.551
    Dot Pitch Width Height
    millimeters 0.135 0.135
    inches 0.0053 0.0053
    Weight 90g
    Pin Count 30
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type TFT
    Polarizer Transmissive
    View Direction 12 o'clock
    View Angle 160°
    Sunlight Readable Yes
    Backlight Color White
    Backlight Type LED
    Foreground Color RGB
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 3V
    Supply Voltage for Logic Maximum 3.6V
    Supply Voltage for Logic Typical 3.3V
    Supply Current Typical 20mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 2.7V
    Forward Voltage Maximum 5.5V
    Forward Voltage Typical 5V
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Interface SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF800480E1-050SN-A2 or RSS RSS feed for changes to CFAF800480E1-050SN-A2
  • text_snippet
    End-Of-Life #11178: PCB Change
    Products Affected: CFAF800480E1-050SN-A2-2, CFAF800480E1-050SN-A2, CFAF800480E1-050SR-A2-2, CFAF800480E1-050SR-A2, CFAF800480E1-050SC-A2, CFAF800480E1-050SC-A2-2, CFAF800480E2-050SC-A2, CFAF800480E2-050SC-A2-2
    Date Issued: March 2, 2023
    Summary: PCB Change
    Description: The PCB is changing due to a critical component going EOL. The new PCB design will not affect the functionality of the product and it will continue to use the same BT817Q graphical processor. Additional hardware features are added to the new design including land patterns for an ESP32 or XIAO to remove the need for an external processor to drive the EVE4 chip.

    The part numbers will be updated as follows to reflect this change.
    CFAF800480E1-050SC-A2 -> CFA800480E3-050SC
    CFAF800480E1-050SC-A2-2 -> CFA800480E3-050SC-KIT
    CFAF800480E1-050SN-A2 -> CFA800480E3-050SN
    CFAF800480E1-050SN-A2-2 -> CFA800480E3-050SN-KIT
    CFAF800480E1-050SR-A2 -> CFA800480E3-050SR
    CFAF800480E1-050SR-A2-2 -> CFA800480E3-050SR-KIT
    CFAF800480E2-050SC-A2 -> CFA800480E3-050SW
    CFAF800480E2-050SC-A2-2 -> CFA800480E3-050SW-KIT
    Reason: The helper processor on this display has gone EOL and needed to be replaced.
