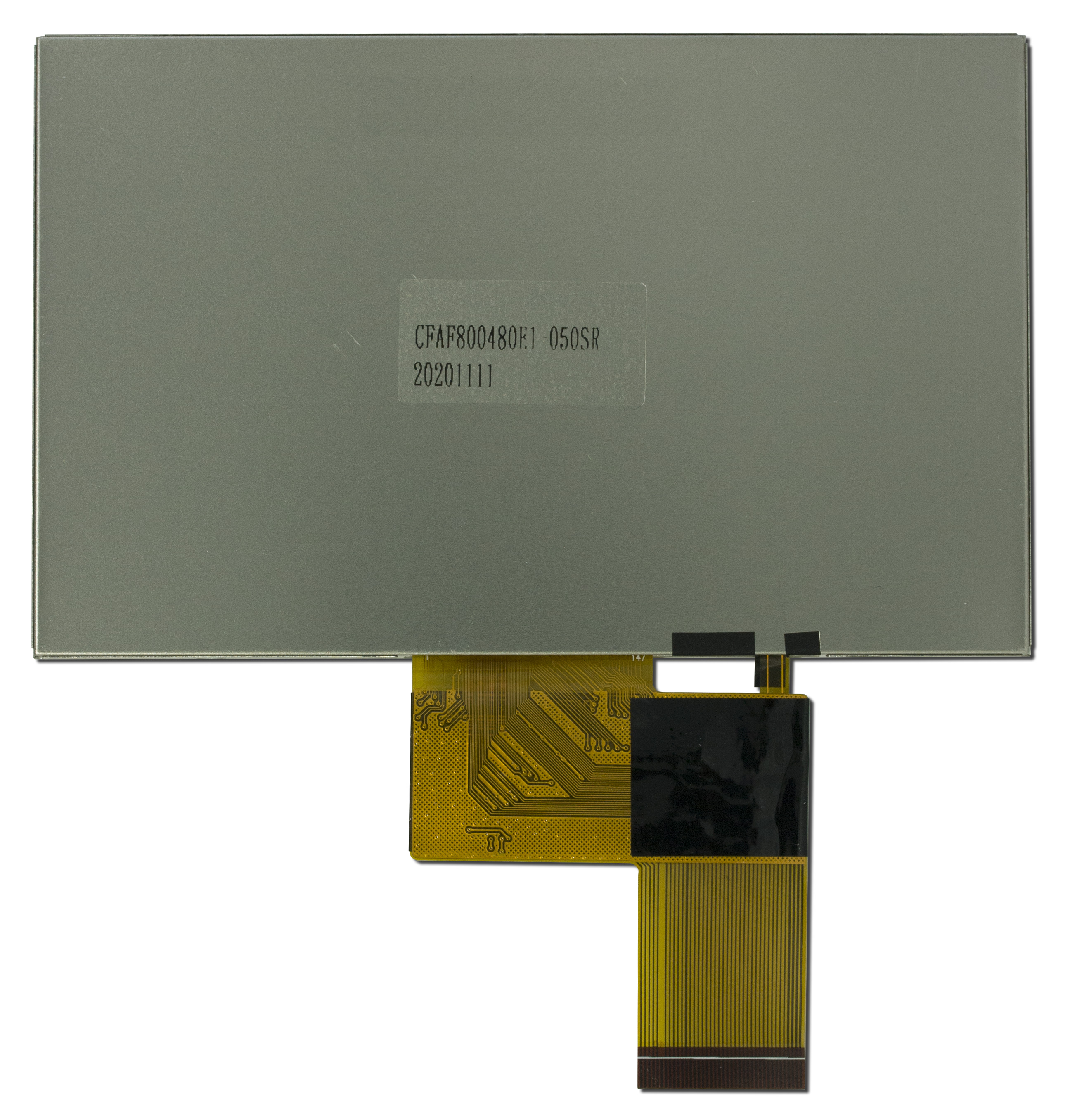

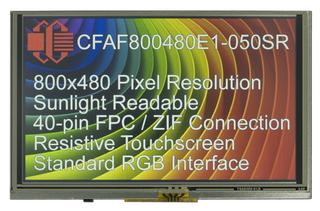

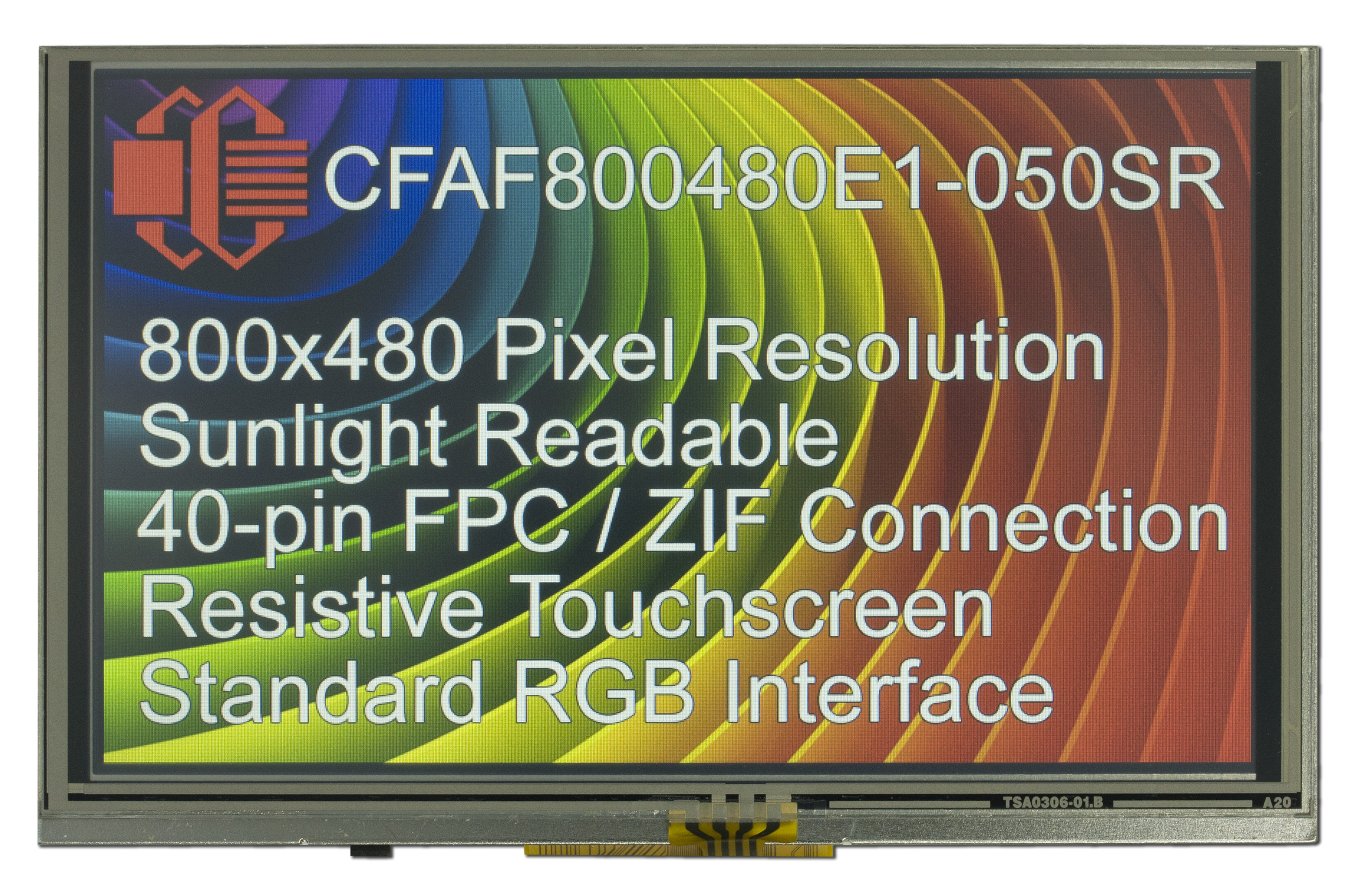

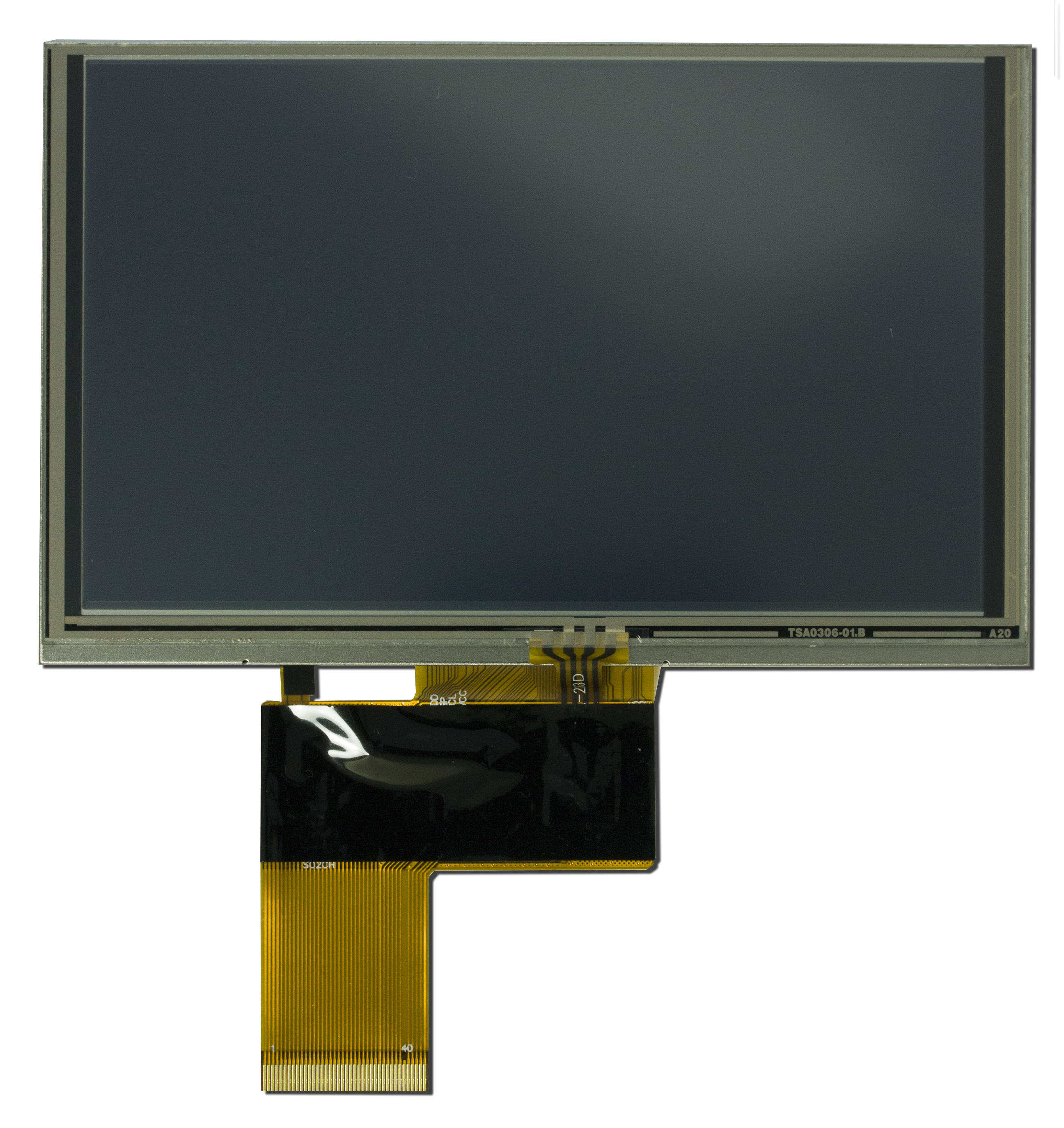

5" IPS Sunlight Readable Resistive Touchscreen TFT Display

Part Number: CFAF800480E1-050SR

This beautiful 5-inch display packs enough brightness to be used inside or outside. Plus, it looks fantastic from any angle thanks to IPS technology and the 16 million colors.

This touchscreen display uses resistive touch sensing making this display a great choice for a product that will be used outside. Rain droplets won't register as touches and the user can be wearing gloves.

This resistive touch display shares the same pin out for the display as our 5" capacitive touch display and our 5" display with no touch panel.

Features:

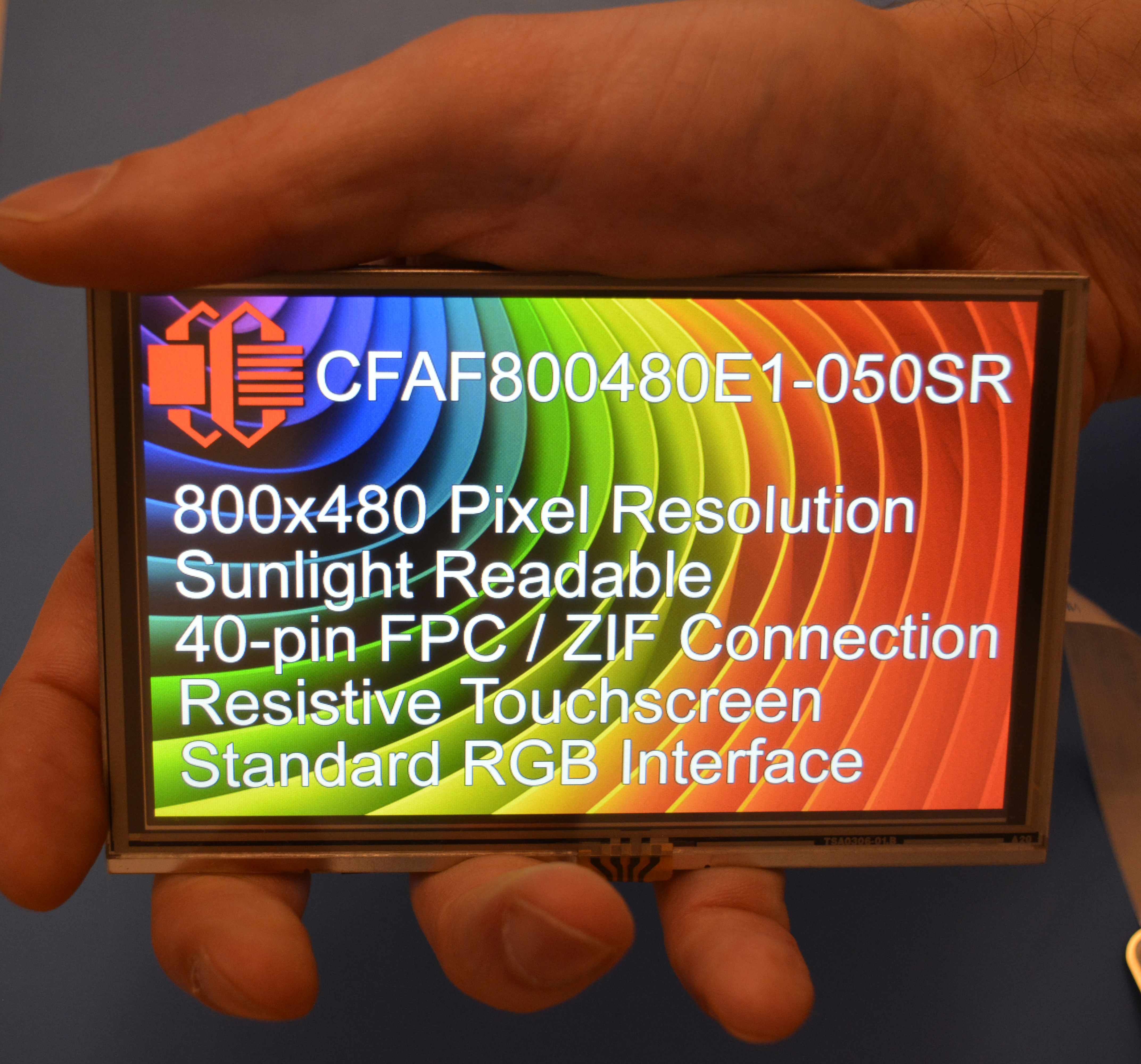

  • 5" (diagonal dimension)
  • Sunlight Readable (850 nits)
  • Resistive Touchscreen
  • IPS (viewable from all directions)
  • 16 Million Colors

Product Variants


DOT-CLK interface / Generic RGB

CFAF800480E1-050SC800x480 5 Inch Full-Color TFT
CFAF800480E1-050SN800x480 5 inch Sunlight Readable TFT
CFAF800480E1-050SR5" IPS Sunlight Readable Resistive Touchscreen TFT Display
CFAF800480E2-050SC800x480 5" IPS TFT Display
5" IPS Sunlight Readable Resistive Touchscreen TFT Display (CFAF800480E1-050SR)
Qty:
Quantity Price
1 $40.83
10 $33.19
20 $32.07
50 $30.95
100 $30.50
200 $30.28
300 * $30.05
500 * $29.83
1000 * $27.32
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4637 40 Position, 0.50mm Pitch, Gold, FCC FPC ZIF connector
Add 5 ZIF Connectors $1.45 ea.
4832 40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF800480E1-050SR or RSS RSS feed for changes to CFAF800480E1-050SR for CFAF800480E1-050SR

Compliance Documents

Video Demonstrations

Demonstration of our 5-inch Sunlight readable IPS resistive touchscreen display

TECHNICAL SPECS

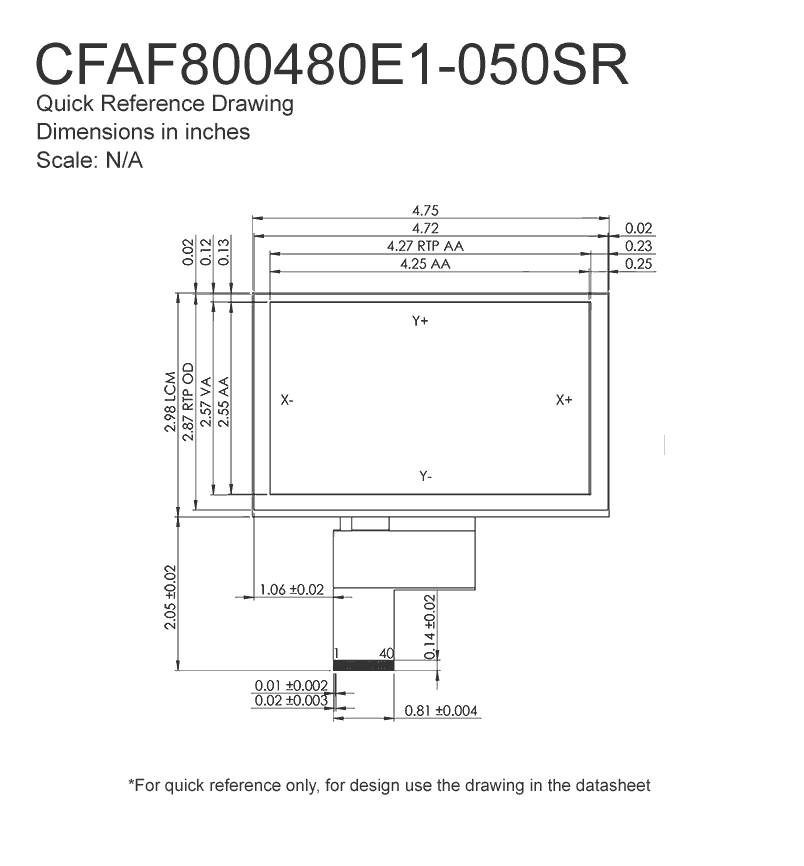

Physical Characteristics

Column Dots x Row Dots 800 x 480
Module Overall width height depth
millimeters 120.7 75.8 4.2
inches 4.752 2.984 0.165
*width / height does not include Foldable Tab
Diagonal Dimension 4.96"
Viewing Area width height
millimeters 109 65.8
inches 4.291 2.591
Active Area width height
millimeters 108 64.8
inches 4.252 2.551
Dot Pitch width height
millimeters 0.135 0.135
inches 0.0053 0.0053
Flexible Cable (FFC/FPC) length
millimeters 52
inches 2.047
Weight 67.8g
Pin Count 40

Optical Characteristics

Glass Type/Glass Color TFT/Dark
Polarizer Transmissive
View Angle 160°
Sunlight Readable Yes
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 12:00V
Supply Current Typical 140mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents Sitronix ST7262
1200CH System-On-Chip Driver for 800RGBx480 TFT
Interface DOT-CLK interface / Generic RGB

Miscellaneous

Foldable Tab Yes
Touch Screen Resistive

Additional Options

Purchase this display with an EVE powered PCB to quickly get up and running.

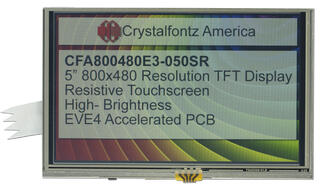

5" 800x480 Resistive Touchscreen TFT with EVE
Part Number: CFA800480E3050SR

Do you need a display with beautiful graphics and touch capabilities in a tough environment? This resistive touch IPS EVE TFT module is a fantastic choice. The BT817 EVE chip helps simplify sending complex graphics to the display and also handles the touchscreen sensing and communication to the host. Read more about the benefits of an EVE module.

Not sure if you want resistive or capacitive touch? Read our blog post comparing the pros and cons of resistive vs capacitive touch displays.

This is the 800x480 5" IPS TFT Display with an EVE accelerated board attached.

Key features:

  • 5" Diagonal Active Area
  • Graphics accelerating BT817 chip for easy graphics control
  • Sunlight Readable
  • SPI Interface
  • IPS
  • 16M Color TFT
  • Resistive Touch screen
  • Six threaded mounts (size 2-56)
Currently Shipping: HW Version 2v2, Firmware Version: 1v0

Details
Quantity 1 5 10 20 50 100 200 300 * 500 * 1000 *
Price $98.14 $81.72 $79.38 $77.05 $74.25 $73.31 $72.84 $71.91 $71.44 $70.98
Quantity:
5" Resistive Touchscreen EVE Development Kit
Part Number: CFA800480-E3050SR-KIT

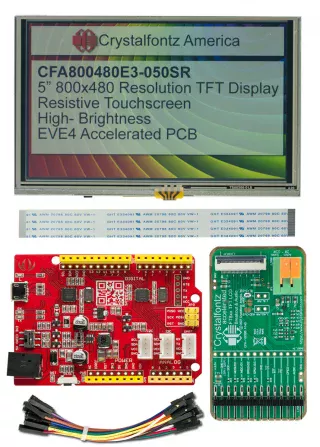

This full Seeeduino development kit for the 5" resistive touch EVE display module makes it easy to start developing or tinkering with the EVE module. It includes the display wired up and a Seeeduino loaded with a demo sketch, so once power is applied, you can see the display in action.

Key features:

  • Seeeduino demo kit including an EVE breakout board, all wires/headers required, the Seeeduino, and display module
  • Graphics accelerating BT817 chip for easy graphics control
  • Sunlight Readable
  • SPI interface
  • IPS
  • Full color TFT
  • Resistive Touchscreen

Details
Quantity 1
Price $128.60
Quantity:
For reference only. For design purposes, please use the specifications in the datasheet.
