800x480 5" IPS Wide Capacitive Touchscreen TFT Display

Part Number: CFAF800480E3-050SW

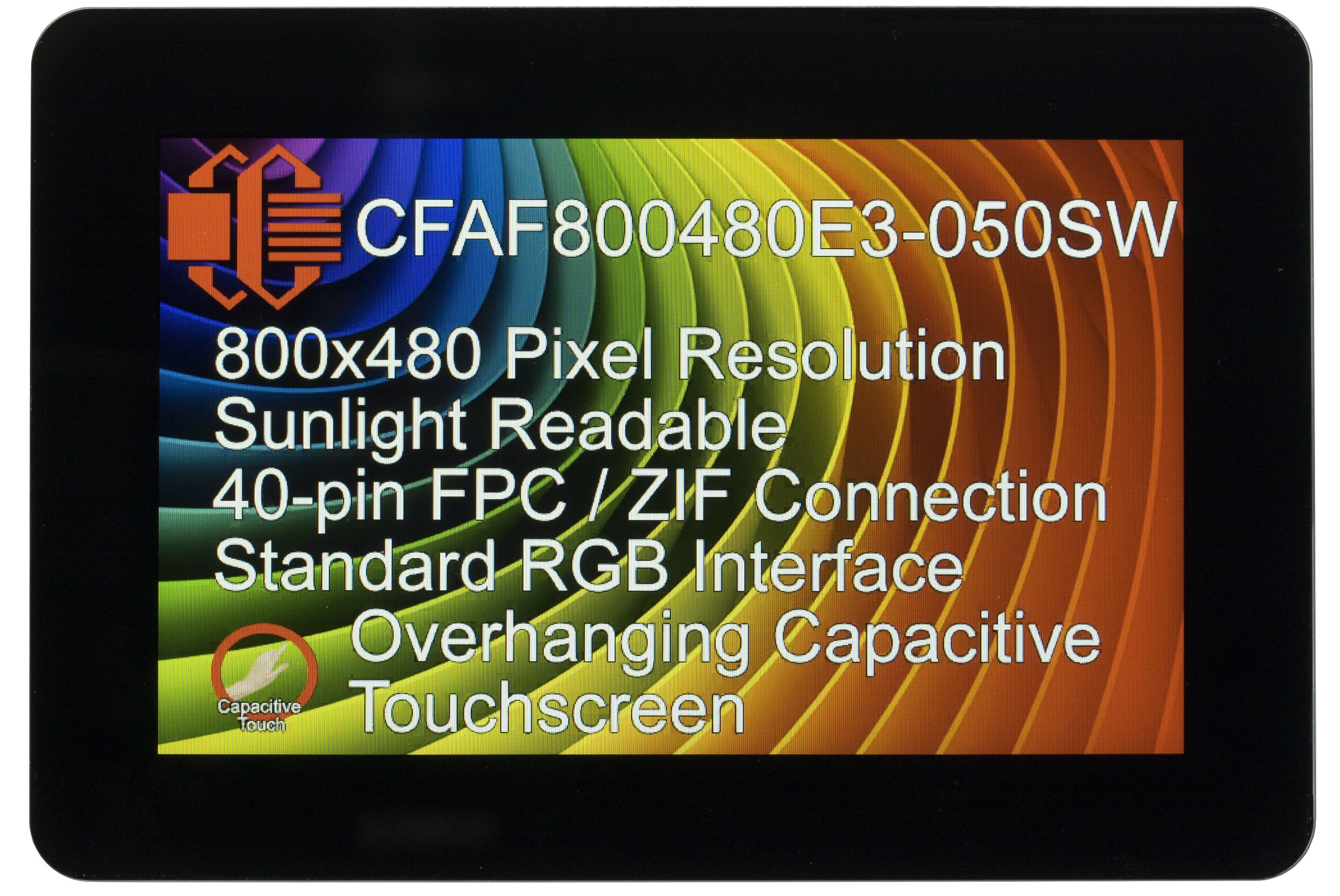

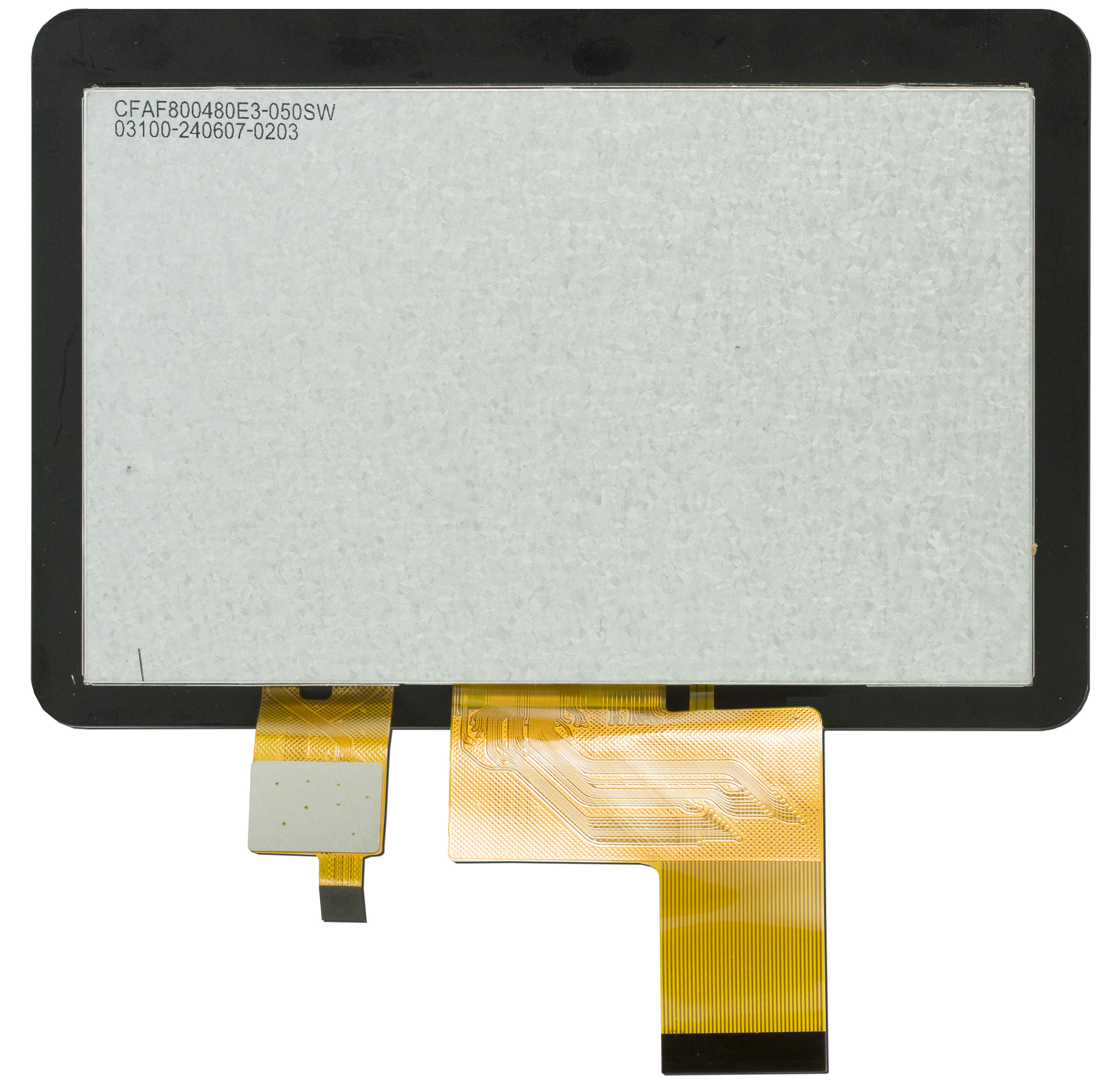

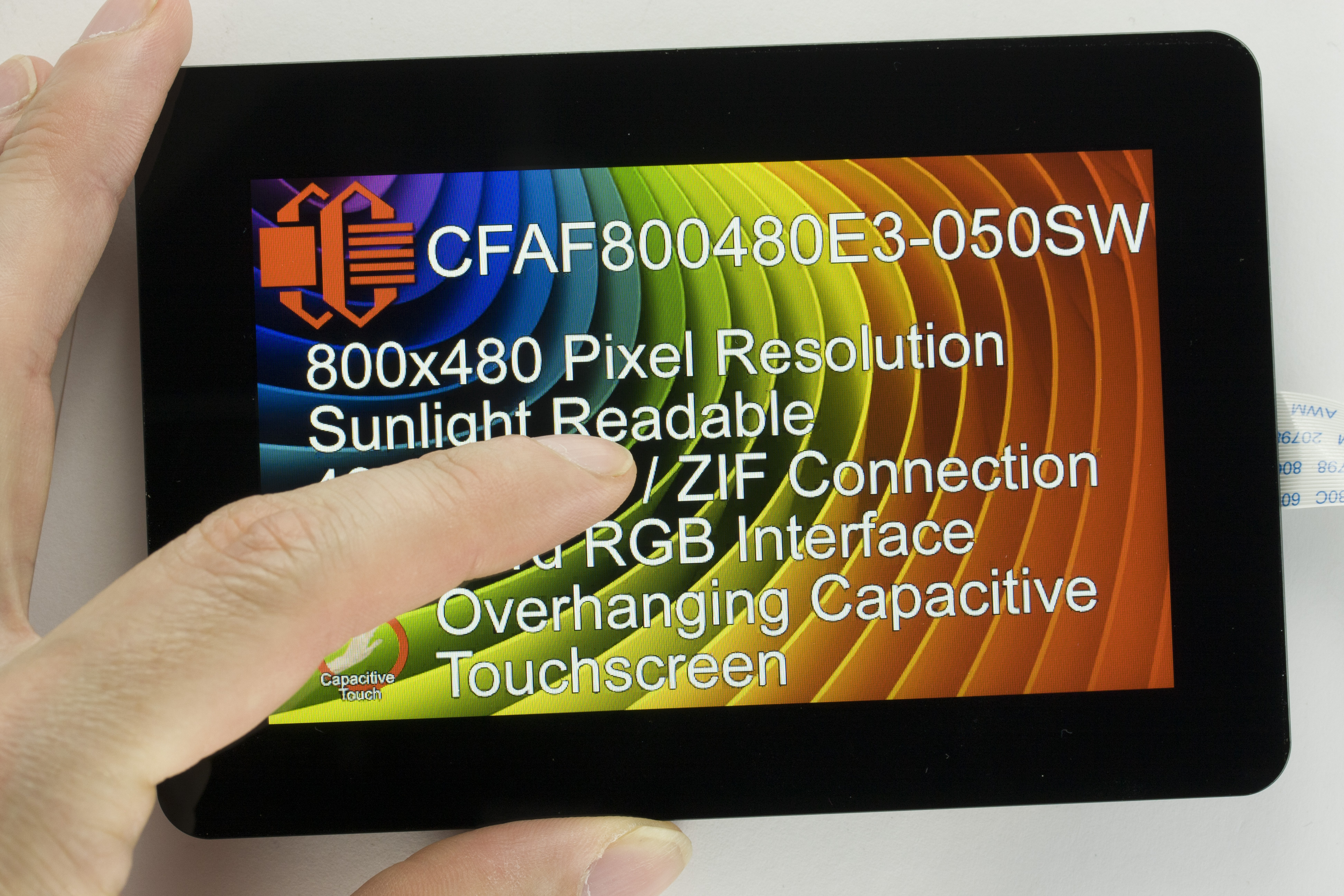

This 5" capacitive touch RGB display has overhanging glass to simplify mounting the display smoothly. This display would make a fantastic front panel for mid-sized appliances or as a dash-mounted display in a car or boat. The overhanging glass enables gorgeous seamless mounting. The glass frame is designed to center the active area in the glass.

Like the original display, this module boasts a high-brightness backlight for a sunlight-readable screen. Plus, with IPS technology and 16M colors, users will love the vibrant and visible GUI - even in sunlight or at wide angles.

This display is also available as part of an EVE module, which can help simplify graphics and touch handling.

Part Number:
CFA - Crystalfontz America
F - TFT display
800480 - 800x480 pixel resolution
E3 - Family and revision (replaces CFAF800480E2-050SC)
050 - 5" Diagonal
S - Sunlight readable
W - Capacitive touch with overhanging glass


  • square_foot Physical Characteristics

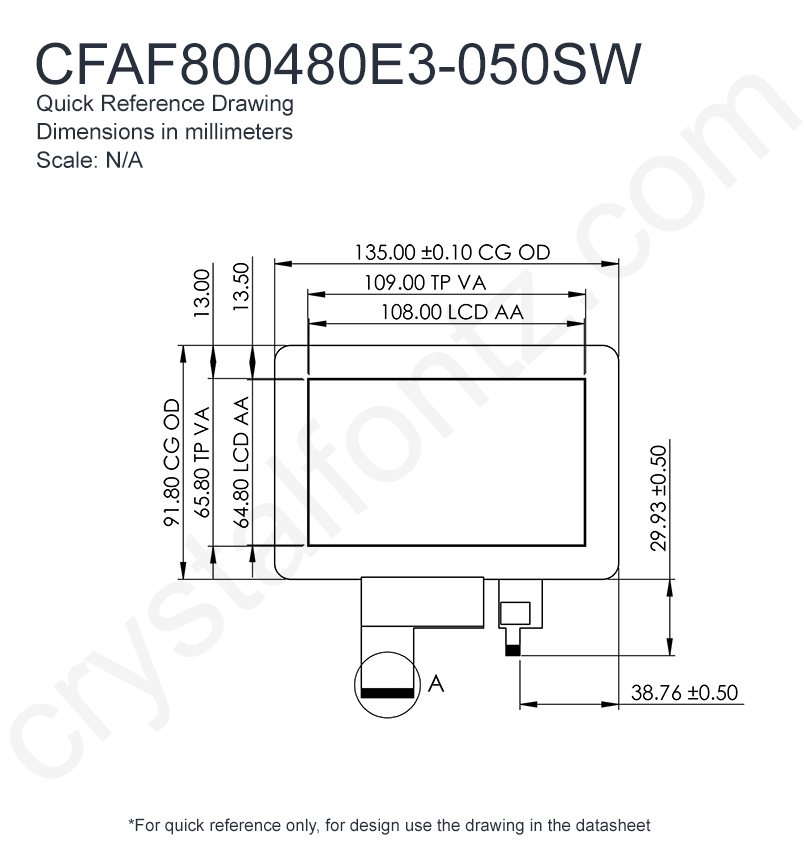

    Physical Characteristics

    Column Dots x Row Dots 800 x 480
    Module Overall width height depth
    millimeters 135 91.8 4.92
    inches 5.32 3.61 0.19
    Diagonal Dimension 5"
    Viewing Area Width Height
    millimeters 109 66.8
    inches 4.29 2.63
    Active Area Width Height
    millimeters 108 64.8
    inches 4.25 2.55
    Dot Pitch Width Height
    millimeters 0.135 0.135
    inches 0.0053 0.0053
    Weight 97g
    Pin Count 40
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type TFT
    Polarizer IPS
    View Angle 160°
    Sunlight Readable Yes
    Backlight Color White
    Backlight Type LED
    Foreground Color RGB
    Background Color Black
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 2.5V
    Supply Voltage for Logic Maximum 3.6V
    Supply Voltage for Logic Typical 3.3V
    Supply Voltage for Driving Panel Typical 3.3V
    Supply Current Maximum 85mA
    Supply Current Typical 55mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 11.2V
    Forward Voltage Maximum 13.2V
    Forward Voltage Typical 12V
    Forward Current Typical 140mA
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Controller Documents Sitronix ST7262
    1200CH System-On-Chip Driver for 800RGBx480 TFT
    Interface DOT-CLK interface / Generic RGB
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Unit Price
1 $46.98
5 $39.32
10 $38.20
20 $37.08
50 $35.73
100 $35.28
200 $35.05
300 $34.60
500 $34.38
1000 * $34.15
567 Units In-Stock & Ready To Ship
Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering
4637 40 Position, 0.50mm Pitch, Gold, FCC FPC ZIF connector
Add 5 ZIF Connectors for the display? $1.45 ea.
4628 10 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF connectors for the touchscreen? $0.62 ea.
4821 10-Position ZIF Breakout Board
Add a 10-pin ZIF Breakout Board? $6.08 ea.
4832 40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.

Additional Options

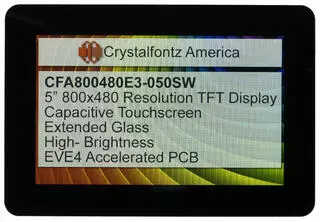

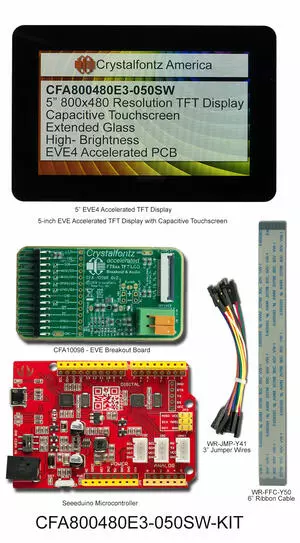

Get this display integrated with an EVE Graphics Accelerator or an EVE Development kit to speed up your prototyping.
5" Touchscreen EVE Development Kit
Part Number: CFA800480E3-050SW-KIT
Details
Quantity 1 *
Unit Price $131.43
Quantity:
800x480 5 Inch EVE Touchscreen TFT Display
Part Number: CFA800480E3-050SW
Details
Quantity 1 * 5 * 10 * 20 * 50 * 100 * 200 * 300 * 500 * 1000 *
Unit Price $105.92 $88.23 $85.71 $83.18 $80.16 $79.15 $78.65 $77.64 $77.13 $76.63
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF800480E3-050SW or RSS RSS feed for changes to CFAF800480E3-050SW
