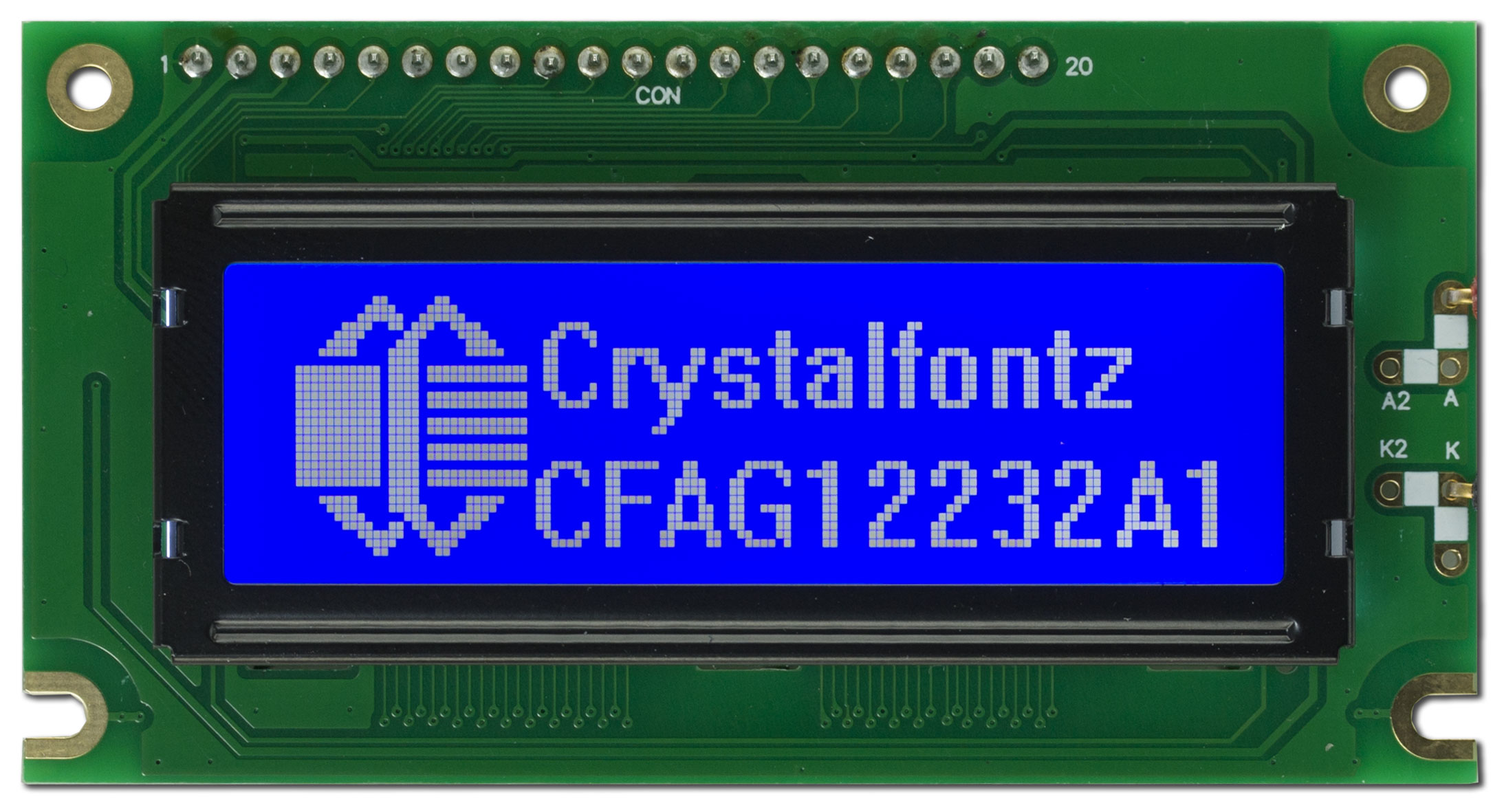

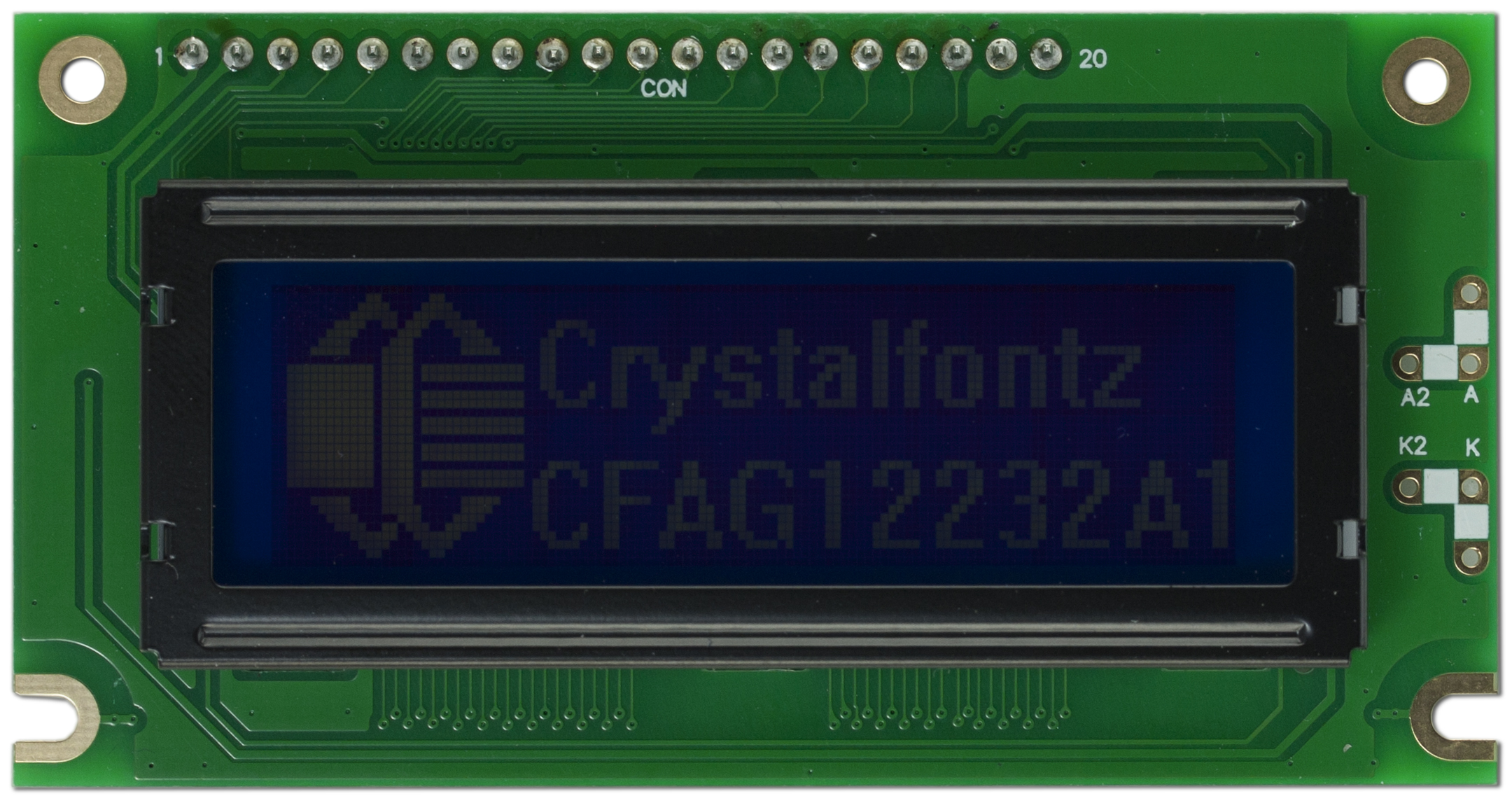

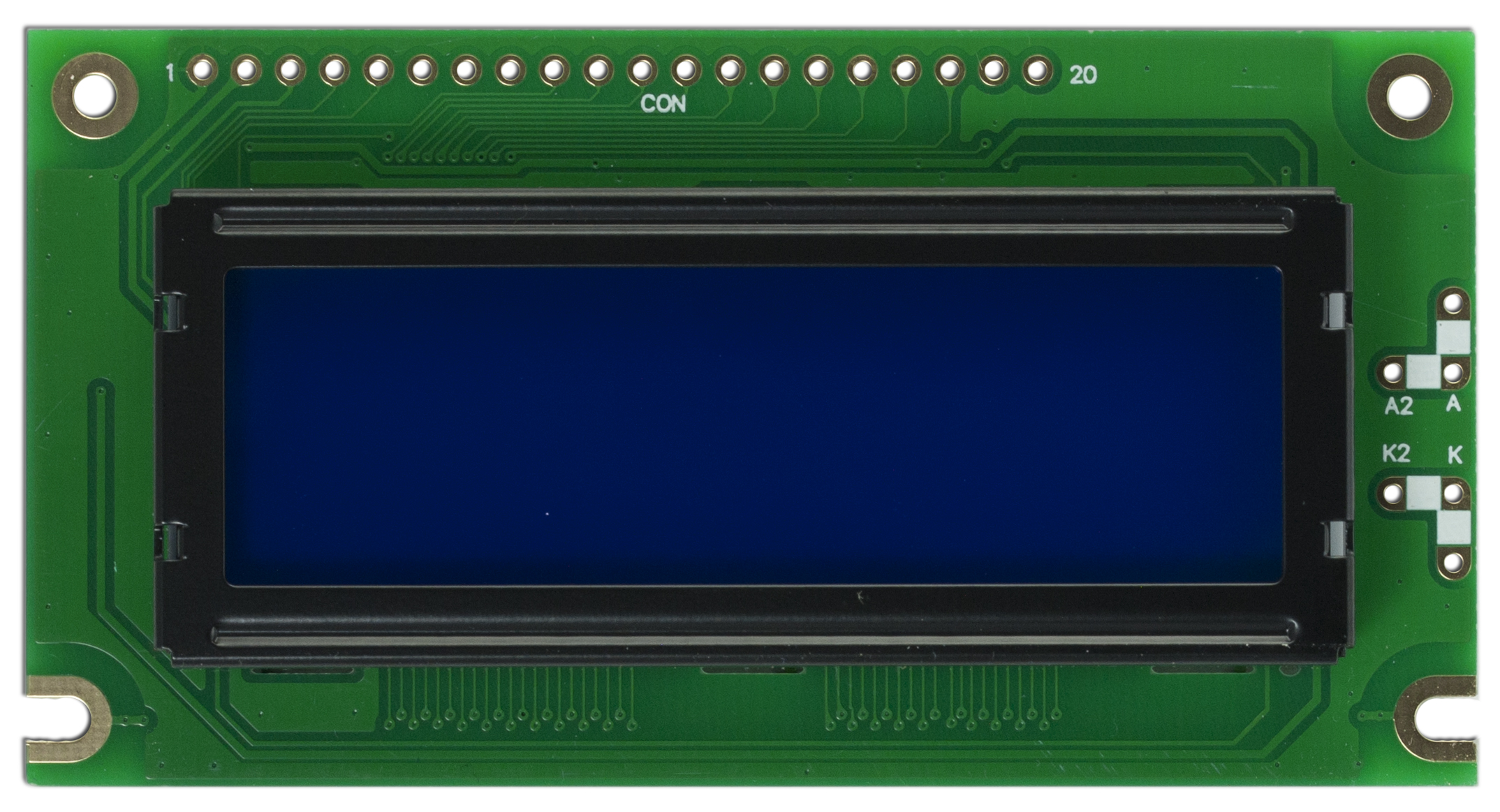

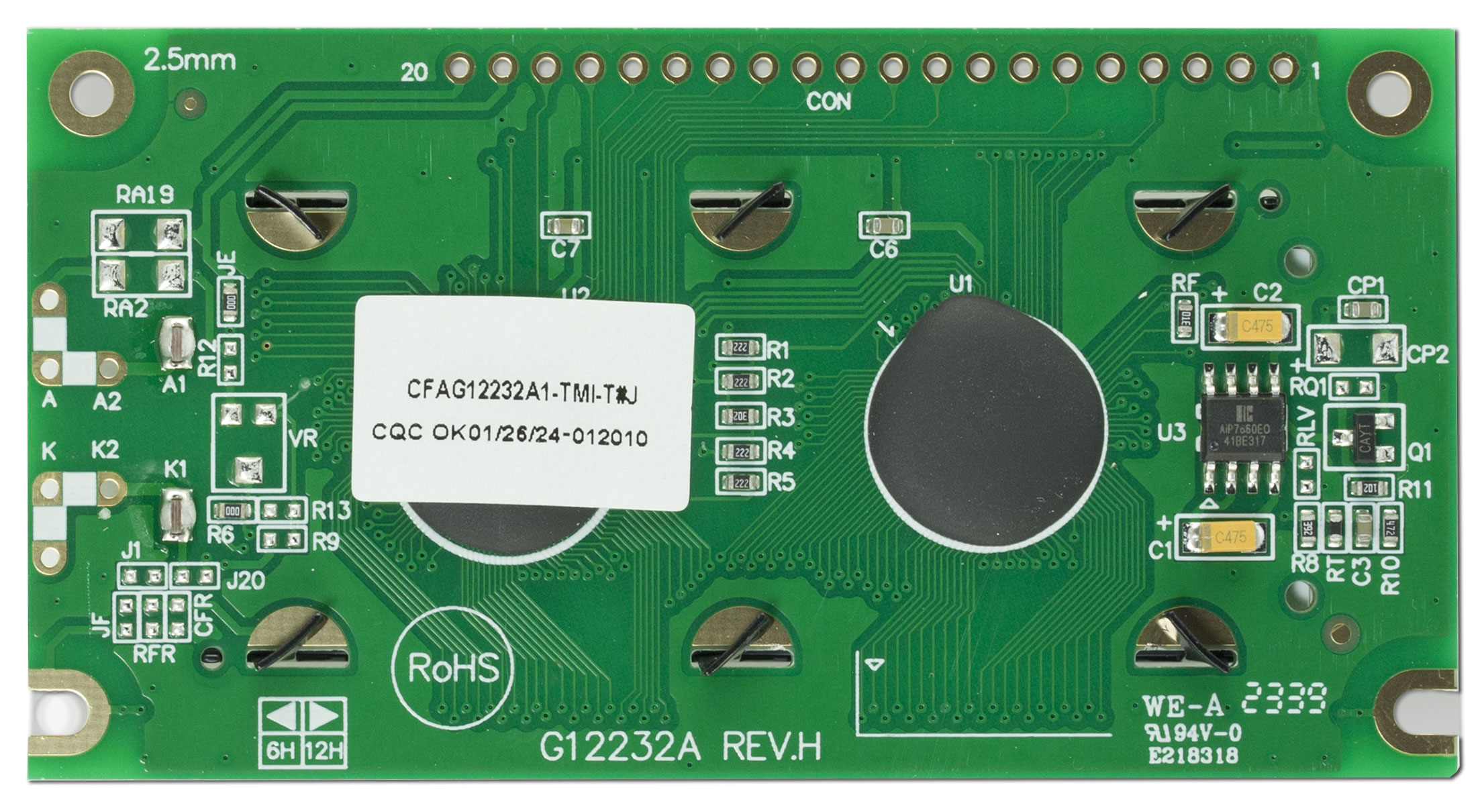

White on Blue 122x32 Graphic LCDPart Number: CFAG12232A1-TMI-TJThis 122x32 graphic LCD features light pixels on a blue background. The 20-pins that control this display are broken out to 0.1" through holes for easy use with a 0.1" header. This display communicates using 68-series 8-bit parallel.
The CFAG12232A1 family is form compatible with the CFAH1602A Series of Character LCD modules. Upgrade your product that uses a CFAH1602A character display by switching to this graphic CFAG12232A or lower your costs by replacing this graphic LCD module with that character LCD module.
Please Note: This part is 5V logic.

CFA  - Crystalfontz America

G  - Graphic

12232  - 122x32 pixels

A1  - Family and version (Replaces the CFAG12232A-TMI-TA)

T  - White LED backlight

M  - STN Negative, Blue

I  - Transmissive, 6:00 viewing direction

T  - Built-in negative voltage generator and temperature compensation

J - Wuxi I-Core Controller
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED Backlight
Negative Voltage GeneratorWhite on Blue
White LED Backlight
Negative Voltage Generator

 square_foot Physical Characteristics

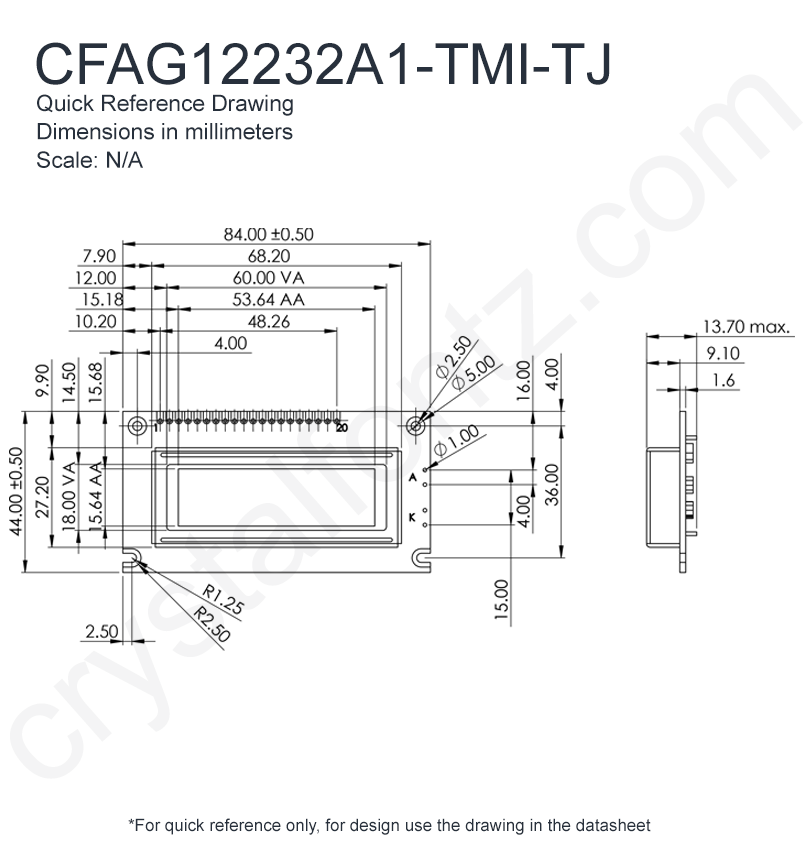

Physical Characteristics

        Column Dots x Row Dots
            122 x 32


    Module Overall        width
        height
        depth


        millimeters
        84
        44
        13.7


        inches
        3.31
        1.73
        0.54



    Viewing Area        Width
        Height


        millimeters
        60
        18


        inches
        2.36
        0.71



    Active Area        Width
        Height


        millimeters
        53.64
        15.64


        inches
        2.11
        0.62



    Dot Size        Width
        Height


        millimeters
        0.4
        0.45


        inches
        0.016
        0.018



    Dot Pitch        Width
        Height


        millimeters
        0.44
        0.49


        inches
        0.017
        0.019



        Weight
            39g
Pin Count
            20

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock
View Angle
            40°


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            4.45V


        Supply Current Maximum
            4mA
Supply Current Typical
            2.5mA
Module Connector Pitch
            2.53mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            24mA
Forward Current Maximum
            40mA
Forward Current Typical
            32mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°


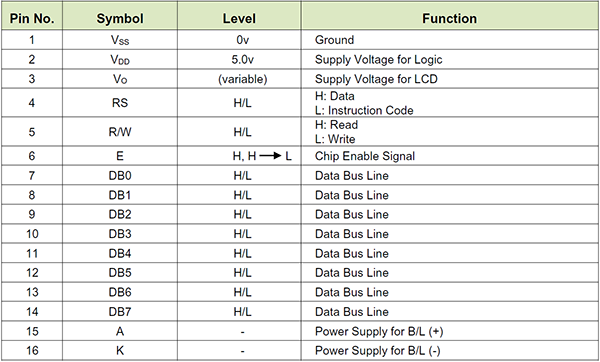

 cable Electronics
Electronics

        Controller Documents
            Wuxi AiP31520
61 SEG / 16 COM Driver for Dot Matrix LCD
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12232A1-TMI-TJ Datasheet

 download Files and Downloads
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $19.85

            5
            $18.32

            10
            $16.14

            20 *
            $15.67

            50 *
            $15.10

            100 *
            $14.91

            200 *
            $14.81

            300 *
            $13.98

            500 *
            $13.88

            1000 *
            $13.16

10 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
