Blue 128x128 Parallel Graphic LCD

Part Number: CFAG128128A1-TMI-TZ

This 128x128 square LCD display supports a graphic mode or a 21x16 Character Mode using a built-in 5x7 CGROM.

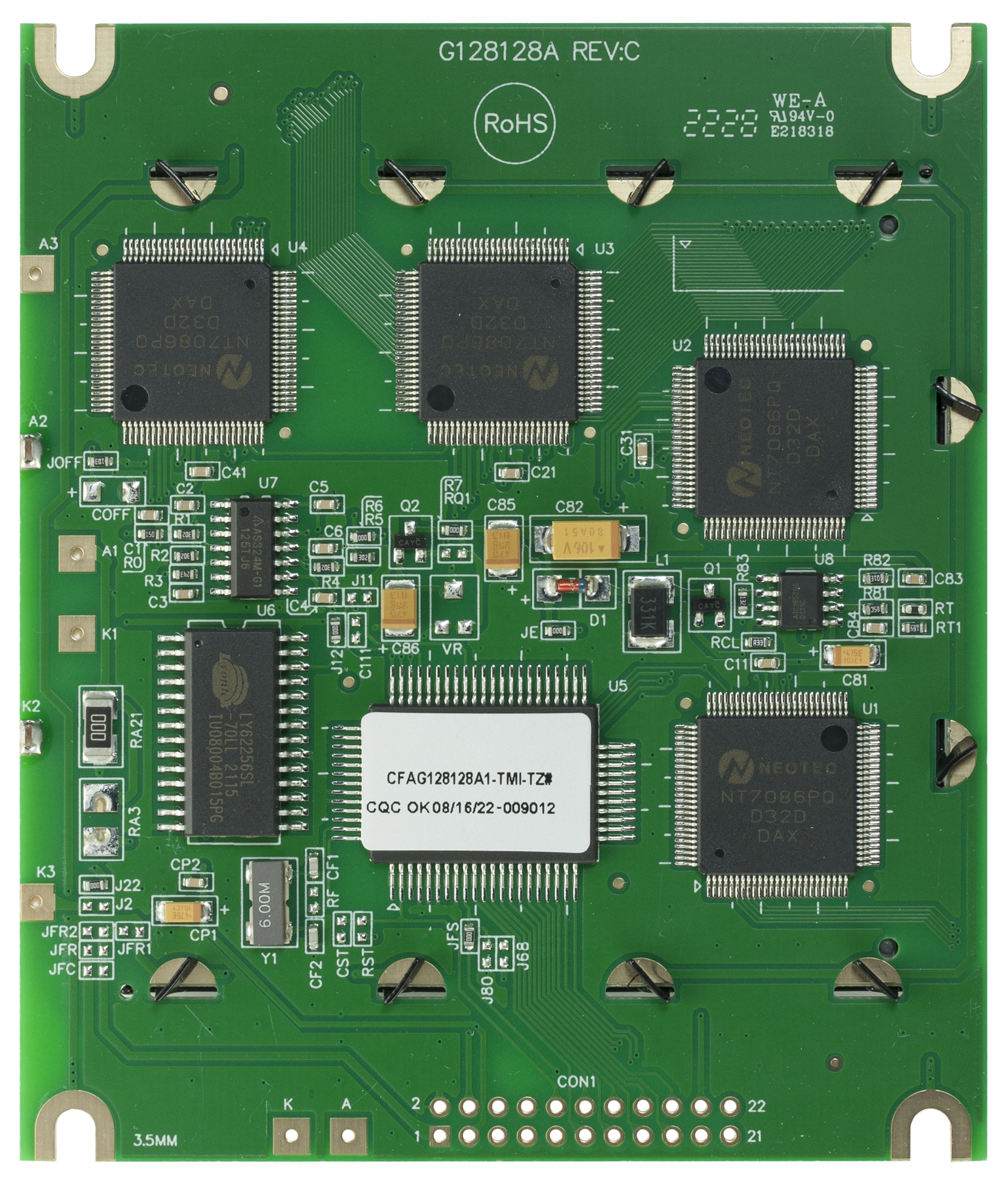

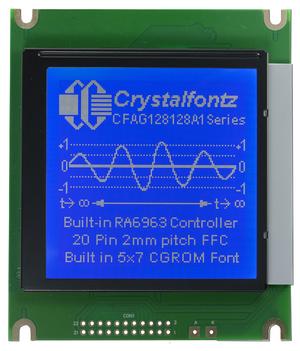

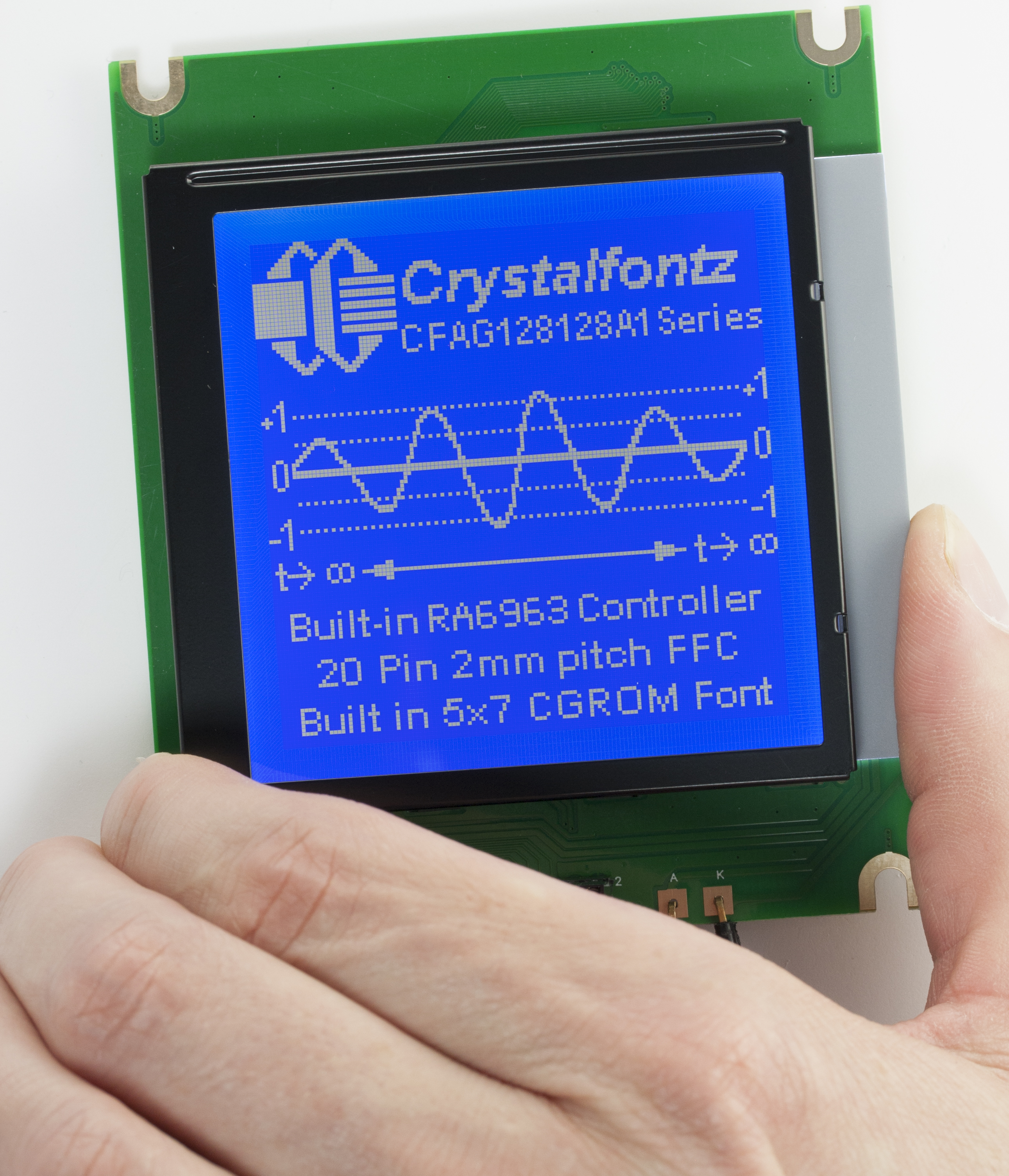

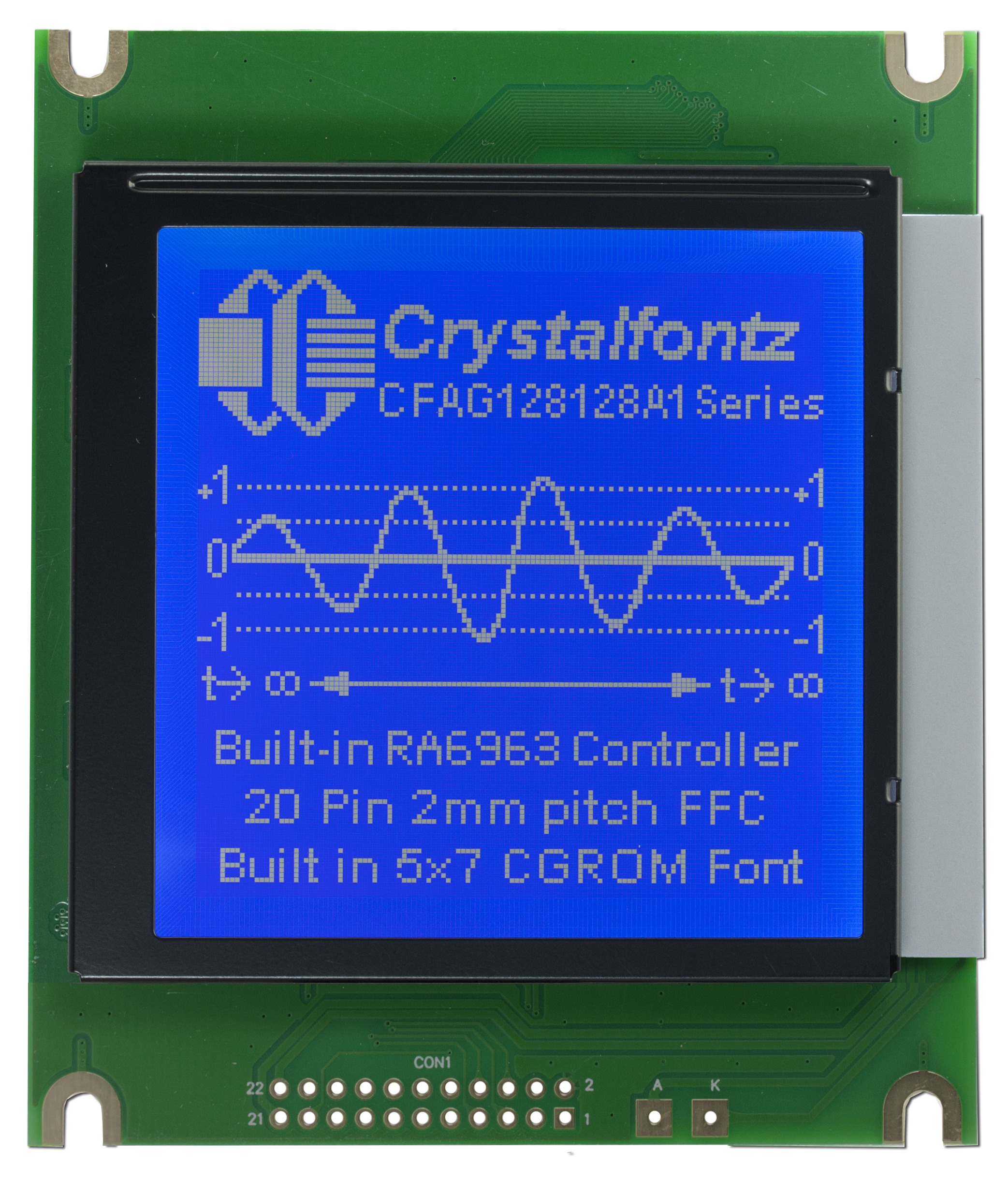

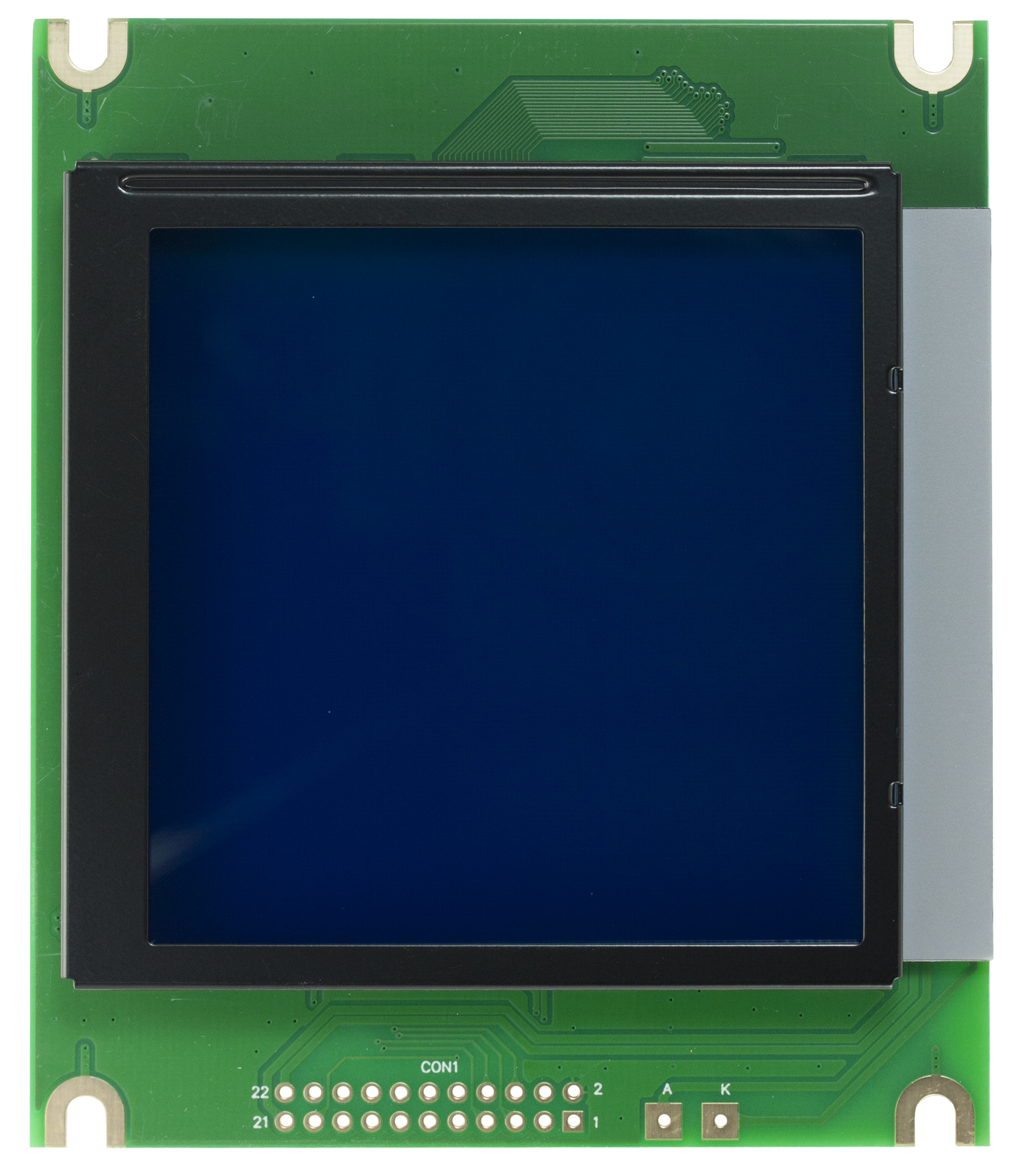

This display has white pixels on a blue background and a white edge LED backlight.

This display replaces the CFAG128128A-TMI-TZ. The change is from the RA6963N controller to the RA6963N1 controller. Please see the comparison document for more information.

Display Features:
  • 128x128 graphic LCD module
  • White Pixels on Blue Background
  • White Edge LED Backlight
  • STN Negative, Transmissive
  • Negative Voltage Generator
  • Built-in RA6963-N1 or compatible controller
  • 128x128 graphic mode --or-- 21 x 16 text mode
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 128 x 128

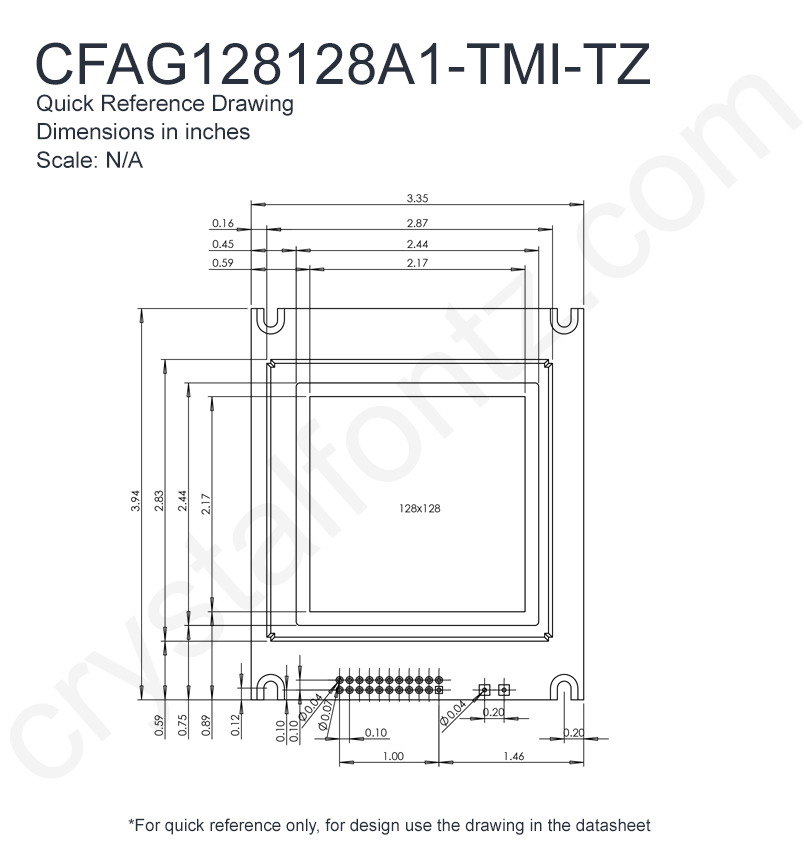

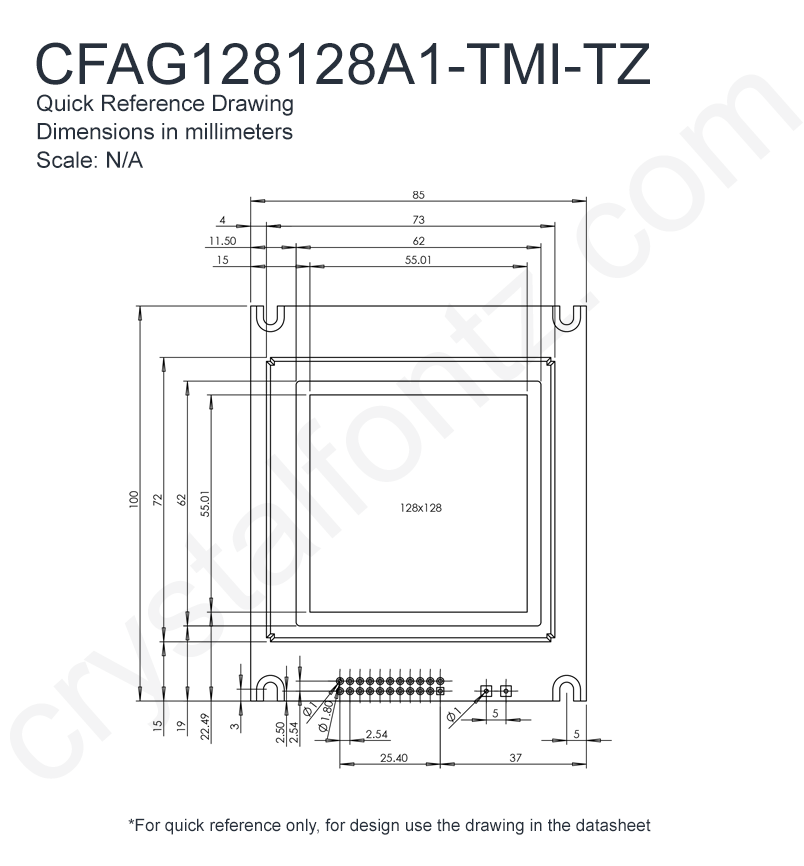

    Module Overall width height depth
    millimeters 85 100 14.5
    inches 3.346 3.937 0.571
    Viewing Area Width Height
    millimeters 62 62
    inches 2.441 2.441
    Active Area Width Height
    millimeters 55.01 55.01
    inches 2.166 2.166
    Dot Size Width Height
    millimeters 0.4 0.4
    inches 0.016 0.016
    Dot Pitch Width Height
    millimeters 0.43 0.43
    inches 0.017 0.017
    Weight 110g
    Pin Count 22
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color LCD/Blue
    Polarizer Transmissive
    View Direction 6 o'clock
    View Angle 40°
    Backlight Color White
    Backlight Type LED
    Foreground Color White
    Background Color Blue
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Maximum 5.5V
    Supply Voltage for Logic Typical 5V
    Supply Voltage for Driving Panel Typical 16.35V
    Supply Current Maximum 50mA
    Supply Current Typical 45mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 3.4V
    Forward Voltage Maximum 3.6V
    Forward Voltage Typical 3.5V
    Forward Current Minimum 30mA
    Forward Current Maximum 120mA
    Forward Current Typical 96mA
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Controller Documents Raio Technology RA6963
    RA6963 Dot Matrix LCD Controller
    Raio Technology RA6963
    RA6963 Dot Matrix LCD Controller Specification
    Interface 8-bit Parallel
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Price
1 $67.39
5 $62.07
10 $54.79
20 $52.93
50 $51.08
100 $50.35
200 $49.98
300 * $47.44
500 * $47.08
1000 * $43.49
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4716 72 Pin Header
Need header pins? $0.66 ea.
1871 6-inch Female to Female Jumper Wires
Need jumper wires? $3.38 ea.

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG128128A1-TMI-TZ or RSS RSS feed for changes to CFAG128128A1-TMI-TZ
  • text_snippet
    Product Update #11152: Blue 128x128 Parallel Graphic LCD is now available!
    New Product: CFAG128128A1-TMI-TZ
    Date Issued: October 7, 2022
    Summary: Blue 128x128 Parallel Graphic LCD is now available!
    Description: The CFAG128128A1-TMI-TZ has been released on our website (https://www.crystalfontz.com/product/cfag128128a1tmitz-white-on-blue-graphic-lcd-display) and is now available for sale.

    Orders can be placed directly from the website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
