128x128 White on Blue Graphic LCD

Part Number: CFAG128128I1-TMI-VZ

This square display is a white-on-blue graphic LCD with 128x128 pixels. It's about 2.5 inches on the diagonal, giving plenty of space for anything you need. In addition to graphic capabilities, this display includes a CGROM making displaying 5x7 fonts easy. The font table includes European characters.

Alternative colors (e.g., black on yellow, black on grey) may be available with a minimum order quantity (MOQ). Customers can contact our support team for more information

• 128x128 graphic display
• White pixels on blue background
• White LED backlight
• STN Blue Negative, Transmissive
• Built-in RAiO RA6963 controller and Neotec NT7086 segment drivers
• Character Generator ROM (T6963C code 0101).
• Available in several variations of backlight and polarizer (minimum order may be required)
• Operating temperature range: -20°C to 70°C (-4°F to 158°F)
• 6:00 viewing direction
• Negative Voltage Generator

Our testing shows this is a drop-in replacement for the CFAG128128I-TMI-VZ. Of course, we recommend testing it in your own system.

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  128 x 128

  Module Overall	width	height	depth
  millimeters	72.5	69.9	10.2
  inches	2.85	2.75	0.40

  Diagonal Dimension

  2.5"

  Viewing Area	Width	Height
  millimeters	50	49
  inches	1.97	1.93

  Active Area	Width	Height
  millimeters	44.77	44.77
  inches	1.76	1.76

  Dot Size	Width	Height
  millimeters	0.32	0.32
  inches	0.013	0.013

  Dot Pitch	Width	Height
  millimeters	0.35	0.35
  inches	0.014	0.014

  Weight	58.5g

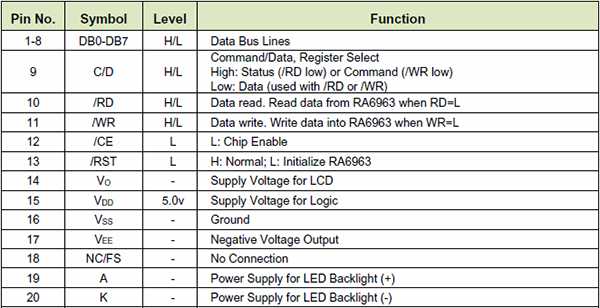

  Pin Count	20

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	STN/Blue
  Polarizer	Transmissive
  View Direction	6 o'clock

  Backlight Color	White
  Backlight Type	LED
  Mode	Negative
  Foreground Color	White
  Background Color	Blue

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	15.8V
  Supply Voltage for Logic Maximum	16.8V
  Supply Voltage for Logic Typical	16.3V

  Supply Current Minimum	9mA
  Supply Current Maximum	38mA
  Supply Current Typical	19mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	3.4V
  Forward Voltage Maximum	3.6V
  Forward Voltage Typical	3.5V

  Forward Current Minimum	20mA
  Forward Current Maximum	80mA
  Forward Current Typical	64mA

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Raio Technology RA6963 RA6963 Dot Matrix LCD Controller Raio Technology RA6963 RA6963 Dot Matrix LCD Controller Specification
  Interface	8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAG128128I1-TMI-VZ Datasheet


• download Files and Downloads
  folder_zip Hardware Design - 3D Model


  link RA6963 Demo Code Repository on Github

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
