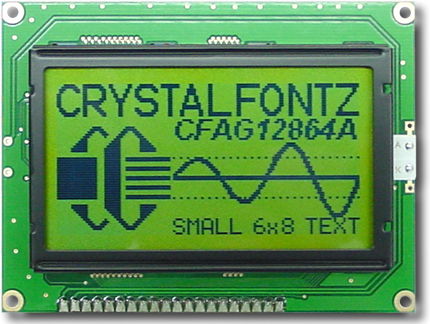

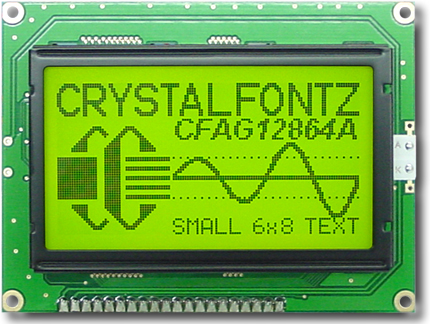

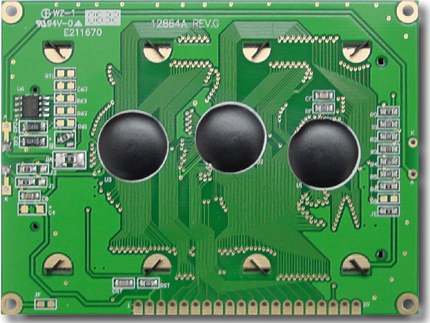

Transflective 128x64 Graphic LCDPart Number: CFAG12864A-YYH-VNThis is a 2.9" 128x64 graphic LCD module, STN Positive Yellow Green, LED backlight, Transflective.
Viewing direction of 6:00.
On-board negative voltage.
Built-in Neotec NT7108 controller, compatible with
         Samsung's S6B0107 / S6B0108 (formerly KS0107 / KS0108) controller.
   Customers have used as drop-in replacement for the PG12864-A/K.
   Customers have used as drop-in replacement for the Hyundai HG12646R-DYO display used in Allen Bradley Panel View 300  family of graphic terminals.
   Operating temperature range is from -20°C to 70°C.
   RoHS compliant.
Product VariationsColorsDark on RGB
RGB LED BacklightDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED Backlight

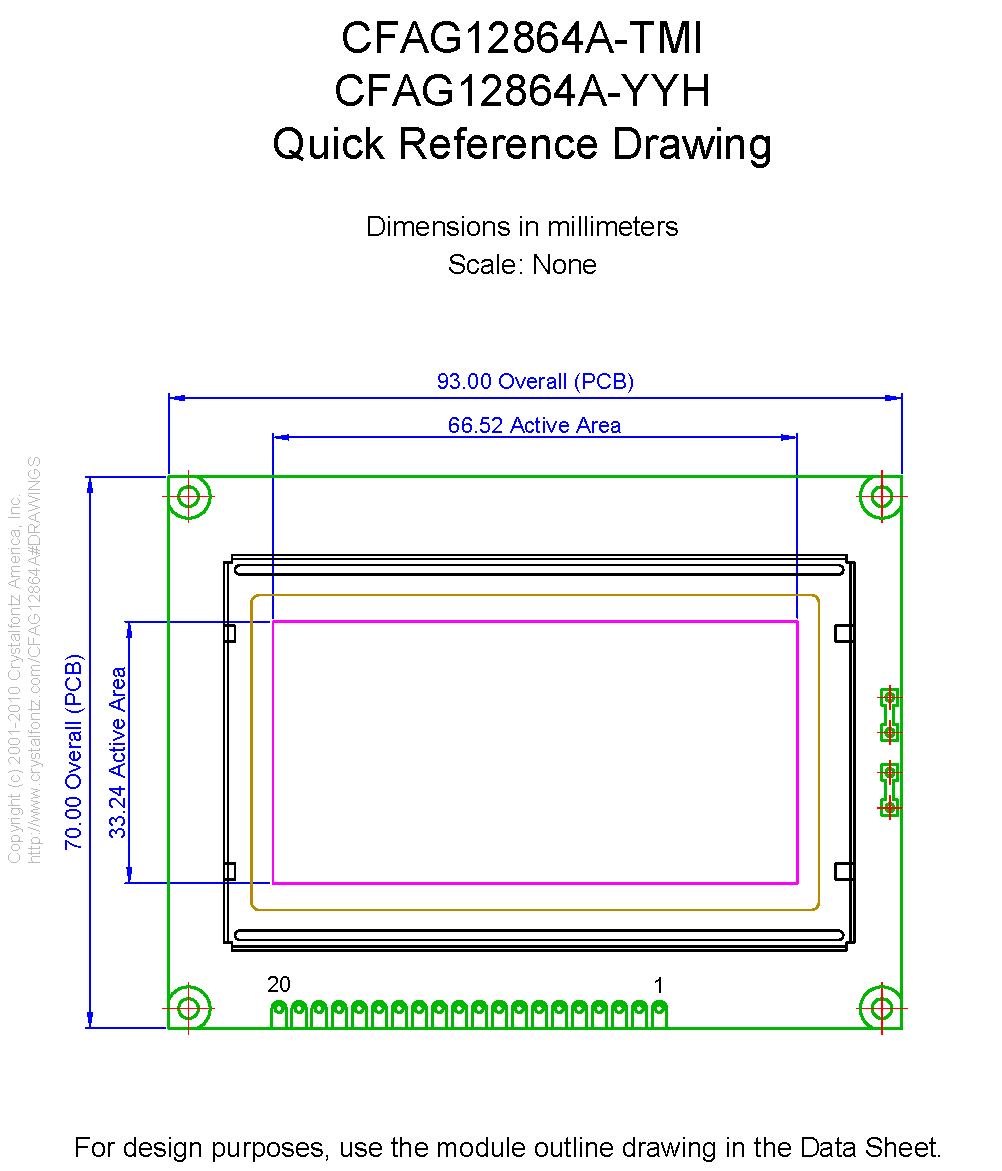

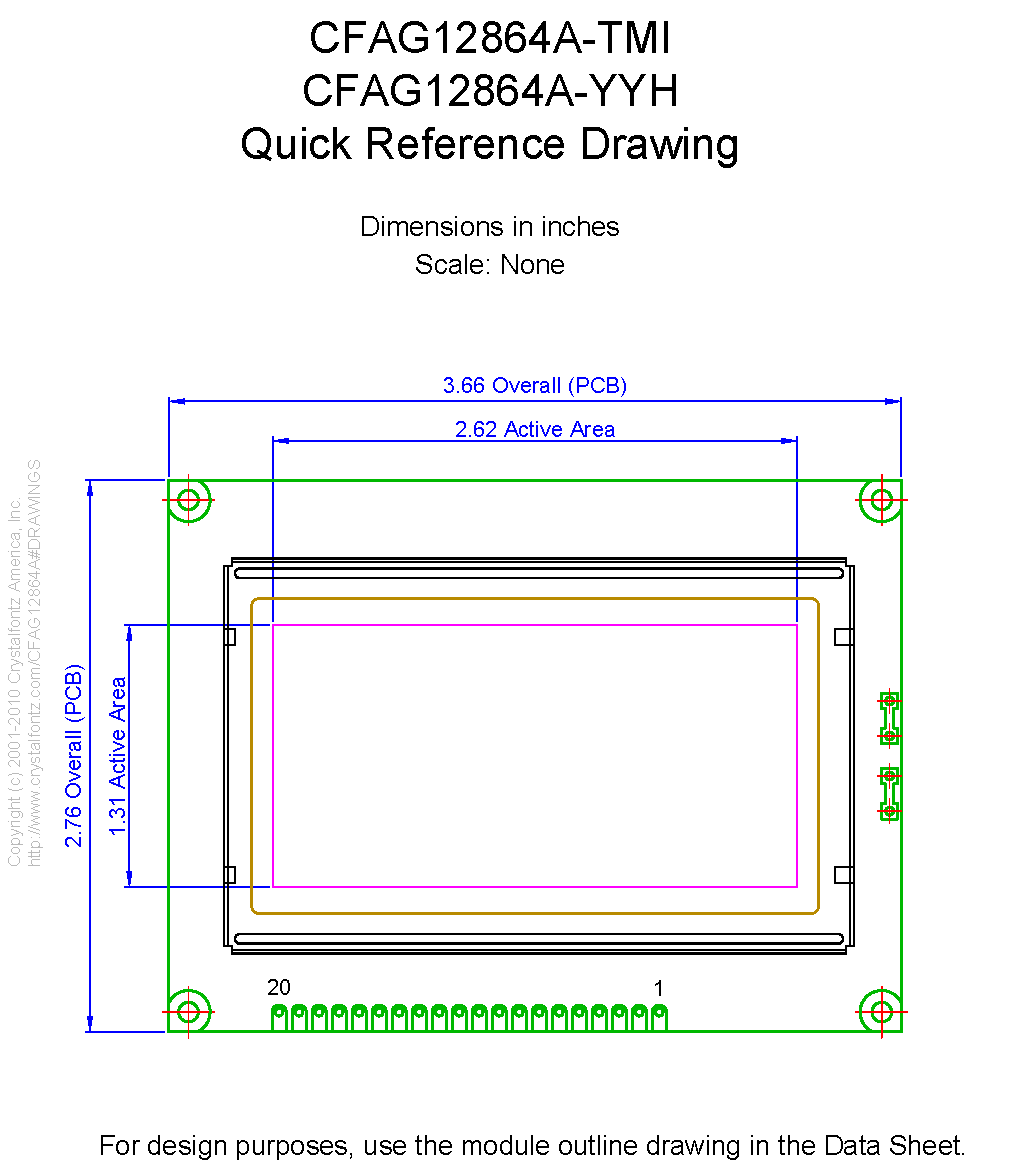

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64


    Module Overall        width
        height
        depth


        millimeters
        93
        70
        13.6


        inches
        3.66
        2.76
        0.54



    PCB Outline        width
        height
        depth


        millimeters
        93
        70
        13.6


        inches
        3.66
        2.76
        0.54



        Diagonal Dimension
            2.93"


    Viewing Area        Width
        Height


        millimeters
        72
        40


        inches
        2.84
        1.58



    Active Area        Width
        Height


        millimeters
        66.52
        33.24


        inches
        2.62
        1.31



    Dot Size        Width
        Height


        millimeters
        0.48
        0.48


        inches
        0.019
        0.019



    Dot Pitch        Width
        Height


        millimeters
        0.52
        0.52


        inches
        0.020
        0.020



        Weight
            69g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Neotec NT7108
NT7108

LCD Driver
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864AYYHVN Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG12864A-TMI-YYH-2D CAD
picture_as_pdf 1 to 1 Template - CFAG12864A-TMI-YYH 1 to 1.pdf
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $26.19

            10
            $21.29

            20
            $20.57

            50
            $19.85

            100 *
            $19.56

            200 *
            $19.42

            300 *
            $18.63

            500 *
            $18.49

            1000 *
            $17.01

82 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.





Colors	Dark on RGB RGB LED Backlight Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight

Module Overall	width	height	depth
millimeters	93	70	13.6
inches	3.66	2.76	0.54

PCB Outline	width	height	depth
millimeters	93	70	13.6
inches	3.66	2.76	0.54

Viewing Area	Width	Height
millimeters	72	40
inches	2.84	1.58

Active Area	Width	Height
millimeters	66.52	33.24
inches	2.62	1.31

Dot Size	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Dot Pitch	Width	Height
millimeters	0.52	0.52
inches	0.020	0.020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$26.19
10	$21.29
20	$20.57
50	$19.85
100 *	$19.56
200 *	$19.42
300 *	$18.63
500 *	$18.49
1000 *	$17.01

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11205: Update to PCN# 11169

Products Affected:	CFAG12864A-TMI-VN, CFAG12864A-YYH-VN, CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V, CFAG12864M-TMI-TN, CFAG12864M-YYH-TN, CFAG12864C-TMI-TN, CFAG12864C-YYH-TN, CFAG12864I-STI-TN, CFAG12864I-TMI-TN, CFAG12864I-YYH-TN, CFAG12864A-CFH-VN
Date Issued:	June 26, 2023
Summary:	Update to PCN# 11169
Description:	This is an update to PCN# 11169. The change to these controllers is minimal and it is not expected that any code or hardware will need to be modified to accommodate the new version. We recommend testing the updated versions prior to purchasing production-level orders. Contact support@crystalfontz.com to arrange sample testing.
Reason:	Neotec has EOL'd the NT7107C and NT7108C.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11169: Neotec Controller Change

Products Affected:	CFAG12864A-TMI-VN, CFAG12864A-YYH-VN, CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V, CFAG12864M-TMI-TN, CFAG12864M-YYH-TN, CFAG12864C-TMI-TN, CFAG12864C-YYH-TN, CFAG12864I-STI-TN, CFAG12864I-YYH-TN, CFAG12864A-CFH-VN
Date Issued:	January 16, 2023
Summary:	Neotec Controller Change
Description:	The display controllers used on these displays are being EOL'd and replaced with new controllers. At this time, there is limited information on the replacement display controllers but last time buys are being accepted. Contact sales@crystalfontz.com to place last-time buys. Contact support@crystalfontz.com for the latest update on the replacement parts.
Reason:	Neotec has EOL'd the NT7107C and NT7108C.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
