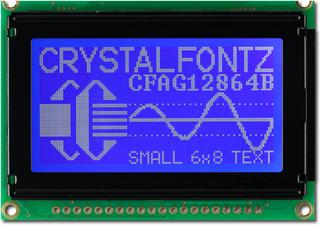

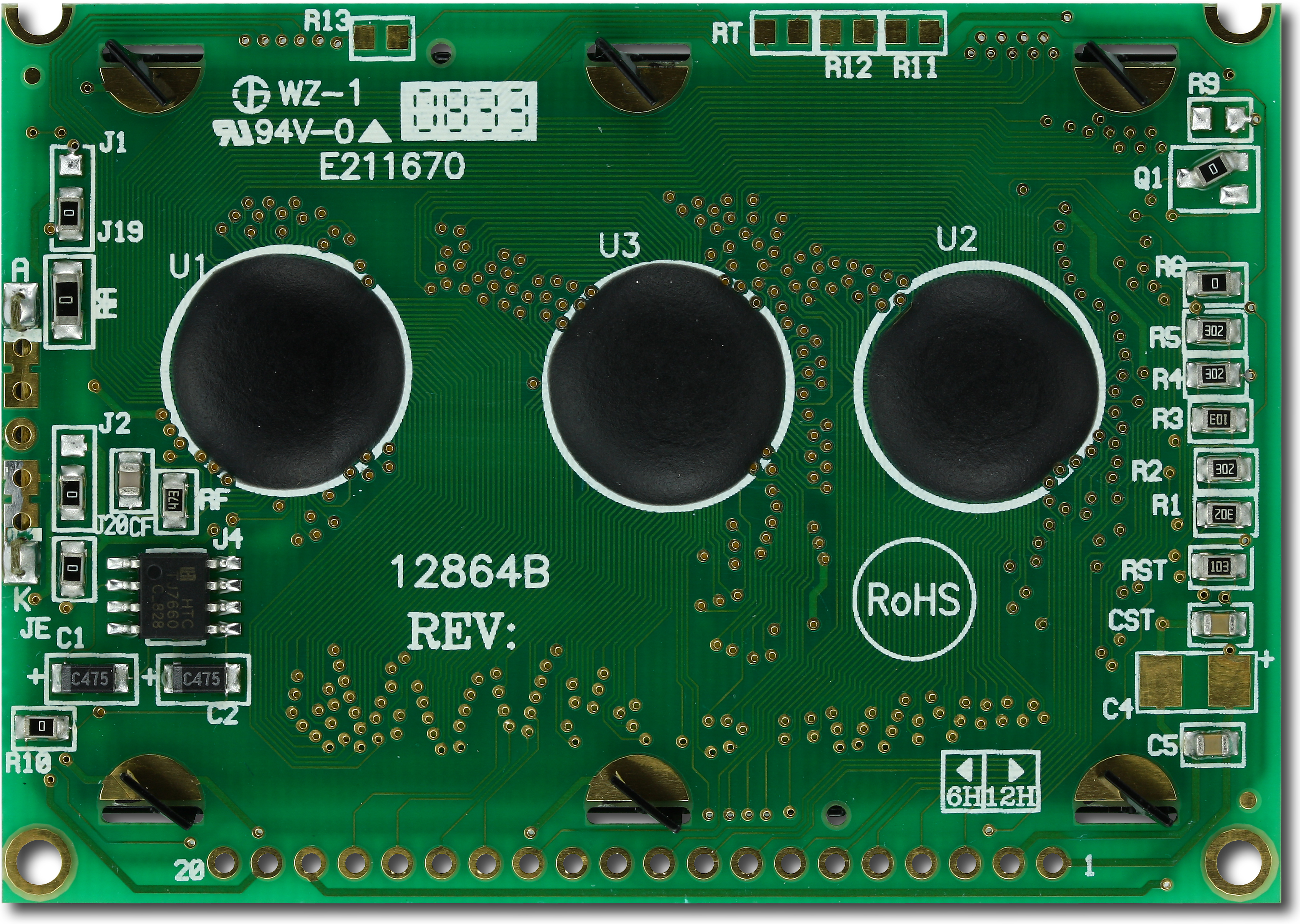

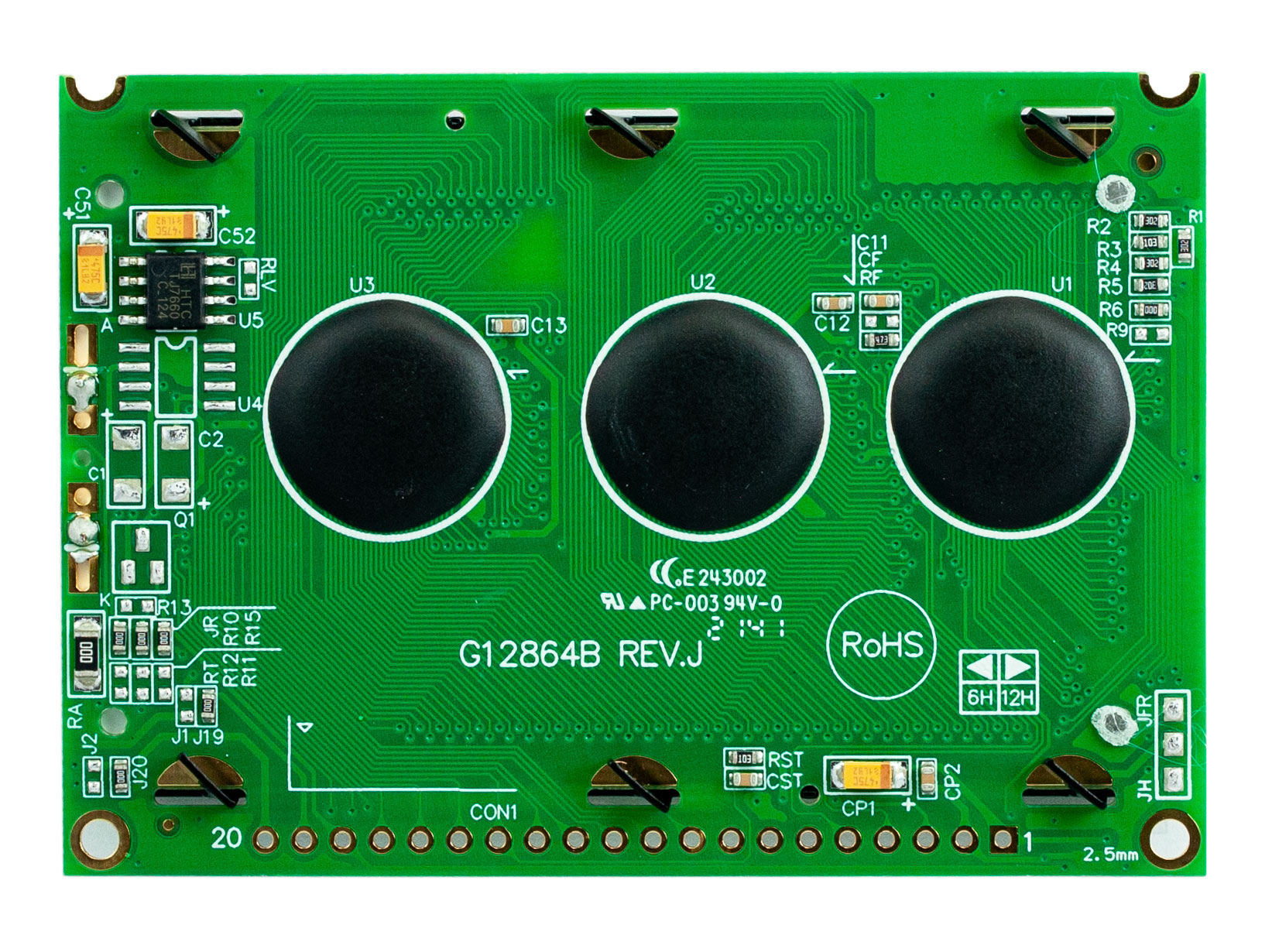

128x64 White on Blue Graphic LCD

Part Number: CFAG12864B-TMI-V

White letters on blue background 128x64 graphic LCD, with an on-board negative voltage generator.

  • Backlight: White Edge LED
  • Glass: STN Negative, Transmissive
  • Operating Temp: -20°C to +70°C
  • Resolution:128x64 pixels
  • Controller: Neotec NT7108
  • Optics: 6:00 viewing direction
  • Compliance: RoHS Compliant

  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 128 x 64
    Module Overall width height depth
    millimeters 75 52.7 8.9
    inches 2.95 2.08 0.35
    PCB Outline width height depth
    millimeters 75 52.7 8.9
    inches 2.95 2.08 0.35
    Diagonal Dimension 2.42"
    Viewing Area Width Height
    millimeters 58.8 31.4
    inches 2.32 1.24
    Active Area Width Height
    millimeters 55.01 27.49
    inches 2.17 1.08
    Dot Size Width Height
    millimeters 0.4 0.4
    inches 0.016 0.016
    Dot Pitch Width Height
    millimeters 0.43 0.43
    inches 0.017 0.017
    Weight 36g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color STN/Blue
    Polarizer Transmissive
    View Direction 6 o'clock
    Backlight Color White
    Backlight Type LED
    Mode Negative
    Foreground Color White
    Background Color Blue
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 4.5V
    Supply Voltage for Logic Maximum 5.5V
    Supply Voltage for Logic Typical 5V
    Supply Current Typical 48mA
    Module Connector Pitch 0.1mm
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics

    Electronics

    Controller Documents Neotec NT7108
    NT7108
    LCD Driver
    Interface 8-bit Parallel
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Unit Price
1 $18.00
5 $16.57
10 $14.63
20 $14.13
50 $13.64
100 $13.44
200 $13.34
300 $12.66
500 $12.57
1000 * $11.82
903 Units In-Stock & Ready To Ship
Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering
4694 LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.
