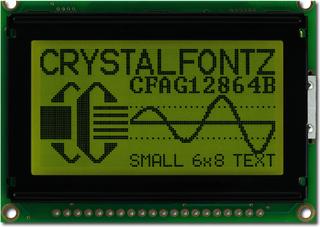

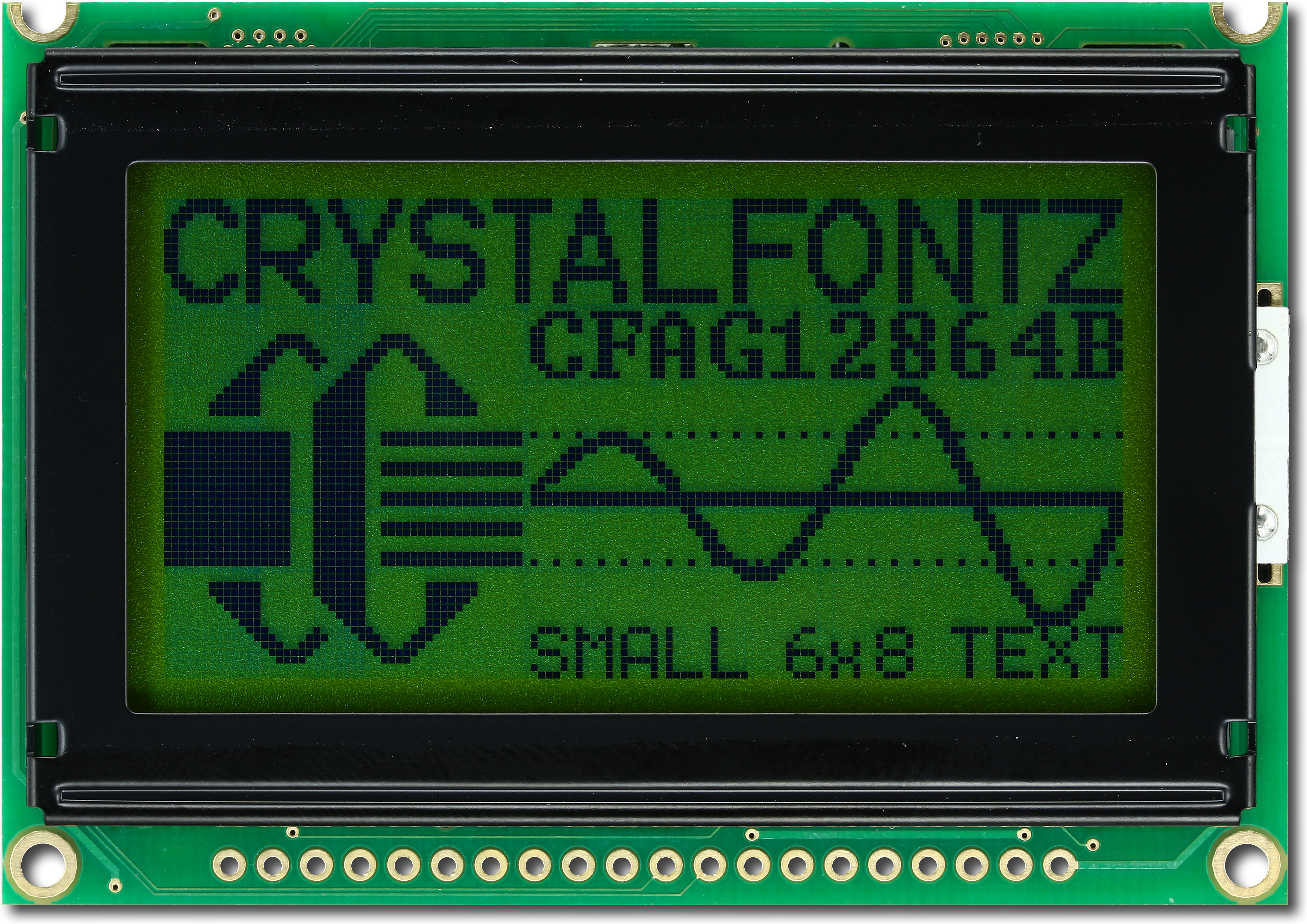

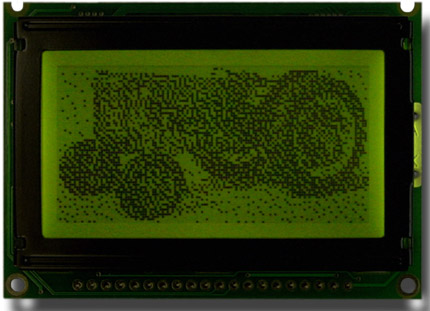

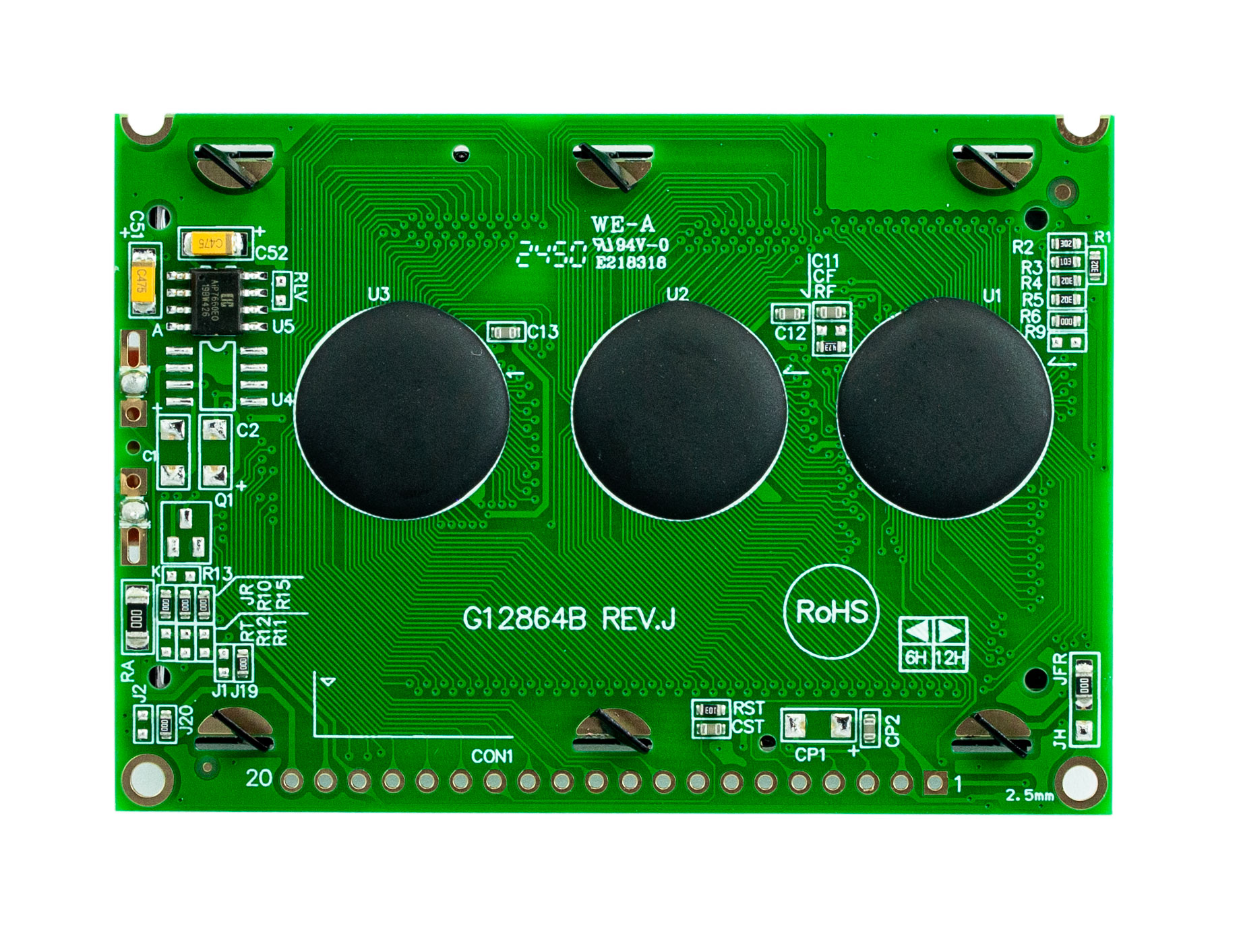

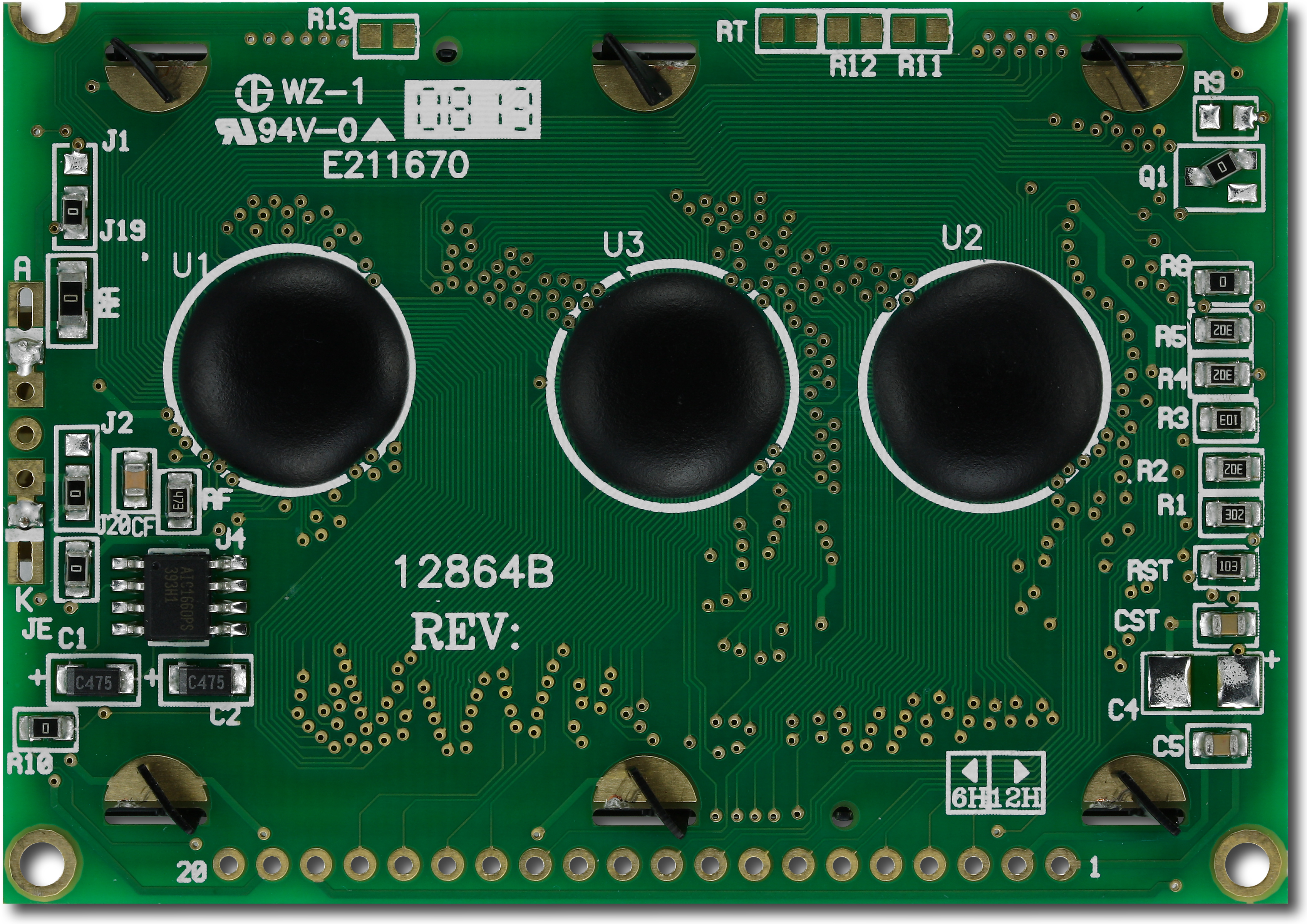

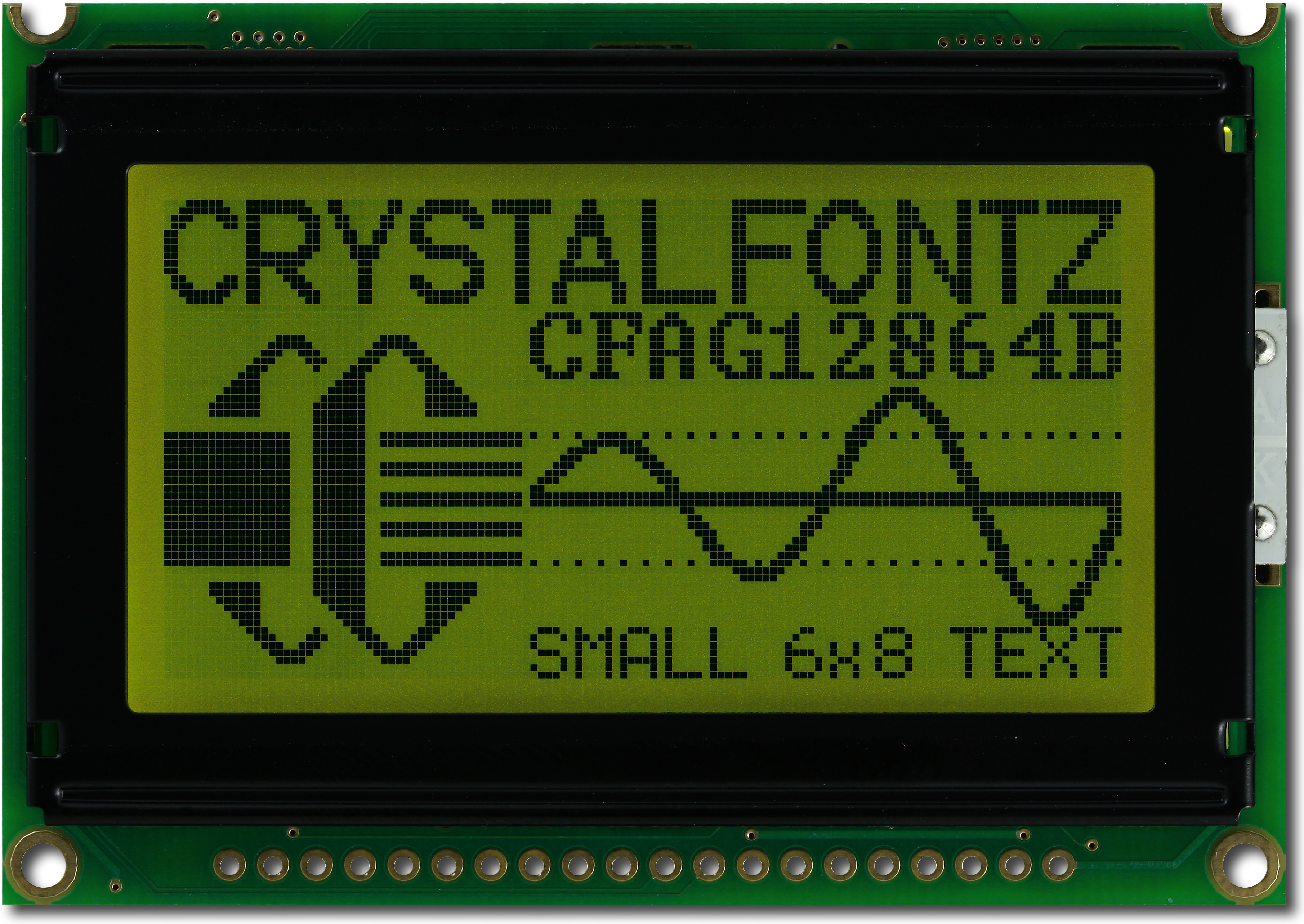

Green 128x64 2.4 inch Graphic LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Graphic

Green 128x64 2.4 inch Graphic LCDPart Number: CFAG12864B-YYH-VWhite letters on blue background 128x64 graphic LCD, with an on-board negative voltage generator.
Backlight: White Edge LED
Glass:  STN Negative, Transmissive
Operating Temp:  -20°C to +70°C
Resolution:128x64 pixels
Controller: Neotec NT7108
Optics:  6:00 viewing direction
Compliance: RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightDark on White
White LED BacklightWhite on Blue
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        75
        52.7
        8.9

        inches
        2.95
        2.08
        0.35

    PCB Outline        width
        height
        depth

        millimeters
        75
        52.7
        8.9

        inches
        2.95
        2.08
        0.35

        Diagonal Dimension
            2.42"

    Viewing Area        Width
        Height

        millimeters
        58.8
        31.4

        inches
        2.32
        1.24

    Active Area        Width
        Height

        millimeters
        55.01
        27.49

        inches
        2.17
        1.08

    Dot Size        Width
        Height

        millimeters
        0.4
        0.4

        inches
        0.016
        0.016

    Dot Pitch        Width
        Height

        millimeters
        0.43
        0.43

        inches
        0.017
        0.017

        Weight
            35g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Neotec NT7108
NT7108

LCD Driver
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864BYYHV Datasheet

Show Previous Versions of Datasheetpicture_as_pdfCFAG12864BYYHV.pdf

 download Files and Downloads
folder_zip CAD Export - CFAG12864B 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12864B 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price: $17.86

            Quantity
            Unit Price

            1
            $17.86

            10
            $15.76

            20 *
            $15.21

            50 *
            $14.69

            100 *
            $14.48

            200 *
            $14.36

            300 *
            $13.64

            500 *
            $13.54

            1000 *
            $12.52

17 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.

Colors	Dark on Yellow-Green Yellow-Green LED Backlight Dark on White White LED Backlight White on Blue White LED Backlight

Module Overall	width	height	depth
millimeters	75	52.7	8.9
inches	2.95	2.08	0.35

PCB Outline	width	height	depth
millimeters	75	52.7	8.9
inches	2.95	2.08	0.35

Viewing Area	Width	Height
millimeters	58.8	31.4
inches	2.32	1.24

Active Area	Width	Height
millimeters	55.01	27.49
inches	2.17	1.08

Dot Size	Width	Height
millimeters	0.4	0.4
inches	0.016	0.016

Dot Pitch	Width	Height
millimeters	0.43	0.43
inches	0.017	0.017

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$17.86
10	$15.76
20 *	$15.21
50 *	$14.69
100 *	$14.48
200 *	$14.36
300 *	$13.64
500 *	$13.54
1000 *	$12.52

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11329: Parts Now Shipping

Products Affected:	CFAG12864B-TFH-V, CFAG12864B-YYH-V, CFAG12864I-STI-TN
Date Issued:	February 28, 2025
Summary:	Parts Now Shipping
Description:	We are now releasing products as stated in PCN11205.

Part Change Notice #11205: Update to PCN# 11169

Products Affected:	CFAG12864A-TMI-VN, CFAG12864A-YYH-VN, CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V, CFAG12864M-TMI-TN, CFAG12864M-YYH-TN, CFAG12864C-TMI-TN, CFAG12864C-YYH-TN, CFAG12864I-STI-TN, CFAG12864I-TMI-TN, CFAG12864I-YYH-TN, CFAG12864A-CFH-VN
Date Issued:	June 26, 2023
Summary:	Update to PCN# 11169
Description:	This is an update to PCN# 11169. The change to these controllers is minimal and it is not expected that any code or hardware will need to be modified to accommodate the new version. We recommend testing the updated versions prior to purchasing production-level orders. Contact support@crystalfontz.com to arrange sample testing.
Reason:	Neotec has EOL'd the NT7107C and NT7108C.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11169: Neotec Controller Change

Products Affected:	CFAG12864A-TMI-VN, CFAG12864A-YYH-VN, CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V, CFAG12864M-TMI-TN, CFAG12864M-YYH-TN, CFAG12864C-TMI-TN, CFAG12864C-YYH-TN, CFAG12864I-STI-TN, CFAG12864I-YYH-TN, CFAG12864A-CFH-VN
Date Issued:	January 16, 2023
Summary:	Neotec Controller Change
Description:	The display controllers used on these displays are being EOL'd and replaced with new controllers. At this time, there is limited information on the replacement display controllers but last time buys are being accepted. Contact sales@crystalfontz.com to place last-time buys. Contact support@crystalfontz.com for the latest update on the replacement parts.
Reason:	Neotec has EOL'd the NT7107C and NT7108C.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #10898: Sunplus Controller Change

Products Affected:	CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V
Date Issued:	November 14, 2017
Summary:	Sunplus Controller Change
Description:	The Sunplus controller used on the current parts is being replaced with a compatible controller. The PCB will be revised as part of this change.
Reason:	The Sunplus controller has been discontinued by the manufacturer.
Impact:	The revision letter of the PCB will change. The function and programming of the revised part will be identical to the current parts. No changes are required by the end user.
Availability:	The new parts will be available when current stock is depleted.
Price Change:	To be determined.
