128x64 Gray Parallel Graphic LCD

Part Number: CFAG12864B-TFH-V

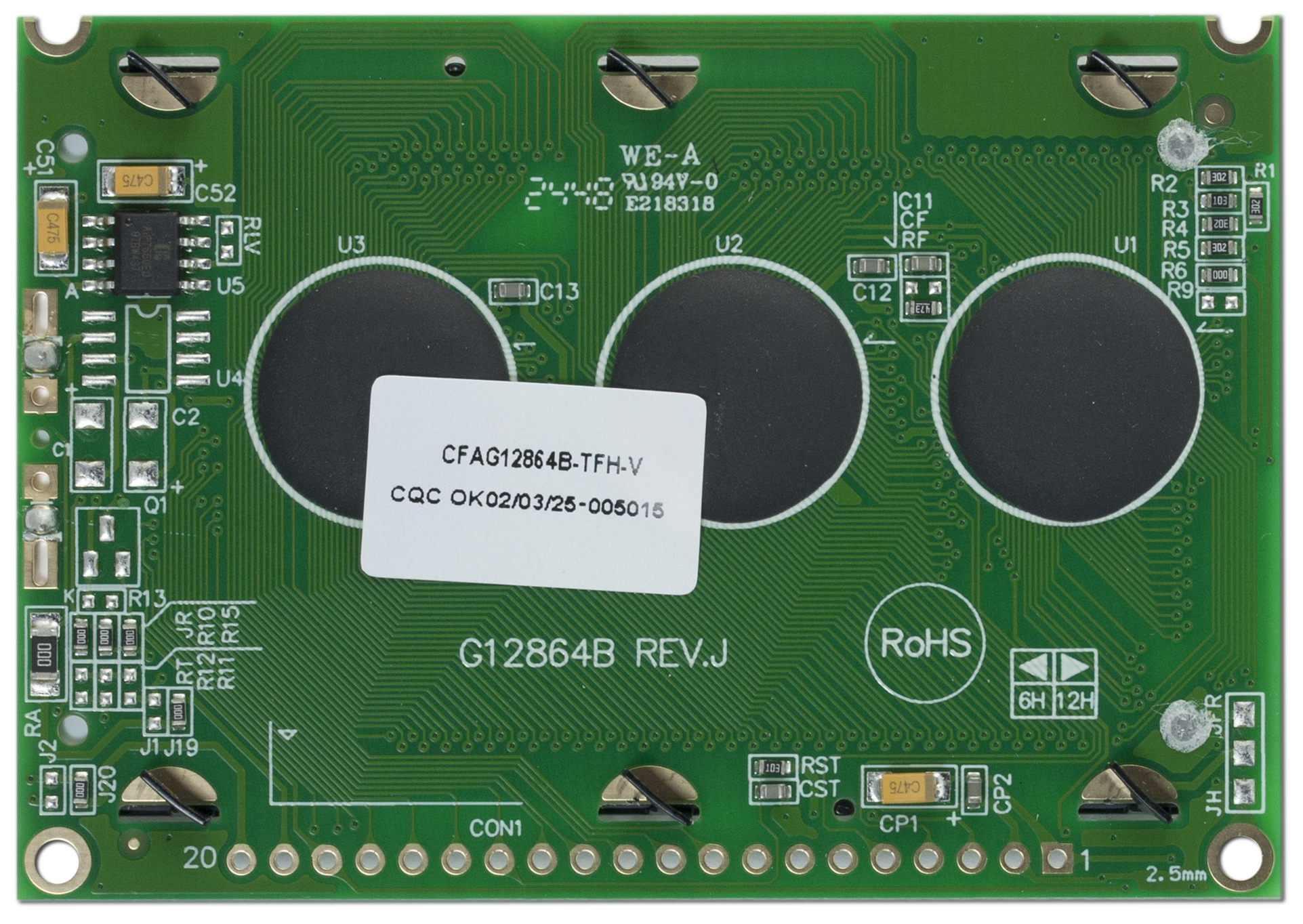

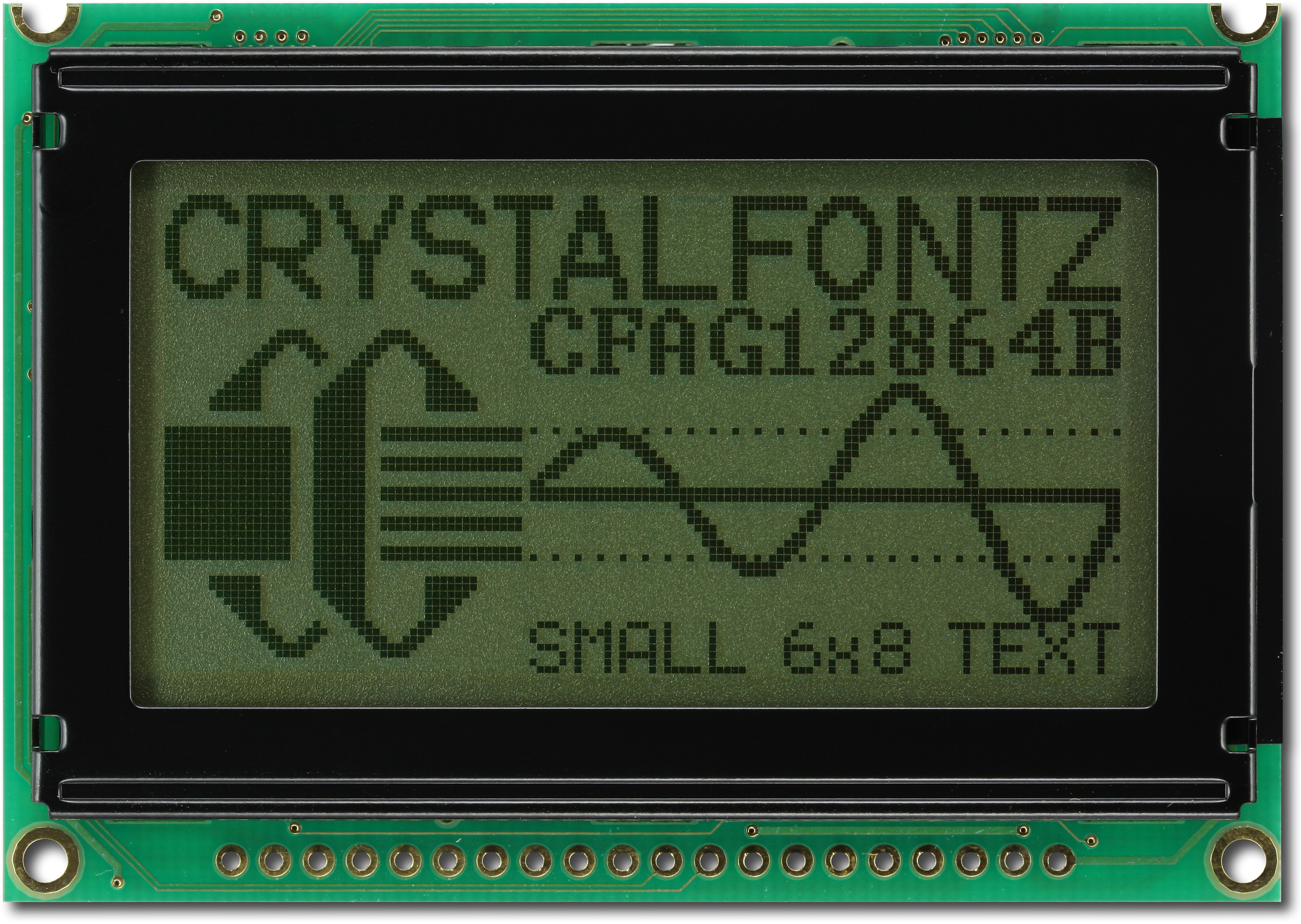

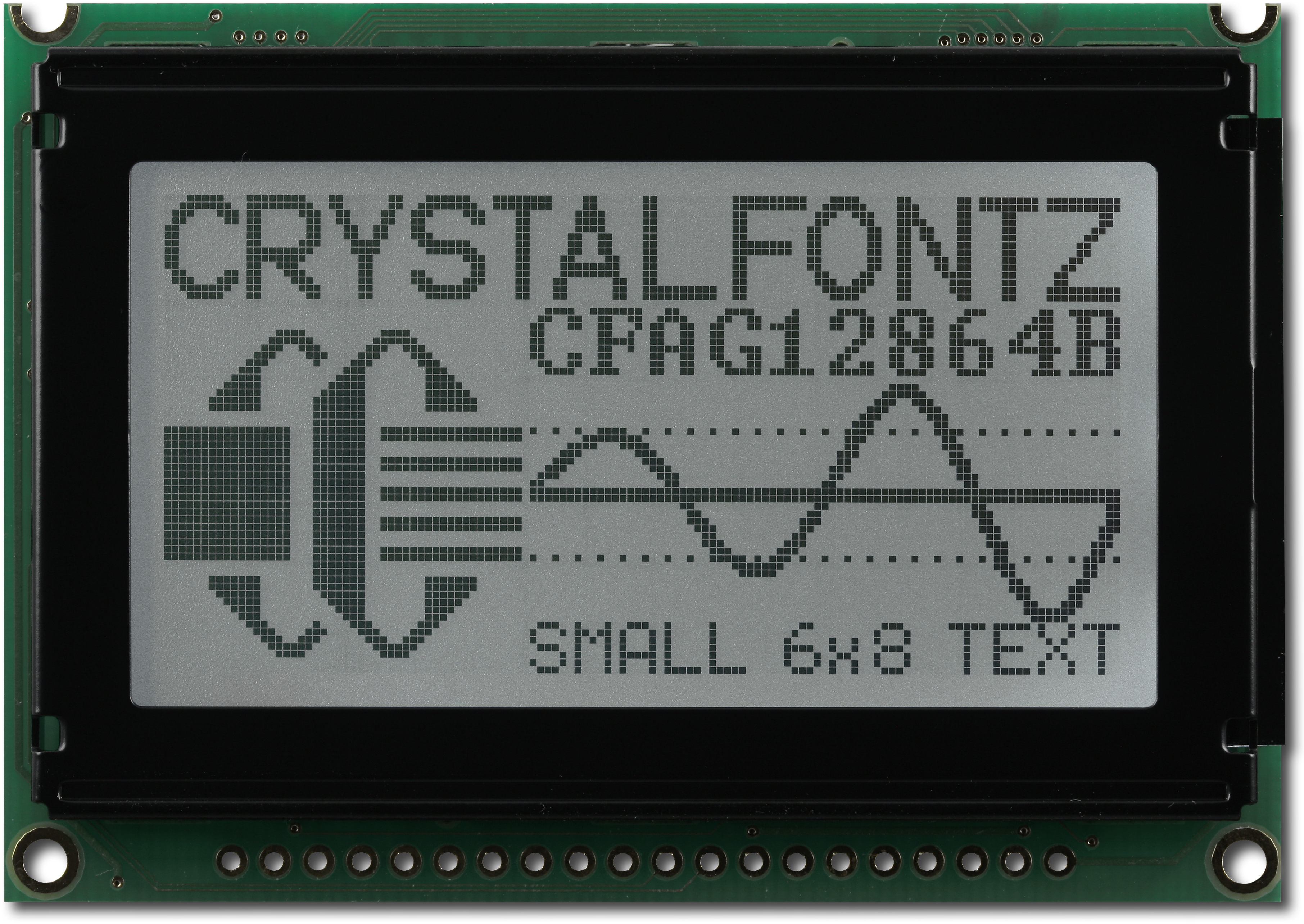

Dark letters on gray background 128x64 graphic LCD, with an on-board negative voltage generator.

  • Glass: FSTN Positive, Transflective
  • Backlight: White Edge LED
  • Compliance: RoHS Compliant
  • Resolution:128x64 pixels
  • Controller: Neotec NT7108
  • Operating Temp: -20°C to +70°C
  • Optics: 6:00 viewing direction

Product Variants

Details128x64 White on Blue Graphic LCD128x64 White on Blue Graphic LCD
8-bit Parallel, White on Blue
Details128x64 Transflective Graphical LCD128x64 Transflective Graphical LCD
8-bit Parallel, Dark on Yellow-Green
  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 128 x 64

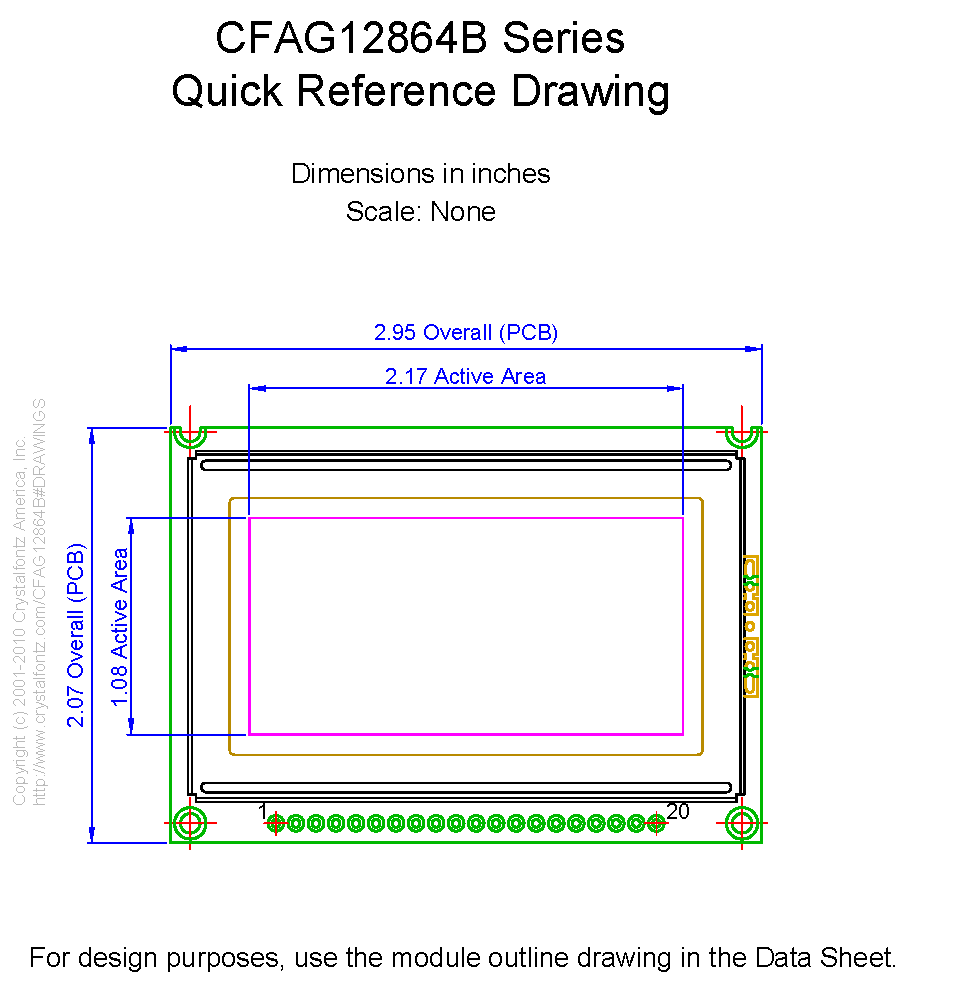

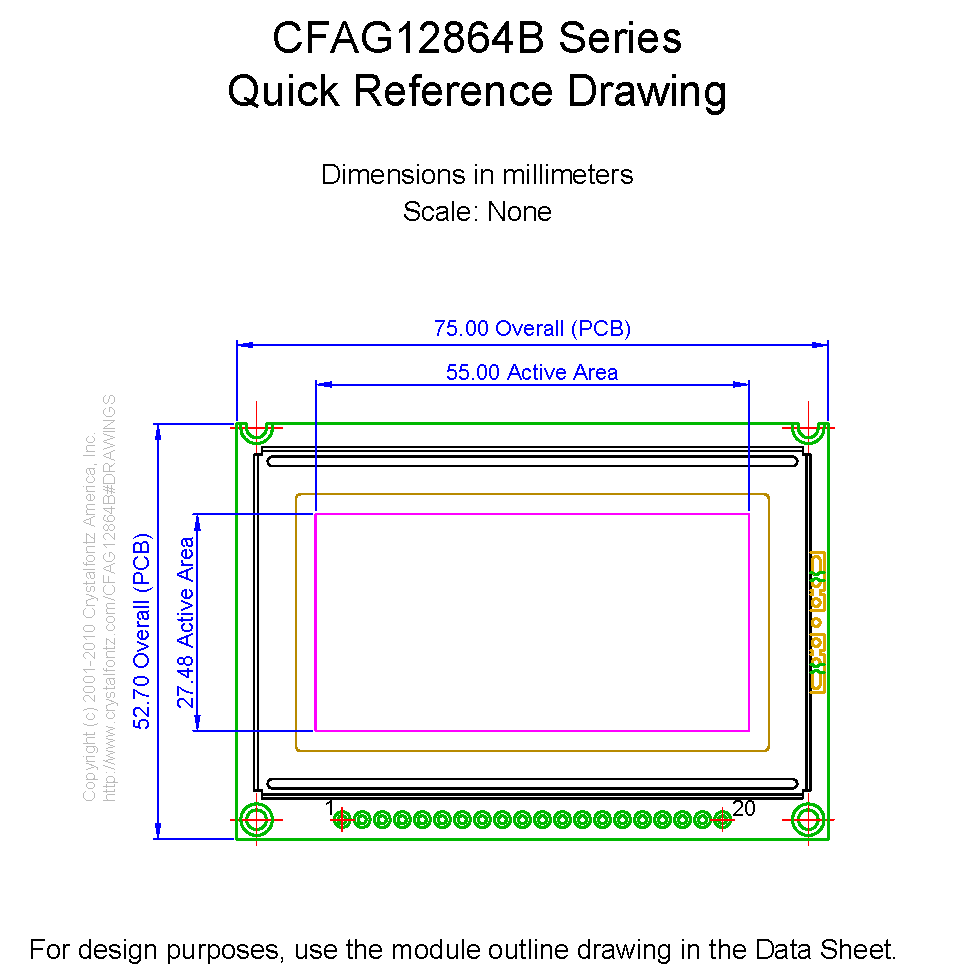

    Module Overall width height depth
    millimeters 75 52.7 8.9
    inches 2.953 2.075 0.350
    PCB Outline width height depth
    millimeters 75 52.7 8.9
    inches 2.953 2.075 0.350
    Diagonal Dimension 2.93"
    Viewing Area Width Height
    millimeters 58.8 31.4
    inches 2.315 1.236
    Active Area Width Height
    millimeters 55.01 27.49
    inches 2.166 1.082
    Dot Size Width Height
    millimeters 0.4 0.4
    inches 0.016 0.016
    Dot Pitch Width Height
    millimeters 0.43 0.43
    inches 0.017 0.017
    Weight 36g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color FSTN/Light Gray
    Polarizer Transflective
    View Direction 6 o'clock
    Sunlight Readable Yes
    Backlight Color White
    Backlight Type LED
    Mode Positive
    Foreground Color Dark
    Background Color White
  • electric_bolt Electrical Specification

    Electrical Specifications

    Module Connector Pitch 0.1mm
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics

    Electronics

    Controller Documents Neotec NT7108
    NT7108
    LCD Driver
    Interface 8-bit Parallel
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Price
1 $19.92
5 $16.67
10 $16.19
20 $15.72
50 $15.14
100 $14.95
200 $14.86
300 $14.02
500 $13.93
1000 * $12.88
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4694 LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG12864B-TFH-V or RSS RSS feed for changes to CFAG12864B-TFH-V
  • text_snippet
    Part Change Notice #11205: Update to PCN# 11169
    Products Affected: CFAG12864A-TMI-VN, CFAG12864A-YYH-VN, CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V, CFAG12864M-TMI-TN, CFAG12864M-YYH-TN, CFAG12864C-TMI-TN, CFAG12864C-YYH-TN, CFAG12864I-STI-TN, CFAG12864I-TMI-TN, CFAG12864I-YYH-TN, CFAG12864A-CFH-VN
    Date Issued: June 26, 2023
    Summary: Update to PCN# 11169
    Description: This is an update to PCN# 11169. The change to these controllers is minimal and it is not expected that any code or hardware will need to be modified to accommodate the new version. We recommend testing the updated versions prior to purchasing production-level orders. Contact support@crystalfontz.com to arrange sample testing.
    Reason: Neotec has EOL'd the NT7107C and NT7108C.
    Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
  • text_snippet
    Part Change Notice #11169: Neotec Controller Change
    Products Affected: CFAG12864A-TMI-VN, CFAG12864A-YYH-VN, CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V, CFAG12864M-TMI-TN, CFAG12864M-YYH-TN, CFAG12864C-TMI-TN, CFAG12864C-YYH-TN, CFAG12864I-STI-TN, CFAG12864I-YYH-TN, CFAG12864A-CFH-VN
    Date Issued: January 16, 2023
    Summary: Neotec Controller Change
    Description: The display controllers used on these displays are being EOL'd and replaced with new controllers. At this time, there is limited information on the replacement display controllers but last time buys are being accepted.

    Contact sales@crystalfontz.com to place last-time buys.

    Contact support@crystalfontz.com for the latest update on the replacement parts.
    Reason: Neotec has EOL'd the NT7107C and NT7108C.
    Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
  • text_snippet
    Part Change Notice #10898: Sunplus Controller Change
    Products Affected: CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V
    Date Issued: November 14, 2017
    Summary: Sunplus Controller Change
    Description: The Sunplus controller used on the current parts is being replaced with a compatible controller. The PCB will be revised as part of this change.
    Reason: The Sunplus controller has been discontinued by the manufacturer.
    Impact: The revision letter of the PCB will change. The function and programming of the revised part will be identical to the current parts. No changes are required by the end user.
    Availability: The new parts will be available when current stock is depleted.
    Price Change: To be determined.
  • text_snippet
    Part Change Notice #10012:
    Products Affected: CFAG12864B-TMI-V, CFAG12864B-TFH-V
    Date Issued: February 5, 2009
    Description: Specification change for backlight lifetime.
    Reason: We have had some reports of reduced lifetime of the white LED backlight of the CFAG12864B series.
    Impact: Until the root cause of the reduced lifetime is determined and corrected, we are reducing the recommended maximum backlight current from 60mA to 45mA, and decreasing the expected lifetime from 10K hours to 5K hours for all modules with white LED backlights in this series. We are actively pursuing a revised backlight design that will ensure better lifetime. We will issue an updated Parts Change Notification when the new modules are shipping. At that time, the backlight lifetime specifications in this Data Sheet will be updated to reflect the new design.
