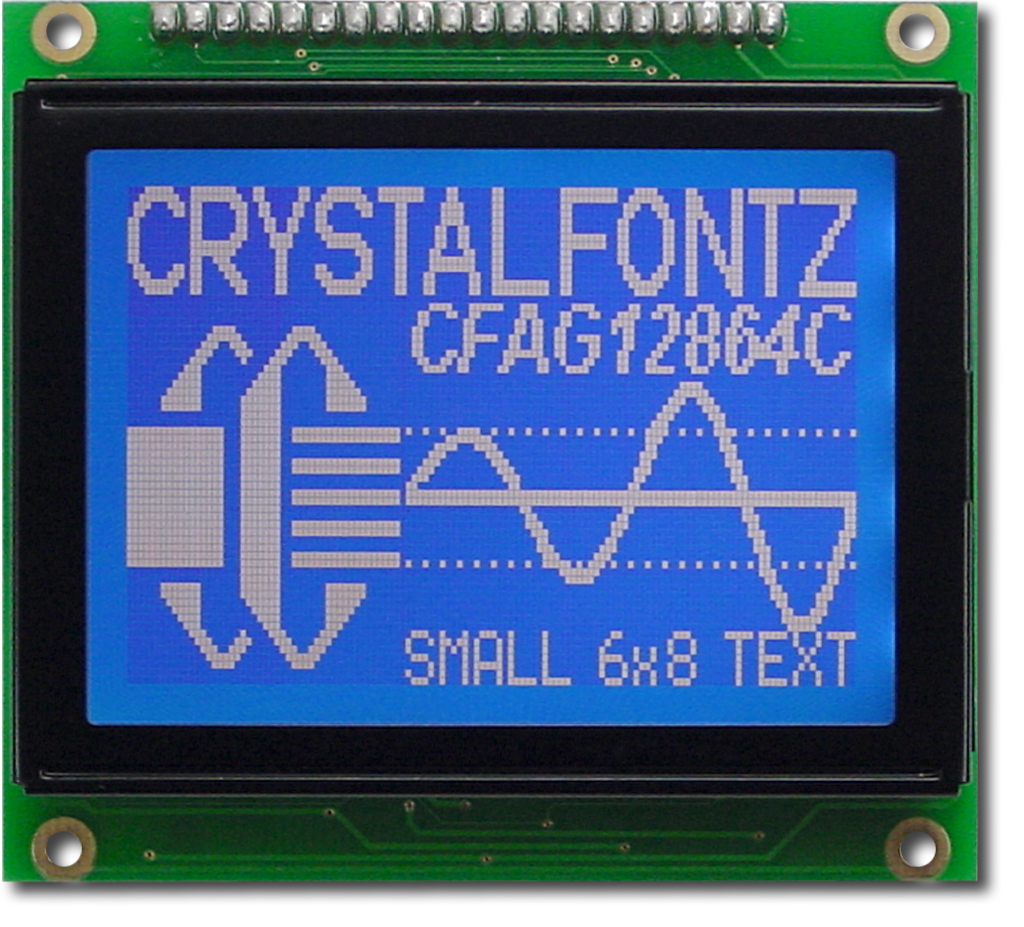

Transmissive 128x64 Graphic LCDPart Number: CFAG12864C-TMI-TN128x64 graphic LCD with White Characters on blue background, temperature compensation and on-board negative voltage generator.
Glass:  STN Negative, Transmissive
Backlight: White Edge LED
Compliance: RoHS Compliant
Resolution:128x64 pixels
Controller: Neotec NT7108
Operating Temp:  -20°C to +70°C
Optics:  6:00 viewing direction
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED Backlight

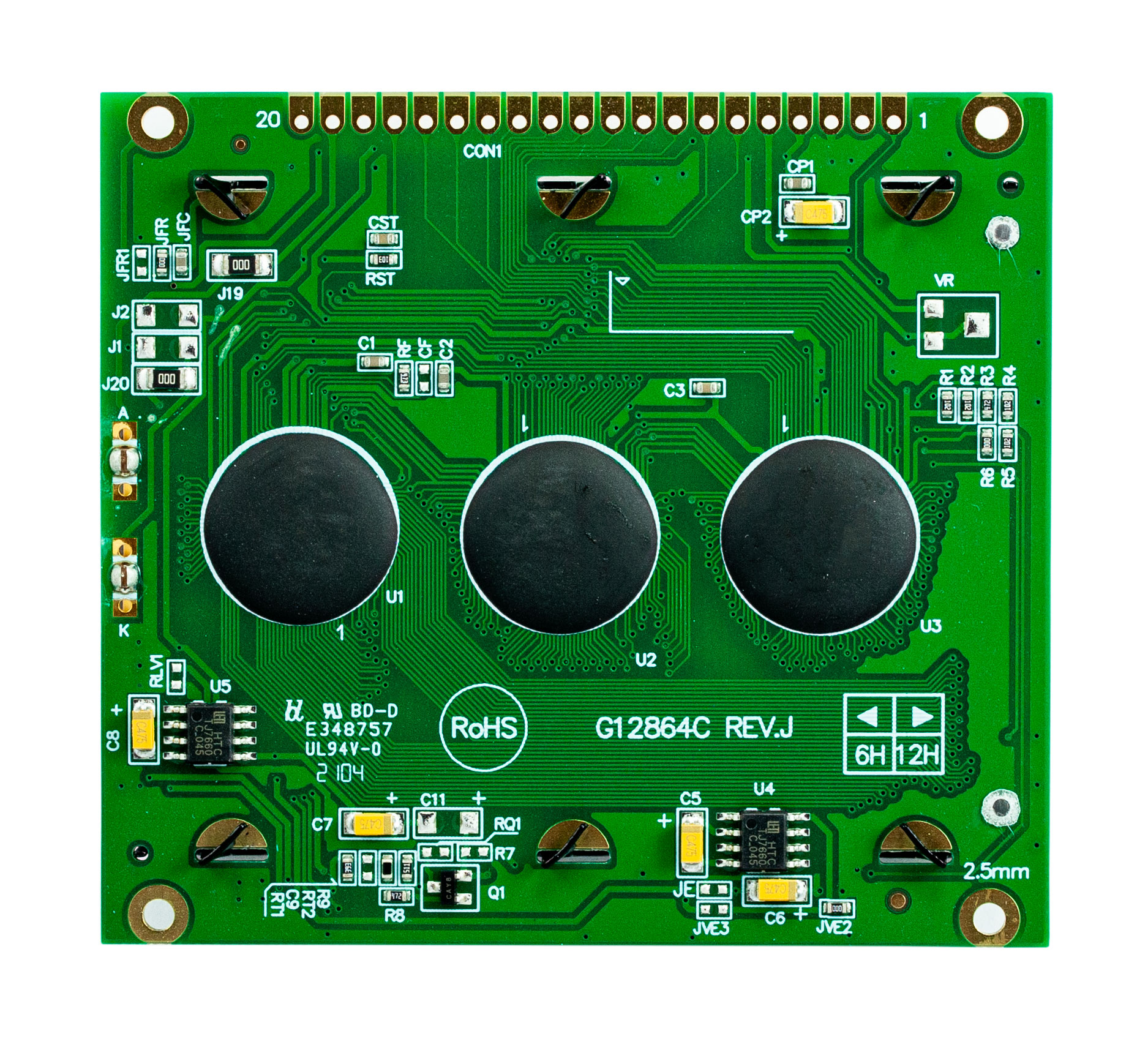

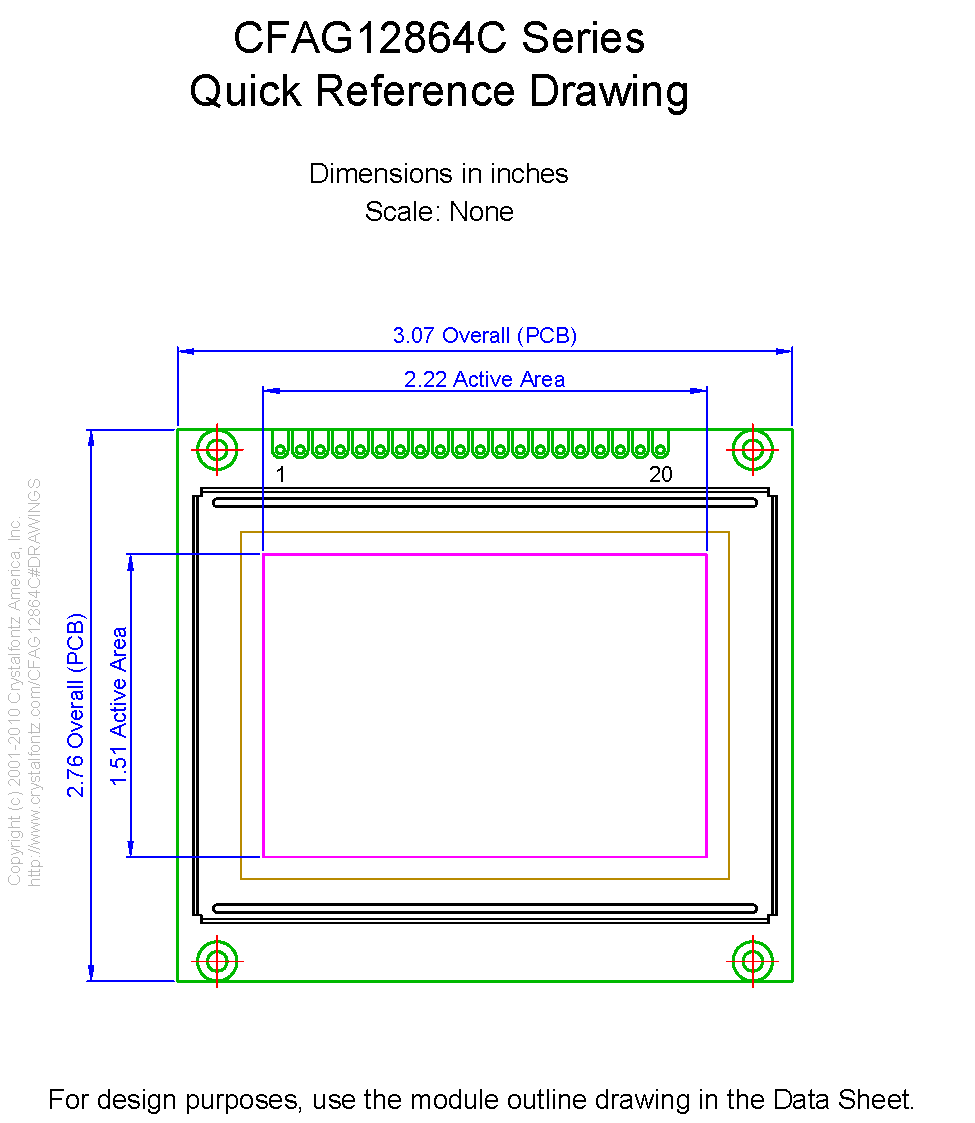

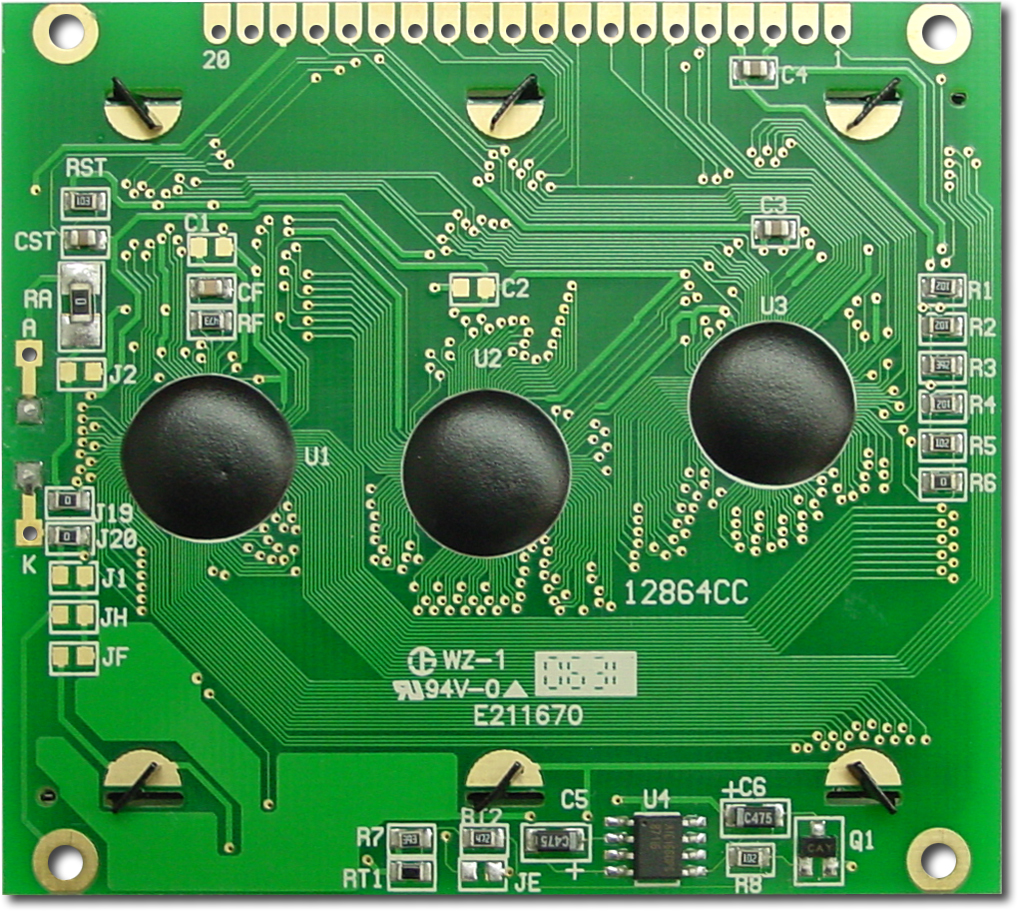

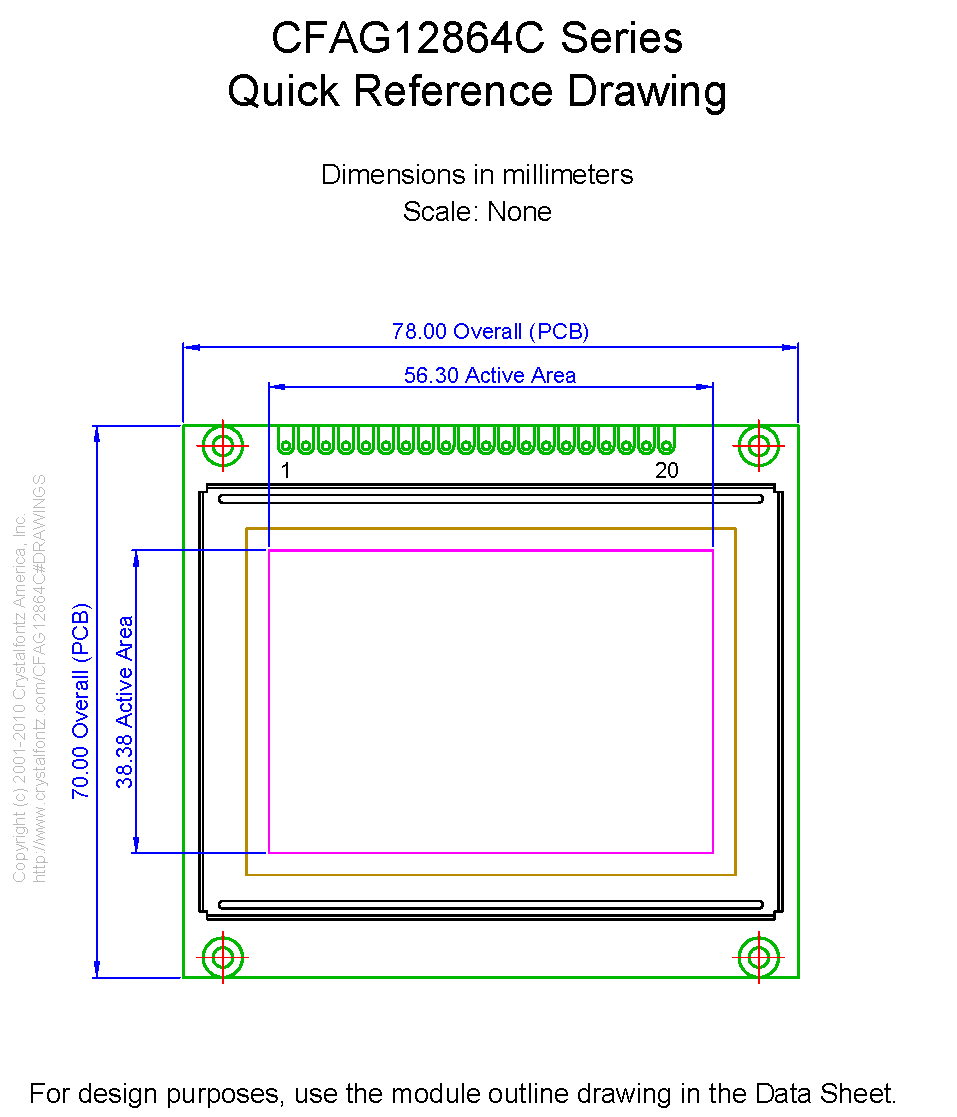

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64


    Module Overall        width
        height
        depth


        millimeters
        78
        70
        14.3


        inches
        3.07
        2.76
        0.56



    PCB Outline        width
        height
        depth


        millimeters
        78
        70
        14.3


        inches
        3.07
        2.76
        0.56



        Diagonal Dimension
            2.68"


    Viewing Area        Width
        Height


        millimeters
        62
        44


        inches
        2.44
        1.73



    Active Area        Width
        Height


        millimeters
        56.28
        38.36


        inches
        2.22
        1.51



    Dot Size        Width
        Height


        millimeters
        0.4
        0.56


        inches
        0.016
        0.022



    Dot Pitch        Width
        Height


        millimeters
        0.44
        0.6


        inches
        0.017
        0.024



        Weight
            75g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            3.5V


        Supply Current Minimum
            3.4mA
Supply Current Maximum
            3.6mA
Supply Current Typical
            64mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            2mA
Forward Current Maximum
            8mA
Forward Current Typical
            4mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Neotec NT7108
NT7108

LCD Driver
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864CTMITN Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAG12864CTMITN v1.0.pdf
(Datasheet V 1.0)
 download Files and Downloads
folder_zip CAD Export - CFAG12864C-TMI-YYH 2D CAD.ZIP
picture_as_pdf 1 to 1 Template - CFAG12864C 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $22.89

            10
            $19.91

            20
            $19.61

            50
            $19.31

            100
            $18.87

            200 *
            $18.60

            500 *
            $16.65

            1000 *
            $15.42

161 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.





Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight

Module Overall	width	height	depth
millimeters	78	70	14.3
inches	3.07	2.76	0.56

PCB Outline	width	height	depth
millimeters	78	70	14.3
inches	3.07	2.76	0.56

Viewing Area	Width	Height
millimeters	62	44
inches	2.44	1.73

Active Area	Width	Height
millimeters	56.28	38.36
inches	2.22	1.51

Dot Size	Width	Height
millimeters	0.4	0.56
inches	0.016	0.022

Dot Pitch	Width	Height
millimeters	0.44	0.6
inches	0.017	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$22.89
10	$19.91
20	$19.61
50	$19.31
100	$18.87
200 *	$18.60
500 *	$16.65
1000 *	$15.42

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11205: Update to PCN# 11169

Products Affected:	CFAG12864A-TMI-VN, CFAG12864A-YYH-VN, CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V, CFAG12864M-TMI-TN, CFAG12864M-YYH-TN, CFAG12864C-TMI-TN, CFAG12864C-YYH-TN, CFAG12864I-STI-TN, CFAG12864I-TMI-TN, CFAG12864I-YYH-TN, CFAG12864A-CFH-VN
Date Issued:	June 26, 2023
Summary:	Update to PCN# 11169
Description:	This is an update to PCN# 11169. The change to these controllers is minimal and it is not expected that any code or hardware will need to be modified to accommodate the new version. We recommend testing the updated versions prior to purchasing production-level orders. Contact support@crystalfontz.com to arrange sample testing.
Reason:	Neotec has EOL'd the NT7107C and NT7108C.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11169: Neotec Controller Change

Products Affected:	CFAG12864A-TMI-VN, CFAG12864A-YYH-VN, CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V, CFAG12864M-TMI-TN, CFAG12864M-YYH-TN, CFAG12864C-TMI-TN, CFAG12864C-YYH-TN, CFAG12864I-STI-TN, CFAG12864I-YYH-TN, CFAG12864A-CFH-VN
Date Issued:	January 16, 2023
Summary:	Neotec Controller Change
Description:	The display controllers used on these displays are being EOL'd and replaced with new controllers. At this time, there is limited information on the replacement display controllers but last time buys are being accepted. Contact sales@crystalfontz.com to place last-time buys. Contact support@crystalfontz.com for the latest update on the replacement parts.
Reason:	Neotec has EOL'd the NT7107C and NT7108C.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
