Black on Yellow-Green 128x64 Graphic LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Graphic

                        This display is going End-of-Life so we reduced the price by 50% on the remaining inventory.

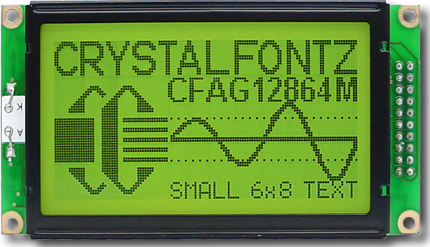

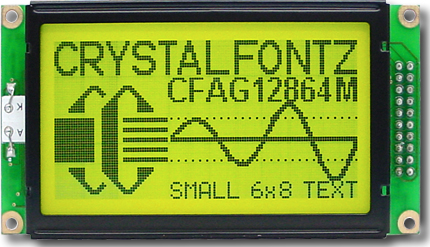

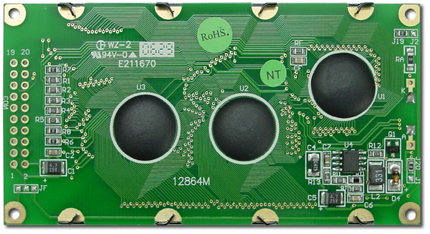

Black on Yellow-Green 128x64 Graphic LCDPart Number: CFAG12864M-YYH-TNSunlight Readable 128x64 Graphic LCD with temperature compensation and on-board negative voltage generator.
Resolution: 128x64 pixels
Optics: 6:00 viewing direction
Glass: STN Positive, Transflective
Controller: Neotec NT7107 (Samsung KS0107/KS0108 Compatible)
Operating Temp:  -20°C to +70°C
Compliance: RoHS Compliant

Order Soon! We only have 6 left!Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        95.5
        50.2
        13.6

        inches
        3.76
        1.98
        0.54

    PCB Outline        width
        height
        depth

        millimeters
        95.5
        50.2
        13.6

        inches
        3.76
        1.98
        0.54

        Diagonal Dimension
            2.93"

    Viewing Area        Width
        Height

        millimeters
        72
        40

        inches
        2.84
        1.58

    Active Area        Width
        Height

        millimeters
        66.52
        33.24

        inches
        2.62
        1.31

    Dot Size        Width
        Height

        millimeters
        0.48
        0.48

        inches
        0.019
        0.019

    Dot Pitch        Width
        Height

        millimeters
        0.52
        0.52

        inches
        0.020
        0.020

        Weight
            33g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Neotec NT7107
NT7107

LCD Driver
Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG12864MYYHTN Datasheet

download Files and Downloads

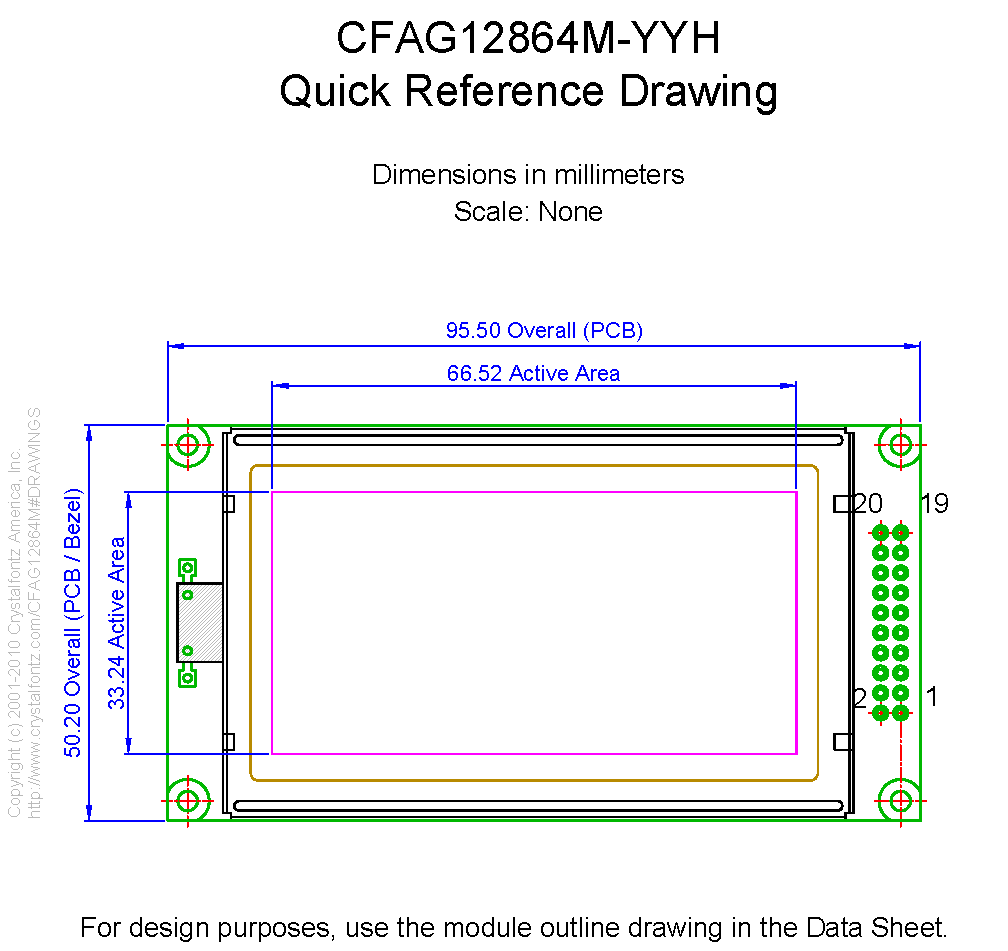

folder_zip CAD Export - CFAG12864M-YYH 2D CAD

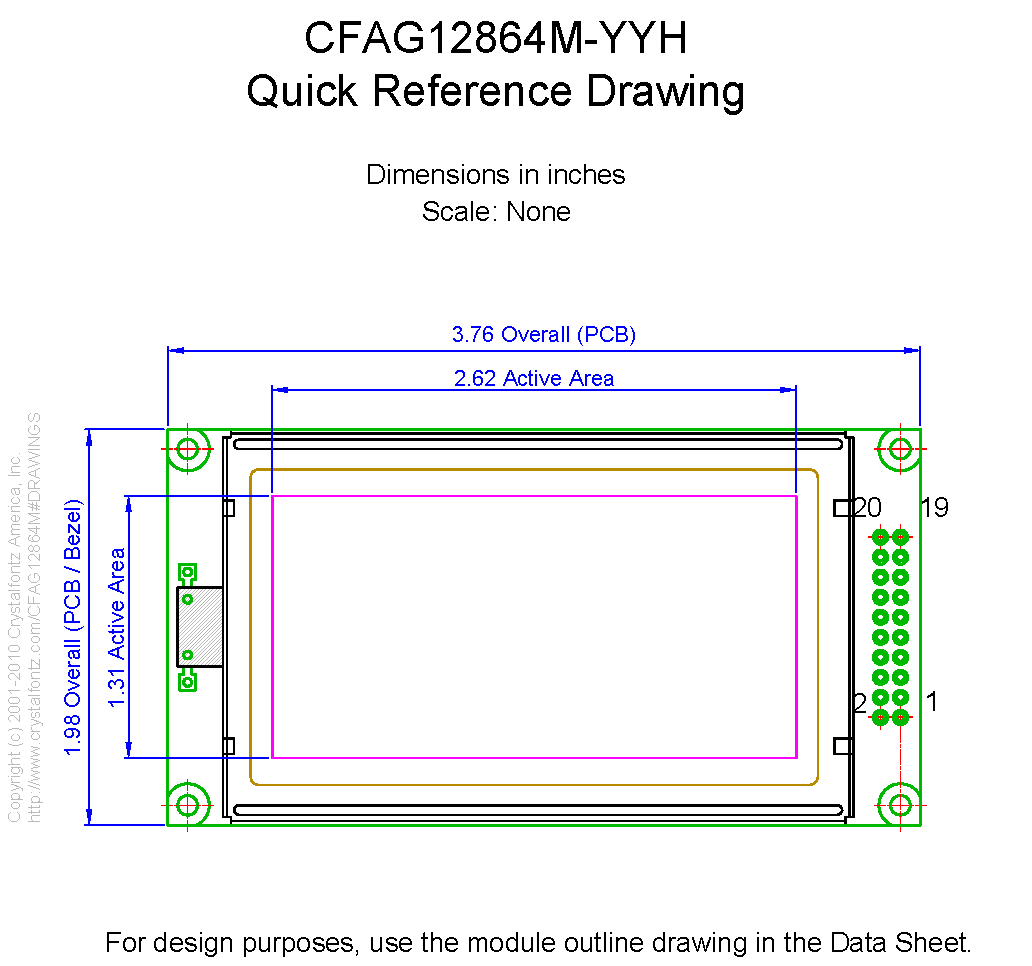

picture_as_pdf 1 to 1 Template - CFAG12864M-YYH 1 TO 1.PDF
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $13.33

6 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.

						72 Pin Header
Add header pins (5pk)? $0.66 ea.

Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight

Module Overall	width	height	depth
millimeters	95.5	50.2	13.6
inches	3.76	1.98	0.54

PCB Outline	width	height	depth
millimeters	95.5	50.2	13.6
inches	3.76	1.98	0.54

Viewing Area	Width	Height
millimeters	72	40
inches	2.84	1.58

Active Area	Width	Height
millimeters	66.52	33.24
inches	2.62	1.31

Dot Size	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Dot Pitch	Width	Height
millimeters	0.52	0.52
inches	0.020	0.020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$13.33

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11205: Update to PCN# 11169

Products Affected:	CFAG12864A-TMI-VN, CFAG12864A-YYH-VN, CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V, CFAG12864M-TMI-TN, CFAG12864M-YYH-TN, CFAG12864C-TMI-TN, CFAG12864C-YYH-TN, CFAG12864I-STI-TN, CFAG12864I-TMI-TN, CFAG12864I-YYH-TN, CFAG12864A-CFH-VN
Date Issued:	June 26, 2023
Summary:	Update to PCN# 11169
Description:	This is an update to PCN# 11169. The change to these controllers is minimal and it is not expected that any code or hardware will need to be modified to accommodate the new version. We recommend testing the updated versions prior to purchasing production-level orders. Contact support@crystalfontz.com to arrange sample testing.
Reason:	Neotec has EOL'd the NT7107C and NT7108C.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11169: Neotec Controller Change

Products Affected:	CFAG12864A-TMI-VN, CFAG12864A-YYH-VN, CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V, CFAG12864M-TMI-TN, CFAG12864M-YYH-TN, CFAG12864C-TMI-TN, CFAG12864C-YYH-TN, CFAG12864I-STI-TN, CFAG12864I-YYH-TN, CFAG12864A-CFH-VN
Date Issued:	January 16, 2023
Summary:	Neotec Controller Change
Description:	The display controllers used on these displays are being EOL'd and replaced with new controllers. At this time, there is limited information on the replacement display controllers but last time buys are being accepted. Contact sales@crystalfontz.com to place last-time buys. Contact support@crystalfontz.com for the latest update on the replacement parts.
Reason:	Neotec has EOL'd the NT7107C and NT7108C.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAG12864M-YYH-TN

Finding the LCD you need?

Need some help?

Search by Tech Spec
Search by size, controller, interface, etc
Ask our product support team
We're here to help! 8:30-4:30 PST 888.206.9720
Product Notices
Sign-up for part change or update notices
Newest products!
We're adding new displays all the time.

Purchasing Resources

Quick Order
Know your part number? Checkout fast!
Request a Quote
Get pricing and lead time info!
Our ISO 9001:2015 Certificate
Of course we're ISO 9001:2015 certified
Conflict Mineral Reporting Template
Download our latest CMRT
California Prop 65
Proposition 65 Information
Payment Information
We accept many payment methods

Builder Resources

Popular LCD Searches

Help Us Improve Our Product Offerings?

Black on Yellow-Green 128x64 Graphic LCD

Part Number: CFAG12864M-YYH-TN

Order Soon! We only have 6 left!

Product Variations

Colors

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11205: Update to PCN# 11169

Part Change Notice #11169: Neotec Controller Change

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Yellow-Green
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	Yellow-Green
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	Yellow-Green

Controller Documents	Neotec NT7107 NT7107 LCD Driver
Interface	8-bit Parallel
